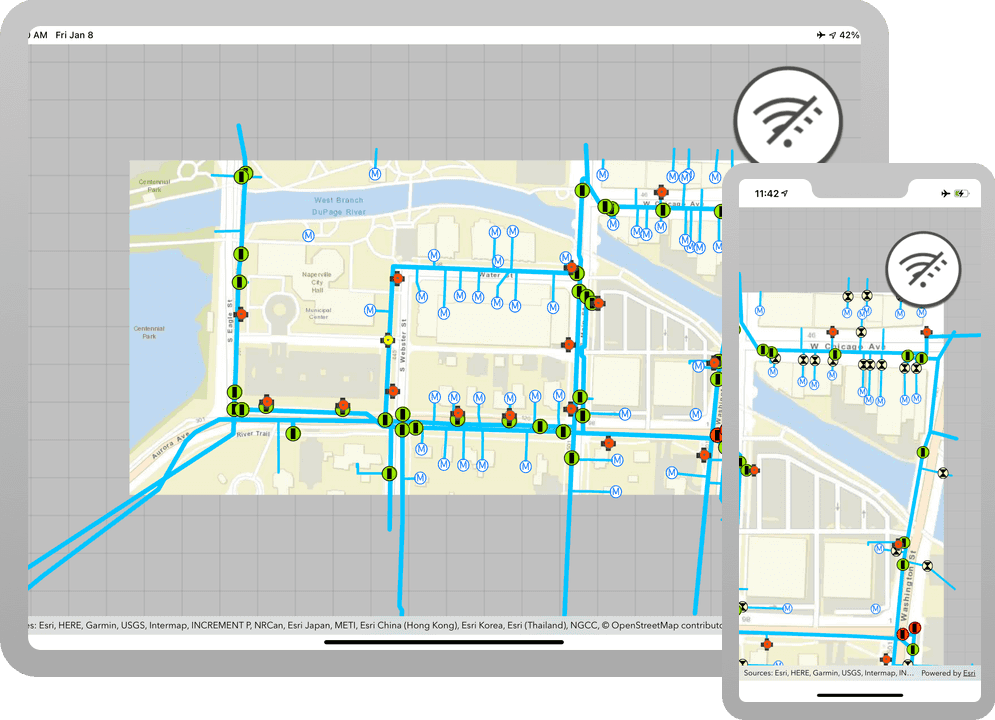

Display an offline map (Custom)

Learn how to download and display an offline map for a user-defined geographical area of a web map.

display offline map custom

Offline maps allow users to continue working when network connectivity is poor or lost. If a web map is enabled for offline use, a user can request that ArcGIS generates an offline map for a specified geographic area of interest.

In this tutorial, you will download an offline map for an area of interest from the web map of the stormwater network within Naperville, IL, USA. You can then use this offline map without a network connection.

Prerequisites

The following are required for this tutorial:

  1. An ArcGIS account to access your API keys. If you don't have an account, sign up for free.
  2. Your system meets the system requirements.
  3. The ArcGIS Runtime API for iOS is installed.

Steps

Open an Xcode project

  1. To start the tutorial, complete the Display a web map tutorial or download and unzip the solution.

  2. Open the .xcodeproj file in Xcode.

Set the API Key

An API Key enables access to services, web maps, and web scenes hosted in ArcGIS Online.

  1. Go to your developer dashboard to get your API key. For these tutorials, use your default API key. It is scoped to include all of the services demonstrated in the tutorials.

  2. In Xcode, in the Project Navigator, click AppDelegate.swift.

  3. In the editor, set the apiKey property on the AGSArcGISRuntimeEnvironment with your API key.


    AppDelegate.swift
    Change line

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    // Copyright 2021 Esri
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.


    import UIKit

    import ArcGIS


    @UIApplicationMain
    class AppDelegate: UIResponder, UIApplicationDelegate {
        var window: UIWindow?

        func application(_ application: UIApplication,
                         didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
            // Note: it is not best practice to store API keys in source code.
            // The API key is referenced here for the convenience of this tutorial.

            AGSArcGISRuntimeEnvironment.apiKey = "YOUR_API_KEY"

            return true
        }

    }


Get the web map item ID

You can use ArcGIS tools to create and view web maps. Use the Map Viewer to identify the web map item ID. This item ID will be used later in the tutorial.

  1. Go to the Naperville water network in the Map Viewer in ArcGIS Online. This web map displays a stormwater network within Naperville, Illinois, USA.

  2. Make a note of the item ID at the end of the browser's URL.

    The item ID should be 5a030a31e42841a89914bd7c5ecf4d8f.

Display the web map

You can display a web map using the web map's item ID. Create an AGSMap from the web map's AGSPortalItem, and display it in your app's AGSMapView.

  1. In Xcode, in the Project Navigator, click ViewController.swift.

  2. In the editor, modify the setupMap() function. Provide the web map's item ID.

    The code creates an AGSPortalItem using the AGSPortal that references ArcGIS Online, and the web map's itemID. The portalItem is used to create an AGSMap that is displayed in the app's AGSMapView.

    ViewController.swift
    Change lineChange lineChange lineChange lineChange lineChange lineChange line
    33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 32 31 30 29 29 29 29 29 30 31 32 33 34 35 36 37 38 39 40 40 40 40 39 38 37 36 35 34 33 32 31 30 29 28 27 27 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 5 5 4 3 2 1 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19 -19
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }


Setup the UI

Setup your UI with a button that allows your users to select an area to download using an AGSGenerateOfflineMapJob. Then, add a UIProgressView that reports the job's progress to your user.

  1. Create a method named userSelectedDownloadOfflineMap:() and assign it the @objc keyword.

    The @objc method keyword exposes the method to Objective-C, a necessary step for using the UIBarButtonItem API.


    For now, leave the body of the method blank.

    ViewController.swift
    Add line.Add line.Add line.Add line.
    86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 85 84 83 82 82 82 82 82 82 82 82 82 82 82 82 82 82 82 82 82 82 82 81 80 79 77 75 73 71 69 67 65 63 62 61 61 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 39 39 40 41 42 42 42 42 42 42 42 42 42 42 42 43 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 -1 -2 -3 -4 -4
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  2. Create a private method to setup the app's UI. Within it, create a UIProgressView and assign it to navigationItem.titleView.

    ViewController.swift
    Add line.Add line.Add line.Add line.
    47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 46 45 44 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 44 45 46 46 46 46 46 46 46 46 46 47 47 47 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 25 25 25 25 25 24 23 22 21 20 19 18 17 16 15 15 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30 -31 -32 -32
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  3. Reveal the navigation controller's toolbar and create a UIBarButtonItem that allows your user to select an area of the map to take offline.

    The code creates an array of three UIBarButtonItem objects. The first and last objects reserve flexible space within the toolbar and the middle object is the download button. The button's title reads, "Download Map Area", and tapping it performs the method userSelectedDownloadOfflineMap:().

    ViewController.swift
    Add line.Add line.Add line.Add line.Add line.Add line.Add line.
    47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 46 45 44 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 43 44 45 46 47 48 49 50 51 52 53 54 55 55 55 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 33 33 33 33 33 32 31 30 29 28 27 26 25 24 23 23 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -24
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  4. In the viewDidLoad() method, call setupUI().

    ViewController.swift
    Add line.
    20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 21 22 23 24 25 26 27 27 27 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 6 6 6 6 6 5 4 3 2 1 0 -1 -2 -3 -4 -4 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30 -31 -32 -33 -34 -35 -36 -37 -38 -39 -40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50 -51 -51
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  5. In Xcode, in the Project Navigator, click Main.storyboard.

  6. In the editor, select ViewController, and in the menu bar, click Editor > Embed In > Navigation Controller.

    Embedding ViewController within a Navigation Controller will place a navigation bar at the top of ViewController. Inside the navigation bar you will find the progress view.

Setup the offline area graphics

A graphics overlay is a container for graphics. A graphic is added to display the selected offline area on the map.

  1. In Xcode, in the Project Navigator, click ViewController.swift.

  2. In the editor, create a private AGSGraphicsOverlay property to contain an offline area graphic.

    ViewController.swift
    Add line.
    62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 61 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 61 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 61 61 61 61 61 61 60 59 58 57 56 55 54 53 52 51 51 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 4
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  3. Define a private method to setup the graphics overlay. In the method, create an AGSSimpleRenderer to render graphics. Define a symbol for the renderer using an AGSSimpleFillSymbol and an AGSSimpleLineSymbol.

    ViewController.swift
    Add line.Add line.Add line.Add line.Add line.Add line.Add line.Add line.Add line.Add line.Add line.Add line.Add line.Add line.
    62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 61 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 77 77 77 77 76 76 76 76 76 76 75 74 73 72 71 70 69 68 67 66 66 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 19
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  4. Define a private method named that adds a graphic to the graphics overlay for the supplied offlineArea geometry.

    ViewController.swift
    Add line.Add line.Add line.Add line.
    62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 61 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 81 81 81 81 81 81 80 79 78 77 76 75 74 73 72 71 71 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 24
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  5. In the viewDidLoad() method, call setupGraphicsOverlay().

    ViewController.swift
    Add line.
    20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 21 22 23 24 25 26 27 28 29 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 29 28 27 26 25 24 23 22 21 20 20 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -27
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }


Download the map for offline use

When a user specifies an area of the web map to take offline, a number of tasks are performed.

  1. Create a private computed URL property named temporaryDirectoryURL. This computed property will generate a unique URL at which to store the offline map on the device.

    ViewController.swift
    Add line.Add line.Add line.Add line.
    86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 87 88 89 89 89 89 89 89 89 89 89 89 89 90 91 92 93 94 95 96 96 96 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 57
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  2. Create a private, optional AGSOfflineMapTask property named offlineMapTask. The offline map task is used to create an AGSGenerateOfflineMapJob, provided a few parameters, and a geometry.

    ViewController.swift
    Add line.
    101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 100 99 98 97 96 95 94 93 92 91 91 91 92 93 94 95 96 97 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 57
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)

            offlineMapTask?.defaultGenerateOfflineMapParameters(withAreaOfInterest: offlineArea) { [weak self] parameters, error in
                guard let self = self else { return }
                guard let offlineMapTask = self.offlineMapTask else { return }

                if let parameters = parameters {
                    parameters.updateMode = .noUpdates
                    parameters.esriVectorTilesDownloadOption = .useReducedFontsService
                    let job = offlineMapTask.generateOfflineMapJob(with: parameters, downloadDirectory: downloadDirectory)
                    (self.navigationItem.titleView as! UIProgressView).observedProgress = job.progress
                    var n = 0
                    job.start(statusHandler: { _ in
                        while n < job.messages.count {
                            print("Job message \(n): \(job.messages[n].message)")
                            n += 1
                        }
                    }, completion: { [weak self] result, error in
                        guard let self = self else { return }
                        if let result = result {
                            self.mapView.map = result.offlineMap
                        } else if let error = error {
                            print("Error downloading the offline map: \(error)")
                            return
                        }
                    })
                    self.offlineMapJob = job
                } else if let error = error {
                    print("Error fetching default parameters for the area of interest: \(error.localizedDescription)")
                }

            }

        }

    }

  3. Create a private, optional AGSGenerateOfflineMapJob property named offlineMapJob. The offline map job handles transactions with the service to download an area of the web map offline.

    ViewController.swift
    Add line.
    86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 86 87 88 89 89 89 89 89 89 89 89 89 89 89 90 91 92 93 94 95 96 97 98 99 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 61
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    // Copyright 2021 Esri.
    //
    // Licensed under the Apache License, Version 2.0 (the "License");
    // you may not use this file except in compliance with the License.
    // You may obtain a copy of the License at
    //
    //   https://www.apache.org/licenses/LICENSE-2.0
    //
    // Unless required by applicable law or agreed to in writing, software
    // distributed under the License is distributed on an "AS IS" BASIS,
    // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    // See the License for the specific language governing permissions and
    // limitations under the License.

    import UIKit
    import ArcGIS

    class ViewController: UIViewController {
        @IBOutlet weak var mapView: AGSMapView!

        override func viewDidLoad() {
            super.viewDidLoad()

            setupMap()

            setupUI()

            setupGraphicsOverlay()

        }

        // MARK: - Map

        private func setupMap() {

            let map = AGSMap(
                item: AGSPortalItem(
                    portal: AGSPortal.arcGISOnline(withLoginRequired: false),
                    itemID: "5a030a31e42841a89914bd7c5ecf4d8f"
                )
            )
            mapView.map = map

        }

        // MARK: - UI

        private func setupUI() {
            navigationItem.titleView = UIProgressView()

            navigationController?.isToolbarHidden = false
            let items = [
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil),
                UIBarButtonItem(title: "Download Map Area", style: .plain, target: self, action: #selector(userSelectedDownloadOfflineMap)),
                UIBarButtonItem(barButtonSystemItem: .flexibleSpace, target: nil, action: nil)
            ]
            setToolbarItems(items, animated: true)

        }

        // MARK: - Graphics

        private let graphicsOverlay = AGSGraphicsOverlay()

        private func setupGraphicsOverlay() {
            graphicsOverlay.renderer = AGSSimpleRenderer(
                symbol: AGSSimpleFillSymbol(
                    style: .solid,
                    color: .clear,
                    outline: AGSSimpleLineSymbol(
                        style: .solid,
                        color: .red,
                        width: 3
                    )
                )
            )
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        private func addGraphic(for offlineArea: AGSGeometry) {
            let graphic = AGSGraphic(geometry: offlineArea, symbol: nil)
            graphicsOverlay.graphics.add(graphic)
        }

        // MARK: - Offline Map Job

        @objc
        func userSelectedDownloadOfflineMap(_ sender: UIBarButtonItem) {

            guard let offlineArea = mapView.visibleArea else { return }

            sender.isEnabled = false

            addGraphic(for: offlineArea)

            mapView.setViewpointGeometry(offlineArea, padding: 25)

            downloadOfflineMap(with: offlineArea, at: temporaryDirectoryURL)

        }

        private var temporaryDirectoryURL: URL {
            FileManager.default.temporaryDirectory
                .appendingPathComponent(ProcessInfo().globallyUniqueString)
        }

        private var offlineMapTask: AGSOfflineMapTask?

        private var offlineMapJob: AGSGenerateOfflineMapJob?

        private func downloadOfflineMap(with offlineArea: AGSGeometry, at downloadDirectory: URL) {

            guard let map = mapView.map else { return }
            offlineMapTask = AGSOfflineMapTask(onlineMap: map)
