Note: Sign in to access the data in this sample. username: viewer01 password: I68VGU^nMurF

This sample demonstrates how to utilize the VersionManagementService to change versions on a FeatureLayer.

Getting started

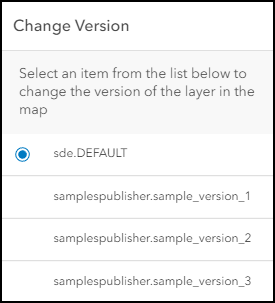

To use this sample, select a version from the list menu. Once you have selected a version, you will notice that the features will update to based on the selected version.

The code below demonstrates how to retrieve a list of versions from the current Version Management Service.

const currentVMS = new VersionManagementService({
  url: "https://sampleserver7.arcgisonline.com/server/rest/services/US_Cities_Branch/VersionManagementServer",
});
await currentVMS.load();
versions = await currentVMS.getVersionInfos();

This code demonstrates that after instantiating an instance of the VersionManagementService class, we load the instance. By calling getVersionInfos(), a list of versions can be retrieved.

The code below changes a version by accepting the featureLayerList, currentVersion, and the newVersion.

async function changeVersion(featureLayerList, newVersion, currentVersion) {
  await currentVMS.changeVersion(featureLayerList, currentVersion, newVersion);
  currentVersionIdentifier = newVersion;
}

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no" />
    <title>Changing Versions with the VersionManagementService | Sample | ArcGIS Maps SDK for JavaScript</title>
    <link rel="stylesheet" href="https://js.arcgis.com/5.0/esri/themes/light/main.css" />
    <style>
      html,
      body,
      #viewDiv {
        height: 100%;
        margin: 0;
      }
      calcite-list-item {
        width: 275px;
        padding: 0.5px;
        display: "block";
      }
      #menu-text {
        text-align: left;
        padding-left: 18px;
      }
    </style>

    <!-- Load the ArcGIS Maps SDK for JavaScript from CDN -->
    <script type="module" src="https://js.arcgis.com/5.0/"></script>

    <script type="module">
      const [MapView, Expand, FeatureLayer, VersionManagementService, Map] = await $arcgis.import([
        "@arcgis/core/views/MapView.js",
        "@arcgis/core/widgets/Expand.js",
        "@arcgis/core/layers/FeatureLayer.js",
        "@arcgis/core/versionManagement/VersionManagementService.js",
        "@arcgis/core/Map.js",
      ]);

      // Credentials to signin:
      // username: viewer01
      // password: I68VGU^nMurF

      // Initialize VersionManagementService
      const currentVMS = new VersionManagementService({
        url: "https://sampleserver7.arcgisonline.com/server/rest/services/US_Cities_Branch/VersionManagementServer",
      });
      // Initialize FeatureLayer
      const featureLayer = new FeatureLayer({
        url: "https://sampleserver7.arcgisonline.com/server/rest/services/US_Cities_Branch/FeatureServer/1",
      });

      // Initializing map
      const map = new Map({
        basemap: "topo-vector",
        layers: [featureLayer],
      });

      // UI element for holding list of versions.
      const versionList = document.getElementById("versionListEl");

      // Initialize the view
      const view = new MapView({
        container: "viewDiv",
        map: map,
        extent: {
          xmin: -126.902,
          ymin: 13.848,
          xmax: -65.73,
          ymax: 50.15,
        },
      });

      //Handle View
      view.when(async function () {
        await currentVMS.load();
        currentVersionIdentifier = currentVMS.defaultVersionIdentifier;
        // Getting available versions
        versions = await currentVMS.getVersionInfos();
        await displayVersionsInPanel(versions);
        versionMenuExpand.expanded = true;
      });
      let currentVersionIdentifier = null;

      // Initialize UI
      const versionMenuExpand = new Expand({
        view: view,
        content: document.getElementById("panel"),
        expanded: false,
      });
      view.ui.add(versionMenuExpand, "top-left");

      // Methods
      function displayVersionsInPanel(versions) {
        versionList.textContent = "";
        versions.forEach((item) => {
          const { versionIdentifier } = item;
          const listItem = document.createElement("calcite-list-item");
          listItem.label = versionIdentifier.name;
          listItem.value = versionIdentifier.name;
          versionList.append(listItem);

          if (currentVMS.defaultVersionIdentifier.name === versionIdentifier.name) {
            listItem.selected = true;
            currentVersion = currentVMS.defaultVersionIdentifier;
          }
        });
        originalVersionList = [...versionList.children];
      }
      versionList.addEventListener("calciteListChange", handleVersionChange);

      async function handleVersionChange(evt) {
        const { selectedItems } = evt.target;
        const newVersionIdentifier = await currentVMS.getVersionIdentifierFromName(
          selectedItems[0].value,
        );
        const featureLayerList = [featureLayer];
        changeVersion(featureLayerList, newVersionIdentifier, currentVersionIdentifier);
      }

      async function changeVersion(featureLayerList, newVersion, currentVersion) {
        await currentVMS.changeVersion(featureLayerList, currentVersion, newVersion);
        currentVersionIdentifier = newVersion;
      }
    </script>
  </head>
  <body>
    <calcite-panel id="panel" heading="Change Version">
      <p id="menu-text">
        Select an item from the list below to <br />
        change the version of the layer in the map
      </p>
      <calcite-list id="versionListEl" selection-mode="single"></calcite-list>
    </calcite-panel>
    <div id="viewDiv"></div>
  </body>
</html>
