Introduction
Flooding is one of the most frequent and costly forms of natural disasters. They often strike without warning and can occur when large volumes of water fall in a short time, causing flash floods. Flood mapping is typically performed using aerial observations and ground surveys. However, when flooding is widespread, these methods become prohibitively expensive and time consuming. Furthermore, aerial observation and optical imagery can often prove difficult, if not impossible, due to obstructive weather conditions. During flooding conditions, clouds can prevent the use of optical satellite imagery for visualization and analysis. In these instances, synthetic-aperture radar (SAR) allows us to penetrate through clouds and hazy atmospheric conditions to continuously observe and map flooding.
North India faced severe rainfall in the first two weeks of July 2023 due to the interaction between Western Disturbances (a low pressure system originating from the Mediterranean region) and Monsoon trough (a low pressure zone located in East west direction from Northwest Rajasthan towards the Bay of Bengal). From July 9th - 13th, a large volume of water was released from Hathnikund Barrage on the Yamuna river. This raised the water level downstream to the highest level since floods in 1978, causing flooding in Delhi and the adjoining areas.
In such situations, mapping of flood affected areas can help in quick and efficient disaster management and relief efforts. Here, we have used the SamLora deep learning model that finetunes the foundational pixel classification model by Meta's Segment Anything Model (SAM). SamLoRA allows the use of the underlying learnings of SAM and quickly finetunes on a smaller dataset to work for a particular use case.
Necessary imports
import os
from datetime import datetime
from pathlib import Path
from arcgis.gis import GIS
from arcgis.learn import prepare_data, SamLoRA
from arcgis.raster import Raster, convert_raster_to_feature
from arcgis.features.manage_data import overlay_layers
from arcgis.features.analysis import dissolve_boundariesConnect to your GIS
from arcgis import GIS
gis = GIS('home')Export training data
We have used the Sentinel-1 SAR imagery as the input raster for the training dataset. A composite of VV, VH & VV/VH band has been created, which works best for floods, according to the literature.
input_raster = gis.content.get("3b55a6f703234c278e76704e6ff50666")
input_raster
Tiled Imagery Layer by api_data_owner
The feature layer contains a single class for water bodies. The feature layer will be used as the Input Feature Class in the Export Training Data For Deep Learning tool.
label_raster = gis.content.get("cb0e42c0ae714c5e90b09aeb2add2baa")
label_raster
Feature Layer Collection by api_data_owner
The polygon feature class will be used as Input Mask Polygons in the Export Training Data For Deep Learning tool to delineate the area where image chips will be created.
aoi = gis.content.get("8fcf0ba8de7947c3b696778a1fdc88ea")
aoi

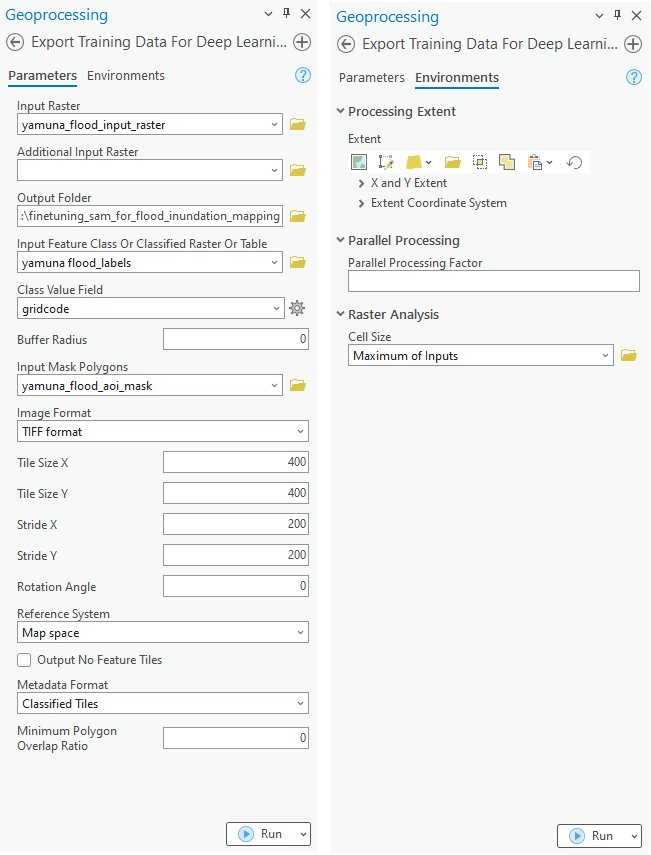

The Export Training Data For Deep Learning tool is used to prepare training data for training a deep learning model. The tool is available in both ArcGIS Pro and ArcGIS Enterprise.
Next, we will utilize Jupyter Notebooks. Documentation on how to install and setup the necessary environment is available here.
Model training
Get training data
We have already exported the data, and it can be directly downloaded using the following steps:
training_data = gis.content.get('5dff2d39729c44949b3024c1f1ead403')
training_data
Image Collection by api_data_owner
filepath = training_data.download(file_name=training_data.name)import zipfile
with zipfile.ZipFile(filepath, 'r') as zip_ref:
zip_ref.extractall(Path(filepath).parent)data_path = Path(os.path.join(os.path.splitext(filepath)[0]))Prepare data
We will specify the path to our training data and a few hyperparameters.
path: path of the folder/list of folders containing training data.batch_size: Number of images your model will train on each step inside an epoch. Depends on the memory of your graphic card.chip_size: The same as the tile size used while exporting the dataset to ensure the entire chip is used at once and not cropped.
data = prepare_data(data_path, batch_size=4, chip_size=400)Visualize training data

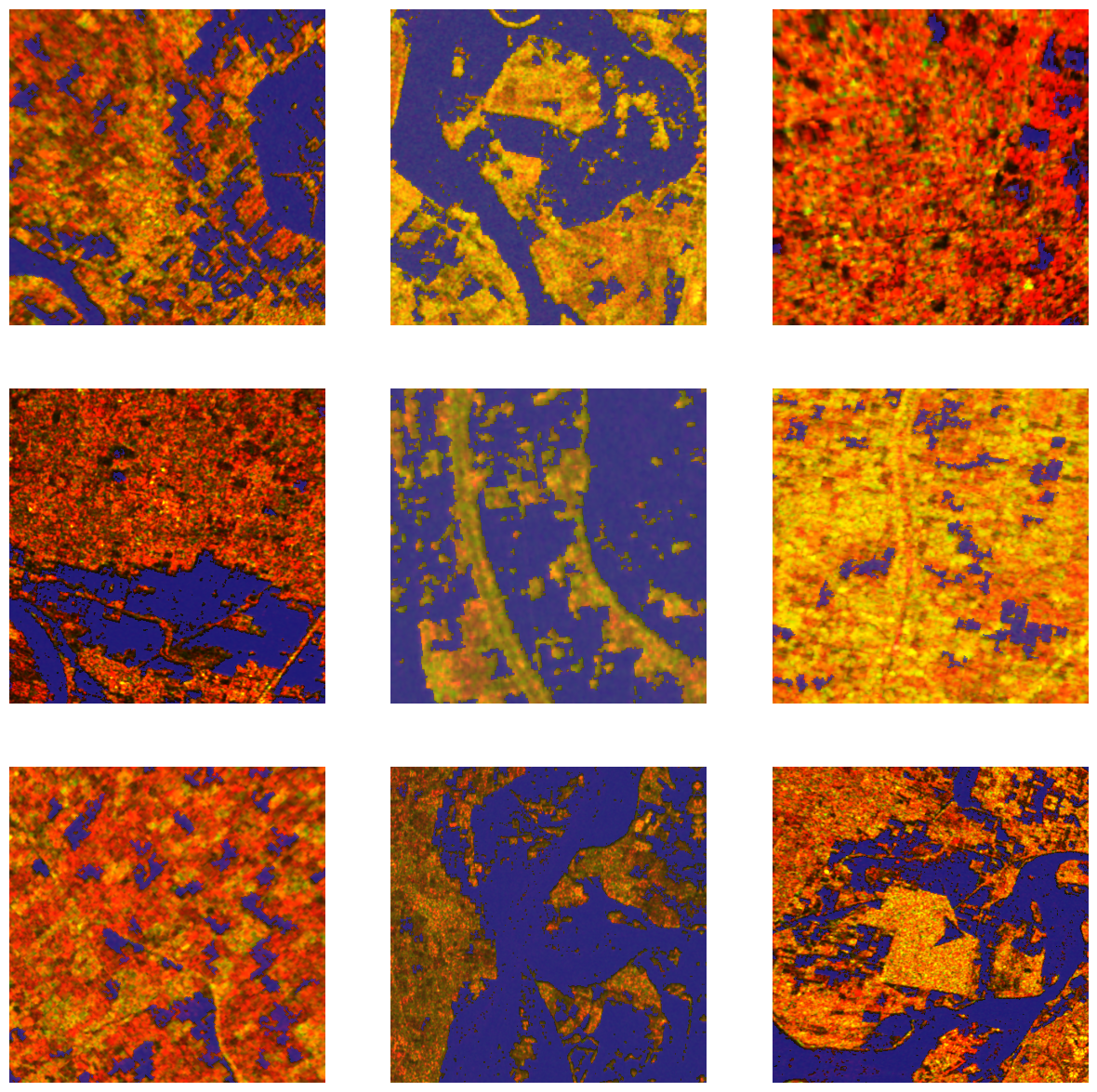

To get a sense of what the training data looks like, the show_batch() method will randomly select a few training chips and visualize them.
data.show_batch(alpha=0.8)
Load model architecture
The code below will create a SamLoRA model. It is based on the Segment Anything Model (SAM) by MetaAI. It uses a Low Rank Adaptation to finetune the model for a specific task. This model can be used for 'pixel classification'. By default, this model will be loaded with a vit_b backbone. vit_h or vit_l backbone can be chosen by providing the backbone parameter. More details about SamLoRA can be found here.
model = SamLoRA(data)Train the model
Next, we will train the model for a few epochs.
model.fit(epochs=10, lr=0.001)| epoch | train_loss | valid_loss | accuracy | dice | time |
|---|---|---|---|---|---|
| 0 | 0.755435 | 0.652948 | 0.787804 | 0.284233 | 00:21 |
| 1 | 0.724142 | 0.695130 | 0.350940 | 0.388395 | 00:10 |
| 2 | 0.703178 | 0.324360 | 0.857022 | 0.723125 | 00:10 |
| 3 | 0.598624 | 0.247313 | 0.921513 | 0.802098 | 00:10 |
| 4 | 0.515951 | 0.204478 | 0.923592 | 0.820371 | 00:10 |
| 5 | 0.460703 | 0.234249 | 0.924720 | 0.799366 | 00:10 |
| 6 | 0.413691 | 0.201680 | 0.929974 | 0.824633 | 00:10 |
| 7 | 0.377130 | 0.194776 | 0.930521 | 0.831087 | 00:10 |
| 8 | 0.356235 | 0.186328 | 0.930645 | 0.837745 | 00:10 |
| 9 | 0.334790 | 0.187167 | 0.930861 | 0.836978 | 00:10 |
model.plot_losses()
Visualize results in validation set
It is a good practice to see the results of the model viz-a-viz ground truth. The code below picks random samples and shows us ground truth and model predictions, side by side. This enables us to preview the results of the model we trained. In the following code the alpha parameter sets the transparency of the results.
model.show_results(alpha=0.8)
Evaluate model performance
model.accuracy()0.9306446313858032
arcgis.learn provides the mIOU() method that computes the mean Intersection Over Union (IOU) of the results provided by the model on the validation set for each class.
model.mIOU(){'0': 0.9152871021073077, '1': 0.7232920825582878}To calculate the precision, recall, and f1 score for each class, use the per_class_metrics function.
model.per_class_metrics()| NoData | 1 | |
|---|---|---|
| precision | 0.949330 | 0.860626 |
| recall | 0.962298 | 0.819254 |
| f1 | 0.955770 | 0.839431 |
Save the model
We will save the model that we trained as a 'Deep Learning Package' ('.dlpk' format). A Deep Learning Package is the standard format used to deploy deep learning models on the ArcGIS platform.
We will use the save() method to save the trained model. By default, it will be saved to the 'models' sub-folder within the training data folder.
model.save('samlora_yamuna_flood_model', publish=True, overwrite=True)Published DLPK Item Id: b25d811c5caa4f71b30cd82356630894
WindowsPath('C:/temp/data/samlora_yamuna_flood_model')Model inferencing
Using ArcGIS Pro, we can use the trained model on a test image/area to classify flood inundated areas in the SAR satellite image.

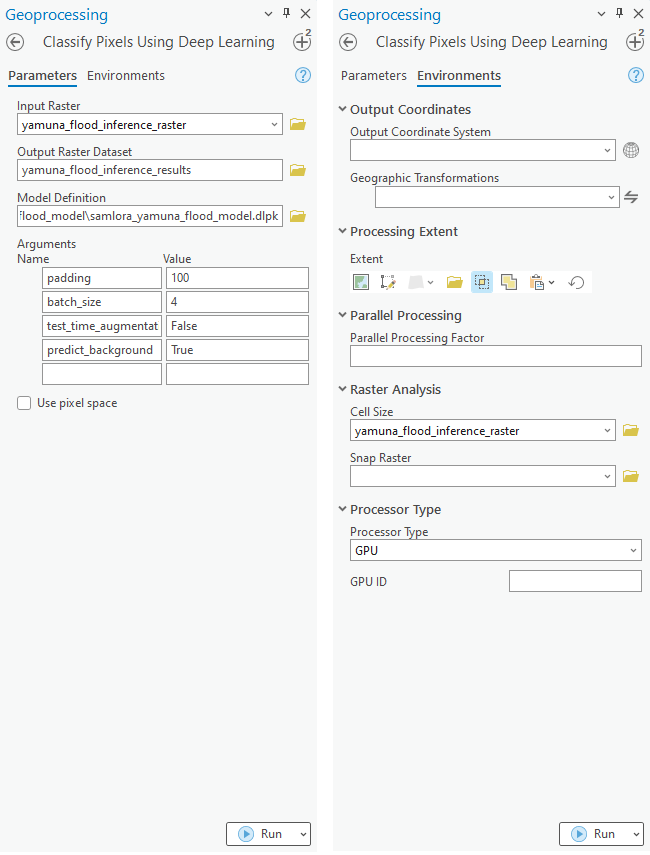

After training the SamLoRA model and saving the weights for classifying images, we can use the Classify Pixels Using Deep Learning tool available in ArcGIS Pro and ArcGIS Enterprise for inferencing.
flood_model = gis.content.get('b25d811c5caa4f71b30cd82356630894')
flood_model
raster_for_inferencing = gis.content.get('5faf61fdf96845a28f105d473c2c61a3')
raster_for_inferencing
Results visualization
The classified output raster is generated using ArcGIS Pro. The output raster is published on the portal for visualization.
sar_ras2 = gis.content.get('5faf61fdf96845a28f105d473c2c61a3')
inf_ras2 = gis.content.get('0237c0324a284463a03aecb4fddc417d')from arcgis.raster import colormap
inf_cmap2 = colormap(inf_ras2.layers[0], colormap=[[1, 0, 204, 204]])Create map widgets
Three map widgets are created showing flood affected areas in Delhi and the adjoining region.
map1 = gis.map('Mathura, India', 8)
map1.basemap='satellite'
map2 = gis.map('Mathura, India', 8)
map2.add_layer(sar_ras2)
map3 = gis.map()
map3.add_layer(sar_ras2)
map3.add_layer(inf_cmap2)Set the map layout
from ipywidgets import HBox, VBox, Label, Layoutmap1.sync_navigation(map2)
map2.sync_navigation(map3)Hbox and Vbox were used to set the layout of map widgets.
hbox_layout = Layout()
hbox_layout.justify_content = 'space-around'
hb1,hb2=HBox([Label('True Colour Image'),Label('Sentinel-1 Imagery'),Label('Predictions'),]),\
HBox([Label('True Colour Image'),Label('Sentinel-1 Imagery'),Label('Predictions')])
hb1.layout,hb2.layout=hbox_layout,hbox_layoutFlood inundation mapping
The resulting predictions are provided as a map for better visualization. The results show the spatial distribution of flood water in the Delhi region during the 2023 floods. Sentinel-1 imagery of July 2023 are used for the analysis.
VBox([hb1,HBox([map1,map2,map3])])

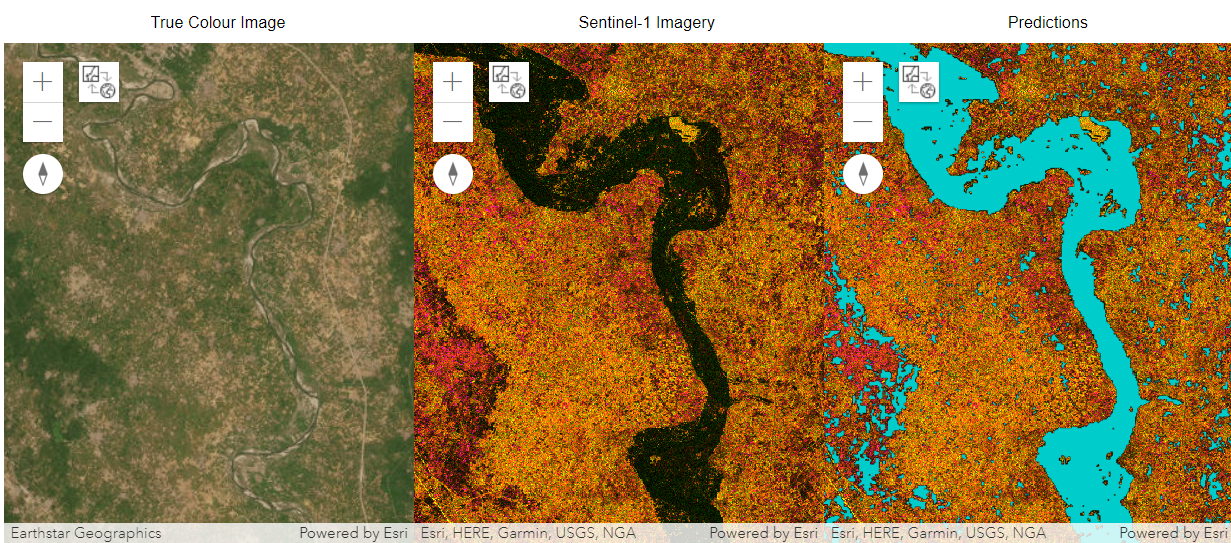

Three map widgets were created. The left widget displays natural color high resolution satellite imagery prior to flooding, the middle widget displays the Sentinel-1 imagery during the flood event, and the right map widget displays the predictions of the trained SamLoRA model. In the maps, Delhi and other cities of the National Capital Region of India can be seen on both sides of the Yamuna river. The model is able to identify all the flooded regions. The True Color Imagery can be used for visual interpretation for model accuracy.
Conclusion
In this notebook, we have demonstrated how to use SamLoRA to finetune SAM model with ArcGIS API for Python and extract flood area with a small dataset and short training. We covered how Sentinel-1 SAR data can be used for flood inundation mapping and monitoring. This process involved steps to prepare the input data, train a pixel-based classification model, visualize the results, generate accuracy metrics, and predict on a test raster.
