%matplotlib inline

import matplotlib.pyplot as plt
import pandas as pd
from pathlib import Path
from IPython.display import Image, HTML
from fastai.imports import *
from datetime import datetime as dt

import arcgis
from arcgis.gis import GIS
from arcgis.learn import prepare_tabulardata, AutoML, MLModel
import arcpy

gis = GIS("home")

voter_zip = gis.content.get('650e7d6aa8fb4601a75d632a2c114425')
voter_zip

import os, zipfile

filepath_new = voter_zip.download(file_name=voter_zip.name)
with zipfile.ZipFile(filepath_new, 'r') as zip_ref:
    zip_ref.extractall(Path(filepath_new).parent)
output_path = Path(os.path.join(os.path.splitext(filepath_new)[0]))
output_path = os.path.join(output_path,"VotersTurnoutCountyEelction2016.shp")

# getting the attribute table from the shapefile which will be used for building the model
sdf_main = pd.DataFrame.spatial.from_featureclass(output_path)
sdf_main.head()

sdf_main.shape

(3112, 97)

# First the Arcpy env is specified which will be used saving the result of the Arcpy tool
arcpy.env.workspace = output_path.replace(output_path.split('\\')[-1], "arcpy_test_env")

if os.path.exists(arcpy.env.workspace):
    shutil.rmtree(arcpy.env.workspace)

os.makedirs(arcpy.env.workspace)

arcpy.env.workspace = arcpy.env.workspace
output_path = output_path

result = arcpy.stats.ClustersOutliers(output_path,
                                      "voter_turn", "voters_turnout_ClusterOutlier.shp",
                                     'INVERSE_DISTANCE',
                                     'EUCLIDEAN_DISTANCE','ROW', "#", "#","NO_FDR", 499)

# accessing the attribute table from the output shapefile
sdf_main_LMi = pd.DataFrame.spatial.from_featureclass(result[0])
sdf_main_LMi.head()

# visualizing spatial autocorrelation in voters turnout
m2 = gis.map('United States')
m2.legend.enabled = True
m2

m2.content.add(sdf_main_LMi)

m2.zoom_to_layer(sdf_main_LMi)

sm_manager = m2.content.renderer(0).smart_mapping()
sm_manager.unique_values_renderer(field="COType")

# checking the field names having the p values
sdf_main_LMi.columns

Index(['FID', 'SOURCE_ID', 'voter_turn', 'LMiIndex', 'LMiZScore', 'LMiPValue',
       'COType', 'NNeighbors', 'ZTransform', 'SpatialLag', 'SHAPE'],
      dtype='object')

# creating new fields with highly significant clustering counties
sdf_main_LMi['LMi_hi_sig<.002'] =  np.where(sdf_main_LMi['LMiPValue']<=.002, 1,0)
sdf_main_LMi['LMi_sig_<0.05'] =  np.where(sdf_main_LMi['LMiPValue']<=.05, 1,0)
sdf_main_LMi.head()

# create new dataframe for LMi_hi_sig<.002
LMi_hi_sig_county_main = sdf_main_LMi[sdf_main_LMi['LMi_hi_sig<.002']==1].copy()

LMi_hi_sig_county_main.columns

Index(['FID', 'SOURCE_ID', 'voter_turn', 'LMiIndex', 'LMiZScore', 'LMiPValue',
       'COType', 'NNeighbors', 'ZTransform', 'SpatialLag', 'SHAPE',
       'LMi_hi_sig<.002', 'LMi_sig_<0.05'],
      dtype='object')

# creating a new shapefile for the most significant clustering counties from spatial dataframe
near_dist_from_main_county = sdf_main_LMi.spatial.to_featureclass('voters_turnout_train_LMi'+str(dt.now().microsecond))
near_dist_to_hi_sig_county = LMi_hi_sig_county_main.spatial.to_featureclass('LMi_hi_sig_county_train'+str(dt.now().microsecond))

# Using the Near tool to calculate distance and angle
dist_to_nearest_hi_sig = arcpy.analysis.Near(near_dist_from_main_county,near_dist_to_hi_sig_county,'#','#','ANGLE','GEODESIC')

# Accessing the attribute table from the resulting shapefile
sdf_nearest_hi_sig = pd.DataFrame.spatial.from_featureclass(dist_to_nearest_hi_sig[0])
sdf_nearest_hi_sig.head()

sdf_nearest_hi_sig.columns

Index(['FID', 'Id', 'source_id', 'voter_turn', 'l_mi_index', 'l_mi_z_sco',
       'l_mi_p_val', 'co_type', 'n_neighbor', 'z_transfor', 'spatial_la',
       'l_mi_hi_si', 'l_mi_sig_0', 'NEAR_FID', 'NEAR_DIST', 'NEAR_ANGLE',
       'SHAPE'],
      dtype='object')

LMi_hi_sig_county_main.columns

Index(['FID', 'SOURCE_ID', 'voter_turn', 'LMiIndex', 'LMiZScore', 'LMiPValue',
       'COType', 'NNeighbors', 'ZTransform', 'SpatialLag', 'SHAPE',
       'LMi_hi_sig<.002', 'LMi_sig_<0.05'],
      dtype='object')

sdf_main.head(2)

# dropping the existing p-values estimated columns from the main table to be replaced by the newly calculated values
sdf_main_final = sdf_main.drop(['SOURCE_ID', 'voter_tu_1',
       'Shape_Leng', 'Shape_Area', 'LMiIndex', 'LMiZScore', 'LMiPValue',
       'COType', 'NNeighbors', 'ZTransform', 'SpatialLag', 'LMi_hi_sig',
       'LMi_normal', 'NEAR_FID', 'Shape_Le_1', 'Shape_Ar_1', 'LMiHiDist',  'SHAPE'], axis=1)

sdf_main_final.head(2)

# joining the newly calculated spatial features with the main dataset
sdf_main_final_merged = sdf_main_final.merge(sdf_nearest_hi_sig, on='FID', how='inner')

# checking the final merged data
sdf_main_final_merged.head(2)

from sklearn.model_selection import train_test_split

# Splitting data with test size of 10% data for validation
test_size = 0.10
sdf_train, sdf_test = train_test_split(sdf_main_final_merged, test_size = test_size, random_state=32)

# checking train-test split
print(sdf_train.shape)
print(sdf_test.shape)

(2800, 95)
(312, 95)

sdf_train.head(2)

sdf_train.columns

Index(['FID', 'Join_Count', 'TARGET_FID', 'FIPS', 'county', 'state',
       'voter_turn_x', 'gender_med', 'householdi', 'electronic', 'raceandhis',
       'voter_laws', 'educationa', 'educatio_1', 'educatio_2', 'educatio_3',
       'maritalsta', 'F5yearincr', 'F5yearin_1', 'F5yearin_2', 'F5yearin_3',
       'F5yearin_4', 'F5yearin_5', 'F5yearin_6', 'language_a', 'hispanicor',
       'hispanic_1', 'raceandh_1', 'atrisk_avg', 'disposable', 'disposab_1',
       'disposab_2', 'disposab_3', 'disposab_4', 'disposab_5', 'disposab_6',
       'disposab_7', 'disposab_8', 'disposab_9', 'disposa_10', 'househol_1',
       'househol_2', 'househol_3', 'househol_4', 'househol_5', 'househol_6',
       'househol_7', 'househol_8', 'househol_9', 'language_1', 'language_2',
       'households', 'househo_10', 'educatio_4', 'educatio_5', 'educatio_6',
       'educatio_7', 'psychograp', 'psychogr_1', 'financial_', 'financial1',
       'financia_1', 'miscellane', 'state_vote', 'state_vo_1', 'randomized',
       'random_num', 'City10Dist', 'City10Ang', 'City9Dist', 'City9Ang',
       'City8Dist', 'City8Ang', 'City7Dist', 'City7Ang', 'City6Dist',
       'City6Ang', 'City5Dist', 'City5Ang', 'Id', 'source_id', 'voter_turn_y',
       'l_mi_index', 'l_mi_z_sco', 'l_mi_p_val', 'co_type', 'n_neighbor',
       'z_transfor', 'spatial_la', 'l_mi_hi_si', 'l_mi_sig_0', 'NEAR_FID',
       'NEAR_DIST', 'NEAR_ANGLE', 'SHAPE'],
      dtype='object')

# listing explanatory variables
X =[('county',True), ('state',True),'gender_med', 'householdi', 'electronic', 'raceandhis',
       ('voter_laws',True), 'educationa', 'educatio_1', 'educatio_2', 'educatio_3',
       'maritalsta', 'F5yearincr', 'F5yearin_1', 'F5yearin_2', 'F5yearin_3',
       'F5yearin_4', 'F5yearin_5', 'F5yearin_6', 'language_a', 'hispanicor',
       'hispanic_1', 'raceandh_1', 'atrisk_avg', 'disposable', 'disposab_1',
       'disposab_2', 'disposab_3', 'disposab_4', 'disposab_5', 'disposab_6',
       'disposab_7', 'disposab_8', 'disposab_9', 'disposa_10', 'househol_1',
       'househol_2', 'househol_3', 'househol_4', 'househol_5', 'househol_6',
       'househol_7', 'househol_8', 'househol_9', 'language_1', 'language_2',
       'households', 'househo_10', 'educatio_4', 'educatio_5', 'educatio_6',
       'educatio_7', 'psychograp', 'psychogr_1', 'financial_', 'financial1',
       'financia_1', 'miscellane', 'state_vote', 'state_vo_1',
        'City10Ang', 'City9Dist', 'City9Ang',
       'City8Dist', 'City8Ang', 'City7Dist', 'City7Ang', 'City6Dist',
       'City6Ang', 'City5Dist', 'City5Ang', 'NEAR_DIST', 'NEAR_ANGLE']

from sklearn.preprocessing import MinMaxScaler

# defining the preprocessors for scaling data
preprocessors = [('county', 'state','gender_med', 'householdi', 'electronic', 'raceandhis',
       'voter_laws', 'educationa', 'educatio_1', 'educatio_2', 'educatio_3',
       'maritalsta', 'F5yearincr', 'F5yearin_1', 'F5yearin_2', 'F5yearin_3',
       'F5yearin_4', 'F5yearin_5', 'F5yearin_6', 'language_a', 'hispanicor',
       'hispanic_1', 'raceandh_1', 'atrisk_avg', 'disposable', 'disposab_1',
       'disposab_2', 'disposab_3', 'disposab_4', 'disposab_5', 'disposab_6',
       'disposab_7', 'disposab_8', 'disposab_9', 'disposa_10', 'househol_1',
       'househol_2', 'househol_3', 'househol_4', 'househol_5', 'househol_6',
       'househol_7', 'househol_8', 'househol_9', 'language_1', 'language_2',
       'households', 'househo_10', 'educatio_4', 'educatio_5', 'educatio_6',
       'educatio_7', 'psychograp', 'psychogr_1', 'financial_', 'financial1',
       'financia_1', 'miscellane', 'state_vote', 'state_vo_1',
        'City10Ang', 'City9Dist', 'City9Ang',
       'City8Dist', 'City8Ang', 'City7Dist', 'City7Ang', 'City6Dist',
       'City6Ang', 'City5Dist', 'City5Ang', 'NEAR_DIST', 'NEAR_ANGLE', MinMaxScaler())]

# preparing data for the model
data = prepare_tabulardata(sdf_train,
                           variable_predict='voter_turn_x',
                           explanatory_variables=X,
                           preprocessors=preprocessors)

data.show_batch()

# defining the model along with the parameters
model = MLModel(data, 'sklearn.ensemble.RandomForestRegressor', n_estimators=500, random_state=43)

model.fit()

model.score()

0.7336351093652952

# validating trained model on test dataset
voter_county_mlmodel_predicted = model.predict(sdf_test, prediction_type='dataframe')

voter_county_mlmodel_predicted.head(2)

import sklearn.metrics as metrics

# calculating validation model score
r_square_voter_county_mlmodel_Test = metrics.r2_score(voter_county_mlmodel_predicted['voter_turn_x'], voter_county_mlmodel_predicted['prediction_results'])
print('r_square_voter_county_mlmodel_Test: ', round(r_square_voter_county_mlmodel_Test,2))

r_square_voter_county_mlmodel_Test:  0.79

# initializing AutoML model with the Compete mode
AutoML_voters_county_obj_compete = AutoML(data, eval_metric='r2', mode='Compete', n_jobs=1)

# training the AutoML model
AutoML_voters_county_obj_compete.fit()

Neural Network algorithm was disabled because it doesn't support n_jobs parameter.
AutoML directory: ~\AppData\Local\Temp\scratch\tmpgbw18ede
The task is regression with evaluation metric r2
AutoML will use algorithms: ['Linear', 'Decision Tree', 'Random Trees', 'Extra Trees', 'LightGBM', 'Xgboost']
AutoML will stack models
AutoML will ensemble available models
AutoML steps: ['adjust_validation', 'simple_algorithms', 'default_algorithms', 'not_so_random', 'mix_encoding', 'insert_random_feature', 'features_selection', 'hill_climbing_1', 'hill_climbing_2', 'boost_on_errors', 'ensemble', 'stack', 'ensemble_stacked']
* Step adjust_validation will try to check up to 1 model
1_DecisionTree r2 0.384239 trained in 3.43 seconds
Adjust validation. Remove: 1_DecisionTree
Validation strategy: 10-fold CV Shuffle
* Step simple_algorithms will try to check up to 4 models
1_DecisionTree r2 0.416282 trained in 32.05 seconds
2_DecisionTree r2 0.476178 trained in 30.31 seconds
3_DecisionTree r2 0.475658 trained in 28.41 seconds
4_Linear r2 0.657478 trained in 32.74 seconds
* Step default_algorithms will try to check up to 4 models

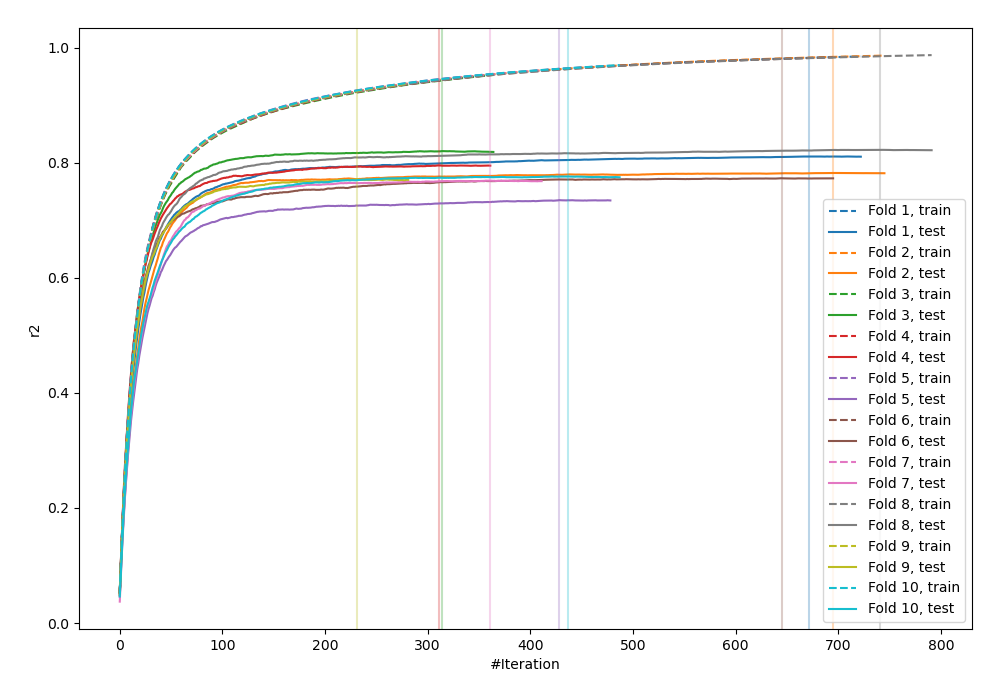

5_Default_LightGBM r2 0.772731 trained in 68.24 seconds

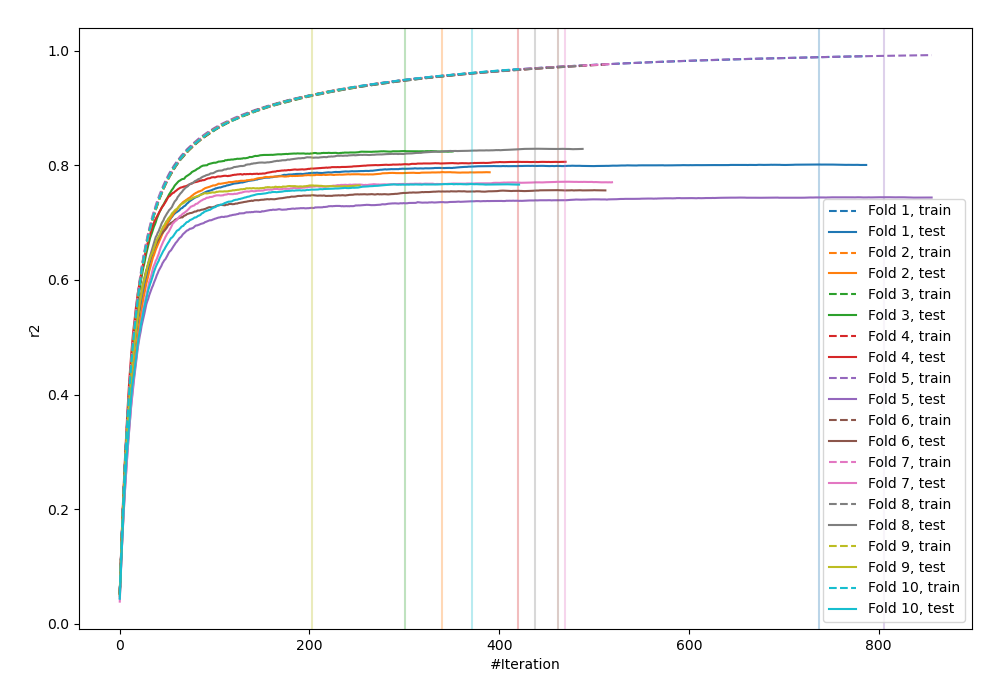

6_Default_Xgboost r2 0.769644 trained in 114.5 seconds

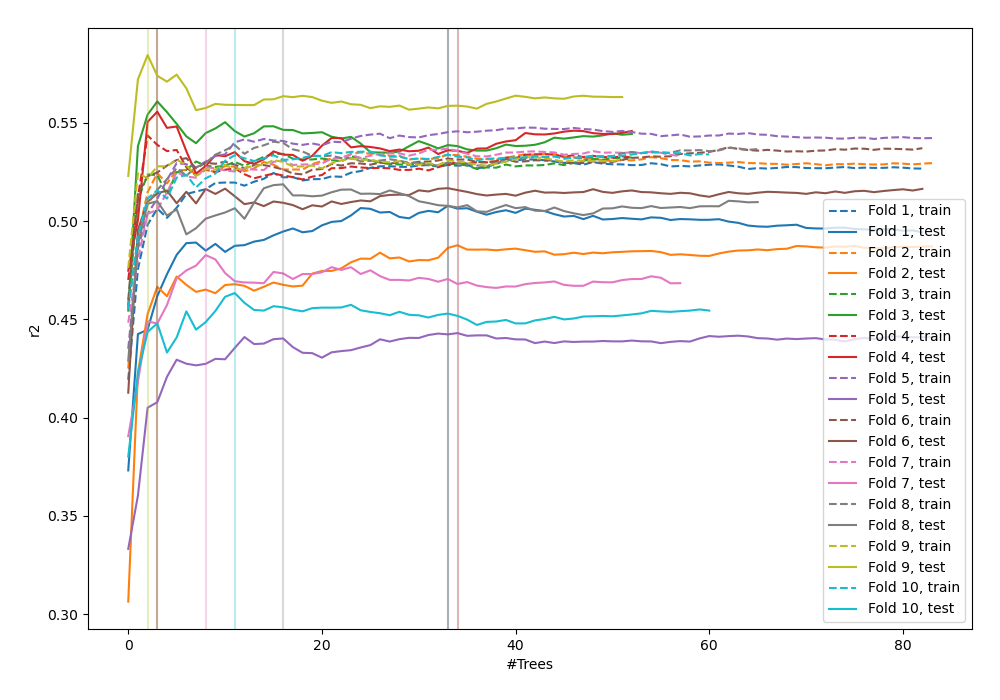

7_Default_RandomTrees r2 0.591756 trained in 367.89 seconds

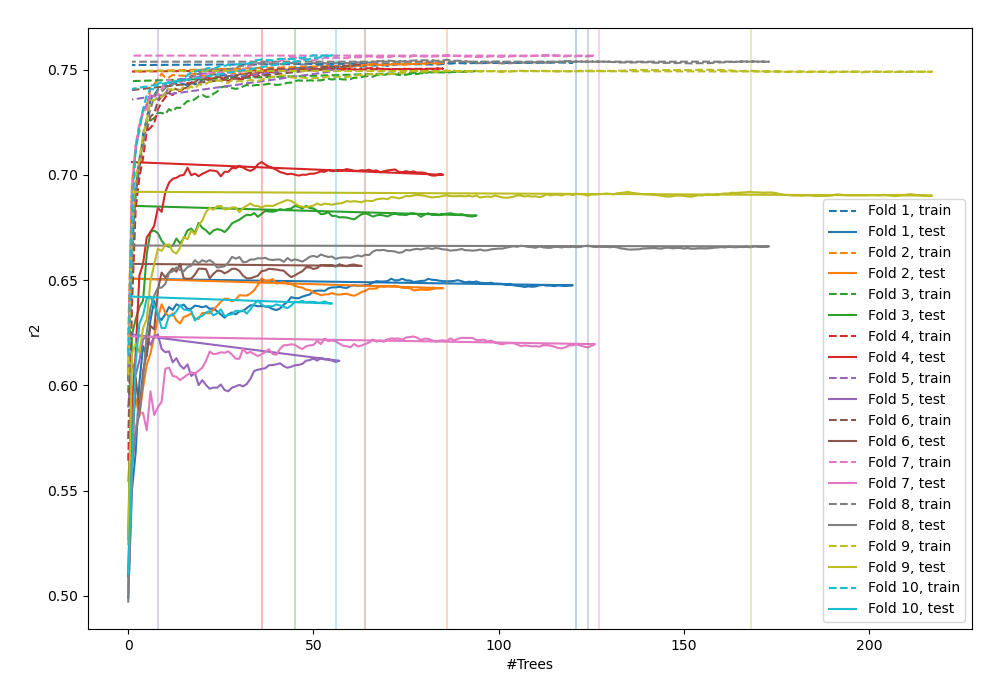

8_Default_ExtraTrees r2 0.531776 trained in 67.03 seconds
* Step not_so_random will try to check up to 36 models
18_LightGBM r2 0.783642 trained in 55.11 seconds

9_Xgboost r2 0.755805 trained in 123.99 seconds
27_RandomTrees r2 0.590433 trained in 165.51 seconds
36_ExtraTrees r2 0.50989 trained in 51.77 seconds
19_LightGBM r2 0.757933 trained in 41.83 seconds

10_Xgboost r2 0.748685 trained in 171.85 seconds
28_RandomTrees r2 0.528941 trained in 153.77 seconds
37_ExtraTrees r2 0.468456 trained in 55.49 seconds
20_LightGBM r2 0.775966 trained in 73.04 seconds

11_Xgboost r2 0.769376 trained in 57.62 seconds
29_RandomTrees r2 0.658831 trained in 379.98 seconds
Skip mix_encoding because of the time limit.
Not enough time to perform features selection. Skip
Time needed for features selection ~ 461.0 seconds
Please increase total_time_limit to at least (4671 seconds) to have features selection
Skip insert_random_feature because no parameters were generated.
Skip features_selection because no parameters were generated.
* Step hill_climbing_1 will try to check up to 21 models
38_LightGBM r2 0.782465 trained in 60.21 seconds
39_LightGBM r2 0.779481 trained in 62.88 seconds
40_LightGBM r2 0.771906 trained in 79.11 seconds
41_LightGBM r2 0.780096 trained in 74.6 seconds
42_LightGBM r2 0.767546 trained in 104.47 seconds

43_Xgboost r2 0.768957 trained in 119.14 seconds
* Step hill_climbing_2 will try to check up to 20 models
44_LightGBM r2 0.78336 trained in 54.25 seconds
45_LightGBM r2 0.780685 trained in 56.42 seconds
46_LightGBM r2 0.777007 trained in 64.33 seconds
47_LightGBM r2 0.779373 trained in 63.48 seconds

48_Xgboost r2 0.770172 trained in 95.72 seconds
* Step boost_on_errors will try to check up to 1 model
18_LightGBM_BoostOnErrors r2 0.777597 trained in 49.65 seconds
* Step ensemble will try to check up to 1 model

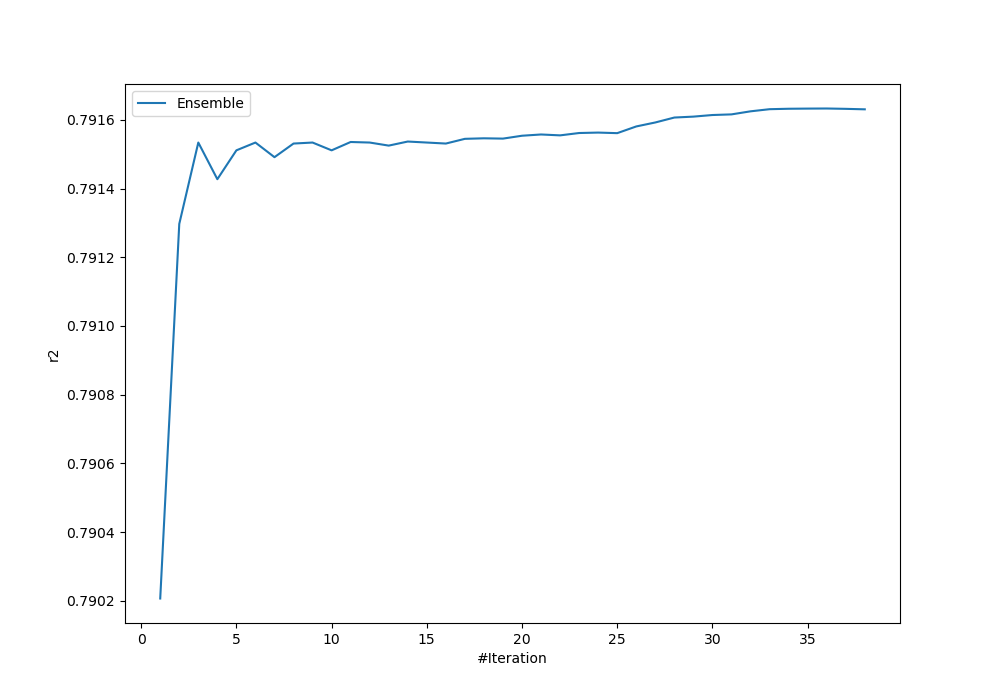

Ensemble r2 0.790207 trained in 2.34 seconds
* Step stack will try to check up to 22 models
18_LightGBM_Stacked r2 0.781946 trained in 38.77 seconds

48_Xgboost_Stacked r2 0.765817 trained in 56.7 seconds
29_RandomTrees_Stacked not trained. Stop training after the first fold. Time needed to train on the first fold 65.0 seconds. The time estimate for training on all folds is larger than total_time_limit.
8_Default_ExtraTrees_Stacked r2 0.787562 trained in 70.85 seconds
44_LightGBM_Stacked r2 0.78109 trained in 39.31 seconds

6_Default_Xgboost_Stacked r2 0.767522 trained in 59.69 seconds
7_Default_RandomTrees_Stacked r2 0.786985 trained in 252.41 seconds
36_ExtraTrees_Stacked not trained. Stop training after the first fold. Time needed to train on the first fold 2.0 seconds. The time estimate for training on all folds is larger than total_time_limit.
38_LightGBM_Stacked not trained. Stop training after the first fold. Time needed to train on the first fold 1.0 seconds. The time estimate for training on all folds is larger than total_time_limit.

11_Xgboost_Stacked not trained. Stop training after the first fold. Time needed to train on the first fold 2.0 seconds. The time estimate for training on all folds is larger than total_time_limit.
27_RandomTrees_Stacked not trained. Stop training after the first fold. Time needed to train on the first fold 11.0 seconds. The time estimate for training on all folds is larger than total_time_limit.
* Step ensemble_stacked will try to check up to 1 model
Ensemble_Stacked r2 0.791633 trained in 3.28 seconds
AutoML fit time: 3612.34 seconds
AutoML best model: Ensemble_Stacked
All the evaluated models are saved in the path  ~\AppData\Local\Temp\scratch\tmpgbw18ede

# train score of the model
AutoML_voters_county_obj_compete.score()

0.9681373663713142

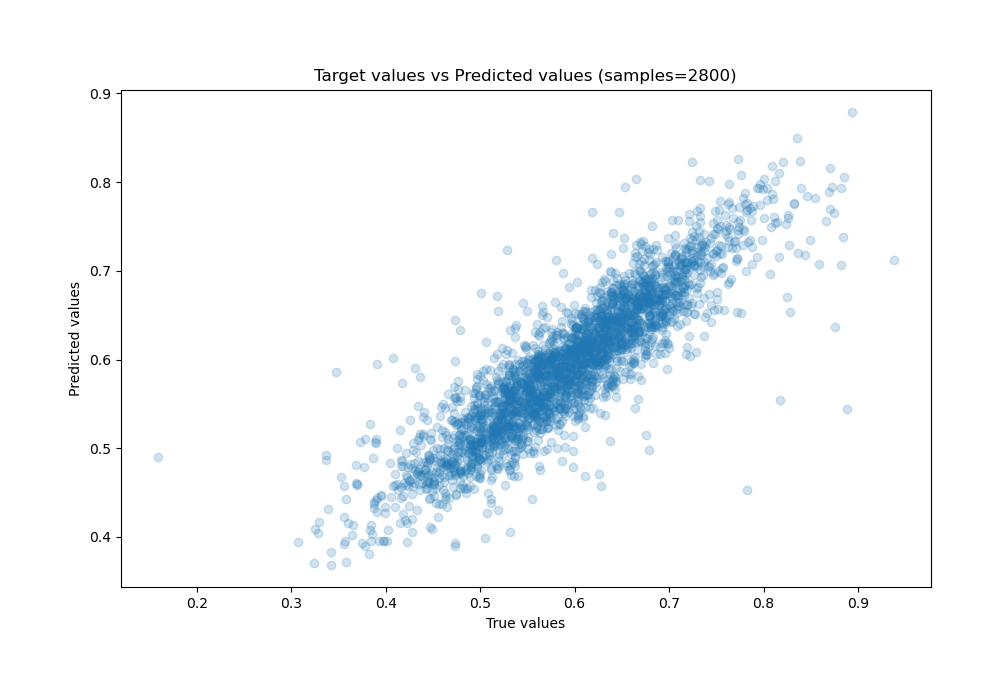

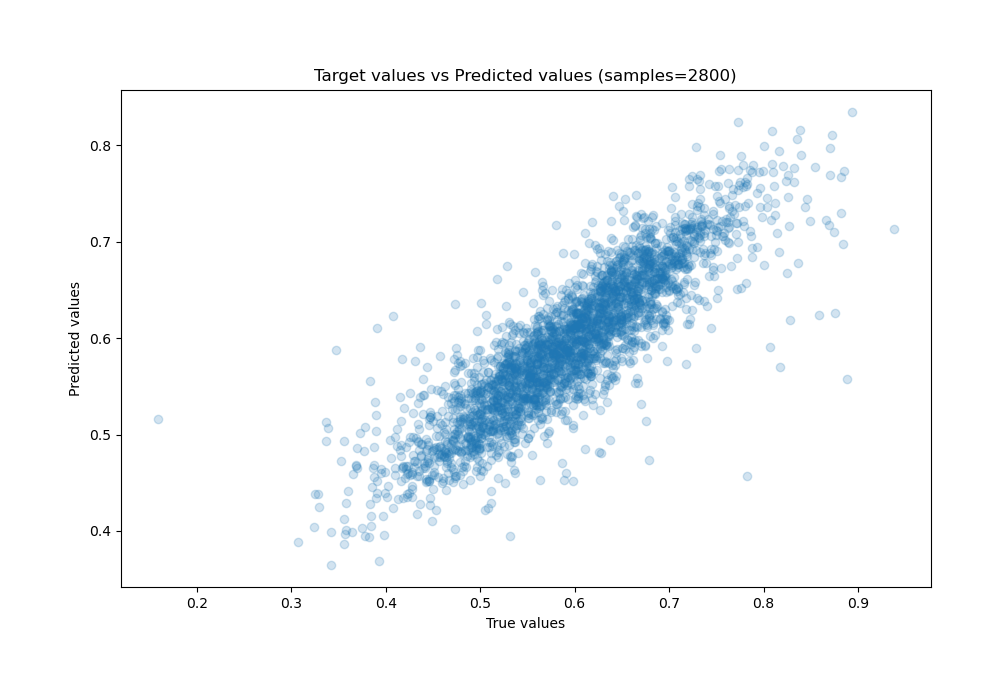

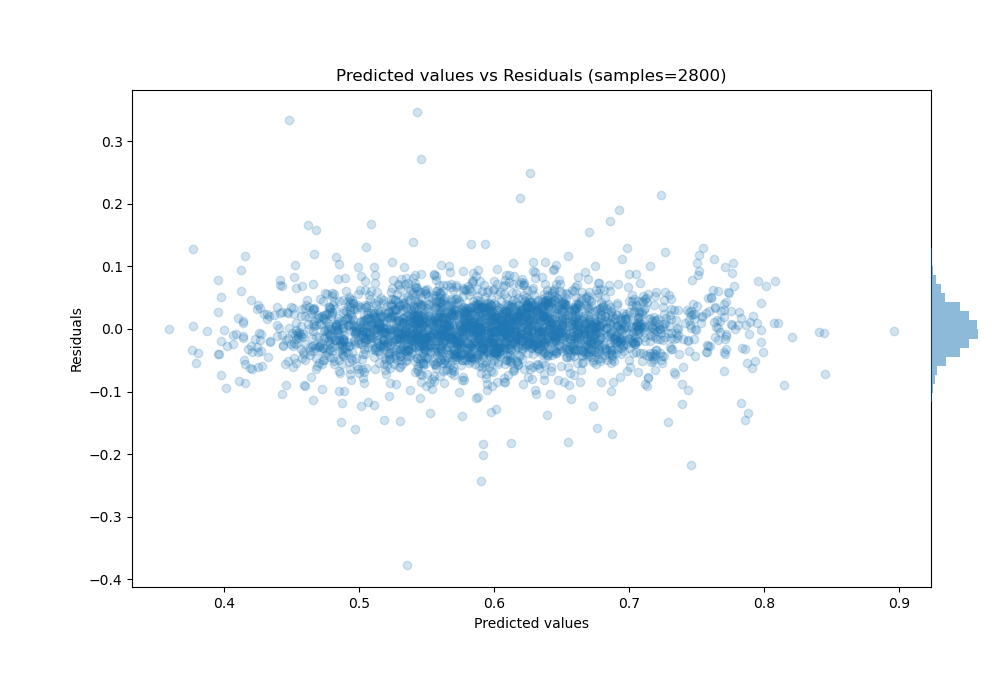

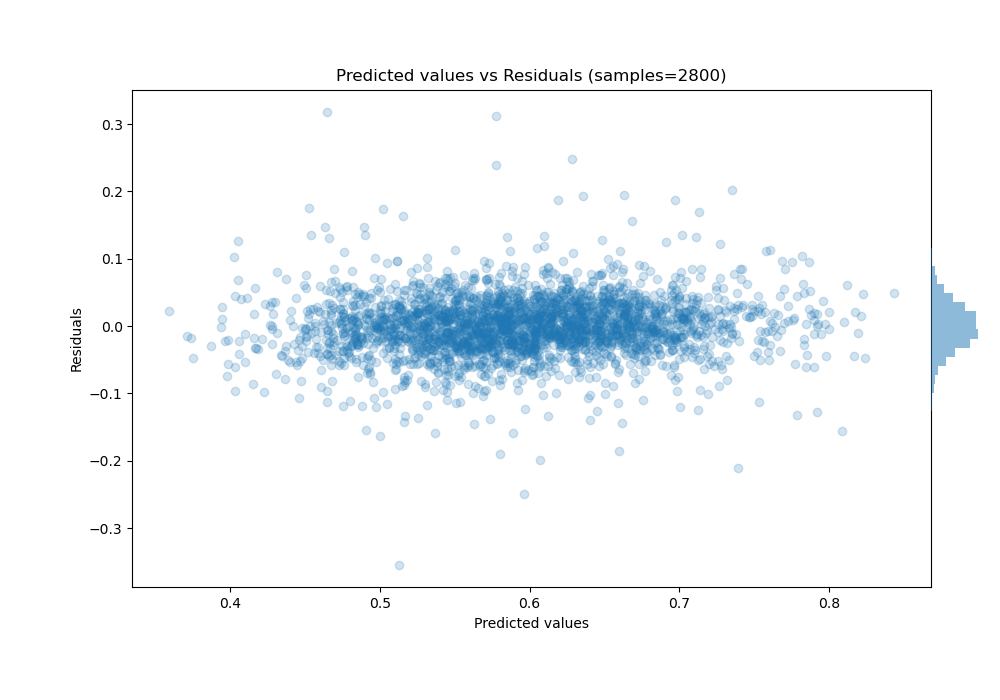

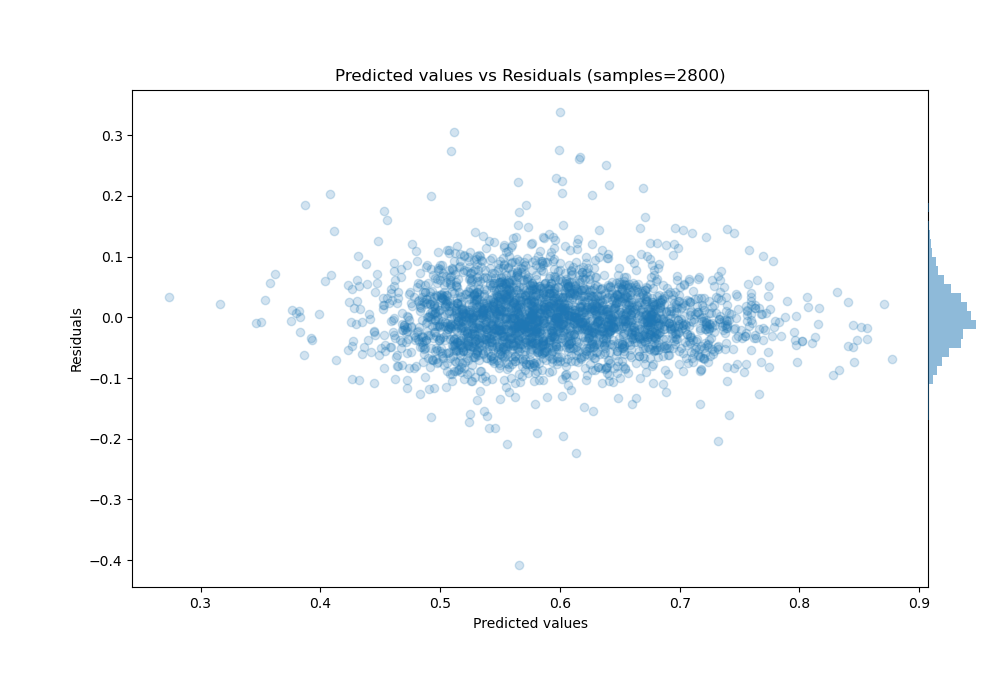

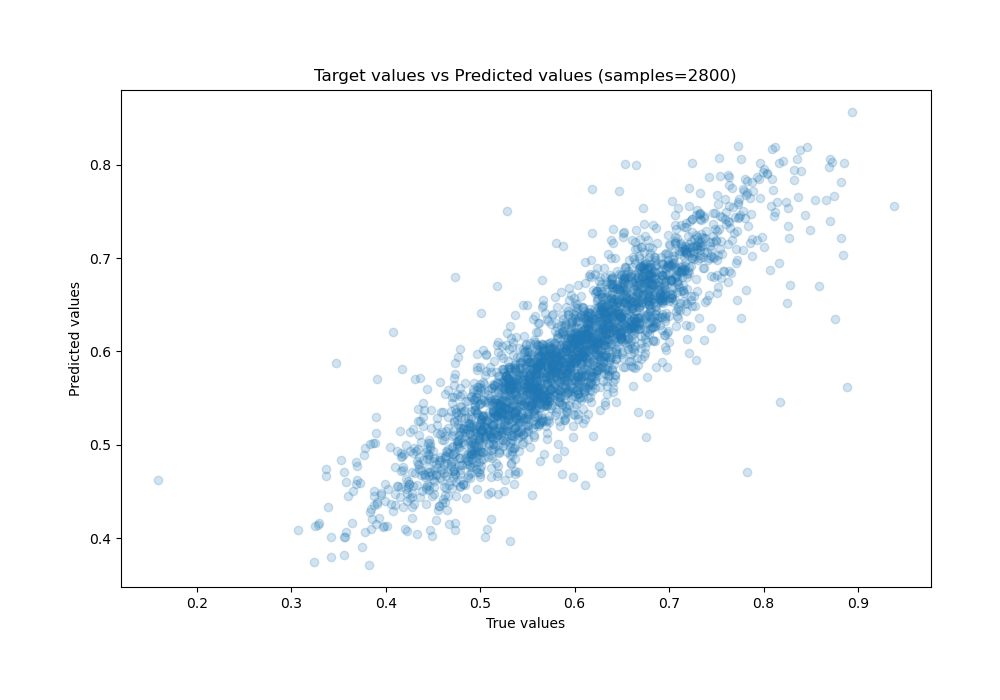

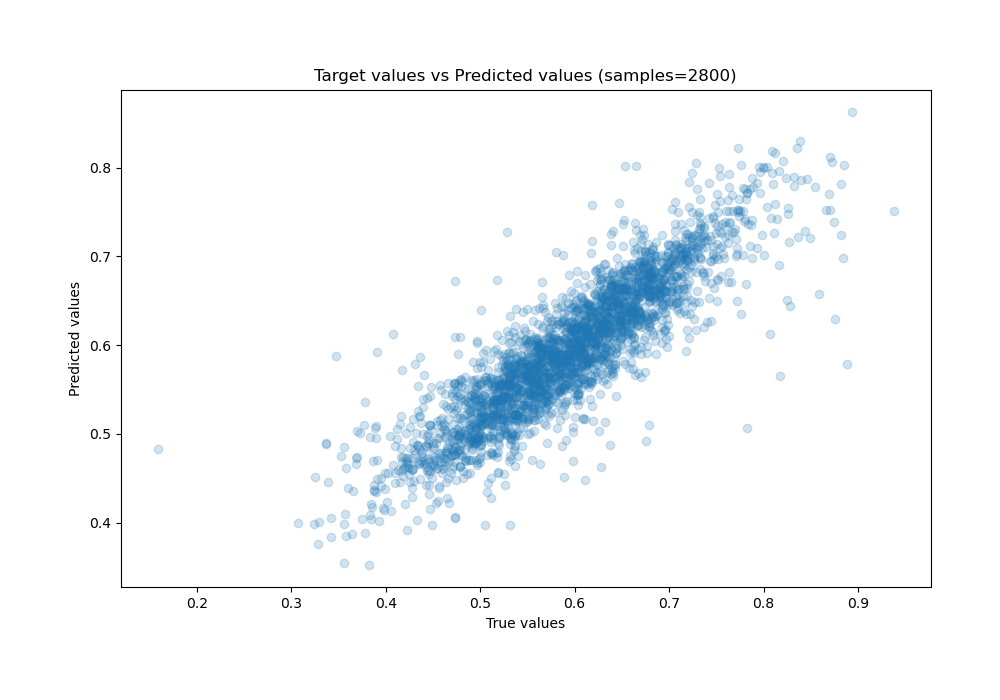

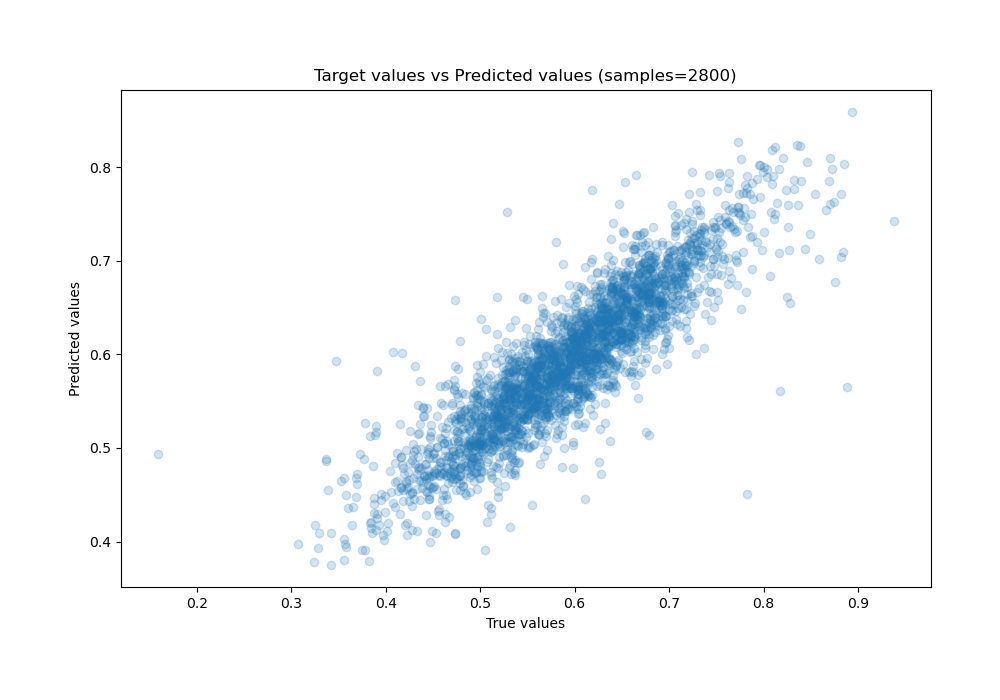

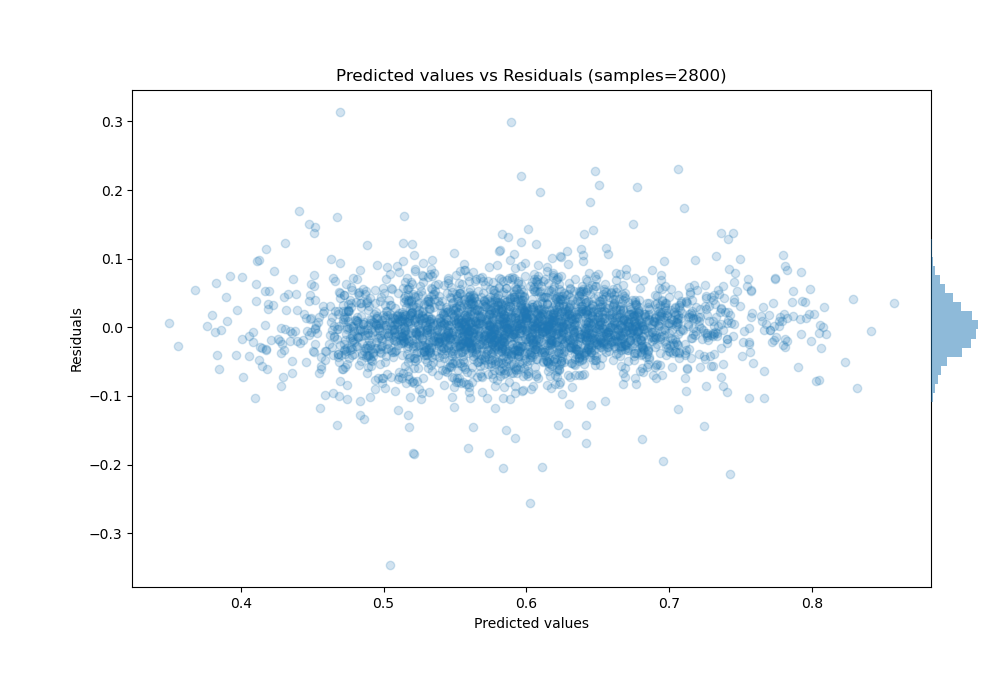

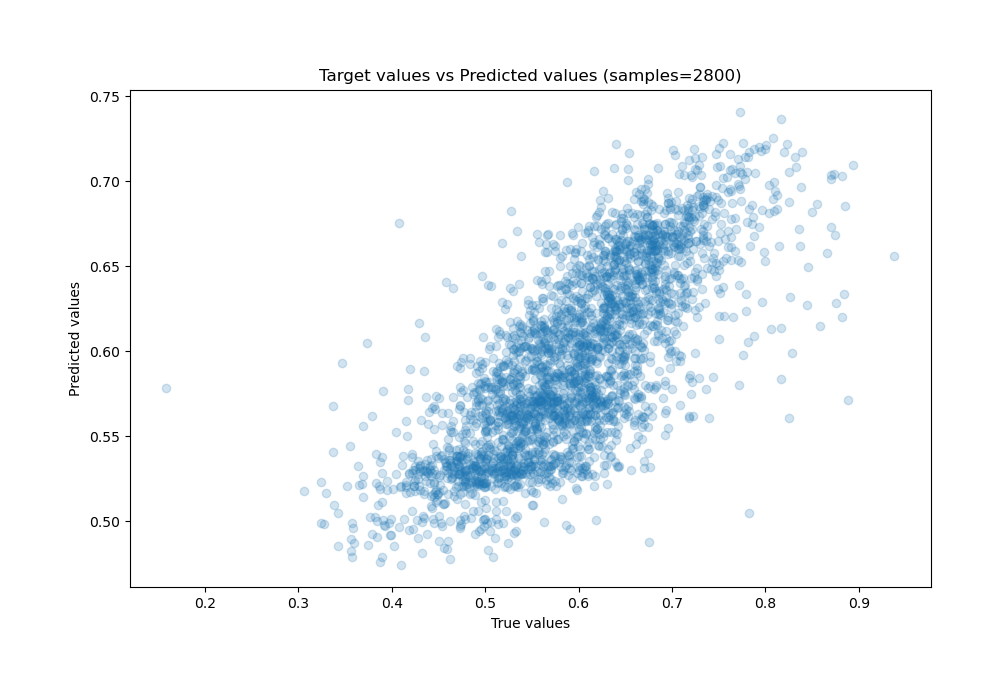

# The output diagnostics can also be printed in a report form
AutoML_voters_county_obj_compete.report()

In case the report html is not rendered appropriately in the notebook, the same can be found in the path ~\AppData\Local\Temp\scratch\tmpgbw18ede\README.html

# validating trained model on test dataset
voter_county_automl_predicted = AutoML_voters_county_obj_compete.predict(sdf_test, prediction_type='dataframe')

voter_county_automl_predicted.head(2)

import sklearn.metrics as metrics

r_square_voter_county_automl_Test = metrics.r2_score(voter_county_automl_predicted['voter_turn_x'], voter_county_automl_predicted['prediction_results'])
print('r_square_voter_county_automl_Test: ', round(r_square_voter_county_automl_Test,2))

r_square_voter_county_automl_Test:  0.84
