Format coordinates

View inMAUIUWPWPFWinUIView on GitHub

Format coordinates in a variety of common notations.

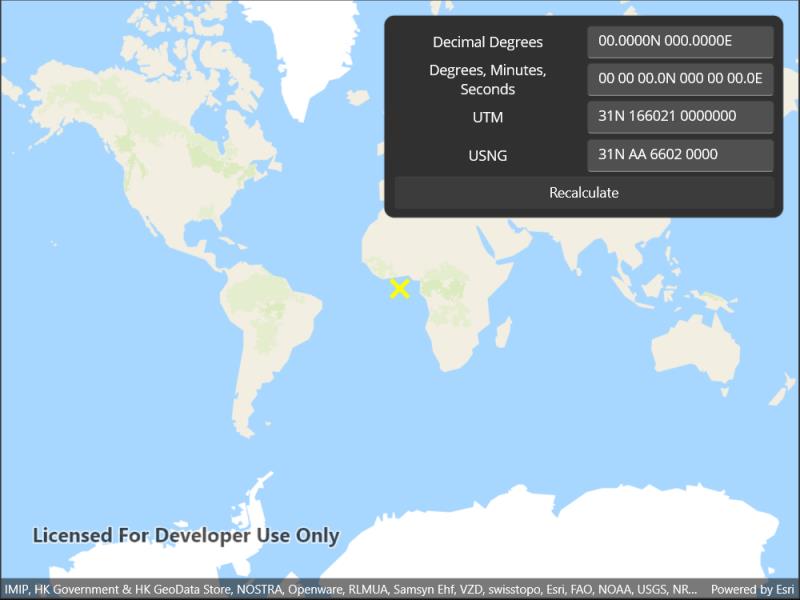

Images of format coordinates

Use case

The coordinate formatter can format a map location in WGS84 in a number of common coordinate notations. Parsing one of these formats to a location is also supported. Formats include decimal degrees; degrees, minutes, seconds; Universal Transverse Mercator (UTM), and United States National Grid (USNG).

How to use the sample

Tap on the map to see a callout with the tapped location's coordinate formatted in 4 different ways. You can also put a coordinate string in any of these formats in the text field. Hit Enter and the coordinate string will be parsed to a map location which the callout will move to.

How it works

  1. Get or create a MapPoint with a spatial reference.
  2. Use one of the static "to" methods on CoordinateFormatter such as CoordinateFormatter.ToLatitudeLongitude(point, CoordinateFormatter.LatitudeLongitudeFormat.DecimalDegrees, 4) to get the formatted string.
  3. To go from a formatted string to a Point, use one of the "from" static methods like CoordinateFormatter.FromUtm(coordinateString, map.SpatialReference, CoordinateFormatter.UtmConversionMode.NorthSouthIndicators).

Relevant API

  • CoordinateFormatter
  • CoordinateFormatter.LatitudeLongitudeFormat
  • CoordinateFormatter.UtmConversionMode

Tags

convert, coordinate, decimal degrees, degree minutes seconds, format, latitude, longitude, USNG, UTM

Sample Code

FormatCoordinates.xaml.csFormatCoordinates.xaml.csFormatCoordinates.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;

using Color = System.Drawing.Color;

namespace ArcGIS.Samples.FormatCoordinates
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Format coordinates",
        category: "Geometry",
        description: "Format coordinates in a variety of common notations.",
        instructions: "Tap on the map to see a callout with the tapped location's coordinate formatted in 4 different ways. You can also put a coordinate string in any of these formats in the text field. Hit Enter and the coordinate string will be parsed to a map location which the callout will move to.",
        tags: new[] { "USNG", "UTM", "convert", "coordinate", "decimal degrees", "degree minutes seconds", "format", "latitude", "longitude" })]
    public partial class FormatCoordinates : ContentPage
    {
        // Hold a reference to the most recently updated field.
        private Entry _selectedEntry;

        private List<Entry> _entries;

        public FormatCoordinates()
        {
            InitializeComponent();
            Initialize();
        }

        private void Initialize()
        {
            // Create a list of the entries.
            _entries = new List<Entry> { UtmTextField, DmsTextField, DecimalDegreesTextField, UsngTextField };

            // Create the map.
            MyMapView.Map = new Map(BasemapStyle.ArcGISNavigation);

            // Add the graphics overlay to the map.
            MyMapView.GraphicsOverlays.Add(new GraphicsOverlay());

            // Create the starting point.
            var startingPoint = new MapPoint(0, 0, SpatialReferences.WebMercator);

            // Update the UI with the initial point.
            UpdateUIFromMapPoint(startingPoint);

            // Subscribe to map tap events to enable tapping on map to update coordinates.
            MyMapView.GeoViewTapped += (s, e) => { UpdateUIFromMapPoint(e.Location); };
        }

        private void InputTextChanged(object sender, TextChangedEventArgs e)
        {
            // Keep track of the last edited field.
            _selectedEntry = (Entry)sender;
        }

        private void RecalculateFields(object sender, EventArgs e)
        {
            // Only update the point if the user has changed text.
            if (_selectedEntry == null) return;

            // Hold the entered point.
            MapPoint enteredPoint = null;

            // Update the point based on which text sent the event.
            try
            {
                switch (_selectedEntry.Placeholder)
                {
                    case "Decimal Degrees":
                    case "Degrees, Minutes, Seconds":
                        enteredPoint =
                            CoordinateFormatter.FromLatitudeLongitude(_selectedEntry.Text, MyMapView.SpatialReference);
                        break;

                    case "UTM":
                        enteredPoint =
                            CoordinateFormatter.FromUtm(_selectedEntry.Text, MyMapView.SpatialReference, UtmConversionMode.NorthSouthIndicators);
                        break;

                    case "USNG":
                        enteredPoint =
                            CoordinateFormatter.FromUsng(_selectedEntry.Text, MyMapView.SpatialReference);
                        break;
                }
            }
            catch (Exception ex)
            {
                // The coordinate is malformed, warn and return
                Application.Current.MainPage.DisplayAlert("Invalid Format", ex.Message, "OK");
                return;
            }

            // Update the UI from the MapPoint.
            UpdateUIFromMapPoint(enteredPoint);
        }

        private void UpdateUIFromMapPoint(MapPoint selectedPoint)
        {
            try
            {
                // Check if the selected point can be formatted into coordinates.
                CoordinateFormatter.ToLatitudeLongitude(selectedPoint, LatitudeLongitudeFormat.DecimalDegrees, 0);
            }
            catch (Exception ex)
            {
                Application.Current.MainPage.DisplayAlert("Error", ex.Message, "OK");
                return;
            }

            // "Deselect" any text box.
            _selectedEntry = null;

            // Disable event handlers while updating text in text boxes.
            _entries.ForEach(box => box.TextChanged -= InputTextChanged);

            // Update Entry values.
            DecimalDegreesTextField.Text = CoordinateFormatter.ToLatitudeLongitude(selectedPoint, LatitudeLongitudeFormat.DecimalDegrees, 4);
            DmsTextField.Text = CoordinateFormatter.ToLatitudeLongitude(selectedPoint, LatitudeLongitudeFormat.DegreesMinutesSeconds, 1);
            UtmTextField.Text = CoordinateFormatter.ToUtm(selectedPoint, UtmConversionMode.NorthSouthIndicators, true);
            UsngTextField.Text = CoordinateFormatter.ToUsng(selectedPoint, 4, true);

            // Enable event handlers for all of the text boxes.
            _entries.ForEach(box => box.TextChanged += InputTextChanged);

            // Clear existing graphics.
            MyMapView.GraphicsOverlays[0].Graphics.Clear();

            // Create a symbol to symbolize the point.
            var symbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.X, Color.Yellow, 20);

            // Create the graphic.
            var symbolGraphic = new Graphic(selectedPoint, symbol);

            // Add the graphic to the graphics overlay.
            MyMapView.GraphicsOverlays[0].Graphics.Add(symbolGraphic);
        }
    }
}
