Web tiled layer

View inMAUIUWPWPFWinUIView on GitHub

Display a tiled web layer.

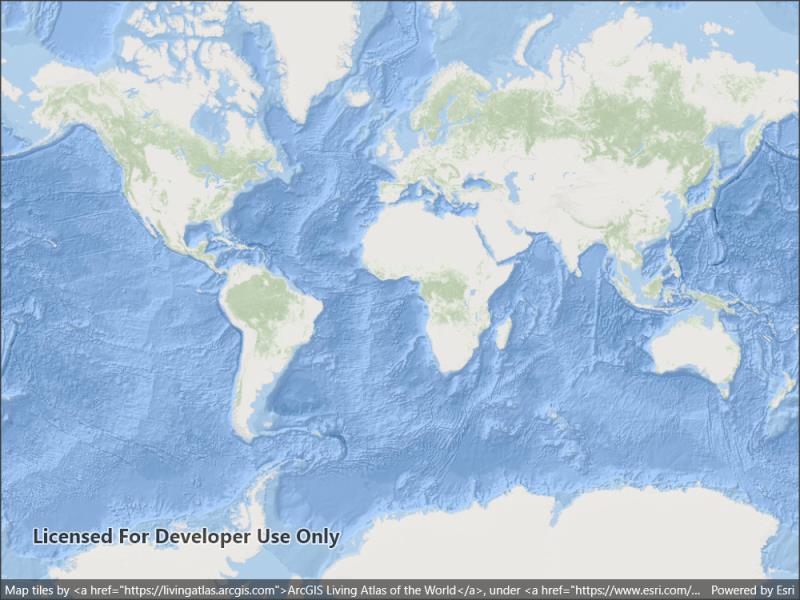

Image of web tiled layer

Use case

Tiled map services are a set of pre-generated images (e.g. "tiles") arranged in folders for each row, column, and zoom level. As you navigate the map, map tiles are requested for the current extent. ArcGISTiledLayer and WMTSLayer are types of tiled map services used for specific data types. WebTiledLayer is useful for displaying other data sources that contain tiles arranged in a row/column/level directory structure, such as OpenStreetMap.

How to use the sample

Run the sample and a map will appear. As you navigate the map, map tiles will be fetched automatically and displayed on the map.

How it works

  1. Create a WebTiledLayer from a URL.
  2. Create a new Basemap from the layer.
  3. Update the attribution on the layer. Note: this is a necessary step because web tiled services don't have associated service metadata.
  4. Display the basemap.

Relevant API

  • Basemap
  • WebTiledLayer

About the data

The basemap in this sample is provided by ArcGIS Living Atlas of the World. ArcGIS Living Atlas of the World provides tiled services with several unique styles.

Additional information

Web tiled services use a uniform addressing scheme with pre-rendered tiles. Image tiles are accessed via a URL template string, with parameters for subdomain, level, column, and row.

  • Subdomain is optional and allows Runtime to balance requests among multiple servers for enhanced performance.
  • Level, row, and column select the tiles to load based on the visible extent of the map.

For more information about web tiled layers, see the following resources:

Tags

layer, OGC, tiled, tiles

Sample Code

LoadWebTiledLayer.xaml.csLoadWebTiledLayer.xaml.csLoadWebTiledLayer.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Mapping;

namespace ArcGIS.Samples.LoadWebTiledLayer
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Web tiled layer",
        category: "Layers",
        description: "Display a tiled web layer.",
        instructions: "Run the sample and a map will appear. As you navigate the map, map tiles will be fetched automatically and displayed on the map.",
        tags: new[] { "OGC", "layer", "tiled", "tiles" })]
    public partial class LoadWebTiledLayer : ContentPage
    {
        // Templated URL to the tile service.
        private readonly string _templateUri = "https://server.arcgisonline.com/arcgis/rest/services/Ocean/World_Ocean_Base/MapServer/tile/{level}/{row}/{col}.jpg";

        // Attribution string.
        private readonly string _attribution = "Map tiles by <a href=\"https://livingatlas.arcgis.com\">ArcGIS Living Atlas of the World</a>, " +
                                            "under <a href=\"https://www.esri.com/en-us/legal/terms/full-master-agreement\">Esri Master License Agreement</a>. " +
                                            "Data by Esri, Garmin, GEBCO, NOAA NGDC, and other contributors.";

        public LoadWebTiledLayer()
        {
            InitializeComponent();

            // Create the UI, setup the control references and execute initialization.
            Initialize();
        }

        private void Initialize()
        {
            // Create the layer from the URL and the subdomain list.
            WebTiledLayer myBaseLayer = new WebTiledLayer(_templateUri);

            // Create a basemap from the layer.
            Basemap layerBasemap = new Basemap(myBaseLayer);

            // Apply the attribution for the layer.
            myBaseLayer.Attribution = _attribution;

            // Create a map to hold the basemap.
            Map myMap = new Map(layerBasemap);

            // Add the map to the map view.
            MyMapView.Map = myMap;
        }
    }
}
