Display scenes in augmented reality | ArcGIS Maps SDK for Kotlin

Augmented reality (AR) experiences can be implemented with three common patterns: tabletop, flyover, and world-scale.

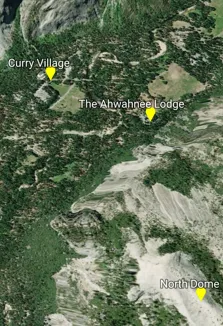

Flyover – With flyover AR you can explore a scene using your device as a window into the virtual world. A typical flyover AR scenario starts with the scene’s virtual camera positioned over an area of interest. You can walk around and reorient the device to focus on specific content in the scene.
Tabletop – Tabletop AR provides scene content anchored to a physical surface, as if it were a 3D-printed model. You can walk around the tabletop and view the scene from different angles.
World-scale – A kind of AR scenario where scene content is rendered exactly where it would be in the physical world. This is used in scenarios ranging from viewing hidden infrastructure to displaying waypoints for navigation. In AR, the real world, rather than a basemap, provides the context for your GIS data. The world scale scene view component in the ArcGIS Maps SDK for Kotlin Toolkit optionally supports Google’s ARCore Geospatial API, which leverages Google Street View imagery and global localization to provide accurate device location and orientation outdoors.

Flyover	Tabletop	World-scale

On screen, flyover is visually indistinguishable from normal scene rendering.	In tabletop, scene content is anchored to a real-world surface.	In world-scale AR, scene content is integrated with the real world.

Support for augmented reality is provided through components available in the ArcGIS Maps SDK for Kotlin Toolkit.

Enable your app for AR

No matter which AR pattern you implement, your app must include the following configuration and setup code:

Camera permissions. See Request camera permissions for more information.
ARCore configuration. Google Play Services for AR (often called simply ARCore) is a system service component installed onto a device via Google Play Store. See Configure ARCore for more information.
Installation of ARCore on device. See Install ARCore for more information.
Display of privacy policy. See Show privacy policy for more information.
Add the AR toolkit dependency. See Add AR toolkit dependency for more information.

AR is a resource-intensive feature. Just because a device supports ARCore does not mean it can provide the performance and reliability required to meet your users’ needs. It is important to understand your target audience and test your AR experience on realistic user devices.

Request camera permissions

Your app must be correctly set up to use the device camera.

Declare camera permissions: Add camera permissions to your AndroidManifest.xml.
Request permissions at runtime: Prompt users for camera access when starting AR.

Declare camera permissions

To use augmented reality, declare the need to obtain camera permissions in the AndroidManifest.xml:

    <uses-permission android:name="android.permission.CAMERA" />

Request permissions at runtime

The toolkit AR components automatically check for camera permissions when the scene view composable is first displayed. If permissions have not been granted, a permission request dialog is shown.

Optionally, you can use Activity.shouldShowRequestPermissionRationale() to determine if the user has previously denied a permission request and selected “Don’t ask again.” This method helps you decide whether to present a rationale to the user before requesting permission again. For more detail, see Explain why your app needs the permission in the Android documentation.

Configure ARCore

Your app must be correctly set up to use ARCore. See Google’s` ARCore developer documentation for detailed information about enabling ArCore and a list of supported devices.

Require ARCore installation: Require that ARCore is installed on the device.
Add ARCore dependency: Include the necessary ARCore libraries in your project.
Control Play Store visibility: Ensure that your app is only visible to devices that support ARCore.

Require ARCore installation

If your app is AR-only and does not contain any non-AR functionality, you should declare a meta-data tag in the AndroidManifest.xml requiring that ARCore is installed on the device. This declaration is made in the application tag, outside any activity tags. If your app contains non-AR functionality workflows, do not include this declaration. Instead, check for ARCore installation at runtime as described in Install ARCore.

31 collapsed lines
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    <uses-permission android:name="android.permission.INTERNET" />

    <uses-permission android:name="android.permission.CAMERA" />

    <!-- Ensures app is only visible in the Google Play Store on devices that support ARCore.
    For "AR Optional" apps remove this line. -->
    <uses-feature android:name="android.hardware.camera.ar" />
    <uses-feature
        android:name="android.hardware.camera"
        android:required="true" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>
        </activity>

        <!-- "AR Required" app, requires "Google Play Services for AR" (ARCore)
              to be installed, as the app does not include any non-AR features. -->
        <meta-data
            android:name="com.google.ar.core"
            android:value="required" />
5 collapsed lines


    </application>

</manifest>

Add ARCore dependency

Follow these steps to add the ARCore dependency to your project.

Add the ARCore dependency to your app-level build.gradle file.
dependencies { implementation(libs.ar.core) }

Declare the dependency’s version in the libs.versions.toml file.

arcore = "1.48.0"

ar-core = { group = "com.google.ar", name = "core", version.ref = "arcore" }

Control Play Store visibility

You can control whether your app is visible in the Play Store to devices that do not support ARCore. Declaring a <uses-feature> tag with android:name="android.hardware.camera.ar" and android:required="true" ensures that your app is available only to devices that support ARCore. If you want your app to be available to all devices, set android:required="false".

6 collapsed lines
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    <uses-permission android:name="android.permission.INTERNET" />

    <uses-permission android:name="android.permission.CAMERA" />

    <!-- Ensures app is only visible in the Google Play Store on devices that support ARCore.
    For "AR Optional" apps remove this line. -->
    <uses-feature android:name="android.hardware.camera.ar" />
    <uses-feature
        android:name="android.hardware.camera"
        android:required="true" />
29 collapsed lines

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>
        </activity>

        <!-- "AR Required" app, requires "Google Play Services for AR" (ARCore)
              to be installed, as the app does not include any non-AR features. -->
        <meta-data
            android:name="com.google.ar.core"
            android:value="required" />


    </application>

</manifest>

Install ARCore

Install ARCore services on the device if they are not already installed. ARCore is available through Google PlayStore. The following code checks whether ARCore is installed and prompts the user to install it, if necessary.

93 collapsed lines
/*
package com.example.guide.scenes3d.arflyover.snips

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.example.guide.scenes3d.arflyover.snips.screens.MainScreen
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.YOUR_ACCESS_TOKEN)
        setContent {
            SampleAppTheme {
                MainScreen()
            }
        }
    }
}
*/

/*
 *
 *  Copyright 2025 Esri
 *
 *  Licensed under the Apache License, Version 2.0 (the "License");
 *  you may not use this file except in compliance with the License.
 *  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 *  Unless required by applicable law or agreed to in writing, software
 *  distributed under the License is distributed on an "AS IS" BASIS,
 *  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *  See the License for the specific language governing permissions and
 *  limitations under the License.
 *
 */

package com.example.guide.scenes3d.arflyover.snips

import android.os.Bundle
import android.util.Log
import android.view.WindowManager
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.tooling.preview.Preview
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.example.guide.scenes3d.arflyover.snips.screens.MainScreen
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.google.ar.core.ArCoreApk
import kotlinx.coroutines.flow.MutableStateFlow

class MainActivity : ComponentActivity() {
    private var userRequestedInstall: Boolean = true

    // Flow to track if Google Play Services for AR is installed on the device.
    // By using `collectAsStateWithLifecycle()` in the composable, the UI will recompose when the
    // value changes.
    private val isGooglePlayServicesArInstalled = MutableStateFlow(false)

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.YOUR_ACCESS_TOKEN)
        setContent {
            SampleAppTheme {
                if (isGooglePlayServicesArInstalled.collectAsStateWithLifecycle().value) {
                    ArFlyoverApp()
                } else {
                    Text(text = stringResource(R.string.arcore_not_installed_screen_message))
                }
            }
        }
        window.addFlags(WindowManager.LayoutParams.FLAG_KEEP_SCREEN_ON)
    }

    override fun onResume() {
        super.onResume()
        checkGooglePlayServicesArInstalled()
    }


    /**
     * Check if Google Play Services for AR is installed on the device. If it's not installed, this
     * method must get called twice: once to request the installation and once to ensure it was
     * installed when the activity resumes.
     */
    private fun checkGooglePlayServicesArInstalled() {
        try {

            when (ArCoreApk.getInstance().requestInstall(this, userRequestedInstall)) {

                ArCoreApk.InstallStatus.INSTALL_REQUESTED -> {
                    userRequestedInstall = false
                    return
                }

                ArCoreApk.InstallStatus.INSTALLED -> {
                    isGooglePlayServicesArInstalled.value = true
                    return
                }
            }
        } catch (e: Exception) {
            Log.e("ArFlyoverApp", "Error checking Google Play Services for AR: ${e.message}")
        }
    }
15 collapsed lines

}

@Composable
fun ArFlyoverApp() {
    MainScreen()
}

@Preview(showBackground = true)
@Composable
fun AppPreview() {
    SampleAppTheme {
        ArFlyoverApp()
    }
}

Initialization status callback

Once ARCore is detected on the device, the system calls the onInitializationStatusChanged lambda of the scene view composable to report the initialization status. Although ARCore may be installed, it may not be ready to use. For example, the user may have denied camera permissions or the device may not support ARCore.

The possible initialization status values are subclasses of a sealed class specific to each type of scene view. These sealed classes are:

For example, the FlyoverSceneViewStatus has the following possible initialization values:

FlyoverSceneViewStatus.Initializing: AR is initializing.
FlyoverSceneViewStatus.Initialized: AR is ready to use.
FlyoverSceneViewStatus.FailedToInitialize: AR initialization failed.

Follow these general steps to handle the initialization status.

Define an observable state variable to hold the initialization status, using a remember function from the toolkit. For a flyover scene view, that function is rememberFlyoverSceneViewStatus().

210 collapsed lines
/*
 *
 *  Copyright 2025 Esri
 *
 *  Licensed under the Apache License, Version 2.0 (the "License");
 *  you may not use this file except in compliance with the License.
 *  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 *  Unless required by applicable law or agreed to in writing, software
 *  distributed under the License is distributed on an "AS IS" BASIS,
 *  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *  See the License for the specific language governing permissions and
 *  limitations under the License.
 *
 */

package com.example.guide.scenes3d.arflyover.snips.screens

import android.content.Context
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.layout.width
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.MoreVert
import androidx.compose.material3.Button
import androidx.compose.material3.Card
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.DropdownMenu
import androidx.compose.material3.DropdownMenuItem
import androidx.compose.material3.ExperimentalMaterial3Api
import androidx.compose.material3.HorizontalDivider
import androidx.compose.material3.Icon
import androidx.compose.material3.IconButton
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Scaffold
import androidx.compose.material3.SnackbarHost
import androidx.compose.material3.SnackbarHostState
import androidx.compose.material3.Text
import androidx.compose.material3.TextButton
import androidx.compose.material3.TopAppBar
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableDoubleStateOf
import androidx.compose.runtime.mutableIntStateOf
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.saveable.rememberSaveable
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.text.LinkAnnotation
import androidx.compose.ui.text.SpanStyle
import androidx.compose.ui.text.TextLinkStyles
import androidx.compose.ui.text.buildAnnotatedString
import androidx.compose.ui.text.withLink
import androidx.compose.ui.unit.dp
import androidx.compose.ui.window.Dialog
import androidx.core.content.edit
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import com.arcgismaps.LoadStatus
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.NavigationConstraint
import com.arcgismaps.mapping.PortalItem
import com.arcgismaps.mapping.view.AtmosphereEffect
import com.arcgismaps.portal.Portal
import com.arcgismaps.toolkit.ar.FlyoverSceneView
import com.arcgismaps.toolkit.ar.FlyoverSceneViewStatus
import com.arcgismaps.toolkit.ar.rememberFlyoverSceneViewProxy
import com.arcgismaps.toolkit.ar.rememberFlyoverSceneViewStatus
import com.example.guide.scenes3d.arflyover.snips.R
import com.example.guide.scenes3d.arflyover.snips.rememberPointsOfInterest
private const val KEY_PREF_ACCEPTED_PRIVACY_INFO = "ACCEPTED_PRIVACY_INFO"

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun MainScreen() {

    val arcGISScene = remember {
        ArcGISScene(
            item = PortalItem(
                portal = Portal.arcGISOnline(connection = Portal.Connection.Anonymous),
                itemId = "7558ee942b2547019f66885c44d4f0b1"
            )
        ).apply{
            baseSurface.navigationConstraint = NavigationConstraint.StayAbove
        }
    }


    var currentPoiIndex by rememberSaveable { mutableIntStateOf(0) }

    val pointsOfInterestList = rememberPointsOfInterest()


    val flyoverSceneViewProxy = rememberFlyoverSceneViewProxy(
        location = Point(x = -119.53312, y = 37.746091, z = 6_000.0, SpatialReference.wgs84() ),
        heading = 355.0
    )

    var currentTranslationFactor by remember {
        mutableDoubleStateOf(pointsOfInterestList[currentPoiIndex].translationFactor)
    }

    var displayCallout by rememberSaveable { mutableStateOf(false) }

    // Display privacy info dialog if user has not already accepted Google's privacy info
    val sharedPreferences = LocalContext.current.getSharedPreferences("", Context.MODE_PRIVATE)
    var acceptedPrivacyInfo by rememberSaveable {
        mutableStateOf(
            sharedPreferences.getBoolean(
                KEY_PREF_ACCEPTED_PRIVACY_INFO, false
            )
        )
    }
    var showPrivacyInfo by rememberSaveable { mutableStateOf(!acceptedPrivacyInfo) }
    if (showPrivacyInfo) {
        PrivacyInfoDialog(
            acceptedPrivacyInfo,
            onUserResponse = { accepted ->
                acceptedPrivacyInfo = accepted
                sharedPreferences.edit { putBoolean(KEY_PREF_ACCEPTED_PRIVACY_INFO, accepted) }
                showPrivacyInfo = false
            }
        )
    }

    if (!acceptedPrivacyInfo) {
        // Privacy info must have been declined, so display a message to that effect and a button
        // that causes the privacy info dialog to be shown again
        Column(
            modifier = Modifier.fillMaxSize(),
            verticalArrangement = Arrangement.Center,
            horizontalAlignment = Alignment.CenterHorizontally
        ) {
            Text(stringResource(R.string.privacy_info_not_accepted))
            Button(
                onClick = { showPrivacyInfo = true }
            ) {
                Text(stringResource(R.string.show_privacy_info))
            }
        }
    } else {
        val snackbarHostState = remember { SnackbarHostState() }

        // In the Scaffold, declare a TopAppBar that includes a DropdownMenu containing Points of
        // Interest for the user to select from
        Scaffold(
            snackbarHost = { SnackbarHost(hostState = snackbarHostState) },
            topBar = {
                TopAppBar(
                    title = { Text(stringResource(R.string.app_name)) },
                    actions = {
                        var actionsExpanded by remember { mutableStateOf(false) }
                        IconButton(onClick = { actionsExpanded = !actionsExpanded }) {
                            Icon(Icons.Default.MoreVert, stringResource(R.string.more))
                        }
                        DropdownMenu(
                            expanded = actionsExpanded,
                            onDismissRequest = { actionsExpanded = false },
                            modifier = Modifier.padding(10.dp)
                        ) {
                            Text(stringResource(R.string.select_new_location))
                            HorizontalDivider(thickness = 2.dp)
                            pointsOfInterestList.forEachIndexed { index, poi ->
                                DropdownMenuItem(
                                    text = { Text(poi.name) },
                                    onClick = {
                                        // User has clicked on a Point of Interest; set the location,
                                        // heading and translationFactor for that POI
                                        currentPoiIndex = index
                                        actionsExpanded = false
                                        flyoverSceneViewProxy.setLocationAndHeading(
                                            poi.poiLocation,
                                            poi.heading
                                        )
                                        currentTranslationFactor = poi.translationFactor

                                        // Display a Callout if this POI has one
                                        if (poi.calloutLocation != null) {
                                            displayCallout = true
                                        }
                                    },
                                )
                            }
                        }
                    }
                )
            }
        ) { innerPadding ->
            Box(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(innerPadding)
            ) {

                var initializationStatus by rememberFlyoverSceneViewStatus()
182 collapsed lines

                // Display the scene in a FlyoverSceneView
                FlyoverSceneView(
                    arcGISScene = arcGISScene,
                    flyoverSceneViewProxy = flyoverSceneViewProxy,
                    translationFactor = 1000.0,
                    atmosphereEffect = AtmosphereEffect.Realistic,

                    onInitializationStatusChanged = {
                        initializationStatus = it
                    }

                )

                {
                    if (displayCallout) {
                        val pointOfInterest = pointsOfInterestList[currentPoiIndex]
                        pointOfInterest.calloutLocation?.let { calloutLocation ->
                            // Display a Callout containing information about the current POI
                            Callout(calloutLocation) {
                                Column(horizontalAlignment = Alignment.CenterHorizontally) {
                                    Text(
                                        text = pointOfInterest.name,
                                        style = MaterialTheme.typography.titleMedium
                                    )
                                    Text(pointOfInterest.description, Modifier.width(300.dp))
                                    Button(
                                        onClick = {
                                            displayCallout = false
                                        }
                                    ) {
                                        Text(text = "Dismiss")
                                    }
                                }
                            }
                        }
                    }
                }

                val sceneLoadStatus =
                    arcGISScene.loadStatus.collectAsStateWithLifecycle().value

                when (val status = initializationStatus) {
                    // Display a message while the FlyoverSceneView initializes
                    is FlyoverSceneViewStatus.Initializing -> {
                        TextWithScrim(text = stringResource(R.string.setting_up_ar))
                    }

                    // Display an error message if initialization failed
                    is FlyoverSceneViewStatus.FailedToInitialize -> {
                        val message = status.error.message ?: status.error
                        TextWithScrim(
                            text = stringResource(
                                R.string.failed_to_initialize_ar,
                                message
                            )
                        )
                    }

                    else -> {
                        when (sceneLoadStatus) {

                            // Display a progress indicator while the scene loads
                            is LoadStatus.NotLoaded, LoadStatus.Loading -> {
                                CircularProgressIndicator(modifier = Modifier.align(Alignment.Center))
                            }

                            // Display an error message if scene loading failed
                            is LoadStatus.FailedToLoad -> {
                                TextWithScrim(
                                    text = stringResource(
                                        R.string.failed_to_load_scene,
                                        sceneLoadStatus.error
                                    )
                                )
                            }

                            // Successfully loaded so nothing more to do
                            LoadStatus.Loaded -> {}
                        }
                    }
                }
            }
        }
    }
}

/**
 * An alert dialog that asks the user to accept or deny
 * [ARCore's privacy requirements](https://developers.google.com/ar/develop/privacy-requirements).
 *
 * @param hasCurrentlyAccepted indicates if user has already accepted
 * @param onUserResponse called to indicate if user accepted or declined
 * @since 200.8.0
 */
@Composable
private fun PrivacyInfoDialog(
    hasCurrentlyAccepted: Boolean,
    onUserResponse: (accepted: Boolean) -> Unit
) {
    Dialog(
        onDismissRequest = { onUserResponse(hasCurrentlyAccepted) }
    ) {
        Card {
            Column(
                modifier = Modifier.padding(16.dp)
            ) {
                LegalTextArCore()
                Spacer(Modifier.height(16.dp))
                Row(
                    modifier = Modifier.fillMaxWidth(),
                    horizontalArrangement = Arrangement.SpaceBetween
                ) {
                    TextButton(
                        onClick = { onUserResponse(false) }
                    ) {
                        Text(stringResource(R.string.decline))
                    }

                    TextButton(
                        onClick = { onUserResponse(true) }
                    ) {
                        Text(stringResource(R.string.accept))
                    }
                }
            }
        }
    }
}

/**
 * Displays the required privacy information for use of ARCore.
 *
 * @since 200.8.0
 */
@Composable
private fun LegalTextArCore() {
    val textLinkStyle = TextLinkStyles(style = SpanStyle(color = Color.Blue))

    Text(
        text = buildAnnotatedString {
            append("This application runs on ")
            withLink(
                LinkAnnotation.Url(
                    "https://play.google.com/store/apps/details?id=com.google.ar.core",
                    textLinkStyle
                )
            ) {
                append("Google Play Services for AR")
            }
            append(" (ARCore), which is provided by Google and governed by the ")
            withLink(
                LinkAnnotation.Url(
                    "https://policies.google.com/privacy",
                    textLinkStyle
                )
            ) {
                append("Google Privacy Policy.")
            }
        }
    )

}

/**
 * Displays the provided [text] on top of a half-transparent gray background.
 *
 * @param text the text to display
 * @since 200.8.0
 */
@Composable
fun TextWithScrim(text: String) {
    Column(
        modifier = Modifier
            .background(Color.Gray.copy(alpha = 0.5f))
            .fillMaxSize(),
        verticalArrangement = Arrangement.Center,
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Text(text = text)
    }
}

Pass a lambda as the onInitializationStatusChanged parameter of the scene view composable.

                    onInitializationStatusChanged = {
                        initializationStatus = it
                    }

Use a when expression to handle the different status values.

                when (val status = initializationStatus) {
                    // Display a message while the FlyoverSceneView initializes
                    is FlyoverSceneViewStatus.Initializing -> {
                        TextWithScrim(text = stringResource(R.string.setting_up_ar))
                    }

                    // Display an error message if initialization failed
                    is FlyoverSceneViewStatus.FailedToInitialize -> {
                        val message = status.error.message ?: status.error
                        TextWithScrim(
                            text = stringResource(
                                R.string.failed_to_initialize_ar,
                                message
                            )
                        )
                    }

                    else -> {
                        when (sceneLoadStatus) {

Show privacy policy

You must provide a privacy policy in your app if it downloads ARCore. The privacy policy notice should include the following text.

This application runs on Google Play Services for AR (ARCore), which is provided by Google and governed by the Google Privacy Policy.

The notice should includes links to Google Play Services for AR (ARCore) and the Google Privacy Policy. The following code shows how to display the notice as a composable. For more information, see User privacy requirements in Android’s ARCore developer documentation.

/**
 * Displays the required privacy information for use of ARCore.
 *
 * @since 200.8.0
 */
@Composable
private fun LegalTextArCore() {
    val textLinkStyle = TextLinkStyles(style = SpanStyle(color = Color.Blue))

    Text(
        text = buildAnnotatedString {
            append("This application runs on ")
            withLink(
                LinkAnnotation.Url(
                    "https://play.google.com/store/apps/details?id=com.google.ar.core",
                    textLinkStyle
                )
            ) {
                append("Google Play Services for AR")
            }
            append(" (ARCore), which is provided by Google and governed by the ")
            withLink(
                LinkAnnotation.Url(
                    "https://policies.google.com/privacy",
                    textLinkStyle
                )
            ) {
                append("Google Privacy Policy.")
            }
        }
    )

}

Note that the world-scale AR pattern requires an additional privacy policy notice. See Implement world-scale AR for more information.

Add AR toolkit dependency

Add a dependency on the Kotlin Maps SDK toolkit’s AR module to your app-level build.gradle file. This allows you to use the composable components for AR defined in the toolkit: FlyoverSceneView, TableTopSceneView, and WorldScaleSceneView

dependencies {

    // lib dependencies from rootProject build.gradle.kts
    implementation(libs.androidx.core.ktx)
    implementation(libs.androidx.lifecycle.runtime.ktx)
    implementation(libs.androidx.lifecycle.viewmodel.compose)
    implementation(libs.androidx.activity.compose)
    // Jetpack Compose Bill of Materials
    implementation(platform(libs.androidx.compose.bom))
    // Jetpack Compose dependencies
    implementation(libs.androidx.compose.ui)
    implementation(libs.androidx.compose.navigation)
    implementation(libs.androidx.compose.material3)
    implementation(libs.androidx.compose.ui.tooling)
    implementation(libs.androidx.compose.ui.tooling.preview)
    implementation(project(":samples-lib"))
    // Toolkit dependencies
    implementation(platform(libs.arcgis.maps.kotlin.toolkit.bom))
    implementation(libs.arcgis.maps.kotlin.toolkit.geoview.compose)

    implementation(libs.arcgis.maps.kotlin.toolkit.ar)

    implementation(libs.ar.core)

}

Understand Common AR Patterns

There are many AR scenarios you can achieve. This SDK recognizes the following common patterns for AR:

Flyover – Flyover AR is a kind of AR scenario that allows you to explore a scene using your device as a window into the virtual world. A typical flyover AR scenario will start with the scene’s virtual camera positioned over an area of interest. You can walk around and reorient the device to focus on specific content in the scene.
Tabletop – A kind of AR scenario where scene content is anchored to a physical surface, as if it were a 3D-printed model. You can walk around the tabletop and view the scene from different angles.
World-scale – A kind of AR scenario where scene content is rendered exactly where it would be in the physical world. This is used in scenarios ranging from viewing hidden infrastructure to displaying waypoints for navigation. In AR, the real world, rather than a basemap, provides the context for your GIS data.

Each experience is built using a combination of the features, the toolkit, and some basic behavioral assumptions. For example:

AR pattern	Origin camera	Translation factor	Scene view	Base surface
Flyover AR	Above the tallest content in the scene	A large value to enable rapid traversal; 0 to restrict movement	Space effect: Stars Atmosphere: Realistic	Displayed
Tabletop AR	On the ground at the center or lowest point on the scene	Based on the size of the target content and the physical table	Space effect: Transparent Atmosphere: None	Optional
World-scale AR	At the same location as the physical device camera	1, to keep virtual content in sync with real-world environment	Space effect: Transparent Atmosphere: None	Optional for calibration

Decide which of the three common AR patterns you want to implement in your app: tabletop, flyover, or world-scale. Each pattern uses a composable component from the ArcGIS Maps SDK for Kotlin toolkit: FlyoverSceneView, TableTopSceneView, and WorldScaleSceneView. See the following sections for information specific to each pattern.

Add flyover AR to your app
Add tabletop AR to your app
Add world-scale AR to your app

Add flyover AR to your app

Flyover AR displays a scene using the movement of the physical device to move the scene view camera. For example, you can walk around while holding up your device as a window into the scene. Unlike other AR experiences, the camera feed is not displayed to the user, making flyover similar to a traditional virtual reality (VR) experience.

Flyover is the simplest AR scenario to implement, as there is only a loose relationship between the physical world and the rendered virtual world. With flyover, you can imagine your device as a window into the virtual scene.

Implement flyover AR

Create the scene and add any content. This example uses the Yosemite Valley Hotspots web scene. On the scene’s base surface, the code below sets the camera navigation to NavigationConstraint.StayAbove. This value prevents the camera from going below the surface, which could disorient users. Note that Surface.navigationConstraint has NavigationConstraint.StayAbove as the default value, making the line of code optional.

    val arcGISScene = remember {
        ArcGISScene(
            item = PortalItem(
                portal = Portal.arcGISOnline(connection = Portal.Connection.Anonymous),
                itemId = "7558ee942b2547019f66885c44d4f0b1"
            )
        ).apply{
            baseSurface.navigationConstraint = NavigationConstraint.StayAbove
        }
    }

A FlyoverSceneViewProxy is a ArcGIS Maps SDK for Kotlin toolkit class that performs operations on a FlyoverSceneView. Such operations include identify operations on layers and graphics overlays or setting the AR session’s camera origin. You should place the camera origin above the content you want the user to explore, ideally in the center. Create a FlyoverSceneViewProxy for the Yosemite Valley Hotspots web scene with the following location and heading.
val flyoverSceneViewProxy = rememberFlyoverSceneViewProxy( location = Point(x = -119.53312, y = 37.746091, z = 6_000.0, SpatialReference.wgs84() ), heading = 355.0 )
FlyoverSceneView is a ArcGIS Maps SDK for Kotlin Toolkit composable that creates a special scene view for flyover augmented reality apps. Call the FlyoverSceneView composable using the scene, the flyover scene view proxy, a translation factor, and an atmosphere effect.
- The arcGISScene parameter is the scene you created above.
- The flyOverSceneViewProxy parameter is the proxy you created to allow access to operations on the FlyoverSceneView.
- Set the translation factor to provide an appropriate speed for traversing the scene as the devices moves. The translation factor defines the relationship between physical device movement and virtual camera movement. A relatively high translation factor is probably suitable when flying high above the scene, but a low value may be more suitable when exploring the scene at ground level.
- To create a more immersive experience, set the atmosphere effect to Atmosphere.Realistic.
// Display the scene in a FlyoverSceneView FlyoverSceneView( arcGISScene = arcGISScene, flyoverSceneViewProxy = flyoverSceneViewProxy, translationFactor = 1000.0, atmosphereEffect = AtmosphereEffect.Realistic, onInitializationStatusChanged = { initializationStatus = it } )

Add tabletop AR to your app

Tabletop AR allows you to use your device to interact with scenes as if they were 3D-printed models sitting on your desk. You could, for example, use tabletop AR to virtually explore a proposed development without needing to create a physical model.

Implement tabletop AR

Tabletop AR typically allows users to place scene content on a physical surface of their choice, such as the top of a desk. Once the content is placed, it remains anchored to the surface as the user moves around.

Create the scene using an ArcGISTiledElevationSource and an ArcGISSceneLayer. Set the scene’s surface navigation constraint to Surface.navigationConstraint and its opacity to 0.0. Note that Surface.navigationConstraint has NavigationConstraint.StayAbove as the default value, making the line of code optional.

For demonstration purposes, this code uses the Terrain3D REST service and the buildings layer because this pairing is particularly well-suited for tabletop display. You can construct your own scene using elevation and scene layer data or use any existing scene provided an appropriate clippingDistance is passed to the TableTopSceneView composable to ensure a proper tabletop experience.

    // Create a scene layer from buildings REST service
    val buildingsURL = "https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/DevA_BuildingShells/SceneServer"
    val buildingsLayer = ArcGISSceneLayer(uri = buildingsURL)

    // Create an elevation source from Terrain3D REST service
    val elevationServiceURL = "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"
    val elevationSource = ArcGISTiledElevationSource(uri = elevationServiceURL)
    val surface = Surface().apply {
        elevationSources.add(elevationSource)
    }
    // Create a mutable state variable to hold the scene. Later loaded from the scene package
    var scene: ArcGISScene? by mutableStateOf(ArcGISScene().apply {
        baseSurface = surface
        operationalLayers.add(buildingsLayer)
        baseSurface.navigationConstraint = NavigationConstraint.None
        baseSurface.opacity = 0f
    })

TableTopSceneView is an ArcGIS Maps SDK for Kotlin Toolkit component. Call the TableTopSceneView composable, providing the ArcGIS scene you just created, an anchor point, translation factor, and clipping distance.
- The anchor point is the location point of the ArcGIS scene that anchors (or “pins”) it to the physical surface. This point could be a known value, a user-selected value, or a computed value. For simplicity, this example uses a known value.
- The translation factor defines how much the scene view translates as the device moves. Set a translation factor that enables the whole scene to be viewed by moving around it. A useful formula for determining this value is translation factor = virtual content width / desired physical content width. The virtual content width is the real-world size of the scene content and the desired physical content width is the physical table top width. The virtual content width is determined by the clipping distance in meters around the camera.
- The clipping distance is the distance in meters that the ArcGIS Scene data will be clipped.
// Scene view that provides an augmented reality table top experience TableTopSceneView( arcGISScene = scene, arcGISSceneAnchor = Point( x = -122.68350326165559, y = 45.53257485106716, SpatialReference.wgs84() ), translationFactor = 1_000.0, clippingDistance = 400.0, modifier = Modifier.fillMaxSize(), onInitializationStatusChanged = { statusChanged -> initializationStatus = statusChanged } )

Add world-scale AR to your app

A world-scale AR experience is defined by the following characteristics:

The scene camera is positioned to precisely match the position and orientation of the device’s physical camera
Scene content is placed in the context of the real world by matching the scene view’s virtual camera position and orientation to that of the physical device camera.
Context aids, like the basemap, are hidden; the camera feed provides real-world context.

Some example use cases of world-scale AR include:

Visualizing hidden infrastructure, like sewers, water mains, and telecom conduits.
Maintaining context while performing rapid data collection for a survey.
Visualizing a route line while navigating.

Configure content for world-scale AR

The goal of a world-scale AR experience is to create the illusion that your GIS content is physically present in the world around you. There are several requirements for content that will be used for world-scale AR that go beyond what is typically required for 2D mapping.

Ensure that all data has an accurate elevation (or Z) value. For dynamically generated graphics (for example, route results) use an elevation surface to add elevation.
Use an elevation source in your scene to ensure all content is placed accurately relative to the user.
Don’t use 3D symbology that tries to simulate the shape of the feature it represents, such as 3D models. Consider instead using simple, abstract symbols such as the Cone, Cube, Cylinder, Diamond, Sphere, and Tetrahedron values that are the direct subclasses of the sealed class SimpleMarkerSceneSymbolStyle. The problem with using 3D models—such as a generic tree or fire hydrant—is that any small positioning or orientation errors will be obvious to the user. Generic 3D models often do not capture the unique geometry of real-world objects visible in the camera feed.
Consider how you present content that would otherwise be obscured in the real world, as the parallax effect can make that content appear to move unnaturally. For example, underground pipes will ‘float’ relative to the surface, even though they are at a fixed point underground. Have a plan to educate users, or consider adding visual guides, like lines drawn to link the hidden feature to the obscuring surface (for example, the ground).
By default, scene content is rendered over a large distance. This can be problematic when you are trying to view a limited subset of nearby features (just the pipes in your building, not for the entire campus, for example). You can use the clipping distance to limit the area over which scene content renders.

Location tracking options for world-scale AR

World-scale uses the device’s location based on the WorldScaleTrackingMode, positioning the scene camera to align the scene with real-world features. The two world-scale tracking mode values are:

WorldScaleTrackingMode.Geospatial—The camera is positioned with the aid of Google’s ARCore Geospatial API. Geospatial tracking uses Google Street View data to calibrate augmented reality positioning and requires ARCore authentication. This mode provides the best tracking accuracy and does not require manual calibration. It works best in urban, outdoor environments with high-resolution Street View data.
WorldScaleTrackingMode.World—The camera’s position and device location are determined using GPS and the device sensors; device orientation is determined by ARCore. Tracking accuracy depends on the accuracy of the GPS signal. It may be necessary to manually calibrate the scene view’s camera heading and elevation. The camera’s reference (origin) location is updated when the device travels a sufficient distance away (currently 10m) to improve tracking. When this update occurs, the scene may flash (disappear and reappear) and might need to be recalibrated. For these reasons, this mode is best suited to stationary experiences.

Implement world-scale AR

World-scale apps require location permissions. In addition to the camera permissions shown above, ensure that your app is also granted location permissions.

    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />

    <uses-permission android:name="android.permission.INTERNET" />

    <uses-permission android:name="android.permission.CAMERA" />

If you are using WorldScaleTrackingMode.Geospatial, you must display a privacy policy notice in your app that includes the following text. This notice is in addition to the privacy policy notice required for ARCore, described in Show privacy policy above.

To power this session, Google will process sensor data (e.g., camera and location). Learn more.

Your notice should include a link to How Google Play Services for AR handles your data. The following code shows how to display the notice as a composable.

416 collapsed lines
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.example.guide.scenes3d.arcollectdata.snips.screens

import android.content.Context
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Add
import androidx.compose.material3.Button
import androidx.compose.material3.Card
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.FloatingActionButton
import androidx.compose.material3.Icon
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.material3.TextButton
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.saveable.rememberSaveable
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.text.LinkAnnotation
import androidx.compose.ui.text.SpanStyle
import androidx.compose.ui.text.TextLinkStyles
import androidx.compose.ui.text.buildAnnotatedString
import androidx.compose.ui.text.withLink
import androidx.compose.ui.unit.dp
import androidx.compose.ui.window.Dialog
import androidx.core.content.edit
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.LoadStatus
import com.arcgismaps.toolkit.ar.WorldScaleSceneView
import com.arcgismaps.toolkit.ar.WorldScaleSceneViewStatus
import com.arcgismaps.toolkit.ar.WorldScaleTrackingMode
import com.arcgismaps.toolkit.ar.rememberWorldScaleSceneViewStatus
import com.example.guide.scenes3d.arcollectdata.snips.BuildConfig
import com.example.guide.scenes3d.arcollectdata.snips.R
import com.example.guide.scenes3d.arcollectdata.snips.components.AugmentRealityToCollectDataViewModel
import com.example.guide.scenes3d.arcollectdata.snips.components.TreeHealth
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

private const val KEY_PREF_ACCEPTED_PRIVACY_INFO = "ACCEPTED_PRIVACY_INFO"

/**
 * Main screen layout for the sample app
 */
@Composable
fun AugmentRealityToCollectDataScreen(sampleName: String) {
    val augmentedRealityViewModel: AugmentRealityToCollectDataViewModel = viewModel()

    var initializationStatus by rememberWorldScaleSceneViewStatus()

    val context = LocalContext.current

    val hasNonDefaultAPIKey = BuildConfig.GOOGLE_API_KEY != "DEFAULT_GOOGLE_API_KEY"
    // Initialize the world scale tracking mode based on whether a google API key is provided
    val worldScaleTrackingMode = remember {
        when {
            hasNonDefaultAPIKey -> { WorldScaleTrackingMode.Geospatial() }
            else -> { WorldScaleTrackingMode.World() }
        }
    }

    var displayCalibrationView by remember { mutableStateOf(false) }

    val sharedPreferences = LocalContext.current.getSharedPreferences("", Context.MODE_PRIVATE)
    var acceptedPrivacyInfo by rememberSaveable {
        mutableStateOf(
            sharedPreferences.getBoolean(
                KEY_PREF_ACCEPTED_PRIVACY_INFO,
                false
            )
        )
    }
    var showPrivacyInfo by rememberSaveable { mutableStateOf(!acceptedPrivacyInfo) }

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        floatingActionButton = {
            Column {
                if (!augmentedRealityViewModel.isDialogOptionsVisible) {
                    FloatingActionButton(
                        modifier = Modifier.padding(bottom = 20.dp, end = 12.dp),
                        onClick = { augmentedRealityViewModel.showDialog(context) }
                    ) { Icon(Icons.Filled.Add, contentDescription = "Add tree") }
                }
                if (worldScaleTrackingMode is WorldScaleTrackingMode.World) {
                    FloatingActionButton(
                        modifier = Modifier
                            .align(Alignment.End)
                            .padding(bottom = 20.dp, end = 12.dp),
                        onClick = { displayCalibrationView = true }) {
                        Icon(
                            painter = painterResource(R.drawable.baseline_straighten_24), "Show calibration view"
                        )
                    }
                }
            }
        },
        content = {
            if (showPrivacyInfo) {
                PrivacyInfoDialog(
                    hasCurrentlyAccepted = acceptedPrivacyInfo,
                    onUserResponse = { accepted ->
                        acceptedPrivacyInfo = accepted
                        sharedPreferences.edit { putBoolean(KEY_PREF_ACCEPTED_PRIVACY_INFO, accepted) }
                        showPrivacyInfo = false
                    }
                )
            }
            if (!acceptedPrivacyInfo) {
                Column(
                    modifier = Modifier.fillMaxSize(),
                    verticalArrangement = Arrangement.Center,
                    horizontalAlignment = Alignment.CenterHorizontally
                ) {
                    Text(text = "Privacy Info not accepted")
                    Button(onClick = { showPrivacyInfo = true }) {
                        Text(text = "Show Privacy Info")
                    }
                }
            } else {
                Box(
                    modifier = Modifier
                        .fillMaxSize()
                        .padding(it),
                ) {

                    WorldScaleSceneView(
                        arcGISScene = augmentedRealityViewModel.arcGISScene,
                        modifier = Modifier.fillMaxSize(),
                        onInitializationStatusChanged = { status ->
                            initializationStatus = status
                        },
                        worldScaleTrackingMode = worldScaleTrackingMode,
                        worldScaleSceneViewProxy = augmentedRealityViewModel.worldScaleSceneViewProxy,
                        graphicsOverlays = listOf(augmentedRealityViewModel.graphicsOverlay),
                        onSingleTapConfirmed = augmentedRealityViewModel::addMarker,
                        onCurrentViewpointCameraChanged = { camera ->
                            augmentedRealityViewModel.onCurrentViewpointCameraChanged(camera.location)
                        }
                    )

                    {

                        Box(modifier = Modifier.fillMaxSize()) {
                            if (worldScaleTrackingMode is WorldScaleTrackingMode.World) {
                                if (displayCalibrationView) {

                                    CalibrationView(
                                        onDismiss = { displayCalibrationView = false },
                                        modifier = Modifier.align(Alignment.BottomCenter),
                                    )

                                }
                            }
                        }

                    }

                    if (augmentedRealityViewModel.isDialogOptionsVisible) {
                        TreeHealthDialog(
                            onOptionSelected = { selectedOption ->
                                augmentedRealityViewModel.addTree(context ,selectedOption)},
                            onDismissRequest = augmentedRealityViewModel::hideDialog
                        )
                    }

                    if (worldScaleTrackingMode is WorldScaleTrackingMode.Geospatial) {
                        Box(
                            modifier = Modifier
                                .fillMaxWidth()
                                .background(Color.Gray.copy(alpha = 0.5f))
                                .padding(8.dp),
                            contentAlignment = Alignment.Center
                        ) {
                            Text(
                                text = if (augmentedRealityViewModel.isVpsAvailable) {
                                    "VPS available"
                                } else {
                                    "VPS unavailable"
                                },
                                color = Color.White
                            )
                        }
                    }

                    when (val status = initializationStatus) {
                        is WorldScaleSceneViewStatus.Initializing -> {
                            // Display a message indicating the initialization status
                            TextWithScrim(
                                if (worldScaleTrackingMode is WorldScaleTrackingMode.Geospatial) {
                                    "Initializing AR in geospatial mode..."
                                } else {
                                    "Initializing AR in world mode..."
                                }
                            )
                        }

                        is WorldScaleSceneViewStatus.Initialized -> {
                            val sceneLoadStatus =
                                augmentedRealityViewModel.arcGISScene.loadStatus.collectAsStateWithLifecycle().value
                            when (sceneLoadStatus) {
                                is LoadStatus.Loading, LoadStatus.NotLoaded -> {
                                    // The scene may take a while to load, so show a progress indicator
                                    Box(
                                        modifier = Modifier
                                            .fillMaxSize(),
                                        contentAlignment = Alignment.Center
                                    ) {
                                        CircularProgressIndicator()
                                    }
                                }

                                is LoadStatus.FailedToLoad -> {
                                    TextWithScrim("Failed to load world scale AR scene: " + sceneLoadStatus.error)
                                }

                                is LoadStatus.Loaded -> {} // Display the main content of the AR scene once it has successfully loaded.
                            }
                        }

                        is WorldScaleSceneViewStatus.FailedToInitialize -> {
                            TextWithScrim(
                                text = "World scale AR failed to initialize: " + (status.error.message ?: status.error)
                            )
                        }
                    }
                }
            }

            augmentedRealityViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}

/**
 * Displays the provided [text] on top of a half-transparent gray background.
 */
@Composable
private fun TextWithScrim(text: String) {
    Column(
        modifier = Modifier
            .background(Color.Gray.copy(alpha = 0.5f))
            .fillMaxSize(),
        verticalArrangement = Arrangement.Center,
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Text(text = text)
    }
}

/**
 * Displays a dialog for selecting the health status of a tree.
 */
@Composable
fun TreeHealthDialog(
    onOptionSelected: (TreeHealth) -> Unit,
    onDismissRequest: () -> Unit
) {
    SampleDialog(onDismissRequest = onDismissRequest) {
        Text("Add Tree ", style = MaterialTheme.typography.titleLarge)
        Text("How healthy is this tree?", style = MaterialTheme.typography.titleMedium)
        Spacer(modifier = Modifier.height(10.dp))
        TreeHealth.entries.forEach { option ->
            Button(
                onClick = {
                    onOptionSelected(option)
                    onDismissRequest()
                },
                modifier = Modifier
                    .fillMaxWidth()
                    .height(48.dp)
            ) {
                Text(
                    text = option.name,
                    style = MaterialTheme.typography.bodyMedium
                )
            }
        }
        Row(modifier = Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.End) {
            TextButton(onClick = onDismissRequest) { Text("Dismiss") }
        }
    }
}

/**
 * An alert dialog that asks the user to accept or deny
 * [ARCore's privacy requirements](https://developers.google.com/ar/develop/privacy-requirements).
 */
@Composable
private fun PrivacyInfoDialog(
    hasCurrentlyAccepted: Boolean,
    onUserResponse: (accepted: Boolean) -> Unit
) {
    Dialog(onDismissRequest = {
        onUserResponse(hasCurrentlyAccepted)
    }) {
        Card {
            Column(
                modifier = Modifier.padding(16.dp)
            ) {
                LegalTextArCore()
                Spacer(Modifier.height(16.dp))
                LegalTextGeospatial()
                Row(
                    modifier = Modifier.fillMaxWidth(),
                    horizontalArrangement = Arrangement.SpaceBetween
                ) {
                    TextButton(onClick = {
                        onUserResponse(false)
                    }) {
                        Text(text = "Decline")
                    }

                    TextButton(onClick = {
                        onUserResponse(true)
                    }) {
                        Text(text = "Accept")
                    }
                }
            }
        }
    }
}

/**
 * Displays the required privacy information for use of ARCore
 */
@Composable
private fun LegalTextArCore() {
    val textLinkStyle =
        TextLinkStyles(style = SpanStyle(color = Color.Blue))
    Text(text = buildAnnotatedString {
        append("This application runs on ")
        withLink(
            LinkAnnotation.Url(
                "https://play.google.com/store/apps/details?id=com.google.ar.core",
                textLinkStyle
            )
        ) {
            append("Google Play Services for AR")
        }
        append("  (ARCore), which is provided by Google and governed by the ")
        withLink(
            LinkAnnotation.Url(
                "https://policies.google.com/privacy",
                textLinkStyle
            )
        ) {
            append("Google Privacy Policy.")
        }
    })
}

/**
 * Displays the required privacy information for use of the Geospatial API
 */

@Composable
private fun LegalTextGeospatial() {
    Text(text = buildAnnotatedString {
        append("To power this session, Google will process sensor data (e.g., camera and location).")
        appendLine()
        withLink(
            LinkAnnotation.Url(
                "https://support.google.com/ar?p=how-google-play-services-for-ar-handles-your-data",
                TextLinkStyles(style = SpanStyle(color = Color.Blue))
            )
        ) {
            append("Learn more")
        }
    })
}

When using WorldScaleTrackingMode.Geospatial, a Google Cloud project configured for using the Geospatial API is required. There are two possible ways to authenticate your application with the ARCore service:

The following code shows how to include Google API key authentication in your app.

41 collapsed lines
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">

    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />

    <uses-permission android:name="android.permission.INTERNET" />

    <uses-permission android:name="android.permission.CAMERA" />

    <!-- Ensures app is only visible in the Google Play Store on devices that support ARCore.
    For "AR Optional" apps remove this line. -->
    <uses-feature android:name="android.hardware.camera.ar" />
    <uses-feature
        android:name="android.hardware.camera"
        android:required="true" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/augment_reality_to_collect_data_app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>
        </activity>

        <!-- "AR Required" app, requires "Google Play Services for AR" (ARCore)
              to be installed, as the app does not include any non-AR features. -->
        <meta-data
            android:name="com.google.ar.core"
            android:value="required" />

        <!-- Insert your Google API key in order to use Geospatial tracking. -->
        <meta-data
            android:name="com.google.android.ar.API_KEY"
            android:value="Insert Google API Key here"/>
4 collapsed lines

    </application>

</manifest>

Create a scene using the BasemapStyle.ArcGISHumanGeography basemap style, and add an elevation source to the scene’s base surface using fromTerrain3dService() to access the Terrain 3D elevation service. Make the background grid invisible and set the opacity to transparent. This ensures that the camera feed is not obscured.

An elevation source is required for the scene to be placed at the correct elevation. If not used, the scene may appear far below the device position because the device position is calculated with elevation.

Then create a feature layer from the AR tree survey service, and add the feature layer to the scene’s operational layers.

34 collapsed lines
package com.example.guide.scenes3d.arcollectdata.snips.components

import android.app.Application
import android.content.Context
import android.widget.Toast
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.geometry.Point
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.Basemap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.ElevationSource
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.symbology.SimpleMarkerSceneSymbol
import com.arcgismaps.mapping.symbology.SimpleMarkerSceneSymbolStyle
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.SingleTapConfirmedEvent
import com.arcgismaps.mapping.view.SurfacePlacement
import com.arcgismaps.toolkit.ar.WorldScaleSceneViewProxy
import com.arcgismaps.toolkit.ar.WorldScaleVpsAvailability
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.channels.BufferOverflow
import kotlinx.coroutines.flow.MutableSharedFlow
import kotlinx.coroutines.flow.sample
import kotlinx.coroutines.launch

class AugmentRealityToCollectDataViewModel(app: Application) : AndroidViewModel(app) {

    private val basemap = Basemap(BasemapStyle.ArcGISHumanGeography)
    // The AR tree survey service feature table.
    private val featureTable = ServiceFeatureTable("https://services2.arcgis.com/ZQgQTuoyBrtmoGdP/arcgis/rest/services/AR_Tree_Survey/FeatureServer/0")
    private val featureLayer = FeatureLayer.createWithFeatureTable(featureTable)
    val arcGISScene = ArcGISScene(basemap).apply {
        // An elevation source is required for the scene to be placed at the correct elevation.
        // If not used, the scene may appear far below the device position because the device position
        // is calculated with elevation.
        baseSurface.elevationSources.add(ElevationSource.fromTerrain3dService())
        baseSurface.backgroundGrid.isVisible = false
        baseSurface.opacity = 0.0f
        // add the AR tree survey feature layer.
        operationalLayers.add(featureLayer)
    }
139 collapsed lines


    // The graphics overlay which shows marker symbols.
    val graphicsOverlay = GraphicsOverlay().apply {
        sceneProperties.surfacePlacement = SurfacePlacement.Absolute
    }

    var isVpsAvailable by mutableStateOf(false)

    val worldScaleSceneViewProxy = WorldScaleSceneViewProxy()

    // Create a message dialog view model for handling error messages
    val messageDialogVM = MessageDialogViewModel()

    var isDialogOptionsVisible by mutableStateOf(false)
        private set

    // The current marker graphic representing the user's selection
    private var treeMarker : Graphic? = null

    // A MutableSharedFlow that emits Point locations of the viewpoint camera
    val viewpointCameraLocationFlow = MutableSharedFlow<Point>(
        extraBufferCapacity = 1,
        onBufferOverflow = BufferOverflow.DROP_OLDEST
    )

    init {
        viewModelScope.launch {
            arcGISScene.load().onFailure { messageDialogVM.showMessageDialog(it.message.toString()) }
        }
        periodicallyPollVpsAvailability()
    }

    // Adds a marker to the graphics overlay based on a single tap event
    fun addMarker(singleTapConfirmedEvent: SingleTapConfirmedEvent) {
        // Remove all graphics from the graphics overlay
        graphicsOverlay.graphics.clear()
        singleTapConfirmedEvent.mapPoint.let { point ->
            // Create a new marker graphic at the specified point with a diamond symbol
            val newMarker = Graphic(
                point,
                SimpleMarkerSceneSymbol(
                    SimpleMarkerSceneSymbolStyle.Diamond,
                    Color.yellow,
                    height = 1.0,
                    width = 1.0,
                    depth = 1.0
                )
            )
            treeMarker = newMarker
            graphicsOverlay.graphics.add(newMarker)
        }
    }

    // Adds a feature to represent a tree to the tree survey service feature table.
    fun addTree(context: Context, health: TreeHealth){
        treeMarker?.let { treeMarker ->
            // Set up the feature attributes
            val featureAttributes = mapOf<String, Any>(
                "Health" to health.value,
                "Height" to 3.2,
                "Diameter" to 1.2,
            )

            // Retrieve the marker's geometry as a Point
            val point = (treeMarker.geometry as? Point) ?: run {
                messageDialogVM.showMessageDialog("Something went wrong")
                return@let
            }

            // Create a new feature at the point
            val feature = featureTable.createFeature(featureAttributes, point)

            // Add the feature to the feature table
            viewModelScope.launch {
                featureTable.addFeature(feature)
                    .onSuccess {
                        // Upload changes from the local feature table to the feature service
                        featureTable.applyEdits()
                            .onSuccess { showToast(context, "Successfully added tree data!")}
                            .onFailure { e -> messageDialogVM.showMessageDialog(e.message.toString()) }
                    }.onFailure { e -> messageDialogVM.showMessageDialog(e.message.toString()) }
            }

            // Resets the feature's attributes and geometry to match the data source, discarding unsaved changes.
            feature.refresh()
        }
    }

    // Emits the camera location if it is not at (0.0, 0.0).
    fun onCurrentViewpointCameraChanged(cameraLocation: Point){
        if (cameraLocation.x != 0.0 && cameraLocation.y != 0.0) {
            viewpointCameraLocationFlow.tryEmit(cameraLocation)
        }
    }

    // Collects viewpoint camera locations once in 10 seconds and checks for VPS availability
    private fun periodicallyPollVpsAvailability(){
        viewModelScope.launch {
            viewpointCameraLocationFlow
                .sample(10_000)
                .collect { location ->
                    worldScaleSceneViewProxy.checkVpsAvailability(location.y, location.x).onSuccess {
                        isVpsAvailable = it == WorldScaleVpsAvailability.Available
                    }
                }
        }
    }

    /**
     * Displays a dialog for adding tree data if a marker exists
     */
    fun showDialog(context: Context){
        if (treeMarker == null) {
            showToast(context, "Please create marker by tapping on the screen")
            return
        }
        isDialogOptionsVisible = true
    }

    fun hideDialog(){
        isDialogOptionsVisible = false
    }
}

/**
 * Represents the health status of a tree.
 *
 * @property value The numerical value associated with the health status.
 */
enum class TreeHealth(val value: Short){
    Dead(0),
    Distressed(5),
    Healthy(10),
}

private fun showToast(context: Context, message: String) {
    Toast.makeText(context, message, Toast.LENGTH_LONG).show()
}

Call the WorldScaleSceneView composable to display the scene in world-scale AR. Pass the scene you just created, the WorldScaleTrackingMode, and a WorldScaleSceneViewProxy to the composable. The WorldScaleSceneViewProxy allows you to perform operations on the WorldScaleSceneView, such as identify operations on layers and graphics overlays.

177 collapsed lines
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.example.guide.scenes3d.arcollectdata.snips.screens

import android.content.Context
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Add
import androidx.compose.material3.Button
import androidx.compose.material3.Card
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.FloatingActionButton
import androidx.compose.material3.Icon
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.material3.TextButton
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.saveable.rememberSaveable
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.text.LinkAnnotation
import androidx.compose.ui.text.SpanStyle
import androidx.compose.ui.text.TextLinkStyles
import androidx.compose.ui.text.buildAnnotatedString
import androidx.compose.ui.text.withLink
import androidx.compose.ui.unit.dp
import androidx.compose.ui.window.Dialog
import androidx.core.content.edit
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.LoadStatus
import com.arcgismaps.toolkit.ar.WorldScaleSceneView
import com.arcgismaps.toolkit.ar.WorldScaleSceneViewStatus
import com.arcgismaps.toolkit.ar.WorldScaleTrackingMode
import com.arcgismaps.toolkit.ar.rememberWorldScaleSceneViewStatus
import com.example.guide.scenes3d.arcollectdata.snips.BuildConfig
import com.example.guide.scenes3d.arcollectdata.snips.R
import com.example.guide.scenes3d.arcollectdata.snips.components.AugmentRealityToCollectDataViewModel
import com.example.guide.scenes3d.arcollectdata.snips.components.TreeHealth
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

private const val KEY_PREF_ACCEPTED_PRIVACY_INFO = "ACCEPTED_PRIVACY_INFO"

/**
 * Main screen layout for the sample app
 */
@Composable
fun AugmentRealityToCollectDataScreen(sampleName: String) {
    val augmentedRealityViewModel: AugmentRealityToCollectDataViewModel = viewModel()

    var initializationStatus by rememberWorldScaleSceneViewStatus()

    val context = LocalContext.current

    val hasNonDefaultAPIKey = BuildConfig.GOOGLE_API_KEY != "DEFAULT_GOOGLE_API_KEY"
    // Initialize the world scale tracking mode based on whether a google API key is provided
    val worldScaleTrackingMode = remember {
        when {
            hasNonDefaultAPIKey -> { WorldScaleTrackingMode.Geospatial() }
            else -> { WorldScaleTrackingMode.World() }
        }
    }

    var displayCalibrationView by remember { mutableStateOf(false) }

    val sharedPreferences = LocalContext.current.getSharedPreferences("", Context.MODE_PRIVATE)
    var acceptedPrivacyInfo by rememberSaveable {
        mutableStateOf(
            sharedPreferences.getBoolean(
                KEY_PREF_ACCEPTED_PRIVACY_INFO,
                false
            )
        )
    }
    var showPrivacyInfo by rememberSaveable { mutableStateOf(!acceptedPrivacyInfo) }

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        floatingActionButton = {
            Column {
                if (!augmentedRealityViewModel.isDialogOptionsVisible) {
                    FloatingActionButton(
                        modifier = Modifier.padding(bottom = 20.dp, end = 12.dp),
                        onClick = { augmentedRealityViewModel.showDialog(context) }
                    ) { Icon(Icons.Filled.Add, contentDescription = "Add tree") }
                }
                if (worldScaleTrackingMode is WorldScaleTrackingMode.World) {
                    FloatingActionButton(
                        modifier = Modifier
                            .align(Alignment.End)
                            .padding(bottom = 20.dp, end = 12.dp),
                        onClick = { displayCalibrationView = true }) {
                        Icon(
                            painter = painterResource(R.drawable.baseline_straighten_24), "Show calibration view"
                        )
                    }
                }
            }
        },
        content = {
            if (showPrivacyInfo) {
                PrivacyInfoDialog(
                    hasCurrentlyAccepted = acceptedPrivacyInfo,
                    onUserResponse = { accepted ->
                        acceptedPrivacyInfo = accepted
                        sharedPreferences.edit { putBoolean(KEY_PREF_ACCEPTED_PRIVACY_INFO, accepted) }
                        showPrivacyInfo = false
                    }
                )
            }
            if (!acceptedPrivacyInfo) {
                Column(
                    modifier = Modifier.fillMaxSize(),
                    verticalArrangement = Arrangement.Center,
                    horizontalAlignment = Alignment.CenterHorizontally
                ) {
                    Text(text = "Privacy Info not accepted")
                    Button(onClick = { showPrivacyInfo = true }) {
                        Text(text = "Show Privacy Info")
                    }
                }
            } else {
                Box(
                    modifier = Modifier
                        .fillMaxSize()
                        .padding(it),
                ) {

                    WorldScaleSceneView(
                        arcGISScene = augmentedRealityViewModel.arcGISScene,
                        modifier = Modifier.fillMaxSize(),
                        onInitializationStatusChanged = { status ->
                            initializationStatus = status
                        },
                        worldScaleTrackingMode = worldScaleTrackingMode,
                        worldScaleSceneViewProxy = augmentedRealityViewModel.worldScaleSceneViewProxy,
                        graphicsOverlays = listOf(augmentedRealityViewModel.graphicsOverlay),
                        onSingleTapConfirmed = augmentedRealityViewModel::addMarker,
                        onCurrentViewpointCameraChanged = { camera ->
                            augmentedRealityViewModel.onCurrentViewpointCameraChanged(camera.location)
                        }
                    )
240 collapsed lines

                    {

                        Box(modifier = Modifier.fillMaxSize()) {
                            if (worldScaleTrackingMode is WorldScaleTrackingMode.World) {
                                if (displayCalibrationView) {

                                    CalibrationView(
                                        onDismiss = { displayCalibrationView = false },
                                        modifier = Modifier.align(Alignment.BottomCenter),
                                    )

                                }
                            }
                        }

                    }

                    if (augmentedRealityViewModel.isDialogOptionsVisible) {
                        TreeHealthDialog(
                            onOptionSelected = { selectedOption ->
                                augmentedRealityViewModel.addTree(context ,selectedOption)},
                            onDismissRequest = augmentedRealityViewModel::hideDialog
                        )
                    }

                    if (worldScaleTrackingMode is WorldScaleTrackingMode.Geospatial) {
                        Box(
                            modifier = Modifier
                                .fillMaxWidth()
                                .background(Color.Gray.copy(alpha = 0.5f))
                                .padding(8.dp),
                            contentAlignment = Alignment.Center
                        ) {
                            Text(
                                text = if (augmentedRealityViewModel.isVpsAvailable) {
                                    "VPS available"
                                } else {
                                    "VPS unavailable"
                                },
                                color = Color.White
                            )
                        }
                    }

                    when (val status = initializationStatus) {
                        is WorldScaleSceneViewStatus.Initializing -> {
                            // Display a message indicating the initialization status
                            TextWithScrim(
                                if (worldScaleTrackingMode is WorldScaleTrackingMode.Geospatial) {
                                    "Initializing AR in geospatial mode..."
                                } else {
                                    "Initializing AR in world mode..."
                                }
                            )
                        }

                        is WorldScaleSceneViewStatus.Initialized -> {
                            val sceneLoadStatus =
                                augmentedRealityViewModel.arcGISScene.loadStatus.collectAsStateWithLifecycle().value
                            when (sceneLoadStatus) {
                                is LoadStatus.Loading, LoadStatus.NotLoaded -> {
                                    // The scene may take a while to load, so show a progress indicator
                                    Box(
                                        modifier = Modifier
                                            .fillMaxSize(),
                                        contentAlignment = Alignment.Center
                                    ) {
                                        CircularProgressIndicator()
                                    }
                                }

                                is LoadStatus.FailedToLoad -> {
                                    TextWithScrim("Failed to load world scale AR scene: " + sceneLoadStatus.error)
                                }

                                is LoadStatus.Loaded -> {} // Display the main content of the AR scene once it has successfully loaded.
                            }
                        }

                        is WorldScaleSceneViewStatus.FailedToInitialize -> {
                            TextWithScrim(
                                text = "World scale AR failed to initialize: " + (status.error.message ?: status.error)
                            )
                        }
                    }
                }
            }

            augmentedRealityViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}

/**
 * Displays the provided [text] on top of a half-transparent gray background.
 */
@Composable
private fun TextWithScrim(text: String) {
    Column(
        modifier = Modifier
            .background(Color.Gray.copy(alpha = 0.5f))
            .fillMaxSize(),
        verticalArrangement = Arrangement.Center,
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Text(text = text)
    }
}

/**
 * Displays a dialog for selecting the health status of a tree.
 */
@Composable
fun TreeHealthDialog(
    onOptionSelected: (TreeHealth) -> Unit,
    onDismissRequest: () -> Unit
) {
    SampleDialog(onDismissRequest = onDismissRequest) {
        Text("Add Tree ", style = MaterialTheme.typography.titleLarge)
        Text("How healthy is this tree?", style = MaterialTheme.typography.titleMedium)
        Spacer(modifier = Modifier.height(10.dp))
        TreeHealth.entries.forEach { option ->
            Button(
                onClick = {
                    onOptionSelected(option)
                    onDismissRequest()
                },
                modifier = Modifier
                    .fillMaxWidth()
                    .height(48.dp)
            ) {
                Text(
                    text = option.name,
                    style = MaterialTheme.typography.bodyMedium
                )
            }
        }
        Row(modifier = Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.End) {
            TextButton(onClick = onDismissRequest) { Text("Dismiss") }
        }
    }
}

/**
 * An alert dialog that asks the user to accept or deny
 * [ARCore's privacy requirements](https://developers.google.com/ar/develop/privacy-requirements).
 */
@Composable
private fun PrivacyInfoDialog(
    hasCurrentlyAccepted: Boolean,
    onUserResponse: (accepted: Boolean) -> Unit
) {
    Dialog(onDismissRequest = {
        onUserResponse(hasCurrentlyAccepted)
    }) {
        Card {
            Column(
                modifier = Modifier.padding(16.dp)
            ) {
                LegalTextArCore()
                Spacer(Modifier.height(16.dp))
                LegalTextGeospatial()
                Row(
                    modifier = Modifier.fillMaxWidth(),
                    horizontalArrangement = Arrangement.SpaceBetween
                ) {
                    TextButton(onClick = {
                        onUserResponse(false)
                    }) {
                        Text(text = "Decline")
                    }

                    TextButton(onClick = {
                        onUserResponse(true)
                    }) {
                        Text(text = "Accept")
                    }
                }
            }
        }
    }
}

/**
 * Displays the required privacy information for use of ARCore
 */
@Composable
private fun LegalTextArCore() {
    val textLinkStyle =
        TextLinkStyles(style = SpanStyle(color = Color.Blue))
    Text(text = buildAnnotatedString {
        append("This application runs on ")
        withLink(
            LinkAnnotation.Url(
                "https://play.google.com/store/apps/details?id=com.google.ar.core",
                textLinkStyle
            )
        ) {
            append("Google Play Services for AR")
        }
        append("  (ARCore), which is provided by Google and governed by the ")
        withLink(
            LinkAnnotation.Url(
                "https://policies.google.com/privacy",
                textLinkStyle
            )
        ) {
            append("Google Privacy Policy.")
        }
    })
}

/**
 * Displays the required privacy information for use of the Geospatial API
 */

@Composable
private fun LegalTextGeospatial() {
    Text(text = buildAnnotatedString {
        append("To power this session, Google will process sensor data (e.g., camera and location).")
        appendLine()
        withLink(
            LinkAnnotation.Url(
                "https://support.google.com/ar?p=how-google-play-services-for-ar-handles-your-data",
                TextLinkStyles(style = SpanStyle(color = Color.Blue))
            )
        ) {
            append("Learn more")
        }
    })
}

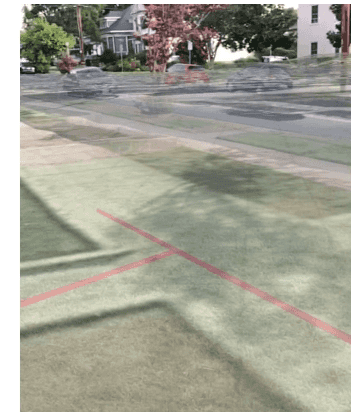

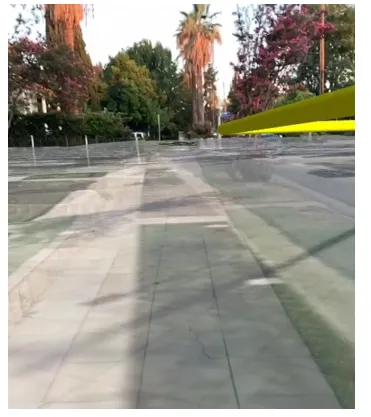

If your app includes a workflow that supports WorldScaleTrackingMode.World mode, you should provide a calibration UI that allows users to correct heading and elevation. Users with older devices that do not support ARCore’s Geospatial API will need to use this mode. It is also a fallback in case your app is unable to authenticate with the Geospatial service. Use the composable CalibrationView in the toolkit to provide the calibration UI.

194 collapsed lines
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.example.guide.scenes3d.arcollectdata.snips.screens

import android.content.Context
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Add
import androidx.compose.material3.Button
import androidx.compose.material3.Card
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.FloatingActionButton
import androidx.compose.material3.Icon
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.material3.TextButton
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.saveable.rememberSaveable
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.text.LinkAnnotation
import androidx.compose.ui.text.SpanStyle
import androidx.compose.ui.text.TextLinkStyles
import androidx.compose.ui.text.buildAnnotatedString
import androidx.compose.ui.text.withLink
import androidx.compose.ui.unit.dp
import androidx.compose.ui.window.Dialog
import androidx.core.content.edit
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.LoadStatus
import com.arcgismaps.toolkit.ar.WorldScaleSceneView
import com.arcgismaps.toolkit.ar.WorldScaleSceneViewStatus
import com.arcgismaps.toolkit.ar.WorldScaleTrackingMode
import com.arcgismaps.toolkit.ar.rememberWorldScaleSceneViewStatus
import com.example.guide.scenes3d.arcollectdata.snips.BuildConfig
import com.example.guide.scenes3d.arcollectdata.snips.R
import com.example.guide.scenes3d.arcollectdata.snips.components.AugmentRealityToCollectDataViewModel
import com.example.guide.scenes3d.arcollectdata.snips.components.TreeHealth
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

private const val KEY_PREF_ACCEPTED_PRIVACY_INFO = "ACCEPTED_PRIVACY_INFO"

/**
 * Main screen layout for the sample app
 */
@Composable
fun AugmentRealityToCollectDataScreen(sampleName: String) {
    val augmentedRealityViewModel: AugmentRealityToCollectDataViewModel = viewModel()

    var initializationStatus by rememberWorldScaleSceneViewStatus()

    val context = LocalContext.current

    val hasNonDefaultAPIKey = BuildConfig.GOOGLE_API_KEY != "DEFAULT_GOOGLE_API_KEY"
    // Initialize the world scale tracking mode based on whether a google API key is provided
    val worldScaleTrackingMode = remember {
        when {
            hasNonDefaultAPIKey -> { WorldScaleTrackingMode.Geospatial() }
            else -> { WorldScaleTrackingMode.World() }
        }
    }

    var displayCalibrationView by remember { mutableStateOf(false) }

    val sharedPreferences = LocalContext.current.getSharedPreferences("", Context.MODE_PRIVATE)
    var acceptedPrivacyInfo by rememberSaveable {
        mutableStateOf(
            sharedPreferences.getBoolean(
                KEY_PREF_ACCEPTED_PRIVACY_INFO,
                false
            )
        )
    }
    var showPrivacyInfo by rememberSaveable { mutableStateOf(!acceptedPrivacyInfo) }

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        floatingActionButton = {
            Column {
                if (!augmentedRealityViewModel.isDialogOptionsVisible) {
                    FloatingActionButton(
                        modifier = Modifier.padding(bottom = 20.dp, end = 12.dp),
                        onClick = { augmentedRealityViewModel.showDialog(context) }
                    ) { Icon(Icons.Filled.Add, contentDescription = "Add tree") }
                }
                if (worldScaleTrackingMode is WorldScaleTrackingMode.World) {
                    FloatingActionButton(
                        modifier = Modifier
                            .align(Alignment.End)
                            .padding(bottom = 20.dp, end = 12.dp),
                        onClick = { displayCalibrationView = true }) {
                        Icon(
                            painter = painterResource(R.drawable.baseline_straighten_24), "Show calibration view"
                        )
                    }
                }
            }
        },
        content = {
            if (showPrivacyInfo) {
                PrivacyInfoDialog(
                    hasCurrentlyAccepted = acceptedPrivacyInfo,
                    onUserResponse = { accepted ->
                        acceptedPrivacyInfo = accepted
                        sharedPreferences.edit { putBoolean(KEY_PREF_ACCEPTED_PRIVACY_INFO, accepted) }
                        showPrivacyInfo = false
                    }
                )
            }
            if (!acceptedPrivacyInfo) {
                Column(
                    modifier = Modifier.fillMaxSize(),
                    verticalArrangement = Arrangement.Center,
                    horizontalAlignment = Alignment.CenterHorizontally
                ) {
                    Text(text = "Privacy Info not accepted")
                    Button(onClick = { showPrivacyInfo = true }) {
                        Text(text = "Show Privacy Info")
                    }
                }
            } else {
                Box(
                    modifier = Modifier
                        .fillMaxSize()
                        .padding(it),
                ) {

                    WorldScaleSceneView(
                        arcGISScene = augmentedRealityViewModel.arcGISScene,
                        modifier = Modifier.fillMaxSize(),
                        onInitializationStatusChanged = { status ->
                            initializationStatus = status
                        },
                        worldScaleTrackingMode = worldScaleTrackingMode,
                        worldScaleSceneViewProxy = augmentedRealityViewModel.worldScaleSceneViewProxy,
                        graphicsOverlays = listOf(augmentedRealityViewModel.graphicsOverlay),
                        onSingleTapConfirmed = augmentedRealityViewModel::addMarker,
                        onCurrentViewpointCameraChanged = { camera ->
                            augmentedRealityViewModel.onCurrentViewpointCameraChanged(camera.location)
                        }
                    )

                    {

                        Box(modifier = Modifier.fillMaxSize()) {
                            if (worldScaleTrackingMode is WorldScaleTrackingMode.World) {
                                if (displayCalibrationView) {

                                    CalibrationView(
                                        onDismiss = { displayCalibrationView = false },
                                        modifier = Modifier.align(Alignment.BottomCenter),
                                    )

                                }
                            }
                        }
225 collapsed lines

                    }

                    if (augmentedRealityViewModel.isDialogOptionsVisible) {
                        TreeHealthDialog(
                            onOptionSelected = { selectedOption ->
                                augmentedRealityViewModel.addTree(context ,selectedOption)},
                            onDismissRequest = augmentedRealityViewModel::hideDialog
                        )
                    }

                    if (worldScaleTrackingMode is WorldScaleTrackingMode.Geospatial) {
                        Box(
                            modifier = Modifier
                                .fillMaxWidth()
                                .background(Color.Gray.copy(alpha = 0.5f))
                                .padding(8.dp),
                            contentAlignment = Alignment.Center
                        ) {
                            Text(
                                text = if (augmentedRealityViewModel.isVpsAvailable) {
                                    "VPS available"
                                } else {
                                    "VPS unavailable"
                                },
                                color = Color.White
                            )
                        }
                    }

                    when (val status = initializationStatus) {
                        is WorldScaleSceneViewStatus.Initializing -> {
                            // Display a message indicating the initialization status
                            TextWithScrim(
                                if (worldScaleTrackingMode is WorldScaleTrackingMode.Geospatial) {
                                    "Initializing AR in geospatial mode..."
                                } else {
                                    "Initializing AR in world mode..."
                                }
                            )
                        }

                        is WorldScaleSceneViewStatus.Initialized -> {
                            val sceneLoadStatus =
                                augmentedRealityViewModel.arcGISScene.loadStatus.collectAsStateWithLifecycle().value
                            when (sceneLoadStatus) {
                                is LoadStatus.Loading, LoadStatus.NotLoaded -> {
                                    // The scene may take a while to load, so show a progress indicator
                                    Box(
                                        modifier = Modifier
                                            .fillMaxSize(),
                                        contentAlignment = Alignment.Center
                                    ) {
                                        CircularProgressIndicator()
                                    }
                                }

                                is LoadStatus.FailedToLoad -> {
                                    TextWithScrim("Failed to load world scale AR scene: " + sceneLoadStatus.error)
                                }

                                is LoadStatus.Loaded -> {} // Display the main content of the AR scene once it has successfully loaded.
                            }
                        }

                        is WorldScaleSceneViewStatus.FailedToInitialize -> {
                            TextWithScrim(
                                text = "World scale AR failed to initialize: " + (status.error.message ?: status.error)
                            )
                        }
                    }
                }
            }

            augmentedRealityViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}

/**
 * Displays the provided [text] on top of a half-transparent gray background.
 */
@Composable
private fun TextWithScrim(text: String) {
    Column(
        modifier = Modifier
            .background(Color.Gray.copy(alpha = 0.5f))
            .fillMaxSize(),
        verticalArrangement = Arrangement.Center,
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Text(text = text)
    }
}

/**
 * Displays a dialog for selecting the health status of a tree.
 */
@Composable
fun TreeHealthDialog(
    onOptionSelected: (TreeHealth) -> Unit,
    onDismissRequest: () -> Unit
) {
    SampleDialog(onDismissRequest = onDismissRequest) {
        Text("Add Tree ", style = MaterialTheme.typography.titleLarge)
        Text("How healthy is this tree?", style = MaterialTheme.typography.titleMedium)
        Spacer(modifier = Modifier.height(10.dp))
        TreeHealth.entries.forEach { option ->
            Button(
                onClick = {
                    onOptionSelected(option)
                    onDismissRequest()
                },
                modifier = Modifier
                    .fillMaxWidth()
                    .height(48.dp)
            ) {
                Text(
                    text = option.name,
                    style = MaterialTheme.typography.bodyMedium
                )
            }
        }
        Row(modifier = Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.End) {
            TextButton(onClick = onDismissRequest) { Text("Dismiss") }
        }
    }
}

/**
 * An alert dialog that asks the user to accept or deny
 * [ARCore's privacy requirements](https://developers.google.com/ar/develop/privacy-requirements).
 */
@Composable
private fun PrivacyInfoDialog(
    hasCurrentlyAccepted: Boolean,
    onUserResponse: (accepted: Boolean) -> Unit
) {
    Dialog(onDismissRequest = {
        onUserResponse(hasCurrentlyAccepted)
    }) {
        Card {
            Column(
                modifier = Modifier.padding(16.dp)
            ) {
                LegalTextArCore()
                Spacer(Modifier.height(16.dp))
                LegalTextGeospatial()
                Row(
                    modifier = Modifier.fillMaxWidth(),
                    horizontalArrangement = Arrangement.SpaceBetween
                ) {
                    TextButton(onClick = {
                        onUserResponse(false)
                    }) {
                        Text(text = "Decline")
                    }

                    TextButton(onClick = {
                        onUserResponse(true)
                    }) {
                        Text(text = "Accept")
                    }
                }
            }
        }
    }
}

/**
 * Displays the required privacy information for use of ARCore
 */
@Composable
private fun LegalTextArCore() {
    val textLinkStyle =
        TextLinkStyles(style = SpanStyle(color = Color.Blue))
    Text(text = buildAnnotatedString {
        append("This application runs on ")
        withLink(
            LinkAnnotation.Url(
                "https://play.google.com/store/apps/details?id=com.google.ar.core",
                textLinkStyle
            )
        ) {
            append("Google Play Services for AR")
        }
        append("  (ARCore), which is provided by Google and governed by the ")
        withLink(
            LinkAnnotation.Url(
                "https://policies.google.com/privacy",
                textLinkStyle
            )
        ) {
            append("Google Privacy Policy.")
        }
    })
}

/**
 * Displays the required privacy information for use of the Geospatial API
 */

@Composable
private fun LegalTextGeospatial() {
    Text(text = buildAnnotatedString {
        append("To power this session, Google will process sensor data (e.g., camera and location).")
        appendLine()
        withLink(
            LinkAnnotation.Url(
                "https://support.google.com/ar?p=how-google-play-services-for-ar-handles-your-data",
                TextLinkStyles(style = SpanStyle(color = Color.Blue))
            )
        ) {
            append("Learn more")
        }
    })
}

Enable calibration for world-scale AR

World-scale AR depends on a close match between the positions and orientations of the device’s physical camera and the scene view’s virtual camera. Any error in the device’s position or orientation will degrade the experience. Consider each of the following key properties as common sources of error:

Heading – Usually determined using a magnetometer (compass) on the device
Elevation/Altitude (Z) – Usually determined using GPS/GNSS or a barometer
Position (X,Y) – usually determined using GPS/GNSS, cell triangulation, or beacons

The following examples illustrate these errors by showing a semitransparent basemap for comparison with the ground truth provided by the camera:

Orientation error	Elevation error	Position error

Calibration is important in WorldScaleTrackingMode.World mode. Even small errors in heading or elevation can break the perception that the virtual content is anchored in the real world. GPS determines the device’s location and GPS accuracy can vary significantly depending on the device and environmental conditions. Include a calibration UI to allow users to correct heading and elevation errors by calling the composable CalibrationView in the toolkit.

Identify real-world and in-scene objects

To determine the real-world position of a tapped point on the screen, pass a lambda as the onSingleTapGesture(SingleTapConfirmedEvent) parameter to WorldScaleSceneView. Devices that support ARCore’s Depth API return the real-world position of the closest visible object to the device at the tapped screen point in the camera feed. For devices that do not support the Depth API, ARCore attempts to perform a hit test against any planes detected in the scene at that location.

The WorldScaleSceneViewProxy also supports converting screen coordinates to scene points using WorldScaleSceneViewProxy.screenToBaseSurface() and WorldScaleSceneViewProxy.screenToLocation(). These methods test screen coordinates against virtual objects in the scene: real-world objects that do not have spatial geometry (for example a mesh) are not used in the calculation. Therefore, screenToBaseSurface() and screenToLocation() should be used only when the developer is certain that the data contains geometry for real-world objects.

Manage vertical space in world-scale AR

Accurate positioning is particularly important to world-scale AR; even small errors can break the perception that the virtual content is anchored in the real world. Unlike 2D mapping, Z values are important. And unlike traditional 3D experiences, you need to know the position of the user’s device.

Be aware of the following common Z-value challenges that you’re likely to encounter while building AR experiences:

Many kinds of Z values – Android and devices differ in how they represent altitude/elevation/Z values.
Imprecise altitude – Altitude/Elevation is the least precise measurement offered by GPS/GNSS. In testing, we found devices reported elevations that were anywhere between 10 and 100 above or below the true value, even under ideal conditions.

Many kinds of Z values

Just as there are many ways to represent position using X and Y values, there are many ways to represent Z values. GPS devices tend to use two primary reference systems for altitude/elevation:

WGS84 – Height Above Ellipsoid (HAE)
Orthometric – Height Above Mean Sea Level (MSL)

The full depth of the differences between these two references is beyond the scope of this topic, but do keep in mind the following facts:

Android devices return elevations in HAE, while iOS devices return altitude in MSL.
It is not trivial to convert between HAE and MSL; MSL is based on a measurement of the Earth’s gravitational field. There are many models, and you may not know which model was used to when generating data.
Esri’s world elevation service uses orthometric altitudes.
The difference between MSL and HAE varies by location and can be on the order of tens of meters. For example, at Esri’s HQ in Redlands, California, the MSL altitude is about 30 meters higher than the HAE elevation.

It is important that you understand how your Z values are defined to ensure that data is placed correctly in the scene. For example, the Esri world elevation service uses MSL for its Z values. If you set the origin camera using an HAE Z value, you could be tens of meters off from the desired location.

To gain a deeper understanding of these issues, see ArcUser: Mean Sea Level, GPS, and the Geoid.

Adjust Z values on Android

Because many existing datasets and Esri services use orthometric (MSL) Z values, it is convenient to get MSL values from the location data source. Although Android natively provides values in WGS84 HAE, you can listen for NMEA messages from the on-board GPS to get elevations relative to MSL if the device supports it.

To consume MSL elevations in the AR scene view, you’ll need to create a custom location data source. See the public samples for a full MSL-adjusted location data source.

Samples and Micro-apps

Samples are full, runnable apps that incorporate specific functionality in a real-world scenario. You can copy and paste code from the samples into your own projects and modify as needed. The ArcGIS Maps SDK for Kotlin samples are available on GitHub.
Micro-apps are lightweight, stripped-down, runnable applications that focus on a single functionality. They can be used as starting points for your own apps. The ArcGIS Maps SDK for Kotlin Toolkit includes several micro-apps that illustrate how to implement AR experiences.
