Identify graphics

View inMAUIUWPWPFWinUIView on GitHubSample viewer app

Display an alert message when a graphic is clicked.

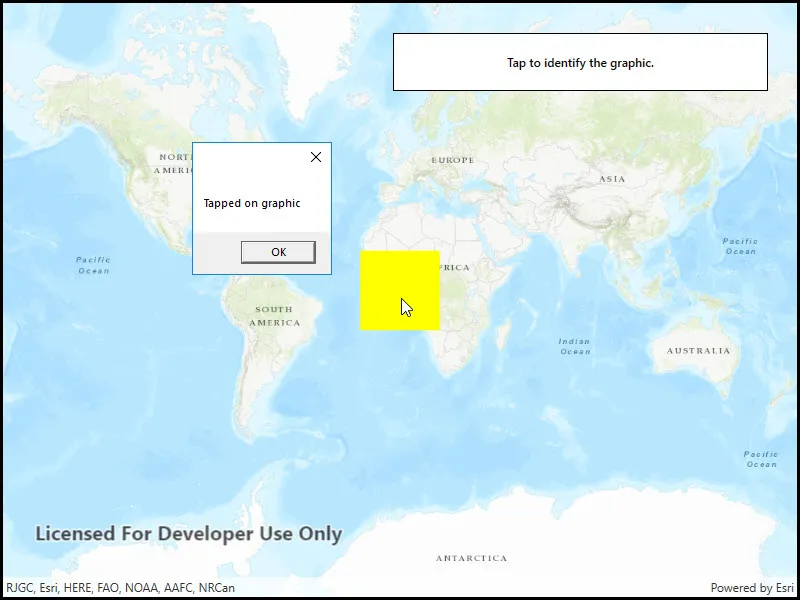

Image of identify graphics

Use case

A user may wish to select a graphic on a map to view relevant information about it.

How to use the sample

Select a graphic to identify it. You will see an alert message displayed.

How it works

  1. Create a GraphicsOverlay and add it to the MapView.
  2. Add a Graphic along with a SimpleFillSymbol to the graphics overlay.
  3. Create a Point from the location clicked on the map view by the user.
  4. Identify the graphic on the map view with IdentifyGraphicsOverlayAsync(graphicsOverlay, pointClicked, tolerance, max results).

Relevant API

  • Graphic
  • GraphicsOverlay
  • MapView

Tags

graphics, identify

Sample Code

IdentifyGraphics.xaml.csIdentifyGraphics.xaml.csIdentifyGraphics.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UI.Controls;
using System;
using System.Drawing;
using System.Windows;

namespace ArcGIS.WPF.Samples.IdentifyGraphics
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Identify graphics",
        category: "GraphicsOverlay",
        description: "Display an alert message when a graphic is clicked.",
        instructions: "Select a graphic to identify it. You will see an alert message displayed.",
        tags: new[] { "graphics", "identify" })]
    public partial class IdentifyGraphics
    {
        // Graphics overlay to host graphics
        private GraphicsOverlay _polygonOverlay;

        public IdentifyGraphics()
        {
            InitializeComponent();

            // Create the UI, setup the control references and execute initialization
            Initialize();
        }

        private void Initialize()
        {
            // Create a map with 'Imagery with Labels' basemap and an initial location
            Map myMap = new Map(BasemapStyle.ArcGISTopographic);

            // Create graphics overlay with graphics
            CreateOverlay();

            // Hook into tapped event
            MyMapView.GeoViewTapped += OnMapViewTapped;

            // Assign the map to the MapView
            MyMapView.Map = myMap;
        }

        private void CreateOverlay()
        {
            // Create polygon builder and add polygon corners into it
            PolygonBuilder builder = new PolygonBuilder(SpatialReferences.WebMercator);
            builder.AddPoint(new MapPoint(-20e5, 20e5));
            builder.AddPoint(new MapPoint(20e5, 20e5));
            builder.AddPoint(new MapPoint(20e5, -20e5));
            builder.AddPoint(new MapPoint(-20e5, -20e5));

            // Get geometry from the builder
            Polygon polygonGeometry = builder.ToGeometry();

            // Create symbol for the polygon
            SimpleFillSymbol polygonSymbol = new SimpleFillSymbol(
                SimpleFillSymbolStyle.Solid,
                Color.Yellow,
                null);

            // Create new graphic
            Graphic polygonGraphic = new Graphic(polygonGeometry, polygonSymbol);

            // Create overlay to where graphics are shown
            _polygonOverlay = new GraphicsOverlay();
            _polygonOverlay.Graphics.Add(polygonGraphic);

            // Add created overlay to the MapView
            MyMapView.GraphicsOverlays.Add(_polygonOverlay);
        }

        private async void OnMapViewTapped(object sender, GeoViewInputEventArgs e)
        {
            double tolerance = 10d; // Use larger tolerance for touch
            int maximumResults = 1; // Only return one graphic
            bool onlyReturnPopups = false; // Return more than popups

            try
            {
                // Use the following method to identify graphics in a specific graphics overlay
                IdentifyGraphicsOverlayResult identifyResults = await MyMapView.IdentifyGraphicsOverlayAsync(
                    _polygonOverlay,
                    e.Position,
                    tolerance,
                    onlyReturnPopups,
                    maximumResults);

                // Check if we got results
                if (identifyResults.Graphics.Count > 0)
                {
                    //  Display to the user the identify worked.
                    MessageBox.Show("Tapped on graphic", "");
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.ToString(), "Error");
            }
        }
    }
}
