Animate 3D graphic

View inMAUIWPFWinUIUWPView on GitHubSample viewer app

An OrbitGeoElementCameraController follows a graphic while the graphic's position and rotation are animated.

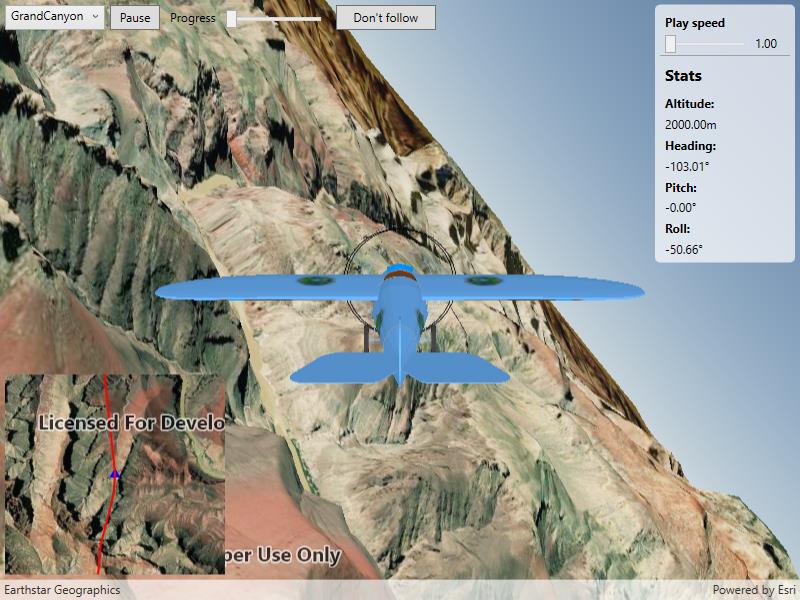

Image of animate 3D graphic

Use case

Visualize movement through a 3D landscape.

How to use the sample

Animation Controls:

  • Select a mission -- select a flight path
  • Play/Pause -- toggles playing and stopping the animation
  • Follow/Don't follow -- toggles the camera's free cam mode and follow
  • Mission progress -- shows how far along the route the plane is. Slide to change keyframe in animation
  • Flight speed -- controls speed of animation

How it works

  1. Create a GraphicsOverlay and add it to the SceneView.
  2. Create a ModelSceneSymbol object.
  3. Create a Graphic object and set its geometry to a Point.
  4. Set the ModelSceneSymbol object to the graphic.
  5. Add heading, pitch, and roll attributes to the graphic. Get the attributes from the graphic with Graphic.attributes.
  6. Create a SimpleRenderer object and set its expression properties.
  7. Add graphic and a renderer to the graphics overlay.
  8. Create a OrbitGeoElementCameraController which is set to target the graphic.
  9. Assign the camera controller to the SceneView.
  10. Update the graphic's location, heading, pitch, and roll.

Relevant API

  • Camera
  • GlobeCameraController
  • Graphic
  • GraphicsOverlay
  • ModelSceneSymbol
  • OrbitGeoElementCameraController
  • Renderer
  • Scene
  • SceneProperties
  • SceneView
  • SurfacePlacement

Offline data

This sample downloads the following items from ArcGIS Online automatically:

Tags

animation, camera, heading, pitch, roll, rotation, visualize

Sample Code

Animate3DGraphic.xaml.csAnimate3DGraphic.xaml.csAnimate3DGraphic.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Drawing;
using System.Globalization;
using System.IO;
using System.Linq;
using System.Threading.Tasks;
using System.Timers;
using System.Windows;
using System.Windows.Controls;
using PointCollection = Esri.ArcGISRuntime.Geometry.PointCollection;
using Viewpoint = Esri.ArcGISRuntime.Mapping.Viewpoint;

namespace ArcGIS.WPF.Samples.Animate3DGraphic
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Animate 3D graphic",
        category: "GraphicsOverlay",
        description: "An `OrbitGeoElementCameraController` follows a graphic while the graphic's position and rotation are animated.",
        instructions: "Animation Controls:",
        tags: new[] { "animation", "camera", "heading", "pitch", "roll", "rotation", "visualize" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("290f0c571c394461a8b58b6775d0bd63", "681d6f7694644709a7c830ec57a2d72b", "e87c154fb9c2487f999143df5b08e9b1", "5a9b60cee9ba41e79640a06bcdf8084d", "12509ffdc684437f8f2656b0129d2c13")]
    public partial class Animate3DGraphic
    {
        // URL to the elevation service - provides terrain elevation
        private readonly Uri _elevationServiceUrl = new Uri("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer");

        // Graphic for highlighting the route in the inset map
        private Graphic _routeGraphic;

        // Graphic for highlighting the airplane in the inset map
        private Graphic _plane2D;

        // Graphic for showing the 3D plane model in the scene
        private Graphic _plane3D;

        // Camera controller for centering the camera on the airplane
        private OrbitGeoElementCameraController _orbitCameraController;

        // Timer enables frame-by-frame animation
        private Timer _animationTimer;

        // Number of frames in the mission animation
        private int _frameCount;

        // Index of current frame in the animation
        private int _keyframe;

        // Dictionary of mission file names and the corresponding portal item IDs
        private readonly Dictionary<string, string> _missionToItemId = new Dictionary<string, string>
        {
            {"GrandCanyon","290f0c571c394461a8b58b6775d0bd63"},
            {"Hawaii", "e87c154fb9c2487f999143df5b08e9b1"},
            {"Pyrenees", "5a9b60cee9ba41e79640a06bcdf8084d"},
            {"Snowdon", "12509ffdc684437f8f2656b0129d2c13"}
        };

        // Array of animation frames for the current mission
        //    A MissionFrame describes the position of the plane for a single moment in the animation
        private MissionFrame[] _missionData;

        public Animate3DGraphic()
        {
            InitializeComponent();

            // Create the UI, setup the control references and execute initialization
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Apply appropriate maps to the scene and the inset map view
            InsetMapView.Map = new Map(BasemapStyle.ArcGISImageryStandard);
            MySceneView.Scene = new Scene(BasemapStyle.ArcGISImageryStandard);

            // Update the mission selection UI
            MissionSelectionBox.ItemsSource = _missionToItemId.Keys;
            MissionSelectionBox.SelectedIndex = 0;

            // Wire up the selection change event to call the ChangeMission method; this method resets the animation and starts a new mission
            MissionSelectionBox.SelectionChanged += async (sender, args) => { await ChangeMission(args.AddedItems[0].ToString()); };

            // Apply the elevation source
            Surface surface = new Surface();
            ElevationSource elevationSource = new ArcGISTiledElevationSource(_elevationServiceUrl);
            surface.ElevationSources.Add(elevationSource);
            MySceneView.Scene.BaseSurface = surface;

            // Create and add the graphics overlay
            GraphicsOverlay sceneOverlay = new GraphicsOverlay
            {
                SceneProperties = { SurfacePlacement = SurfacePlacement.Absolute }
            };
            MySceneView.GraphicsOverlays.Add(sceneOverlay);

            // Create a renderer to handle updating plane's orientation
            SimpleRenderer renderer3D = new SimpleRenderer();
            RendererSceneProperties renderProperties = renderer3D.SceneProperties;
            // Use expressions to keep the renderer properties updated as parameters of the rendered object
            renderProperties.HeadingExpression = "[HEADING]";
            renderProperties.PitchExpression = "[PITCH]";
            renderProperties.RollExpression = "[ROLL]";
            // Apply the renderer to the scene view's overlay
            sceneOverlay.Renderer = renderer3D;

            // Create renderer to symbolize plane and update plane orientation in the inset map
            SimpleRenderer renderer2D = new SimpleRenderer();
            // Create the symbol that will be used for the plane
            SimpleMarkerSymbol plane2DSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Triangle, Color.Blue, 10);
            // Apply the symbol to the renderer
            renderer2D.Symbol = plane2DSymbol;
            // Apply a rotation expression to the renderer
            renderer2D.RotationExpression = "[ANGLE]";
            // Update the inset map with a new GraphicsOverlay based on the renderer
            GraphicsOverlay insetMapOperlay = new GraphicsOverlay
            {
                Renderer = renderer2D
            };
            InsetMapView.GraphicsOverlays.Add(insetMapOperlay);

            // Create placeholder graphic for showing the mission route in the inset map
            SimpleLineSymbol routeSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.Red, 2);
            _routeGraphic = new Graphic { Symbol = routeSymbol };
            insetMapOperlay.Graphics.Add(_routeGraphic);

            // Create the plane graphic; this is symbolized as a blue triangle because of renderer implemented above
            // Create the attribute dictionary
            Dictionary<string, object> plane2DAttributes = new Dictionary<string, object>();
            // Set the angle for the plane graphic
            plane2DAttributes["ANGLE"] = 0f;
            // Create the graphic from the attributes and the initial point
            _plane2D = new Graphic(new MapPoint(0, 0, SpatialReferences.Wgs84), plane2DAttributes);
            // Add the plane graphic to the inset map via the overlay
            insetMapOperlay.Graphics.Add(_plane2D);

            try
            {
                // Create the model graphic for the plane
                // Get the path to the 3D model
                string modelPath = GetModelPath();
                // Create the scene symbol from the path to the model
                ModelSceneSymbol plane3DSymbol = await ModelSceneSymbol.CreateAsync(new Uri(modelPath), 1.0);
                // Create the graphic with an initial location and the plane symbol
                _plane3D = new Graphic(new MapPoint(0, 0, 0, SpatialReferences.Wgs84), plane3DSymbol);
                // Add the plane to the overlay
                sceneOverlay.Graphics.Add(_plane3D);

                // Create the orbit camera controller to follow the plane
                _orbitCameraController = new OrbitGeoElementCameraController(_plane3D, 20.0)
                {
                    CameraPitchOffset = 75.0
                };
                MySceneView.CameraController = _orbitCameraController;

                // Create a timer; this will enable animating the plane
                // The value is the duration of the timer in milliseconds. This controls the speed of the animation (fps)
                _animationTimer = new Timer(60)
                {
                    Enabled = true,
                    AutoReset = true
                };

                // Move the plane every time the timer expires
                _animationTimer.Elapsed += AnimatePlane;

                // Set the initial mission for when the sample loads
                await ChangeMission(_missionToItemId.Keys.First());
            }
            catch (Exception e)
            {
                MessageBox.Show(e.ToString(), "Error");
            }
        }

        private async Task ChangeMission(string mission)
        {
            // Stop animating the current mission
            _animationTimer.Stop();

            // Get mission data
            _missionData = GetMissionData(mission);

            // Draw mission route on the inset
            // Create a collection of points to hold the mission
            PointCollection points = new PointCollection(SpatialReferences.Wgs84);
            // Add all of the points from the mission to the point collection
            points.AddPoints(_missionData.Select(m => m.ToMapPoint()));
            // Create a polyline to symbolize the route from the point collection
            Polyline route = new Polyline(points);
            // Update the route graphic's geometry with the newly created route polyline
            _routeGraphic.Geometry = route;
            // Update the inset map's scale
            await InsetMapView.SetViewpointScaleAsync(100000);

            // Update animation parameters
            _frameCount = _missionData.Length;
            _keyframe = 0;

            // At the start of a new mission, follow the animated plane
            FollowPlane(true);
            _animationTimer.Start();
        }

        private MissionFrame[] GetMissionData(string mission)
        {
            // Get the path to the file
            string filePath = GetMissionFilePath(mission);

            // Read the file text
            string fileContents = File.ReadAllText(filePath);

            // Split the file contents into a list of lines
            return fileContents.Split('\n')
                // Then for each line, create a MissionFrame object
                .Select(MissionFrame.Create)
                // Then remove any null MissionFrames
                .Where(missionPart => missionPart != null)
                // Finally return that list of MissionFrames as an array
                .ToArray();
        }

        private string GetMissionFilePath(string mission)
        {
            string itemId = _missionToItemId[mission];
            string filename = mission + ".csv";

            return DataManager.GetDataFolder(itemId, filename);
        }

        private void AnimatePlane(object sender, ElapsedEventArgs elapsedEventArgs)
        {
            // Get the next position; % prevents going out of bounds even if the keyframe value is
            //     changed unexpectedly (e.g. due to user interaction with the progress slider).
            MissionFrame currentFrame = _missionData[_keyframe % _frameCount];

            // Update the UI
            double missionProgress = _keyframe / (double)_frameCount;

            // This is needed because the event could be running on a non-UI thread
            Dispatcher.BeginInvoke(new Action(() =>
            {
                // Update the progress slider
                MissionProgressBar.Value = missionProgress;

                // Update stats display
                AltitudeLabel.Text = currentFrame.Elevation.ToString("F") + "m";
                HeadingLabel.Text = currentFrame.Heading.ToString("F") + "\u00b0";
                PitchLabel.Text = currentFrame.Pitch.ToString("F") + "\u00b0";
                RollLabel.Text = currentFrame.Roll.ToString("F") + "\u00b0";
            }));

            // Update plane's position
            _plane3D.Geometry = currentFrame.ToMapPoint();
            _plane3D.Attributes["HEADING"] = currentFrame.Heading;
            _plane3D.Attributes["PITCH"] = currentFrame.Pitch;
            _plane3D.Attributes["ROLL"] = currentFrame.Roll;

            // Update the inset map; plane symbol position
            _plane2D.Geometry = currentFrame.ToMapPoint();
            // Update inset's viewpoint and heading
            Viewpoint vp = new Viewpoint(currentFrame.ToMapPoint(), InsetMapView.MapScale,
                360 + (float)currentFrame.Heading);
            InsetMapView.SetViewpoint(vp);

            // Update the keyframe. This advances the animation
            _keyframe++;

            // Restart the animation if it has finished
            if (_keyframe >= _frameCount)
            {
                _keyframe = 0;
            }
        }

        private static string GetModelPath()
        {
            return DataManager.GetDataFolder("681d6f7694644709a7c830ec57a2d72b", "Bristol.dae");
        }

        private void MissionPlayPlauseClick(object sender, RoutedEventArgs e)
        {
            // Get a reference to the button that sent the event
            Button playButton = (Button)sender;

            // Get the text of the button
            string playtext = playButton.Content.ToString();

            switch (playtext)
            {
                // Resume the animation
                case "Play":
                    playButton.Content = "Pause";
                    _animationTimer.Start();
                    break;
                // Stop the animation
                case "Pause":
                    playButton.Content = "Play";
                    _animationTimer.Stop();
                    break;
            }
        }

        private void MissionProgressOnSeek(object sender, RoutedPropertyChangedEventArgs<double> e)
        {
            // Get a reference to the slider that sent the event
            Slider sliderControl = (Slider)sender;

            // Return if the user didn't change the progress
            //    (this event is also fired when the value is changed programmatically)
            if (!sliderControl.IsFocused)
            {
                return;
            }

            // Stop the animation
            _animationTimer.Stop();

            // Get the new mission progress
            double missionProgress = e.NewValue;

            // Update the keyframe based on the progress
            _keyframe = (int)(missionProgress * _frameCount);

            // Set the MissionPlayPause button back to the currently 'playing' state
            MissionPlayPause.Content = "Pause";

            // Restart the animation
            _animationTimer.Start();
        }

        private void ToggleFollowPlane(object sender, RoutedEventArgs e)
        {
            // Get the current text of the button
            FollowPlane(CameraControlButton.Content.ToString() == "Follow");
        }

        private void FollowPlane(bool follow)
        {
            if (follow)
            {
                CameraControlButton.Content = "Don't follow";
                MySceneView.CameraController = _orbitCameraController;
            }
            else
            {
                // Stop following
                CameraControlButton.Content = "Follow";

                // Setting the scene view's camera controller to null has the effect of resetting the value to the default
                MySceneView.CameraController = null;
            }
        }

        private void MissionPlaySpeedChanged(object sender, RoutedPropertyChangedEventArgs<double> e)
        {
            // Return if timer not initialized yet
            if (_animationTimer == null)
            {
                return;
            }

            // Get the speed multiplier from the slider value
            double speedMultiplier = e.NewValue;

            // Stop the animation
            _animationTimer.Stop();

            // Update the animation speed
            _animationTimer.Interval = 60 / speedMultiplier;

            // Set the MissionPlayPause button back to the currently 'playing' state
            MissionPlayPause.Content = "Pause";

            // Restart the animation
            _animationTimer.Start();
        }

        /// <summary>
        /// Private helper class represents a single frame in the animation
        /// </summary>
        private class MissionFrame
        {
            private double Longitude { get; set; }
            private double Latitude { get; set; }
            public double Elevation { get; private set; }
            public double Heading { get; private set; }
            public double Pitch { get; private set; }
            public double Roll { get; private set; }

            /// <summary>
            /// Private constructor ensures that only the factory method (Create) can be called.
            /// </summary>
            /// <param name="missionLine">A string describing a single frame in the mission animation.</param>
            private MissionFrame(string missionLine)
            {
                // Split the string into a list of entries (columns)
                // Example line: -156.3666517,20.6255059,999.999908,83.77659,.00009,-47.766567
                string[] missionFrameParameters = missionLine.Split(',');

                // Throw if the line isn't valid
                if (missionFrameParameters.Length != 6)
                {
                    throw new Exception("Invalid mission part definition");
                }

                // Populate the object's properties from the array of parameters
                Longitude = Convert.ToDouble(missionFrameParameters[0], CultureInfo.InvariantCulture);
                Latitude = Convert.ToDouble(missionFrameParameters[1], CultureInfo.InvariantCulture);
                Elevation = Convert.ToDouble(missionFrameParameters[2], CultureInfo.InvariantCulture);
                Heading = Convert.ToDouble(missionFrameParameters[3], CultureInfo.InvariantCulture);
                Pitch = Convert.ToDouble(missionFrameParameters[4], CultureInfo.InvariantCulture);
                Roll = Convert.ToDouble(missionFrameParameters[5], CultureInfo.InvariantCulture);
            }

            /// <summary>
            /// Creates a new MissionFrame.
            /// The private constructor + static construction method allows
            ///     for keeping the exception-handling logic for the constructor
            ///     internal to the class.
            /// </summary>
            /// <param name="missionLine">A string describing a single frame in the mission animation</param>
            /// <returns>Constructed MissionFrame or null if the line is invalid</returns>
            public static MissionFrame Create(string missionLine)
            {
                try
                {
                    return new MissionFrame(missionLine);
                }
                catch (Exception ex)
                {
                    Debug.WriteLine(ex.Message);
                    return null;
                }
            }

            public MapPoint ToMapPoint()
            {
                return new MapPoint(Longitude, Latitude, Elevation, SpatialReferences.Wgs84);
            }
        }
    }
}
