Export tiles

View inMAUIWPFUWPWinUIView on GitHubSample viewer app

Download tiles to a local tile cache file stored on the device.

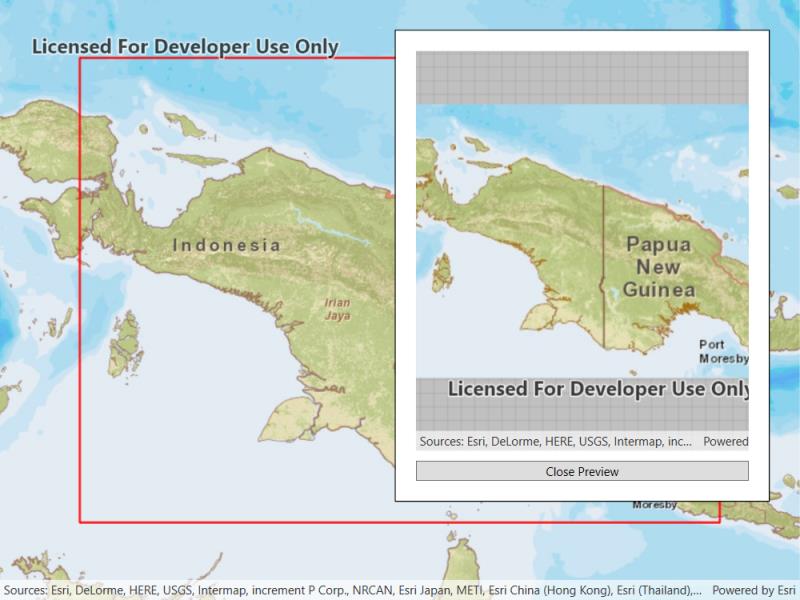

Image of export tiles

Use case

Field workers with limited network connectivity can use exported tiles as a basemap for use offline.

How to use the sample

Pan and zoom into the desired area, making sure the area is within the red boundary. Click the 'Export tiles' button to start the process. On successful completion you will see a preview of the downloaded tile package.

How it works

  1. Create a map and set its MinScale to 10,000,000. Limiting the scale in this sample limits the potential size of the selection area, thereby keeping the exported tile package to a reasonable size.
  2. Create an ExportTileCacheTask, passing in the URI of the tiled layer.
  3. Create default ExportTileCacheParameters for the task, specifying extent, minimum scale and maximum scale.
  4. Use the parameters and a path to create an ExportTileCacheJob from the task.
  5. Start the job, and when it completes successfully, get the resulting TileCache.
  6. Use the tile cache to create an ArcGISTiledLayer, and display it in the map.

Relevant API

  • ArcGISTiledLayer
  • ExportTileCacheJob
  • ExportTileCacheParameters
  • ExportTileCacheTask
  • TileCache

Additional information

ArcGIS tiled layers do not support reprojection, query, select, identify, or editing. See the Layer types discussion in the developers guide to learn more about the characteristics of ArcGIS tiled layers.

Tags

cache, download, export, local, offline, package, tiles

Sample Code

ExportTiles.xaml.csExportTiles.xaml.csExportTiles.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.Tasks.Offline;
using Esri.ArcGISRuntime.UI;
using System;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.ExportTiles
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Export tiles",
        category: "Layers",
        description: "Download tiles to a local tile cache file stored on the device.",
        instructions: "Pan and zoom into the desired area, making sure the area is within the red boundary. Click the 'Export tiles' button to start the process. On successful completion you will see a preview of the downloaded tile package.",
        tags: new[] { "cache", "download", "export", "local", "offline", "package", "tiles" })]
    public partial class ExportTiles
    {
        // URL to the service tiles will be exported from.
        private Uri _serviceUri = new Uri("https://services.arcgisonline.com/arcgis/rest/services/World_Topo_Map/MapServer");

        // Hold a reference to the export tile cache job for use in eventhandlers.
        private ExportTileCacheJob _job;

        public ExportTiles()
        {
            InitializeComponent();

            // Call a function to set up the map.
            _ = Initialize();
        }

        private async Task Initialize()
        {
            try
            {
                // Create the tile layer.
                ArcGISTiledLayer myLayer = new ArcGISTiledLayer(_serviceUri);

                // Load the layer.
                await myLayer.LoadAsync();

                // Create the basemap with the layer.
                Map myMap = new Map(new Basemap(myLayer))
                {
                    // Set the min and max scale - export task fails if the scale is too big or small.
                    MaxScale = 5000000,
                    MinScale = 10000000
                };

                // Assign the map to the mapview.
                MyMapView.Map = myMap;

                // Create a new symbol for the extent graphic.
                //     This is the red box that visualizes the extent for which tiles will be exported.
                SimpleLineSymbol myExtentSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.Red, 2);

                // Create graphics overlay for the extent graphic and apply a renderer.
                GraphicsOverlay extentOverlay = new GraphicsOverlay
                {
                    Renderer = new SimpleRenderer(myExtentSymbol)
                };

                // Add the overlay to the view.
                MyMapView.GraphicsOverlays.Add(extentOverlay);

                // Subscribe to changes in the mapview's viewpoint so the preview box can be kept in position.
                MyMapView.ViewpointChanged += MyMapView_ViewpointChanged;

                // Update the graphic - needed in case the user decides not to interact before pressing the button.
                UpdateMapExtentGraphic();

                // Enable the export button.
                MyExportButton.IsEnabled = true;

                // Set viewpoint of the map.
                MyMapView.SetViewpoint(new Viewpoint(-4.853791, 140.983598, myMap.MinScale));
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void MyMapView_ViewpointChanged(object sender, EventArgs e)
        {
            UpdateMapExtentGraphic();
        }

        /// <summary>
        /// Function used to keep the overlaid preview area marker in position.
        /// This is called by MyMapView_ViewpointChanged every time the user pans/zooms
        /// and updates the red box graphic to outline 80% of the current view.
        /// </summary>
        private void UpdateMapExtentGraphic()
        {
            // Return if mapview is null.
            if (MyMapView == null) { return; }

            // Get the new viewpoint.
            Viewpoint myViewPoint = MyMapView.GetCurrentViewpoint(ViewpointType.BoundingGeometry);

            // Return if viewpoint is null.
            if (myViewPoint == null) { return; }

            // Get the updated extent for the new viewpoint.
            Envelope extent = myViewPoint.TargetGeometry as Envelope;

            // Return if extent is null.
            if (extent == null) { return; }

            // Create an envelope that is a bit smaller than the extent.
            EnvelopeBuilder envelopeBldr = new EnvelopeBuilder(extent);
            envelopeBldr.Expand(0.80);

            // Get the (only) graphics overlay in the map view.
            GraphicsOverlay extentOverlay = MyMapView.GraphicsOverlays.FirstOrDefault();

            // Return if the extent overlay is null.
            if (extentOverlay == null) { return; }

            // Get the extent graphic.
            Graphic extentGraphic = extentOverlay.Graphics.FirstOrDefault();

            // Create the extent graphic and add it to the overlay if it doesn't exist.
            if (extentGraphic == null)
            {
                extentGraphic = new Graphic(envelopeBldr.ToGeometry());
                extentOverlay.Graphics.Add(extentGraphic);
            }
            else
            {
                // Otherwise, simply update the graphic's geometry.
                extentGraphic.Geometry = envelopeBldr.ToGeometry();
            }
        }

        private async Task StartExport()
        {
            // Get the parameters for the job.
            ExportTileCacheParameters parameters = GetExportParameters();

            // Create the task.
            ExportTileCacheTask exportTask = await ExportTileCacheTask.CreateAsync(_serviceUri);

            // Get the tile cache path.
            string tilePath = Path.Combine(Environment.ExpandEnvironmentVariables("%TEMP%"), Path.GetTempFileName() + ".tpkx");

            // Create the export job.
            _job = exportTask.ExportTileCache(parameters, tilePath);

            // Update the UI.
            MyProgressBar.Value = 0;
            MyProgressBar.Visibility = Visibility.Visible;
            MyProgressBarLabel.Visibility = Visibility.Visible;
            MyCancelJobButton.Visibility = Visibility.Visible;

            // Add an event handler to update the progress bar as the task progresses.
            _job.ProgressChanged += Job_ProgressChanged;

            // Add an event handler to hide the cancel job button if the job completes, fails or is cancelled.
            _job.StatusChanged += Job_StatusChanged;

            // Start the export job.
            _job.Start();

            // Wait for the job to complete.
            TileCache resultTileCache = await _job.GetResultAsync();

            // Do the rest of the work.
            await HandleExportCompleted(resultTileCache);
        }

        private async Task HandleExportCompleted(TileCache cache)
        {
            if (_job.Status == Esri.ArcGISRuntime.Tasks.JobStatus.Succeeded)
            {
                // Show the exported tiles on the preview map.
                await UpdatePreviewMap(cache);

                // Update the UI.
                MyPreviewMapView.Visibility = Visibility.Visible;
                MyClosePreviewButton.Visibility = Visibility.Visible;
                MyExportButton.Visibility = Visibility.Collapsed;
                MyProgressBar.Visibility = Visibility.Collapsed;
                MyProgressBarLabel.Visibility = Visibility.Collapsed;
            }
            else if (_job.Status == Esri.ArcGISRuntime.Tasks.JobStatus.Failed)
            {
                // Notify the user.
                MessageBox.Show("Job failed");

                // Hide the progress bar and progress bar label.
                MyProgressBar.Visibility = Visibility.Collapsed;
                MyProgressBarLabel.Visibility = Visibility.Collapsed;
            }

            // Remove the event handlers.
            _job.ProgressChanged -= Job_ProgressChanged;
            _job.StatusChanged -= Job_StatusChanged;
        }

        private ExportTileCacheParameters GetExportParameters()
        {
            // Create a new ExportTileCacheParameters instance.
            ExportTileCacheParameters parameters = new ExportTileCacheParameters();

            // Get the (only) graphics overlay in the map view.
            GraphicsOverlay extentOverlay = MyMapView.GraphicsOverlays.First();

            // Get the area selection graphic's extent.
            Graphic extentGraphic = extentOverlay.Graphics.First();

            // Set the area for the export.
            parameters.AreaOfInterest = extentGraphic.Geometry;

            // Set the highest possible export quality.
            parameters.CompressionQuality = 100;

            // Add level IDs 1-9.
            //     Note: Failing to add at least one Level ID will result in job failure.
            for (int x = 1; x < 10; x++)
            {
                parameters.LevelIds.Add(x);
            }

            // Return the parameters.
            return parameters;
        }

        private async Task UpdatePreviewMap(TileCache cache)
        {
            // Load the cache.
            await cache.LoadAsync();

            // Create a tile layer from the tile cache.
            ArcGISTiledLayer myLayer = new ArcGISTiledLayer(cache);

            // Show the layer in a new map.
            MyPreviewMapView.Map = new Map(new Basemap(myLayer));
        }

        private async Task ExportTask()
        {
            try
            {
                // Update the UI.
                MyPreviewMapView.Visibility = Visibility.Collapsed;
                MyClosePreviewButton.Visibility = Visibility.Collapsed;
                MyExportButton.Visibility = Visibility.Visible;
                MyExportButton.IsEnabled = false;

                // Start the export.
                await StartExport();
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void MyExportButton_Click(object sender, RoutedEventArgs e)
        {
            _ = ExportTask();
        }

        private void ClosePreview_Click(object sender, RoutedEventArgs e)
        {
            // Update the UI.
            MyPreviewMapView.Visibility = Visibility.Collapsed;
            MyClosePreviewButton.Visibility = Visibility.Collapsed;
            MyExportButton.Visibility = Visibility.Visible;
            MyExportButton.IsEnabled = true;
        }

        private void CancelJobButton_Click(object sender, RoutedEventArgs e)
        {
            if (_job != null)
            {
                _ = _job.CancelAsync();

                // Remove the event handlers.
                _job.ProgressChanged -= Job_ProgressChanged;
                _job.StatusChanged -= Job_StatusChanged;

                // Update the UI.
                MyCancelJobButton.Visibility = Visibility.Collapsed;
                MyProgressBar.Visibility = Visibility.Collapsed;
                MyProgressBarLabel.Visibility = Visibility.Collapsed;
                MyExportButton.IsEnabled = true;
            }
        }

        private void Job_ProgressChanged(object sender, EventArgs e)
        {
            Dispatcher.Invoke(() =>
            {
                MyProgressBar.Value = _job.Progress;
                MyProgressBarLabel.Text = $"{MyProgressBar.Value}%";
            });
        }

        private void Job_StatusChanged(object sender, Esri.ArcGISRuntime.Tasks.JobStatus e)
        {
            Dispatcher.Invoke(() =>
            {
                bool showCancelJobButton = (_job.Status != Esri.ArcGISRuntime.Tasks.JobStatus.Failed &&
                                            _job.Status != Esri.ArcGISRuntime.Tasks.JobStatus.Succeeded &&
                                            _job.Status != Esri.ArcGISRuntime.Tasks.JobStatus.Canceling);

                MyCancelJobButton.Visibility = showCancelJobButton ? Visibility.Visible : Visibility.Collapsed;
            });
        }
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
