Nearest vertex

View inWPFWinUIUWPFormsiOSAndroid
View on GitHub
Sample viewer app

Find the closest vertex and coordinate of a geometry to a point.

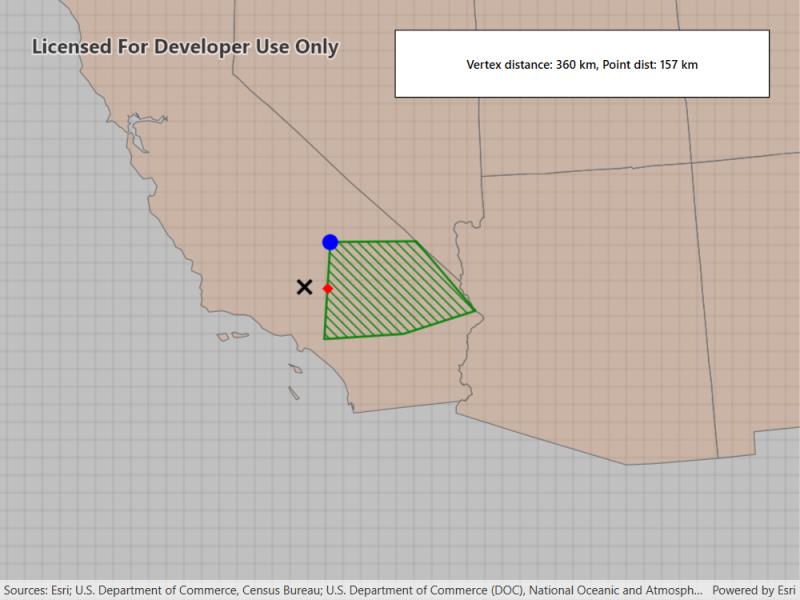

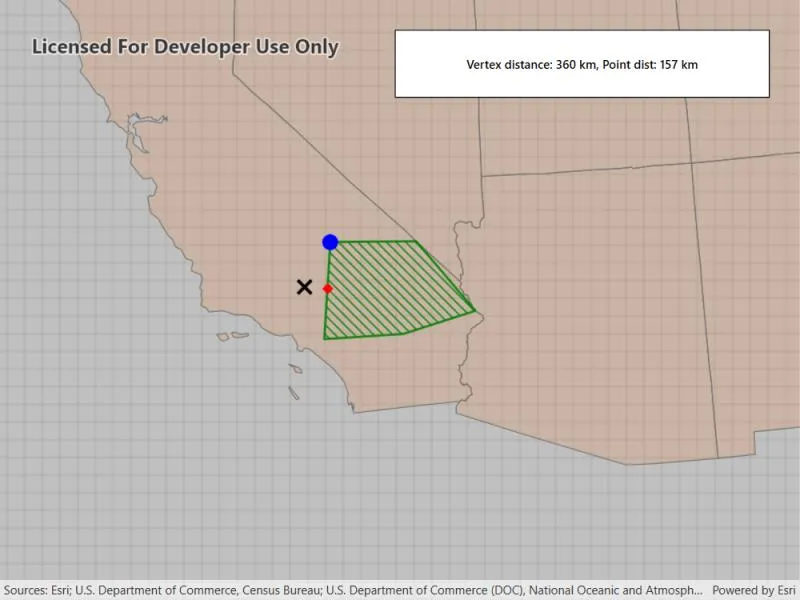

Image of nearest vertex

Use case

Determine the shortest distance between a location and the boundary of an area. For example, developers can snap imprecise user clicks to a geometry if the click is within a certain distance of the geometry.

How to use the sample

Click anywhere on the map. An orange cross will show at that location. A blue circle will show the polygon's nearest vertex to the point that was clicked. A red diamond will appear at the coordinate on the geometry that is nearest to the point that was clicked. If clicked inside the geometry, the red and orange markers will overlap. The information box showing distance between the clicked point and the nearest vertex/coordinate will be updated with every new location clicked.

How it works

  1. Get a Geometry and a Point to check the nearest vertex against.
  2. Call GeometryEngine.NearestVertex(inputGeometry, point).
  3. Use the returned ProximityResult to get the Point representing the polygon vertex, and to determine the distance between that vertex and the clicked point.
  4. Call GeometryEngine.NearestCoordinate(inputGeometry, point).
  5. Use the returned ProximityResult to get the Point representing the coordinate on the polygon, and to determine the distance between that coordinate and the clicked point.

Relevant API

  • GeometryEngine
  • ProximityResult

Additional information

The value of ProximityResult.distance is planar (Euclidean) distance. Planar distances are only accurate for geometries that have a defined projected coordinate system, which maintain the desired level of accuracy. The example polygon in this sample is defined in California State Plane Coordinate System - Zone 5 (WKID 2229), which maintains accuracy near Southern California. Accuracy declines outside the state plane zone.

Tags

analysis, coordinate, geometry, nearest, proximity, vertex

Sample Code

NearestVertex.xamlNearestVertex.xaml.cs
Use dark colors for code blocks

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
<UserControl
    x:Class="ArcGISRuntime.WPF.Samples.NearestVertex.NearestVertex"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:esri="http://schemas.esri.com/arcgis/runtime/2013">
    <Grid>
        <esri:MapView x:Name="MyMapView" />
        <Border Style="{StaticResource BorderStyle}">
            <StackPanel>
                <Label
                    x:Name="ResultsLabel"
                    HorizontalContentAlignment="Center"
                    Content="Tap to see the nearest vertex and point."
                    FontWeight="SemiBold" />
            </StackPanel>
        </Border>
    </Grid>
</UserControl>
