Access and create bookmarks on a map.
Use case
Bookmarks are used for easily storing and accessing saved locations on the map. Bookmarks are of interest in educational apps (e.g. touring historical sites) or more specifically, for a land management company wishing to visually monitor flood levels over time at a particular location. These locations can be saved as bookmarks and revisited easily each time their basemap data has been updated (e.g. working with up to date satellite imagery to monitor water levels).
How to use the sample

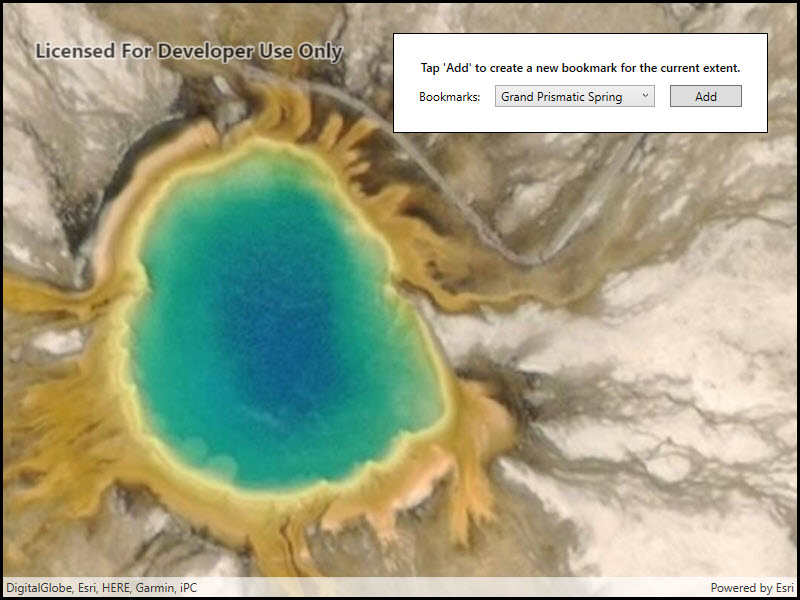

The map in the sample comes pre-populated with a set of bookmarks. To access a bookmark and move to that location, click on a bookmark's name from the list. To add a bookmark, pan and/or zoom to a new location and click on the 'Add Bookmark' button. Enter a unique name for the bookmark and click ok, and the bookmark will be added to the list
How it works
Instantiate a new Map object and create a BookmarkList with map.Bookmarks.
To create a new bookmark and add it to the bookmark list:
Instantiate a new Bookmark object passing in text (the name of the bookmark) and a Viewpoint as parameters.
Add the new bookmark to the book mark list with BookmarkList.Add(bookmark).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
// Copyright 2016 Esri.//// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0//// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific// language governing permissions and limitations under the License.using Esri.ArcGISRuntime.Mapping;
using System;
using System.Linq;
using System.Windows.Controls;
namespaceArcGIS.WPF.Samples.ManageBookmarks{
[ArcGIS.Samples.Shared.Attributes.Sample(
name: "Manage bookmarks",
category: "Map",
description: "Access and create bookmarks on a map.",
instructions: "The map in the sample comes pre-populated with a set of bookmarks. To access a bookmark and move to that location, click on a bookmark's name from the list. To add a bookmark, pan and/or zoom to a new location and click on the 'Add Bookmark' button. Enter a unique name for the bookmark and click ok, and the bookmark will be added to the list",
tags: new[] { "bookmark", "extent", "location", "zoom" })]
publicpartialclassManageBookmarks {
publicManageBookmarks() {
InitializeComponent();
// Create the UI, setup the control references and execute initialization Initialize();
}
privatevoidInitialize() {
// Create new map with a base map Map myMap = new Map(BasemapStyle.ArcGISImagery);
// Set the map view, map property to the base map MyMapView.Map = myMap;
// Create a set of predefined bookmarks; each one follows the pattern of:// ~ Initialize a viewpoint pointing to a latitude longitude// ~ Create a new bookmark// ~ Give the bookmark a name// ~ Assign the viewpoint// ~ Add the bookmark to bookmark collection of the map// ~ Add the bookmark to the UI combo box for the user to choose from// Bookmark-1 Viewpoint myViewpoint1 = new Viewpoint(27.3805833, 33.6321389, 6000);
Bookmark myBookmark1 = new Bookmark
{
Name = "Mysterious Desert Pattern",
Viewpoint = myViewpoint1
};
MyMapView.Map.Bookmarks.Add(myBookmark1);
BookmarkChooser.Items.Add(myBookmark1);
// Bookmark-2 Viewpoint myViewpoint2 = new Viewpoint(-39.299987, 174.060858, 600000);
Bookmark myBookmark2 = new Bookmark
{
Name = "Dormant Volcano",
Viewpoint = myViewpoint2
};
MyMapView.Map.Bookmarks.Add(myBookmark2);
BookmarkChooser.Items.Add(myBookmark2);
// Bookmark-3 Viewpoint myViewpoint3 = new Viewpoint(-33.867886, -63.985, 40000);
Bookmark myBookmark3 = new Bookmark
{
Name = "Guitar-Shaped Forest",
Viewpoint = myViewpoint3
};
MyMapView.Map.Bookmarks.Add(myBookmark3);
BookmarkChooser.Items.Add(myBookmark3);
// Bookmark-4 Viewpoint myViewpoint4 = new Viewpoint(44.525049, -110.83819, 6000);
Bookmark myBookmark4 = new Bookmark
{
Name = "Grand Prismatic Spring",
Viewpoint = myViewpoint4
};
MyMapView.Map.Bookmarks.Add(myBookmark4);
BookmarkChooser.Items.Add(myBookmark4);
// Set the initial combo box selection to the last bookmark added BookmarkChooser.SelectedItem = MyMapView.Map.Bookmarks.Last();
// Zoom to the last bookmark myMap.InitialViewpoint = myMap.Bookmarks.Last().Viewpoint;
// Hide the controls for adding an additional bookmark BorderAddBookmark.Visibility = System.Windows.Visibility.Collapsed;
}
privatevoidOnBookmarkChooserSelectionChanged(object sender, SelectionChangedEventArgs e) {
// Get the selected bookmark and apply the view point to the map Bookmark selectedBookmark = (Bookmark)e.AddedItems[0];
MyMapView.SetViewpoint(selectedBookmark.Viewpoint);
}
privatevoidButtonAddBookmark_Click(object sender, System.Windows.RoutedEventArgs e) {
// Show the controls to add a bookmark BorderAddBookmark.Visibility = System.Windows.Visibility.Visible;
ButtonAddBookmark.Visibility = System.Windows.Visibility.Collapsed;
TextBoxBookmarkName.Text = "";
}
privatevoidButtonCancel_Click(object sender, System.Windows.RoutedEventArgs e) {
// Hide the controls to add a bookmark BorderAddBookmark.Visibility = System.Windows.Visibility.Collapsed;
ButtonAddBookmark.Visibility = System.Windows.Visibility.Visible;
}
privatevoidButtonAddDone_Click(object sender, System.Windows.RoutedEventArgs e) {
// Get the name from the text fieldstring name = TextBoxBookmarkName.Text;
// Exit if the name is emptyif (String.IsNullOrEmpty(name))
return;
// Check to see if there is a bookmark with same namebool doesNameExist = MyMapView.Map.Bookmarks.Any(b => b.Name == name);
if (doesNameExist)
return;
// Create a new bookmark Bookmark myBookmark = new Bookmark
{
Name = name,
// Get the current viewpoint from map and assign it to bookmark Viewpoint = MyMapView.GetCurrentViewpoint(ViewpointType.BoundingGeometry)
};
// Add the bookmark to bookmark collection of the map MyMapView.Map.Bookmarks.Add(myBookmark);
// Add the bookmark to the list of choices in the combo box BookmarkChooser.Items.Insert(BookmarkChooser.Items.Count, myBookmark);
// Set the newly added bookmark to be the one selected in the combo box BookmarkChooser.SelectedItem = myBookmark;
// Hide the controls to add a bookmark BorderAddBookmark.Visibility = System.Windows.Visibility.Collapsed;
ButtonAddBookmark.Visibility = System.Windows.Visibility.Visible;
}
}
}
