Navigate route with rerouting

View inMAUIWPFUWPWinUIView on GitHubSample viewer app

Navigate between two points and dynamically recalculate an alternate route when the original route is unavailable.

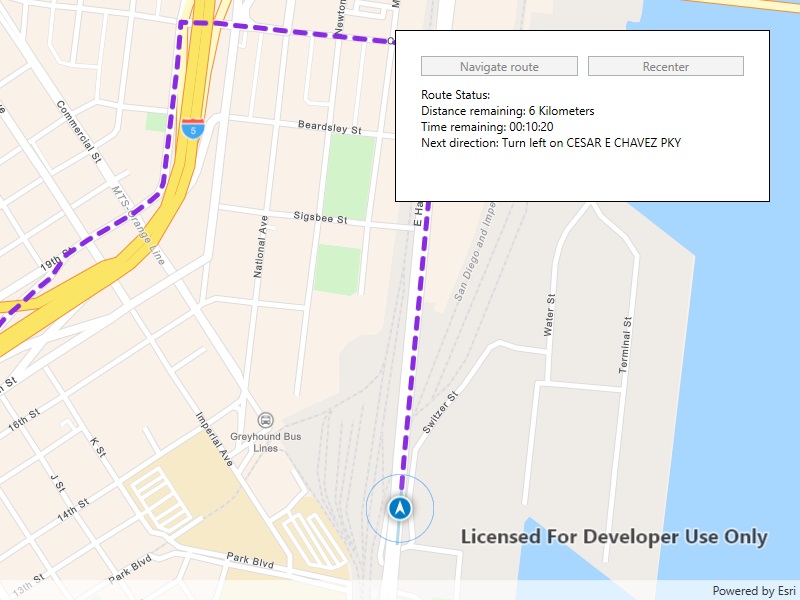

Image of navigate route with rerouting

Use case

While traveling between destinations, field workers use navigation to get live directions based on their locations. In cases where a field worker makes a wrong turn, or if the route suggested is blocked due to a road closure, it is necessary to calculate an alternate route to the original destination.

How to use the sample

Click 'Navigate' to simulate traveling and to receive directions from a preset starting point to a preset destination. Observe how the route is recalculated when the simulation does not follow the suggested route. Click 'Recenter' to refocus on the location display.

How it works

  1. Create a RouteTask using a URL to an online route service.
  2. Generate default RouteParameters using RouteTask.CreateDefaultParametersAsync().
  3. Set ReturnStops and ReturnDirections on the parameters to true.
  4. Add Stops to the parameters stops collection for each destination.
  5. Solve the route using RouteTask.SolveRouteAsync(routeParameters) to get a RouteResult.
  6. Create a RouteTracker using the route result, and the index of the desired route to take.
  7. Enable rerouting in the route tracker with .EnableReroutingAsync(RouteTask, RouteParameters, ReroutingStrategy, false). The Boolean specifies visitFirstStopOnStart and is false by default. Use ReroutingStrategy.ToNextWaypoint to specify that in the case of a reroute the new route goes from present location to next waypoint or stop.
  8. Use .TrackLocationAsync(LocationDataSource.Location) to track the location of the device and update the route tracking status.
  9. Add a listener to capture TrackingStatusChangedEvent, and then get the TrackingStatus and use it to display updated route information. Tracking status includes a variety of information on the route progress, such as the remaining distance, remaining geometry or traversed geometry (represented by a Polyline), or the remaining time (Double), amongst others.
  10. Add a NewVoiceGuidanceListener to get the VoiceGuidance whenever new instructions are available. From the voice guidance, get the string representing the directions and use a text-to-speech engine to output the maneuver directions.
  11. You can also query the tracking status for the current DirectionManeuver index, retrieve that maneuver from the Route and get its direction text to display in the GUI.
  12. To establish whether the destination has been reached, get the DestinationStatus from the tracking status. If the destination status is Reached, and the RemainingDestinationCount is 1, you have arrived at the destination and can stop routing. If there are several destinations in your route, and the remaining destination count is greater than 1, switch the route tracker to the next destination.

Relevant API

  • DestinationStatus
  • DirectionManeuver
  • Location
  • LocationDataSource
  • ReroutingStrategy
  • Route
  • RouteParameters
  • RouteTask
  • RouteTracker
  • Stop
  • VoiceGuidance

Offline data

A geodatabase contains a road network for San Diego. San Diego Geodatabase

About the data

The route taken in this sample goes from the San Diego Convention Center, site of the annual Esri User Conference, to the Fleet Science Center, San Diego.

Additional information

The route tracker will start a rerouting calculation automatically as necessary when the device's location indicates that it is off-route. The route tracker also validates that the device is "on" the transportation network, if it is not (e.g. in a parking lot) rerouting will not occur until the device location indicates that it is back "on" the transportation network.

Tags

directions, maneuver, navigation, route, turn-by-turn, voice

Sample Code

NavigateRouteRerouting.xaml.csNavigateRouteRerouting.xaml.csNavigateRouteRerouting.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Location;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Navigation;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.Tasks.NetworkAnalysis;
using Esri.ArcGISRuntime.UI;
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Speech.Synthesis;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.NavigateRouteRerouting
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Navigate route with rerouting",
        category: "Network analysis",
        description: "Navigate between two points and dynamically recalculate an alternate route when the original route is unavailable.",
        instructions: "Click 'Navigate' to simulate traveling and to receive directions from a preset starting point to a preset destination. Observe how the route is recalculated when the simulation does not follow the suggested route. Click 'Recenter' to refocus on the location display.",
        tags: new[] { "directions", "maneuver", "navigation", "route", "turn-by-turn", "voice" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("567e14f3420d40c5a206e5c0284cf8fc")]
    public partial class NavigateRouteRerouting
    {
        // Variables for tracking the navigation route.
        private RouteTracker _tracker;
        private RouteResult _routeResult;
        private Route _route;
        private RouteTask _routeTask;
        private RouteParameters _routeParams;

        // List of driving directions for the route.
        private IReadOnlyList<DirectionManeuver> _directionsList;

        // Speech synthesizer to play voice guidance audio.
        private SpeechSynthesizer _speechSynthesizer = new SpeechSynthesizer();

        // Graphics to show progress along the route.
        private Graphic _routeAheadGraphic;
        private Graphic _routeTraveledGraphic;

        // San Diego Convention Center.
        private readonly MapPoint _conventionCenter = new MapPoint(-117.160386727066026, 32.706608204740171, SpatialReferences.Wgs84);

        // RH Fleet Aerospace Museum.
        private readonly MapPoint _aerospaceMuseum = new MapPoint(-117.146679999797271, 32.730351428946854, SpatialReferences.Wgs84);

        // Simulated route to follow.
        private readonly string _tourPolylineJSON = "{\"paths\":[[[ -117.160386727066026, 32.706608204740171 ], [ -117.160205336548898, 32.706508733108137 ], [ -117.16002394693011, 32.706409261365152 ], [ -117.159842556412997, 32.706309788755419 ], [ -117.159651667110055, 32.706216667017223 ], [ -117.159454444684357, 32.706127778166461 ], [ -117.159257222258688, 32.706038889227095 ], [ -117.159059999833019, 32.705950000199223 ], [ -117.158902856642044, 32.705835713852132 ], [ -117.158739999267553, 32.705720000231665 ], [ -117.158576363053726, 32.705604545733003 ], [ -117.158417272315205, 32.70549090901352 ], [ -117.158256250198832, 32.705376874547866 ], [ -117.158087499876075, 32.70526125028416 ], [ -117.157918750451643, 32.70514562511471 ], [ -117.1577500001289, 32.705029999795485 ], [ -117.157600000341063, 32.704940000101111 ], [ -117.157425000438906, 32.704823332883613 ], [ -117.157250000536706, 32.704706666269544 ], [ -117.15707875020253, 32.70459250003033 ], [ -117.156909999879787, 32.704480000413547 ], [ -117.156741250455326, 32.704367499899007 ], [ -117.156569643489959, 32.704254999998568 ], [ -117.156393750662403, 32.704142500712138 ], [ -117.156217857834818, 32.70403000128394 ], [ -117.156041965007248, 32.703917501713846 ], [ -117.155866072179691, 32.703805002001992 ], [ -117.155690179352078, 32.703692502148236 ], [ -117.155514286524522, 32.703580002152705 ], [ -117.155338393696923, 32.7034675020153 ], [ -117.155162499971055, 32.703355001736114 ], [ -117.154986607143471, 32.703242501315046 ], [ -117.154810714315886, 32.703130000752203 ], [ -117.154635517682649, 32.703016896826178 ], [ -117.154463104030171, 32.702901379868429 ], [ -117.154290690377692, 32.702785862761147 ], [ -117.154118275826903, 32.702670345504323 ], [ -117.153945862174425, 32.702554828097959 ], [ -117.153773448521946, 32.702439310542076 ], [ -117.153599428681744, 32.702323429238 ], [ -117.153423000458261, 32.702207001250933 ], [ -117.153246571336439, 32.702090573867849 ], [ -117.15307014311297, 32.701974145576926 ], [ -117.152893714889458, 32.701857717134175 ], [ -117.152717285767665, 32.701741289295413 ], [ -117.152540857544182, 32.701624860548854 ], [ -117.152364428422359, 32.701508432406285 ], [ -117.152188000198905, 32.701392003355934 ], [ -117.152011571077097, 32.701275574909566 ], [ -117.151835142853614, 32.701159145555422 ], [ -117.15165871463013, 32.701042716049322 ], [ -117.151482285508337, 32.70092628714734 ], [ -117.151305857284839, 32.700809857337454 ], [ -117.151133333139583, 32.700694999722828 ], [ -117.150966666009978, 32.700582500484039 ], [ -117.150799999778684, 32.700470000347529 ], [ -117.150666666434319, 32.700606666276805 ], [ -117.150550000431735, 32.700739999832187 ], [ -117.150413637069931, 32.700887727693875 ], [ -117.150277272809774, 32.701035455311022 ], [ -117.150140909447984, 32.701183182683579 ], [ -117.150004546086151, 32.70133090905572 ], [ -117.149866667266465, 32.701474445066133 ], [ -117.149727777842074, 32.701615186178799 ], [ -117.149588889315993, 32.701755927069449 ], [ -117.149449999891601, 32.701896667738154 ], [ -117.14931111046721, 32.702037408184886 ], [ -117.149171785359911, 32.702179286074646 ], [ -117.149030713927701, 32.702325715147047 ], [ -117.148889642495448, 32.702472143979179 ], [ -117.148748571063251, 32.702618572571104 ], [ -117.148607499631026, 32.702765000922703 ], [ -117.148466428198816, 32.702911428278099 ], [ -117.148324285076455, 32.703055714638857 ], [ -117.148181427793475, 32.703198572087189 ], [ -117.148038571408776, 32.703341429306768 ], [ -117.147895714125781, 32.703484287053563 ], [ -117.147752856842757, 32.703627143815801 ], [ -117.147609999559762, 32.70377000034928 ], [ -117.147775789035336, 32.703888421897091 ], [ -117.147941578510924, 32.704006842531832 ], [ -117.148107367986498, 32.704125263765263 ], [ -117.148270999708757, 32.704241999926992 ], [ -117.148426000417771, 32.704352000065626 ], [ -117.148584000601517, 32.704464000191109 ], [ -117.148754000480821, 32.704584000655537 ], [ -117.148924000360154, 32.704704000958593 ], [ -117.149094000239444, 32.704824001100256 ], [ -117.149264000118777, 32.704944000324637 ], [ -117.149407499697205, 32.705072500228539 ], [ -117.149343333036455, 32.705169047379755 ], [ -117.14912666657645, 32.705166666300379 ], [ -117.14891000011643, 32.705164285976849 ], [ -117.148693333656425, 32.705161904897288 ], [ -117.148478888730111, 32.70516111120412 ], [ -117.148273333531876, 32.705166666300379 ], [ -117.148064000019531, 32.705171999918136 ], [ -117.147848999934354, 32.705177000184506 ], [ -117.147633999849205, 32.705181999694666 ], [ -117.147418999764071, 32.705186999960468 ], [ -117.147200769337161, 32.705185384606324 ], [ -117.146977692499263, 32.705173846577395 ], [ -117.146754615661365, 32.70516230779107 ], [ -117.146708461120397, 32.705286154077442 ], [ -117.146700768846614, 32.705466923690707 ], [ -117.146693076572859, 32.705647692937767 ], [ -117.146683999995219, 32.705830000815943 ], [ -117.146673999949485, 32.706013334065815 ], [ -117.146663999903751, 32.706196666939007 ], [ -117.146664285567994, 32.70638142881964 ], [ -117.146671428072821, 32.706567143490375 ], [ -117.146678571475945, 32.706752857018657 ], [ -117.146740000071702, 32.706929999956024 ], [ -117.146814999516465, 32.707105000372742 ], [ -117.146889999859525, 32.707279999690257 ], [ -117.146924210400499, 32.70746421055955 ], [ -117.146958420941473, 32.707648421804457 ], [ -117.146992631482419, 32.707832631913085 ], [ -117.147028333226785, 32.708011666927277 ], [ -117.14706999978462, 32.708169999740647 ], [ -117.147123125252193, 32.708315313142343 ], [ -117.147188749878651, 32.708491876248765 ], [ -117.147254375403406, 32.70866843900572 ], [ -117.147320000029879, 32.708845002169127 ], [ -117.14738562465628, 32.709021564227307 ], [ -117.147451250181092, 32.709198125936041 ], [ -117.147516874807508, 32.709374687295316 ], [ -117.14752833371729, 32.709551667052253 ], [ -117.147520000046384, 32.709710000156058 ], [ -117.147520000046384, 32.709893333747829 ], [ -117.147520000046384, 32.710076666962848 ], [ -117.147520000046384, 32.71026200054947 ], [ -117.147520000046384, 32.710448667076598 ], [ -117.147520000046384, 32.710635333213204 ], [ -117.147515909118582, 32.710823182620821 ], [ -117.147509090905601, 32.71101181922716 ], [ -117.147502272692577, 32.711200455434678 ], [ -117.147495454479568, 32.711389091999187 ], [ -117.147485142718423, 32.71157742885061 ], [ -117.14746085676471, 32.711764573341057 ], [ -117.147436571709335, 32.711951716683039 ], [ -117.147412285755621, 32.712138859632439 ], [ -117.147387999801936, 32.712326002189215 ], [ -117.147363713848208, 32.712513145109241 ], [ -117.147339428792819, 32.712700286880825 ], [ -117.147316521753055, 32.712886522016262 ], [ -117.147299130369177, 32.713069131040328 ], [ -117.147281738985257, 32.71325173969052 ], [ -117.147264347601379, 32.713434348722721 ], [ -117.147246956217472, 32.713616956625302 ], [ -117.147232058556796, 32.713802941936294 ], [ -117.147218823677719, 32.713991177701793 ], [ -117.147205587900316, 32.714179413825953 ], [ -117.147192353021239, 32.71436764955282 ], [ -117.147179117243851, 32.714555884126625 ], [ -117.147165882364774, 32.714744119059084 ], [ -117.147152647485697, 32.714932352838417 ], [ -117.147153636530803, 32.715120909708922 ], [ -117.147158182006137, 32.715309546296893 ], [ -117.147162727481486, 32.715498182485916 ], [ -117.147167272956835, 32.715686818275991 ], [ -117.147173404856957, 32.715875319889243 ], [ -117.147181915495963, 32.716063619303895 ], [ -117.147190425236644, 32.716251918321021 ], [ -117.14719893587565, 32.716440216940612 ], [ -117.147207446514642, 32.716628515162668 ], [ -117.147215957153648, 32.716816812987197 ], [ -117.147224467792654, 32.717005110414192 ], [ -117.147232978431632, 32.717193407443645 ], [ -117.147241489070623, 32.717381704075564 ], [ -117.147249999709629, 32.717570000309962 ], [ -117.147249999709629, 32.717738750619532 ], [ -117.147332500087032, 32.717837500042386 ], [ -117.147538750581333, 32.717831250407393 ], [ -117.147756000047934, 32.717830000329201 ], [ -117.147976000155978, 32.717833999974772 ], [ -117.148195999365697, 32.717839000287256 ], [ -117.148399999580192, 32.717848889054309 ], [ -117.148599999596726, 32.717859999933836 ], [ -117.148792857108432, 32.717859999933836 ], [ -117.149002857170714, 32.717855714600553 ], [ -117.149221110953832, 32.717848889054309 ], [ -117.149426667050406, 32.717843333236125 ], [ -117.149629999816653, 32.717840000198528 ], [ -117.149834794141881, 32.717839725846488 ], [ -117.150058766600068, 32.717838356353404 ], [ -117.150282739058298, 32.717836986104565 ], [ -117.150506712414838, 32.717835616611495 ], [ -117.150730684873039, 32.717834246362614 ], [ -117.150954657331255, 32.717832876869451 ], [ -117.151178629789484, 32.71783150662052 ], [ -117.151402602247686, 32.717830137127372 ], [ -117.151626575604226, 32.717828766878398 ], [ -117.151850548062413, 32.717827397385207 ], [ -117.152074520520642, 32.717826027136198 ], [ -117.152298492978844, 32.717824657642915 ], [ -117.152522466335384, 32.717823287393841 ], [ -117.152746438793599, 32.717821917900579 ], [ -117.1529704112518, 32.717820547651478 ], [ -117.153186000631806, 32.717819999702947 ], [ -117.153393000321032, 32.717819999702947 ], [ -117.153598000360432, 32.717819999702947 ], [ -117.153680000376198, 32.717931250560419 ], [ -117.153680000376198, 32.718116667591957 ], [ -117.153680000376198, 32.71830208423809 ], [ -117.153680000376198, 32.718487500498668 ], [ -117.153680000376198, 32.71867291637377 ], [ -117.153680000376198, 32.718853999719613 ], [ -117.153691764713159, 32.719040589315924 ], [ -117.153706471032677, 32.719228825364496 ], [ -117.153721176453885, 32.719417061015754 ], [ -117.153735882773404, 32.719605296269705 ], [ -117.153750588194583, 32.719793531126342 ], [ -117.153765294514116, 32.719981765585658 ], [ -117.153779999935324, 32.720169999647716 ], [ -117.153724444524883, 32.720347777996373 ], [ -117.15365916664814, 32.720522916848374 ], [ -117.153554999804427, 32.720687501074849 ], [ -117.153450833859011, 32.720852084241734 ], [ -117.153346667015299, 32.721016667104912 ], [ -117.153242500171572, 32.721181250420067 ], [ -117.153129999656983, 32.721337142933685 ], [ -117.153004999983494, 32.721480000582972 ], [ -117.152880000310034, 32.721622857247624 ], [ -117.152759999761116, 32.72175500006324 ], [ -117.152636666462485, 32.721883333669965 ], [ -117.152503333118148, 32.722016666414483 ], [ -117.152369999773768, 32.722149999715342 ], [ -117.152266296460738, 32.722315741775319 ], [ -117.152162592249397, 32.722481484282923 ], [ -117.152058888936367, 32.722647225726703 ], [ -117.15195518472504, 32.722812966862485 ], [ -117.151851481411995, 32.722978708445886 ], [ -117.151747778098965, 32.723144448965456 ], [ -117.151644073887638, 32.723310189177035 ], [ -117.151540370574594, 32.723475929836226 ], [ -117.151436666363239, 32.723641669431601 ], [ -117.151332963050237, 32.723807408718947 ], [ -117.151234999971862, 32.72397250002998 ], [ -117.151160000527099, 32.724135000367234 ], [ -117.151080000161144, 32.724297500408319 ], [ -117.150996667045533, 32.724460000153258 ], [ -117.150913333929878, 32.724623889395701 ], [ -117.150829999915885, 32.724793333722438 ], [ -117.150746666800273, 32.724962778482904 ], [ -117.150663333684619, 32.725132222165605 ], [ -117.150569142632122, 32.725297714582261 ], [ -117.150467713853416, 32.725460572230027 ], [ -117.150366285972964, 32.725623430335979 ], [ -117.150264857194259, 32.7257862873888 ], [ -117.150163428415524, 32.725949144144138 ], [ -117.150062000535129, 32.726112000602008 ], [ -117.149960571756395, 32.726274857518128 ], [ -117.149810286304302, 32.726402571732081 ], [ -117.149627428838329, 32.726506857771184 ], [ -117.149444571372356, 32.726611143688253 ], [ -117.149261713906355, 32.726715429483335 ], [ -117.149078857338722, 32.726819715156495 ], [ -117.148895999872721, 32.726924000707605 ], [ -117.148713142406748, 32.727028286136743 ], [ -117.148527500163411, 32.727107499935954 ], [ -117.148341999853869, 32.727179999922392 ], [ -117.148156999905936, 32.727254999741994 ], [ -117.147970000308177, 32.727333332937185 ], [ -117.147782499450514, 32.727412499611347 ], [ -117.147604782144612, 32.727511304068443 ], [ -117.147441738818856, 32.727639565155108 ], [ -117.1472786954931, 32.727767826057253 ], [ -117.147115652167315, 32.727896086774876 ], [ -117.146952608841573, 32.728024347307972 ], [ -117.14683238101891, 32.728179524297857 ], [ -117.146722856622844, 32.728341429031481 ], [ -117.14661333312506, 32.728503334226737 ], [ -117.146503809627319, 32.728665238372294 ], [ -117.146433750018303, 32.728838750495896 ], [ -117.146389999369021, 32.729020001365825 ], [ -117.146346249618063, 32.72920125111154 ], [ -117.146302499867119, 32.729382501244444 ], [ -117.146258749217793, 32.729563750253142 ], [ -117.146400000313093, 32.729589999948736 ], [ -117.146600000329613, 32.729668571401881 ], [ -117.146679999797271, 32.729808571287677 ], [ -117.146679999797271, 32.729989523956149 ], [ -117.146679999797271, 32.730170477013012 ], [ -117.146679999797271, 32.730351428946854 ]]],\"spatialReference\":{\"wkid\":4326,\"latestWkid\":4326}}";

        // Path to the network geodatabase for San Diego.
        private readonly string _networkGeodatabasePath = DataManager.GetDataFolder("567e14f3420d40c5a206e5c0284cf8fc", "sandiego.geodatabase");

        public NavigateRouteRerouting()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            try
            {
                // Add event handler for when this sample is unloaded.
                Unloaded += SampleUnloaded;

                // Create the map view.
                MyMapView.Map = new Map(BasemapStyle.ArcGISNavigation);

                // Create the route task, using the routing service.
                _routeTask = await RouteTask.CreateAsync(_networkGeodatabasePath, "Streets_ND");

                // Get the default route parameters.
                _routeParams = await _routeTask.CreateDefaultParametersAsync();

                // Explicitly set values for parameters.
                _routeParams.ReturnDirections = true;
                _routeParams.ReturnStops = true;
                _routeParams.ReturnRoutes = true;
                _routeParams.OutputSpatialReference = SpatialReferences.Wgs84;

                // Create stops for each location.
                Stop stop1 = new Stop(_conventionCenter) { Name = "San Diego Convention Center" };
                Stop stop2 = new Stop(_aerospaceMuseum) { Name = "RH Fleet Aerospace Museum" };

                // Assign the stops to the route parameters.
                List<Stop> stopPoints = new List<Stop> { stop1, stop2 };
                _routeParams.SetStops(stopPoints);

                // Get the route results.
                _routeResult = await _routeTask.SolveRouteAsync(_routeParams);
                _route = _routeResult.Routes[0];

                // Add a graphics overlay for the route graphics.
                MyMapView.GraphicsOverlays.Add(new GraphicsOverlay());

                // Add graphics for the stops.
                SimpleMarkerSymbol stopSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Diamond, Color.OrangeRed, 20);
                MyMapView.GraphicsOverlays[0].Graphics.Add(new Graphic(_conventionCenter, stopSymbol));
                MyMapView.GraphicsOverlays[0].Graphics.Add(new Graphic(_aerospaceMuseum, stopSymbol));

                // Create a graphic (with a dashed line symbol) to represent the route.
                _routeAheadGraphic = new Graphic(_route.RouteGeometry) { Symbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.BlueViolet, 5) };

                // Create a graphic (solid) to represent the route that's been traveled (initially empty).
                _routeTraveledGraphic = new Graphic { Symbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.LightBlue, 3) };

                // Add the route graphics to the map view.
                MyMapView.GraphicsOverlays[0].Graphics.Add(_routeAheadGraphic);
                MyMapView.GraphicsOverlays[0].Graphics.Add(_routeTraveledGraphic);

                // Set the map viewpoint to show the entire route.
                await MyMapView.SetViewpointGeometryAsync(_route.RouteGeometry, 100);

                // Enable the navigation button.
                StartNavigationButton.IsEnabled = true;
            }
            catch (Exception e)
            {
                MessageBox.Show(e.Message, "Error");
            }
        }

        private async void StartNavigation(object sender, RoutedEventArgs e)
        {
            try
            {
                // Disable the start navigation button.
                StartNavigationButton.IsEnabled = false;

                // Get the directions for the route.
                _directionsList = _route.DirectionManeuvers;

                // Create a route tracker.
                _tracker = new RouteTracker(_routeResult, 0, true);
                _tracker.NewVoiceGuidance += SpeakDirection;

                // Handle route tracking status changes.
                _tracker.TrackingStatusChanged += TrackingStatusUpdated;

                // Check if this route task supports rerouting.
                if (_routeTask.RouteTaskInfo.SupportsRerouting)
                {
                    // Enable automatic re-routing.
                    await _tracker.EnableReroutingAsync(new ReroutingParameters(_routeTask, _routeParams) { Strategy = ReroutingStrategy.ToNextWaypoint, VisitFirstStopOnStart = false });

                    // Handle re-routing completion to display updated route graphic and report new status.
                    _tracker.RerouteStarted += RerouteStarted;
                    _tracker.RerouteCompleted += RerouteCompleted;
                }

                // Turn on navigation mode for the map view.
                MyMapView.LocationDisplay.AutoPanMode = LocationDisplayAutoPanMode.Navigation;
                MyMapView.LocationDisplay.AutoPanModeChanged += AutoPanModeChanged;

                // Add a data source for the location display.
                var simulatedSource = new SimulatedLocationDataSource();
                simulatedSource.LocationChanged += SimulatedLocationChanged;

                // Create SimulationParameters starting at the current time, velocity, and horizontal and vertical accuracy.
                SimulationParameters simulationParameters = new SimulationParameters(DateTime.Now, 40.0);
                simulatedSource.SetLocationsWithPolyline(Geometry.FromJson(_tourPolylineJSON) as Polyline, simulationParameters);

                // Set up the location display.
                MyMapView.LocationDisplay.DataSource = new RouteTrackerLocationDataSource(_tracker, simulatedSource);

                // Use this instead if you want real location:
                // MyMapView.LocationDisplay.DataSource = new RouteTrackerLocationDataSource(_tracker, new SystemLocationDataSource());

                // Enable the location display (this will start the location data source).
                MyMapView.LocationDisplay.IsEnabled = true;
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, "Error");
            }
        }

        private void SimulatedLocationChanged(object sender, Location e)
        {
            if (sender is SimulatedLocationDataSource simSource && simSource.CurrentLocationIndex + 1 == simSource.Locations.Count)
            {
                // Prevent simulated source from looping.
                simSource.StopAsync();
            }
        }

        private void RerouteStarted(object sender, EventArgs e)
        {
            // Remove the event listeners for tracking status changes while the route tracker recalculates.
            _tracker.NewVoiceGuidance -= SpeakDirection;
            _tracker.TrackingStatusChanged -= TrackingStatusUpdated;
        }

        private void RerouteCompleted(object sender, RouteTrackerRerouteCompletedEventArgs e)
        {
            // Get the new directions.
            _directionsList = e.TrackingStatus.RouteResult.Routes[0].DirectionManeuvers;

            // Re-add the event listeners for tracking status changes.
            _tracker.NewVoiceGuidance += SpeakDirection;
            _tracker.TrackingStatusChanged += TrackingStatusUpdated;
        }

        private void TrackingStatusUpdated(object sender, RouteTrackerTrackingStatusChangedEventArgs e)
        {
            TrackingStatus status = e.TrackingStatus;

            // Start building a status message for the UI.
            System.Text.StringBuilder statusMessageBuilder = new System.Text.StringBuilder("Route Status:\n");

            // Check if navigation is on route.
            if (status.IsOnRoute && !status.IsRouteCalculating)
            {
                // Check the destination status.
                if (status.DestinationStatus == DestinationStatus.NotReached || status.DestinationStatus == DestinationStatus.Approaching)
                {
                    statusMessageBuilder.AppendLine("Distance remaining: " +
                                                status.RouteProgress.RemainingDistance.DisplayText + " " +
                                                status.RouteProgress.RemainingDistance.DisplayTextUnits.PluralDisplayName);

                    statusMessageBuilder.AppendLine("Time remaining: " +
                                                    status.RouteProgress.RemainingTime.ToString(@"hh\:mm\:ss"));

                    if (status.CurrentManeuverIndex + 1 < _directionsList.Count)
                    {
                        statusMessageBuilder.AppendLine("Next direction: " + _directionsList[status.CurrentManeuverIndex + 1].DirectionText);
                    }

                    // Set geometries for progress and the remaining route.
                    _routeAheadGraphic.Geometry = status.RouteProgress.RemainingGeometry;
                    _routeTraveledGraphic.Geometry = status.RouteProgress.TraversedGeometry;
                }
                else if (status.DestinationStatus == DestinationStatus.Reached)
                {
                    statusMessageBuilder.AppendLine("Destination reached.");

                    // Set the route geometries to reflect the completed route.
                    _routeAheadGraphic.Geometry = null;
                    _routeTraveledGraphic.Geometry = status.RouteResult.Routes[0].RouteGeometry;
                }
            }
            else
            {
                statusMessageBuilder.AppendLine("Off route!");
            }

            Dispatcher.BeginInvoke((Action)delegate ()
            {
                // Show the status information in the UI.
                MessagesTextBlock.Text = statusMessageBuilder.ToString();
            });
        }

        private void SpeakDirection(object sender, RouteTrackerNewVoiceGuidanceEventArgs e)
        {
            // Say the direction using voice synthesis.
            _speechSynthesizer.SpeakAsyncCancelAll();
            _speechSynthesizer.SpeakAsync(e.VoiceGuidance.Text);
        }

        private void AutoPanModeChanged(object sender, LocationDisplayAutoPanMode e)
        {
            // Turn the recenter button on or off when the location display changes to or from navigation mode.
            RecenterButton.IsEnabled = e != LocationDisplayAutoPanMode.Navigation;
        }

        private void RecenterButton_Click(object sender, RoutedEventArgs e)
        {
            // Change the mapview to use navigation mode.
            MyMapView.LocationDisplay.AutoPanMode = LocationDisplayAutoPanMode.Navigation;
        }

        private void SampleUnloaded(object sender, RoutedEventArgs e)
        {
            // Stop the speech synthesizer.
            _speechSynthesizer.SpeakAsyncCancelAll();
            _speechSynthesizer.Dispose();

            // Stop the tracker.
            if (_tracker != null)
            {
                _tracker.TrackingStatusChanged -= TrackingStatusUpdated;
                _tracker.NewVoiceGuidance -= SpeakDirection;
                _tracker.RerouteStarted -= RerouteStarted;
                _tracker.RerouteCompleted -= RerouteCompleted;
                _tracker = null;
            }

            // Stop the location data source.
            MyMapView.LocationDisplay?.DataSource?.StopAsync();
        }
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
