Display KML

View inMAUIWPFUWPWinUIView on GitHubSample viewer app

Display KML from a URL, portal item, or local KML file.

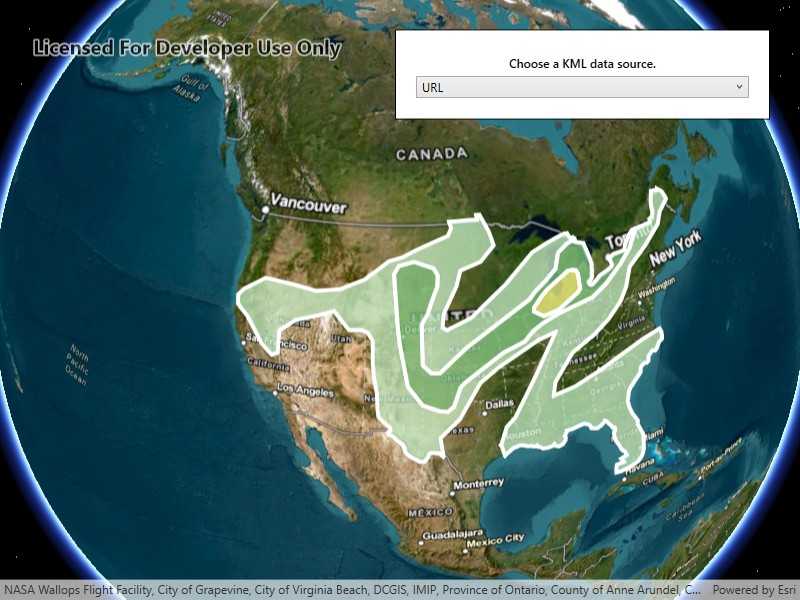

Image of display KML

Use case

Keyhole Markup Language (KML) is a data format used by Google Earth. KML is popular as a transmission format for consumer use and for sharing geographic data between apps. You can use Runtime to display KML files, with full support for a variety of features, including network links, 3D models, screen overlays, and tours.

How to use the sample

Use the UI to select a source. A KML file from that source will be loaded and displayed in the scene.

How it works

  1. To create a KML layer from a URL, create a KmlDataset using the URL to the KML file. Then pass the dataset to the KmlLayer constructor.
  2. To create a KML layer from a portal item, construct a PortalItem with a Portal and the KML portal item ID. Pass the portal item to the KmlLayer constructor.
  3. To create a KML layer from a local file, create a KmlDataset using the absolute file path to the local KML file. Then pass the dataset to the KmlLayer constructor.
  4. Add the layer as an operational layer to the scene with scene.OperationalLayers.Add(kmlLayer).

Relevant API

  • KmlDataset
  • KmlLayer

Offline data

This sample uses US state capitals KML file. It is downloaded from ArcGIS Online automatically.

About the data

This sample displays three different KML files:

  • From URL - this is a map of the significant weather outlook produced by NOAA/NWS. It uses KML network links to always show the latest data.
  • From local file - this is a map of U.S. state capitals. It doesn't define an icon, so the default pushpin is used for the points.
  • From portal item - this is a map of U.S. states.

Tags

keyhole, KML, KMZ, OGC

Sample Code

DisplayKml.xaml.csDisplayKml.xaml.csDisplayKml.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Portal;
using System;
using System.Windows;
using System.Windows.Controls;

namespace ArcGIS.WPF.Samples.DisplayKml
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Display KML",
        category: "Layers",
        description: "Display KML from a URL, portal item, or local KML file.",
        instructions: "Use the UI to select a source. A KML file from that source will be loaded and displayed in the scene.",
        tags: new[] { "KML", "KMZ", "OGC", "keyhole" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("324e4742820e46cfbe5029ff2c32cb1f")]
    public partial class DisplayKml
    {
        private readonly Envelope _usEnvelope = new Envelope(-144.619561355187, 18.0328662832097, -66.0903762761083, 67.6390975806745, SpatialReferences.Wgs84);

        public DisplayKml()
        {
            InitializeComponent();
            Initialize();
        }

        private void Initialize()
        {
            // Set up the basemap.
            MySceneView.Scene = new Scene(BasemapStyle.ArcGISImagery);

            // Update the UI.
            LayerPicker.IsEnabled = true;
            LayerPicker.ItemsSource = new[] { "URL", "Local file", "Portal item" };
            LayerPicker.SelectionChanged += LayerPicker_SelectionChanged;
            LayerPicker.SelectedIndex = 0;
        }

        private async void LayerPicker_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            // Clear existing layers.
            MySceneView.Scene.OperationalLayers.Clear();

            // Get the name of the selected layer.
            string name = e.AddedItems[0].ToString();

            try
            {
                // Create the layer using the chosen constructor.
                KmlLayer layer;
                switch (name)
                {
                    case "URL":
                    default:
                        layer = new KmlLayer(new Uri("https://www.wpc.ncep.noaa.gov/kml/noaa_chart/WPC_Day1_SigWx.kml"));
                        break;

                    case "Local file":
                        string filePath = DataManager.GetDataFolder("324e4742820e46cfbe5029ff2c32cb1f", "US_State_Capitals.kml");
                        layer = new KmlLayer(new Uri(filePath));
                        break;

                    case "Portal item":
                        ArcGISPortal portal = await ArcGISPortal.CreateAsync();
                        PortalItem item = await PortalItem.CreateAsync(portal, "9fe0b1bfdcd64c83bd77ea0452c76253");
                        layer = new KmlLayer(item);
                        break;
                }

                // Add the selected layer to the map.
                MySceneView.Scene.OperationalLayers.Add(layer);

                // Zoom to the extent of the United States.
                await MySceneView.SetViewpointAsync(new Viewpoint(_usEnvelope));
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.ToString(), "Error");
            }
        }
    }
}
