Offline routing

View inMAUIWPFUWPWinUIView on GitHubSample viewer app

Solve a route on-the-fly using offline data.

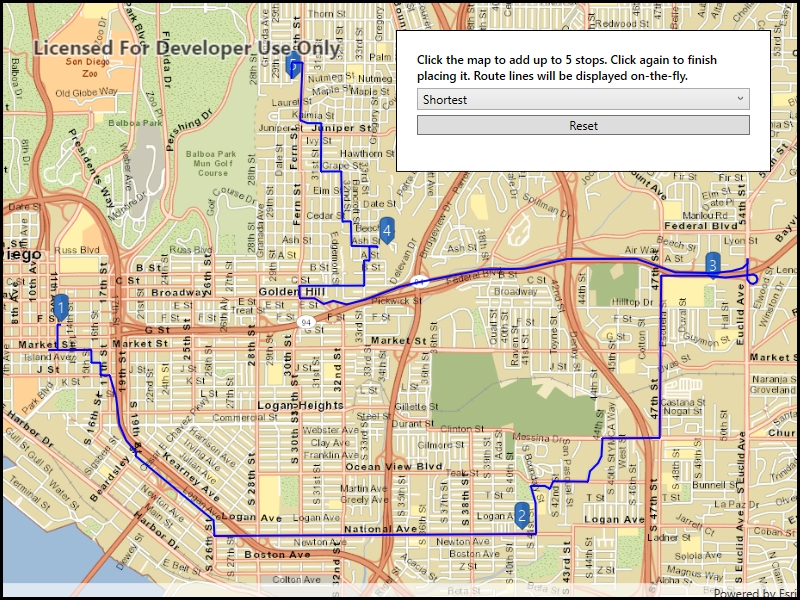

Image of offline routing

Use case

You can use an offline network to enable routing in disconnected scenarios. For example, you could provide offline location capabilities to field workers repairing critical infrastructure in a disaster when network availability is limited.

How to use the sample

Click near a road to start adding a stop to the route, click again to place it on the map. A number graphic will show its order in the route. After adding at least 2 stops, a route will display. Choose "Fastest" or "Shortest" to control how the route is optimized. The route will update on-the-fly while moving stops. The green box marks the boundary of the routable area provided by the offline data. This sample limits routes to 5 stops for performance reasons.

How it works

  1. Create the map's Basemap from a local tile package using a TileCache and ArcGISTiledLayer
  2. Create a RouteTask with an offline locator geodatabase.
  3. Get the RouteParameters using routeTask.CreateDefaultParameters()
  4. Create Stops and add them to the route task's parameters.
  5. Solve the Route using routeTask.SolveRouteAsync(routeParameters)
  6. Create a graphic with the route's geometry and a SimpleLineSymbol and display it on another GraphicsOverlay.

Relevant API

  • RouteParameters
  • RouteResult
  • RouteTask
  • Stop
  • TravelMode

Offline data

The data used by this sample is available on ArcGIS Online.

About the data

This sample uses a pre-packaged sample dataset consisting of a geodatabase with a San Diego road network and a tile package with a streets basemap.

Tags

connectivity, disconnected, fastest, locator, navigation, network analysis, offline, routing, shortest, turn-by-turn

Sample Code

OfflineRouting.xaml.csOfflineRouting.xaml.csOfflineRouting.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.Tasks.NetworkAnalysis;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UI.Controls;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Reflection;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;
using Point = System.Windows.Point;

namespace ArcGIS.WPF.Samples.OfflineRouting
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Offline routing",
        category: "Network analysis",
        description: "Solve a route on-the-fly using offline data.",
        instructions: "Click near a road to start adding a stop to the route, click again to place it on the map. A number graphic will show its order in the route. After adding at least 2 stops, a route will display. Choose \"Fastest\" or \"Shortest\" to control how the route is optimized. The route will update on-the-fly while moving stops. The green box marks the boundary of the routable area provided by the offline data. This sample limits routes to 5 stops for performance reasons.",
        tags: new[] { "connectivity", "disconnected", "fastest", "locator", "navigation", "network analysis", "offline", "routing", "shortest", "turn-by-turn" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("567e14f3420d40c5a206e5c0284cf8fc")]
    public partial class OfflineRouting
    {
        // Graphics overlays for holding graphics.
        private GraphicsOverlay _stopsOverlay;
        private GraphicsOverlay _routeOverlay;

        // Route task and parameters.
        private RouteTask _offlineRouteTask;
        private RouteParameters _offlineRouteParameters;

        // List of travel modes, like 'Fastest' and 'Shortest'.
        private List<TravelMode> _availableTravelModes;

        // Track the graphic being interacted with.
        private Graphic _selectedStopGraphic;

        // The area covered by the geodatabase used for offline routing.
        private readonly Envelope _routableArea = new Envelope(new MapPoint(-13045352.223196, 3864910.900750, 0, SpatialReferences.WebMercator),
            new MapPoint(-13024588.857198, 3838880.505604, 0, SpatialReferences.WebMercator));

        public OfflineRouting()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            try
            {
                // Get the paths to resources used by the sample.
                string basemapTilePath = DataManager.GetDataFolder("567e14f3420d40c5a206e5c0284cf8fc", "streetmap_SD.tpkx");
                string networkGeodatabasePath = DataManager.GetDataFolder("567e14f3420d40c5a206e5c0284cf8fc", "sandiego.geodatabase");

                // Create the tile cache representing the offline basemap.
                TileCache tiledBasemapCache = new TileCache(basemapTilePath);

                // Create a tiled layer to display the offline tiles.
                ArcGISTiledLayer offlineTiledLayer = new ArcGISTiledLayer(tiledBasemapCache);

                // Create a basemap based on the tile layer.
                Basemap offlineBasemap = new Basemap(offlineTiledLayer);

                // Create a new map with the offline basemap.
                Map theMap = new Map(offlineBasemap);

                // Set the initial viewpoint to show the routable area.
                theMap.InitialViewpoint = new Viewpoint(_routableArea);

                // Show the map in the map view.
                MyMapView.Map = theMap;

                // Create overlays for displaying the stops and the calculated route.
                _stopsOverlay = new GraphicsOverlay();
                _routeOverlay = new GraphicsOverlay();

                // Create a symbol and renderer for symbolizing the calculated route.
                SimpleLineSymbol routeSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.Blue, 2);
                _routeOverlay.Renderer = new SimpleRenderer(routeSymbol);

                // Add the stops and route overlays to the map.
                MyMapView.GraphicsOverlays.Add(_stopsOverlay);
                MyMapView.GraphicsOverlays.Add(_routeOverlay);

                // Create the route task, referring to the offline geodatabase with the street network.
                _offlineRouteTask = await RouteTask.CreateAsync(networkGeodatabasePath, "Streets_ND");

                // Get the list of available travel modes.
                _availableTravelModes = _offlineRouteTask.RouteTaskInfo.TravelModes.ToList();

                // Update the UI with the travel modes list.
                TravelModesCombo.ItemsSource = _availableTravelModes;
                TravelModesCombo.SelectedIndex = 0;

                // Create the default parameters.
                _offlineRouteParameters = await _offlineRouteTask.CreateDefaultParametersAsync();

                // Display the extent of the road network on the map.
                DisplayBoundaryMarker();

                // Now that the sample is ready, hook up the tapped and hover events.
                MyMapView.GeoViewTapped += MapView_Tapped;
                MyMapView.MouseMove += MapView_MouseMoved;
                TravelModesCombo.SelectionChanged += TravelMode_SelectionChanged;
            }
            catch (Exception e)
            {
                Debug.WriteLine(e);
                ShowMessage("Couldn't start sample", "There was a problem starting the sample. See debug output for details.");
            }
        }

        private void DisplayBoundaryMarker()
        {
            // Displaying the boundary marker helps avoid choosing a non-routable destination.
            SimpleLineSymbol boundarySymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Dash, Color.LawnGreen, 5);
            Graphic boundary = new Graphic(_routableArea, boundarySymbol);
            GraphicsOverlay boundaryOverlay = new GraphicsOverlay();
            boundaryOverlay.Graphics.Add(boundary);
            MyMapView.GraphicsOverlays.Add(boundaryOverlay);
        }

        private void ResetRoute()
        {
            _routeOverlay.Graphics.Clear();
            _stopsOverlay.Graphics.Clear();

            // Reset the error message.
            ErrorTextBlock.Text = "";
        }

        private async Task UpdateRoute(TravelMode selectedTravelMode)
        {
            try
            {
                // Create a list of stops.
                List<Stop> stops = new List<Stop>();

                // Add a stop to the list for each graphic in the stops overlay.
                foreach (Graphic stopGraphic in _stopsOverlay.Graphics)
                {
                    Stop stop = new Stop((MapPoint)stopGraphic.Geometry);
                    stops.Add(stop);
                }

                if (stops.Count < 2)
                {
                    // Don't route, there's no where to go (and the route task would throw an exception).
                    return;
                }

                // Configure the route parameters with the list of stops.
                _offlineRouteParameters.SetStops(stops);

                // Configure the travel mode.
                _offlineRouteParameters.TravelMode = selectedTravelMode;

                // Solve the route.
                RouteResult offlineRouteResult = await _offlineRouteTask.SolveRouteAsync(_offlineRouteParameters);

                // Clear the old route result.
                _routeOverlay.Graphics.Clear();

                // Get the geometry from the route result.
                Polyline routeGeometry = offlineRouteResult.Routes.First().RouteGeometry;

                // Note: symbology left out here because the symbology was set once on the graphics overlay.
                Graphic routeGraphic = new Graphic(routeGeometry);

                // Display the route.
                _routeOverlay.Graphics.Add(routeGraphic);
            }
            catch (Exception e)
            {
                Debug.WriteLine(e);
                ShowMessage("Couldn't update route", "There was an error updating the route. See debug output for details.");
                _selectedStopGraphic = null;
            }
        }

        private async Task AddStop(Point tappedPosition)
        {
            try
            {
                // Get the location on the map.
                MapPoint tappedLocation = MyMapView.ScreenToLocation(tappedPosition);

                // Name the stop by its number.
                string stopName = $"{_stopsOverlay.Graphics.Count + 1}";

                // Create a pushpin marker for the stop.
                PictureMarkerSymbol pushpinMarker = await GetPictureMarker();

                // Create the text symbol for labeling the stop.
                TextSymbol stopSymbol = new TextSymbol(stopName, Color.White, 15,
                    Esri.ArcGISRuntime.Symbology.HorizontalAlignment.Center, Esri.ArcGISRuntime.Symbology.VerticalAlignment.Middle);
                stopSymbol.OffsetY = 15;

                // Create a combined symbol with the pushpin and the label.
                CompositeSymbol combinedSymbol = new CompositeSymbol(new MarkerSymbol[] { pushpinMarker, stopSymbol });

                // Create the graphic from the geometry and the symbology.
                Graphic newStopGraphic = new Graphic(tappedLocation, combinedSymbol);

                // Update the selection.
                _selectedStopGraphic = newStopGraphic;

                // Add the stop to the overlay.
                _stopsOverlay.Graphics.Add(newStopGraphic);
            }
            catch (Exception e)
            {
                Debug.WriteLine(e);
                ShowMessage("Couldn't add stop", "Couldn't select or add stop. See debug output for details.");
            }
        }

        private async Task<PictureMarkerSymbol> GetPictureMarker()
        {
            // Hold a reference to the picture marker symbol.
            PictureMarkerSymbol pinSymbol;

            // Get current assembly that contains the image.
            Assembly currentAssembly = Assembly.GetExecutingAssembly();

            // Get the resource name of the blue pin image.
            string resourceStreamName = this.GetType().Assembly.GetManifestResourceNames().Single(str => str.EndsWith("pin_blue.png"));

            // Load the blue pin resource stream.
            using (Stream resourceStream = this.GetType().Assembly.
                       GetManifestResourceStream(resourceStreamName))
            {
                // Create new symbol using asynchronous factory method from stream.
                pinSymbol = await PictureMarkerSymbol.CreateAsync(resourceStream);
                pinSymbol.Width = 50;
                pinSymbol.Height = 50;
                pinSymbol.LeaderOffsetX = 30;
                pinSymbol.OffsetY = 14;
            }

            return pinSymbol;
        }

        private void ResetButton_Click(object sender, RoutedEventArgs e) => ResetRoute();

        private void MapView_Tapped(object sender, GeoViewInputEventArgs e)
        {
            // Reset the error message.
            ErrorTextBlock.Text = "";

            // Make sure the stop is valid before proceeding.
            if (!_routableArea.Contains(e.Location))
            {
                ShowMessage("Can't add stop.", "That location is outside of the area where offline routing data is available.");
                return;
            }

            if (_selectedStopGraphic == null && _stopsOverlay.Graphics.Count < 5)
            {
                // Select or add a stop.
                _ = AddStop(e.Position);
            }
            else if (_selectedStopGraphic == null)
            {
                ShowMessage("Can't add stop.", "Sample limits to 5 stops per route.");
            }
            else
            {
                // Finish updating the geometry.
                _selectedStopGraphic.Geometry = e.Location;

                // Reset the selected graphic.
                _selectedStopGraphic = null;

                // Update the route with the final list of stops.
                _ = UpdateRoute((TravelMode)TravelModesCombo.SelectedItem);
            }
        }

        private void MapView_MouseMoved(object sender, MouseEventArgs e)
        {
            if (_selectedStopGraphic != null)
            {
                // Get the position of the mouse relative to the map view.
                Point hoverPoint = e.GetPosition(MyMapView);

                // Get the physical map location corresponding to the mouse position.
                MapPoint hoverLocation = MyMapView.ScreenToLocation(hoverPoint);

                // Return if the location is outside the routable area.
                if (!_routableArea.Contains(hoverLocation))
                {
                    return;
                }

                // Update the location of the stop graphic.
                _selectedStopGraphic.Geometry = hoverLocation;

                // Update the route with the temporary stop.
                _ = UpdateRoute((TravelMode)TravelModesCombo.SelectedItem ?? _availableTravelModes.First());
            }
        }

        private void TravelMode_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            try
            {
                if (TravelModesCombo.SelectedItem == null)
                {
                    TravelModesCombo.SelectedItem = _availableTravelModes.First();
                }

                _ = UpdateRoute((TravelMode)TravelModesCombo.SelectedItem);
            }
            catch (Exception ex)
            {
                Debug.WriteLine(ex);
                ShowMessage("Couldn't change travel mode", "Couldn't change travel mode. See debug output for details.");
            }
        }

        private void ShowMessage(string title, string detail)
        {
            ErrorTextBlock.Text = detail;
            Debug.WriteLine(title);
        }
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
