Navigate route

View inMAUIWPFUWPWinUIView on GitHubSample viewer app

Use a routing service to navigate between points.

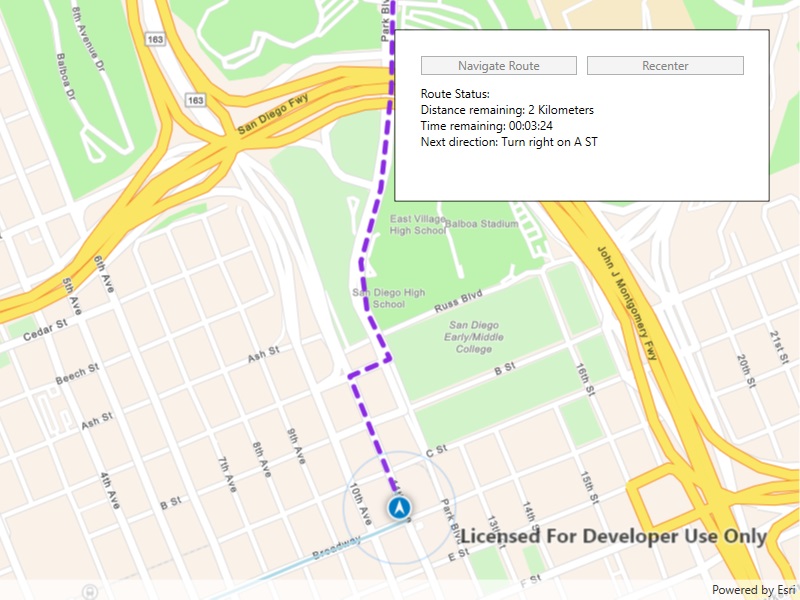

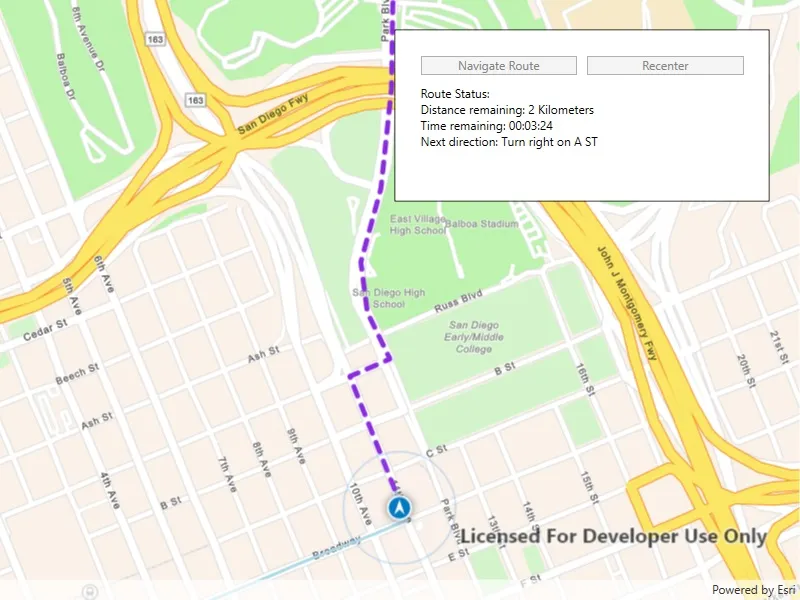

Image of navigate route

Use case

Navigation is often used by field workers while traveling between points to get live directions based on their location.

How to use the sample

Click 'Navigate' to simulate traveling and to receive directions from a preset starting point to a preset destination. Click 'Recenter' to refocus on the location display.

How it works

  1. Create a RouteTask using a URL to an online route service.
  2. Generate default RouteParameters using RouteTask.CreateDefaultParametersAsync().
  3. Set ReturnStops and ReturnDirections on the parameters to true.
  4. Add Stops to the parameters for each destination using SetStops(stops).
  5. Solve the route using RouteTask.SolveRouteAsync(routeParameters) to get a RouteResult.
  6. Create a RouteTracker using the route result, and the index of the desired route to take.
  7. Use TrackLocationAsync(LocationDataSource.Location) to track the location of the device and update the route tracking status.
  8. Add a listener to capture TrackingStatusChangedEvents, and then get the TrackingStatus and use it to display updated route information. Tracking status includes a variety of information on the route progress, such as the remaining distance, remaining geometry or traversed geometry (represented by a Polyline), or the remaining time (TimeSpan), amongst others.
  9. Add a NewVoiceGuidanceListener to get the VoiceGuidance whenever new instructions are available. From the voice guidance, get the string representing the directions and use a text-to-speech engine to output the maneuver directions.
  10. You can also query the tracking status for the current DirectionManeuver index, retrieve that maneuver from the Route and get it's direction text to display in the GUI.
  11. To establish whether the destination has been reached, get the DestinationStatus from the tracking status. If the destination status is Reached, we have arrived at the destination and can stop routing. If there are several destinations in your route, and the remaining destination count is greater than 1, switch the route tracker to the next destination.

Relevant API

  • DestinationStatus
  • DirectionManeuver
  • Location
  • LocationDataSource
  • ReroutingStrategy
  • Route
  • RouteParameters
  • RouteTask
  • RouteTracker
  • Stop
  • VoiceGuidance

About the data

The route taken in this sample goes from the San Diego Convention Center, site of the annual Esri User Conference, to the Fleet Science Center, San Diego.

Tags

directions, maneuver, navigation, route, turn-by-turn, voice

Sample Code

NavigateRoute.xaml.csNavigateRoute.xaml.csNavigateRoute.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Location;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Navigation;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.Tasks.NetworkAnalysis;
using Esri.ArcGISRuntime.UI;
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Speech.Synthesis;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.NavigateRoute
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Navigate route",
        category: "Network analysis",
        description: "Use a routing service to navigate between points.",
        instructions: "Click 'Navigate' to simulate traveling and to receive directions from a preset starting point to a preset destination. Click 'Recenter' to refocus on the location display.",
        tags: new[] { "directions", "maneuver", "navigation", "route", "turn-by-turn", "voice" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData()]
    public partial class NavigateRoute
    {
        // Variables for tracking the navigation route.
        private RouteTracker _tracker;
        private RouteResult _routeResult;
        private Route _route;

        // List of driving directions for the route.
        private IReadOnlyList<DirectionManeuver> _directionsList;

        // Speech synthesizer to play voice guidance audio.
        private SpeechSynthesizer _speechSynthesizer = new SpeechSynthesizer();

        // Graphics to show progress along the route.
        private Graphic _routeAheadGraphic;
        private Graphic _routeTraveledGraphic;

        // San Diego Convention Center.
        private readonly MapPoint _conventionCenter = new MapPoint(-117.160386727, 32.706608, SpatialReferences.Wgs84);

        // USS San Diego Memorial.
        private readonly MapPoint _memorial = new MapPoint(-117.173034, 32.712327, SpatialReferences.Wgs84);

        // RH Fleet Aerospace Museum.
        private readonly MapPoint _aerospaceMuseum = new MapPoint(-117.147230, 32.730467, SpatialReferences.Wgs84);

        // Feature service for routing in San Diego.
        private readonly Uri _routingUri = new Uri("https://sampleserver6.arcgisonline.com/arcgis/rest/services/NetworkAnalysis/SanDiego/NAServer/Route");

        public NavigateRoute()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            try
            {
                // Add event handler for when this sample is unloaded.
                Unloaded += SampleUnloaded;

                // Create the map view.
                MyMapView.Map = new Map(BasemapStyle.ArcGISNavigation);

                // Create the route task, using the online routing service.
                RouteTask routeTask = await RouteTask.CreateAsync(_routingUri);

                // Get the default route parameters.
                RouteParameters routeParams = await routeTask.CreateDefaultParametersAsync();

                // Explicitly set values for parameters.
                routeParams.ReturnDirections = true;
                routeParams.ReturnStops = true;
                routeParams.ReturnRoutes = true;
                routeParams.OutputSpatialReference = SpatialReferences.Wgs84;

                // Create stops for each location.
                Stop stop1 = new Stop(_conventionCenter) { Name = "San Diego Convention Center" };
                Stop stop2 = new Stop(_memorial) { Name = "USS San Diego Memorial" };
                Stop stop3 = new Stop(_aerospaceMuseum) { Name = "RH Fleet Aerospace Museum" };

                // Assign the stops to the route parameters.
                List<Stop> stopPoints = new List<Stop> { stop1, stop2, stop3 };
                routeParams.SetStops(stopPoints);

                // Get the route results.
                _routeResult = await routeTask.SolveRouteAsync(routeParams);
                _route = _routeResult.Routes[0];

                // Add a graphics overlay for the route graphics.
                MyMapView.GraphicsOverlays.Add(new GraphicsOverlay());

                // Add graphics for the stops.
                SimpleMarkerSymbol stopSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Diamond, Color.OrangeRed, 20);
                MyMapView.GraphicsOverlays[0].Graphics.Add(new Graphic(_conventionCenter, stopSymbol));
                MyMapView.GraphicsOverlays[0].Graphics.Add(new Graphic(_memorial, stopSymbol));
                MyMapView.GraphicsOverlays[0].Graphics.Add(new Graphic(_aerospaceMuseum, stopSymbol));

                // Create a graphic (with a dashed line symbol) to represent the route.
                _routeAheadGraphic = new Graphic(_route.RouteGeometry) { Symbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Dash, Color.BlueViolet, 5) };

                // Create a graphic (solid) to represent the route that's been traveled (initially empty).
                _routeTraveledGraphic = new Graphic { Symbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.LightBlue, 3) };

                // Add the route graphics to the map view.
                MyMapView.GraphicsOverlays[0].Graphics.Add(_routeAheadGraphic);
                MyMapView.GraphicsOverlays[0].Graphics.Add(_routeTraveledGraphic);

                // Set the map viewpoint to show the entire route.
                await MyMapView.SetViewpointGeometryAsync(_route.RouteGeometry, 100);

                // Enable the navigation button.
                StartNavigationButton.IsEnabled = true;
            }
            catch (Exception e)
            {
                MessageBox.Show(e.Message, "Error");
            }
        }

        private void StartNavigation(object sender, RoutedEventArgs e)
        {
            // Disable the start navigation button.
            StartNavigationButton.IsEnabled = false;

            // Get the directions for the route.
            _directionsList = _route.DirectionManeuvers;

            // Create a route tracker.
            _tracker = new RouteTracker(_routeResult, 0, true);
            _tracker.NewVoiceGuidance += SpeakDirection;

            // Handle route tracking status changes.
            _tracker.TrackingStatusChanged += TrackingStatusUpdated;

            // Turn on navigation mode for the map view.
            MyMapView.LocationDisplay.AutoPanMode = LocationDisplayAutoPanMode.Navigation;
            MyMapView.LocationDisplay.AutoPanModeChanged += AutoPanModeChanged;

            // Add a data source for the location display.
            var simulationParameters = new SimulationParameters(DateTimeOffset.Now, 40.0);
            var simulatedDataSource = new SimulatedLocationDataSource();
            simulatedDataSource.SetLocationsWithPolyline(_route.RouteGeometry, simulationParameters);
            MyMapView.LocationDisplay.DataSource = new RouteTrackerDisplayLocationDataSource(simulatedDataSource, _tracker);

            // Use this instead if you want real location:
            // MyMapView.LocationDisplay.DataSource = new RouteTrackerLocationDataSource(new SystemLocationDataSource(), _tracker);

            // Enable the location display (this wil start the location data source).
            MyMapView.LocationDisplay.IsEnabled = true;
        }

        private void TrackingStatusUpdated(object sender, RouteTrackerTrackingStatusChangedEventArgs e)
        {
            TrackingStatus status = e.TrackingStatus;

            // Start building a status message for the UI.
            System.Text.StringBuilder statusMessageBuilder = new System.Text.StringBuilder("Route Status:\n");

            // Check the destination status.
            if (status.DestinationStatus == DestinationStatus.NotReached || status.DestinationStatus == DestinationStatus.Approaching)
            {
                statusMessageBuilder.AppendLine("Distance remaining: " +
                                            status.RouteProgress.RemainingDistance.DisplayText + " " +
                                            status.RouteProgress.RemainingDistance.DisplayTextUnits.PluralDisplayName);

                statusMessageBuilder.AppendLine("Time remaining: " +
                                                status.RouteProgress.RemainingTime.ToString(@"hh\:mm\:ss"));

                if (status.CurrentManeuverIndex + 1 < _directionsList.Count)
                {
                    statusMessageBuilder.AppendLine("Next direction: " + _directionsList[status.CurrentManeuverIndex + 1].DirectionText);
                }

                // Set geometries for progress and the remaining route.
                _routeAheadGraphic.Geometry = status.RouteProgress.RemainingGeometry;
                _routeTraveledGraphic.Geometry = status.RouteProgress.TraversedGeometry;
            }
            else if (status.DestinationStatus == DestinationStatus.Reached)
            {
                statusMessageBuilder.AppendLine("Destination reached.");

                // Set the route geometries to reflect the completed route.
                _routeAheadGraphic.Geometry = null;
                _routeTraveledGraphic.Geometry = status.RouteResult.Routes[0].RouteGeometry;

                // Navigate to the next stop (if there are stops remaining).
                if (status.RemainingDestinationCount > 1)
                {
                    _tracker.SwitchToNextDestinationAsync();
                }
                else
                {
                    Dispatcher.BeginInvoke((Action)delegate ()
                    {
                        // Stop the simulated location data source.
                        MyMapView.LocationDisplay.DataSource.StopAsync();
                    });
                }
            }

            Dispatcher.BeginInvoke((Action)delegate ()
            {
                // Show the status information in the UI.
                MessagesTextBlock.Text = statusMessageBuilder.ToString();
            });
        }

        private void SpeakDirection(object sender, RouteTrackerNewVoiceGuidanceEventArgs e)
        {
            // Say the direction using voice synthesis.
            _speechSynthesizer.SpeakAsyncCancelAll();
            _speechSynthesizer.SpeakAsync(e.VoiceGuidance.Text);
        }

        private void AutoPanModeChanged(object sender, LocationDisplayAutoPanMode e)
        {
            // Turn the recenter button on or off when the location display changes to or from navigation mode.
            RecenterButton.IsEnabled = e != LocationDisplayAutoPanMode.Navigation;
        }

        private void RecenterButton_Click(object sender, RoutedEventArgs e)
        {
            // Change the mapview to use navigation mode.
            MyMapView.LocationDisplay.AutoPanMode = LocationDisplayAutoPanMode.Navigation;
        }

        private void SampleUnloaded(object sender, RoutedEventArgs e)
        {
            // Stop the speech synthesizer.
            _speechSynthesizer.SpeakAsyncCancelAll();
            _speechSynthesizer.Dispose();

            // Stop the tracker.
            if (_tracker != null)
            {
                _tracker.TrackingStatusChanged -= TrackingStatusUpdated;
                _tracker.NewVoiceGuidance -= SpeakDirection;
                _tracker = null;
            }

            // Stop the location data source.
            MyMapView.LocationDisplay?.DataSource?.StopAsync();
        }
    }

    // This location data source uses an input data source and a route tracker.
    // The location source that it updates is based on the snapped-to-route location from the route tracker.
    public class RouteTrackerDisplayLocationDataSource : LocationDataSource
    {
        private LocationDataSource _inputDataSource;
        private RouteTracker _routeTracker;

        public RouteTrackerDisplayLocationDataSource(LocationDataSource dataSource, RouteTracker routeTracker)
        {
            // Set the data source
            _inputDataSource = dataSource ?? throw new ArgumentNullException(nameof(dataSource));

            // Set the route tracker.
            _routeTracker = routeTracker ?? throw new ArgumentNullException(nameof(routeTracker));

            // Change the tracker location when the source location changes.
            _inputDataSource.LocationChanged += InputLocationChanged;

            // Update the location output when the tracker location updates.
            _routeTracker.TrackingStatusChanged += TrackingStatusChanged;
        }

        private void InputLocationChanged(object sender, Location e)
        {
            // Update the tracker location with the new location from the source (simulation or GPS).
            _routeTracker.TrackLocationAsync(e);
        }

        private void TrackingStatusChanged(object sender, RouteTrackerTrackingStatusChangedEventArgs e)
        {
            // Check if the tracking status has a location.
            if (e.TrackingStatus.DisplayLocation != null)
            {
                // Call the base method for LocationDataSource to update the location with the tracked (snapped to route) location.
                UpdateLocation(e.TrackingStatus.DisplayLocation);
            }
        }

        protected override Task OnStartAsync() => _inputDataSource.StartAsync();

        protected override Task OnStopAsync() => _inputDataSource.StartAsync();
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
