Read shapefile metadata

View inMAUIUWPWPFWinUIView on GitHubSample viewer app

Read a shapefile and display its metadata.

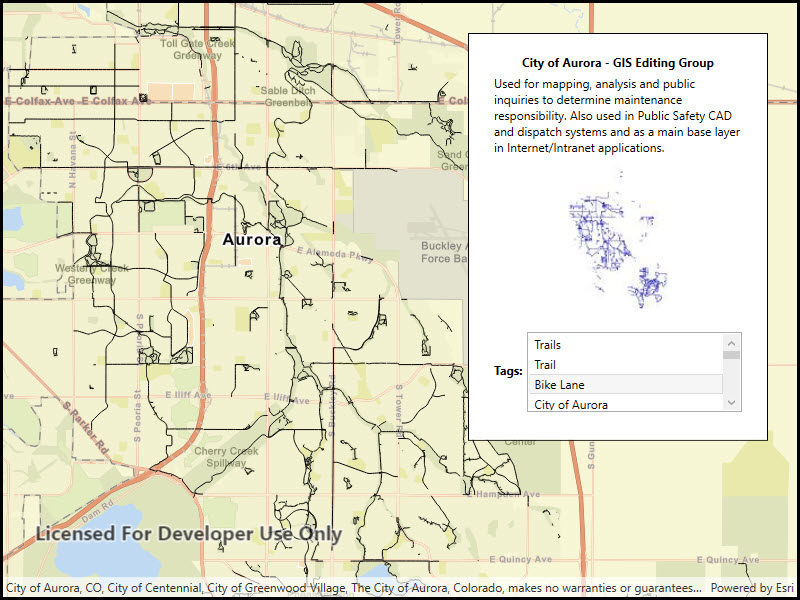

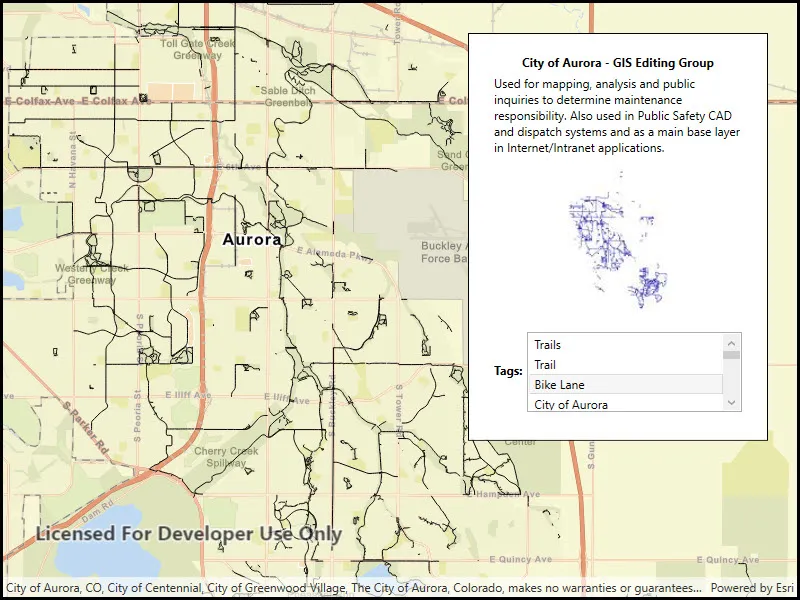

Image of read shapefile metadata

Use case

You can display information about the shapefile your user is viewing, like tags, credits, and summary.

How to use the sample

The shapefile's metadata will be displayed when you open the sample.

How it works

  1. Call ShapefileFeatureTable.OpenAsync("path_to_shapefile") to create the ShapefileFeatureTable.
  2. Get the ShapefileInfo from the feature table's Info property.
  3. Get the image from fileInfo.Thumbnail and display it.
  4. Display the Summary, Credits, and Tags properties from the shapefile info.

Relevant API

  • ShapefileFeatureTable
  • ShapefileFeatureTable.Info
  • ShapefileFeatureTable.OpenAsync
  • ShapefileInfo
  • ShapefileInfo.Credits
  • ShapefileInfo.Summary
  • ShapefileInfo.Tags
  • ShapefileInfo.Thumbnail

Offline data

Aurora Colorado Shapefiles is available as an item hosted on ArcGIS Online].

About the data

This sample uses a shapefile showing bike trails in Aurora, CO. The Aurora Colorado Shapefiles are available as an item on ArcGIS Online.

Tags

credits, description, metadata, package, shape file, shapefile, summary, symbology, tags, visualization

Sample Code

ReadShapefileMetadata.xaml.csReadShapefileMetadata.xaml.csReadShapefileMetadata.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.UI;
using System;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.ReadShapefileMetadata
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Read shapefile metadata",
        category: "Data",
        description: "Read a shapefile and display its metadata.",
        instructions: "The shapefile's metadata will be displayed when you open the sample.",
        tags: new[] { "credits", "description", "metadata", "package", "shape file", "shapefile", "summary", "symbology", "tags", "visualization" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("d98b3e5293834c5f852f13c569930caa")]
    public partial class ReadShapefileMetadata
    {
        public ReadShapefileMetadata()
        {
            InitializeComponent();

            // Open a shapefile stored locally and add it to the map as a feature layer
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create a new map to display in the map view with a streets basemap
            Map streetMap = new Map(BasemapStyle.ArcGISStreets);

            // Get the path to the downloaded shapefile
            string filepath = GetShapefilePath();

            try
            {
                // Open the shapefile
                ShapefileFeatureTable myShapefile = await ShapefileFeatureTable.OpenAsync(filepath);

                // Read metadata about the shapefile and display it in the UI
                ShapefileInfo fileInfo = myShapefile.Info;
                InfoPanel.DataContext = fileInfo;

                // Display the shapefile thumbnail in an image control
                ShapefileThumbnailImage.Source = await RuntimeImageExtensions.ToImageSourceAsync(fileInfo.Thumbnail);

                // Create a feature layer to display the shapefile
                FeatureLayer newFeatureLayer = new FeatureLayer(myShapefile);
                await newFeatureLayer.LoadAsync();

                // Zoom the map to the extent of the shapefile
                MyMapView.SpatialReferenceChanged += (s, e) => { MyMapView.SetViewpoint(new Viewpoint(newFeatureLayer.FullExtent)); };

                // Add the feature layer to the map
                streetMap.OperationalLayers.Add(newFeatureLayer);

                // Show the map in the MapView
                MyMapView.Map = streetMap;
            }
            catch (Exception e)
            {
                MessageBox.Show(e.ToString(), "Error");
            }
        }

        private static string GetShapefilePath()
        {
            return DataManager.GetDataFolder("d98b3e5293834c5f852f13c569930caa", "TrailBikeNetwork.shp");
        }
    }
}
