// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using System;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;
using Geometry = Esri.ArcGISRuntime.Geometry.Geometry;
using Polygon = Esri.ArcGISRuntime.Geometry.Polygon;

namespace ArcGIS.WPF.Samples.FilterFeaturesInScene
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Filter features in scene",
        category: "Scene",
        description: "Filter 3D scene features out of a given geometry with a polygon filter.",

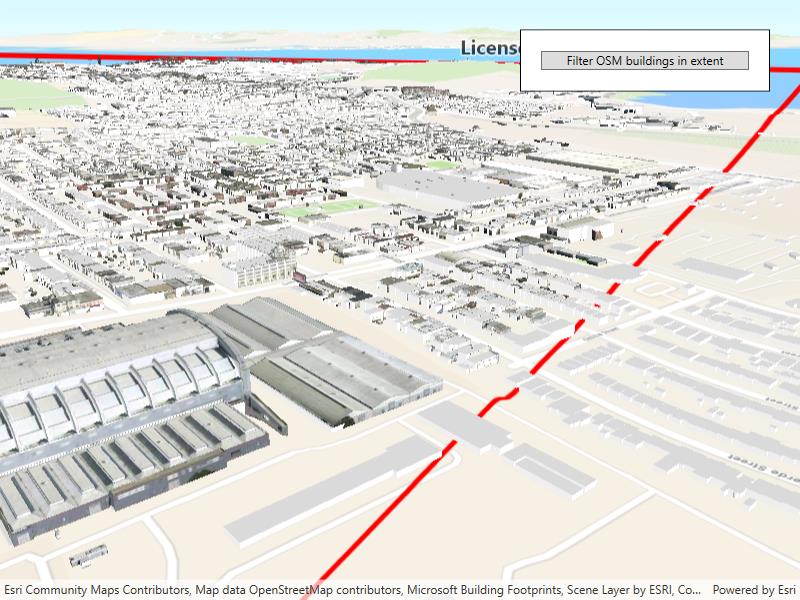

        instructions: "The sample initializes showing the 3D buildings OpenStreetMap layer. Click the \"Load detailed buildings\" button to load an additional scene layer that contains more detailed buildings. Notice how the two scene layers overlap and clip into each other. Click the \"Filter OSM buildings in extent\" button, to set a `SceneLayerPolygonFilter` and filter out the OpenStreetMap buildings within the extent of the detailed buildings scene. Notice how the OSM buildings within and intersecting the extent of the detailed buildings layer are hidden. Click the \"Reset scene\" button to hide the detailed buildings scene layer and clear the OSM buildings filter.",
        tags: new[] { "3D", "OSM", "buildings", "disjoint", "exclude", "extent", "filter", "hide", "polygon" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData()]
    public partial class FilterFeaturesInScene
    {
        // ArcGIS Online services.
        private const string OsmTopographic = "https://www.arcgis.com/home/item.html?id=1e7d1784d1ef4b79ba6764d0bd6c3150";
        private const string OsmBuildings = "https://www.arcgis.com/home/item.html?id=ca0470dbbddb4db28bad74ed39949e25";
        private const string ElevationSource = "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer";
        private const string DetailedBuildings = "https://tiles.arcgis.com/tiles/z2tnIkrLQ2BRzr6P/arcgis/rest/services/SanFrancisco_Bldgs/SceneServer";

        private ArcGISSceneLayer _detailedBuildingsSceneLayer;
        private ArcGISSceneLayer _osmBuildingSceneLayer;

        private SceneLayerPolygonFilter _sceneLayerPolygonFilter;
        private Graphic _cityExtentGraphic;
        private Geometry _sceneLayerExtentPolygon;

        public FilterFeaturesInScene()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            MySceneView.Scene = new Scene();

            // Add base layers to the scene's basemap using OSM layers from AGOL.
            MySceneView.Scene.Basemap.BaseLayers.Add(new ArcGISVectorTiledLayer(new Uri(OsmTopographic)));
            MySceneView.Scene.Basemap.BaseLayers.Add(_osmBuildingSceneLayer = new ArcGISSceneLayer(new Uri(OsmBuildings)));

            // Create a surface with an elevation source for the scene.
            var surface = new Surface();
            surface.ElevationSources.Add(new ArcGISTiledElevationSource(new Uri(ElevationSource)));
            MySceneView.Scene.BaseSurface = surface;

            // Create a scene layer for the detailed buildings.
            _detailedBuildingsSceneLayer = new ArcGISSceneLayer(new Uri(DetailedBuildings));
            await _detailedBuildingsSceneLayer.LoadAsync();

            // Construct a red polygon that shows the extent of the detailed buildings scene layer.
            Envelope cityExtent = _detailedBuildingsSceneLayer.FullExtent;
            var builder = new PolygonBuilder(MySceneView.SpatialReference);
            builder.AddPoint(cityExtent.XMin, cityExtent.YMin);
            builder.AddPoint(cityExtent.XMax, cityExtent.YMin);
            builder.AddPoint(cityExtent.XMax, cityExtent.YMax);
            builder.AddPoint(cityExtent.XMin, cityExtent.YMax);

            _sceneLayerExtentPolygon = builder.ToGeometry();

            // Create the SceneLayerPolygonFilter to later apply to the OSM buildings layer.
            _sceneLayerPolygonFilter = new SceneLayerPolygonFilter()
            {
                SpatialRelationship = SceneLayerPolygonFilterSpatialRelationship.Disjoint
            };
            _sceneLayerPolygonFilter.Polygons.Add(builder.ToGeometry());

            // Create the extent graphic so we can add it later with the detailed buildings scene layer.
            var simpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, System.Drawing.Color.Red, 5.0f);
            var simpleFillSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle.Solid, System.Drawing.Color.Transparent, simpleLineSymbol);
            _cityExtentGraphic = new Graphic(_sceneLayerExtentPolygon, simpleFillSymbol);

            MySceneView.GraphicsOverlays.Add(new GraphicsOverlay());

            LoadScene();

            await MySceneView.SetViewpointCameraAsync(new Camera(new MapPoint(-122.421, 37.7041, 207), 60, 70, 0));
        }

        // Determine which step of the sample user is on.
        private void MyButton_Click(object sender, RoutedEventArgs e)
        {
            switch (MyButton.Tag)
            {
                case "LoadScene":
                    LoadScene();
                    break;

                case "FilterScene":
                    FilterScene();
                    break;

                case "ResetScene":
                    ResetScene();
                    break;
            }
        }

        // Show the detailed buildings scene layer and extent graphic.
        private void LoadScene()
        {
            // Update button tag and label to reflect next step.
            MyButton.Tag = "FilterScene";
            MyButton.Content = "Filter OSM buildings in extent";

            // Show the detailed buildings scene layer and the city extent graphic.
            MySceneView.Scene.OperationalLayers.Add(_detailedBuildingsSceneLayer);
            MySceneView.GraphicsOverlays.FirstOrDefault().Graphics.Add(_cityExtentGraphic);
        }

        // Hide buildings within the detailed building extent so they don't clip.
        private void FilterScene()
        {
            // Update button tag and label to reflect next step.
            MyButton.Tag = "ResetScene";
            MyButton.Content = "Reset scene";

            // Initially, the building layer does not have a polygon filter, set it.
            if (_osmBuildingSceneLayer.PolygonFilter == null)
            {
                _osmBuildingSceneLayer.PolygonFilter = _sceneLayerPolygonFilter;
            }
            // After the scene is reset, the layer will have a polygon filter, but that filter will not have polygons set.
            // Add the polygon back to the polygon filter.
            else
            {
                _sceneLayerPolygonFilter.Polygons.Add((Polygon)_sceneLayerExtentPolygon);
            }
        }

        // Reset the scene to its original state.
        private void ResetScene()
        {
            // Update button tag and label to reflect next step.
            MyButton.Tag = "LoadScene";
            MyButton.Content = "Load detailed buildings";

            // Remove the detailed buildings layer from the scene.
            MySceneView.Scene.OperationalLayers.Clear();

            // Clear the OSM buildings polygon filter polygons list.
            _osmBuildingSceneLayer.PolygonFilter.Polygons.Clear();

            // Clear the graphics list in the graphics overlay to remove the red extent boundary graphic.
            MySceneView.GraphicsOverlays.FirstOrDefault().Graphics.Clear();
        }
    }
}
