Edit features with feature-linked annotation

View inMAUIUWPWPFWinUIView on GitHubSample viewer app

Edit feature attributes which are linked to annotation through an expression.

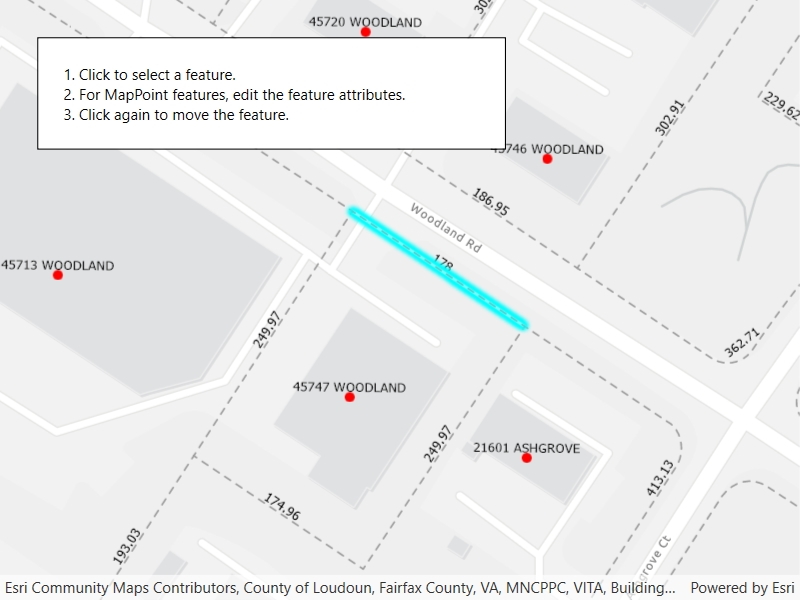

Image of edit features with feature-linked annotation

Use case

Annotation is useful for displaying text that you don't want to move or resize when the map is panned or zoomed (unlike labels which will move and resize). Feature-linked annotation will update when a feature attribute referenced by the annotation expression is also updated. Additionally, the position of the annotation will transform to match any transformation to the linked feature's geometry.

How to use the sample

Pan and zoom the map to see that the text on the map is annotation, not labels. Click one of the address points to update the house number (AD_ADDRESS) and street name (ST_STR_NAM). Click one of the dashed parcel polylines and click another location to change its geometry. NOTE: Selection is only enabled for points and straight (single segment) polylines.

The feature-linked annotation will update accordingly.

How it works

  1. Load the geodatabase. NOTE: Read/write geodatabases should normally come from a GeodatabaseSyncTask, but this has been omitted here. That functionality is covered in the sample Generate geodatabase.
  2. Create FeatureLayers from geodatabase feature tables found in the geodatabase with geodatabase.GeodatabaseFeatureTable.
  3. Create AnnotationLayers from geodatabase feature tables found in the geodatabase with geodatabase.GeodatabaseAnnotationTable.
  4. Add the FeatureLayers and AnnotationLayers to the map's operational layers.
  5. Use a GeoViewTapped event handler to listen for clicks on the map to either select address points or parcel polyline features. NOTE: Selection is only enabled for points and straight (single segment) polylines.
    • For the address points, a dialog is opened to allow editing of the address number (AD_ADDRESS) and street name (ST_STR_NAM) attributes.
    • For the parcel lines, a second tap will change one of the polyline's vertices.

Both expressions were defined by the data author in ArcGIS Pro using the Arcade expression language.

Relevant API

  • AnnotationLayer
  • Feature
  • FeatureLayer
  • Geodatabase

Offline data

This sample downloads the following items from ArcGIS Online automatically:

About the data

This sample uses data derived from the Loudoun GeoHub.

The annotation linked to the point data in this sample is defined by arcade expression $feature.AD_ADDRESS + " " + $feature.ST_STR_NAM. The annotation linked to the parcel polyline data is defined by Round(Length(Geometry($feature), 'feet'), 2).

Tags

annotation, attributes, feature-linked annotation, features, fields

Sample Code

EditFeatureLinkedAnnotation.xaml.csEditFeatureLinkedAnnotation.xaml.csEditFeatureLinkedAnnotation.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.UI.Controls;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.EditFeatureLinkedAnnotation
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Edit features with feature-linked annotation",
        category: "Data",
        description: "Edit feature attributes which are linked to annotation through an expression.",
        instructions: "Pan and zoom the map to see that the text on the map is annotation, not labels. Click one of the address points to update the house number (AD_ADDRESS) and street name (ST_STR_NAM). Click one of the dashed parcel polylines and click another location to change its geometry. NOTE: Selection is only enabled for points and straight (single segment) polylines.",
        tags: new[] { "annotation", "attributes", "feature-linked annotation", "features", "fields" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("74c0c9fa80f4498c9739cc42531e9948")]
    public partial class EditFeatureLinkedAnnotation
    {
        private Feature _selectedFeature;

        public EditFeatureLinkedAnnotation()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // NOTE: to be a writable geodatabase, this geodatabase must be generated from a service with a GeodatabaseSyncTask. See the "Generate geodatabase" sample.
            try
            {
                // Create and load geodatabase.
                string geodatabasePath = DataManager.GetDataFolder("74c0c9fa80f4498c9739cc42531e9948", "loudoun_anno.geodatabase");
                Geodatabase geodatabase = await Geodatabase.OpenAsync(geodatabasePath);

                // Create feature layers from tables in the geodatabase.
                FeatureLayer addressFeatureLayer = new FeatureLayer(geodatabase.GetGeodatabaseFeatureTable("Loudoun_Address_Points_1"));
                FeatureLayer parcelFeatureLayer = new FeatureLayer(geodatabase.GetGeodatabaseFeatureTable("ParcelLines_1"));

                // Create annotation layers from tables in the geodatabase.
                AnnotationLayer addressAnnotationLayer = new AnnotationLayer(geodatabase.GetGeodatabaseAnnotationTable("Loudoun_Address_PointsAnno_1"));
                AnnotationLayer parcelAnnotationLayer = new AnnotationLayer(geodatabase.GetGeodatabaseAnnotationTable("ParcelLinesAnno_1"));

                // Create a map with the layers.
                MyMapView.Map = new Map(BasemapStyle.ArcGISLightGray);
                MyMapView.Map.OperationalLayers.AddRange(new List<Layer> { addressFeatureLayer, parcelFeatureLayer, addressAnnotationLayer, parcelAnnotationLayer });

                // Zoom to the extent of the parcels.
                await parcelFeatureLayer.LoadAsync();
                MyMapView.SetViewpoint(new Viewpoint(parcelFeatureLayer.FullExtent));
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, "Error");
            }
        }

        private void MyMapView_GeoViewTapped(object sender, GeoViewInputEventArgs e)
        {
            // Check if there is already a selected feature.
            if (_selectedFeature == null)
            {
                _ = SelectFeature(e.Position);
            }
            else
            {
                // Project the user selected point.
                MapPoint projPoint = e.Location.Project(_selectedFeature.Geometry.SpatialReference) as MapPoint;

                // Update the geometry of the selected feature.
                _ = UpdateGeometry(projPoint);
            }
        }

        private async Task SelectFeature(Point clickedPoint)
        {
            try
            {
                // Identify across all layers.
                IReadOnlyList<IdentifyLayerResult> identifyResults = await MyMapView.IdentifyLayersAsync(clickedPoint, 10.0, false);
                foreach (IdentifyLayerResult result in identifyResults)
                {
                    if (result.LayerContent is FeatureLayer layer)
                    {
                        _selectedFeature = result.GeoElements.First() as Feature;
                        if (_selectedFeature.Geometry is Polyline line)
                        {
                            // No support for curved lines.
                            if (line.Parts.Count > 1)
                            {
                                _selectedFeature = null;
                                return;
                            }
                        }
                        else if (_selectedFeature.Geometry is MapPoint)
                        {
                            // Open attribute editor for point features.
                            ShowEditableAttributes();
                        }

                        // Select the feature.
                        layer.SelectFeature(_selectedFeature);
                        break;
                    }
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, "Error");
            }
        }

        private async Task UpdateGeometry(MapPoint point)
        {
            if (_selectedFeature.Geometry is Polyline line)
            {
                // Get the nearest point on the selected line.
                ProximityResult nearestVertex = line.NearestVertex(point);

                // Create a new polyline.
                PolylineBuilder polylineBuilder = new PolylineBuilder(line);
                Part part = polylineBuilder.Parts[nearestVertex.PartIndex];

                // Replace the nearest point with the new point.
                part.SetPoint(nearestVertex.PointIndex, point);

                // Update the geometry of the feature.
                _selectedFeature.Geometry = GeometryEngine.Project(polylineBuilder.ToGeometry(), _selectedFeature.Geometry.SpatialReference);
                await _selectedFeature.FeatureTable.UpdateFeatureAsync(_selectedFeature);
            }
            else if (_selectedFeature.Geometry is MapPoint)
            {
                // Update the geometry of the feature.
                _selectedFeature.Geometry = point;
                await _selectedFeature.FeatureTable.UpdateFeatureAsync(_selectedFeature);
            }

            // Clear the selection.
            (_selectedFeature.FeatureTable.Layer as FeatureLayer).ClearSelection();
            _selectedFeature = null;
        }

        private void ShowEditableAttributes()
        {
            // Show entry UI.
            MyMapView.IsEnabled = false;
            AttributesBorder.Visibility = Visibility.Visible;

            // Populate entry fields with data from feature.
            AdressBox.Text = _selectedFeature.Attributes["AD_ADDRESS"].ToString();
            StreetNameBox.Text = _selectedFeature.Attributes["ST_STR_NAM"].ToString();
        }

        private void CancelClick(object sender, RoutedEventArgs e)
        {
            // Hide entry UI.
            MyMapView.IsEnabled = true;
            AttributesBorder.Visibility = Visibility.Collapsed;
        }

        private async void OkClick(object sender, RoutedEventArgs e)
        {
            try
            {
                // Update the feature attributes with the user input.
                _selectedFeature.Attributes["AD_ADDRESS"] = int.Parse(AdressBox.Text);
                _selectedFeature.Attributes["ST_STR_NAM"] = StreetNameBox.Text;
                await _selectedFeature.FeatureTable.UpdateFeatureAsync(_selectedFeature);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, "Error");
            }
            finally
            {
                // Hide entry UI.
                MyMapView.IsEnabled = true;
                AttributesBorder.Visibility = Visibility.Collapsed;
            }
        }
    }
}
