List KML contents

View inMAUIWPFUWPWinUIView on GitHubSample viewer app

List the contents of a KML file.

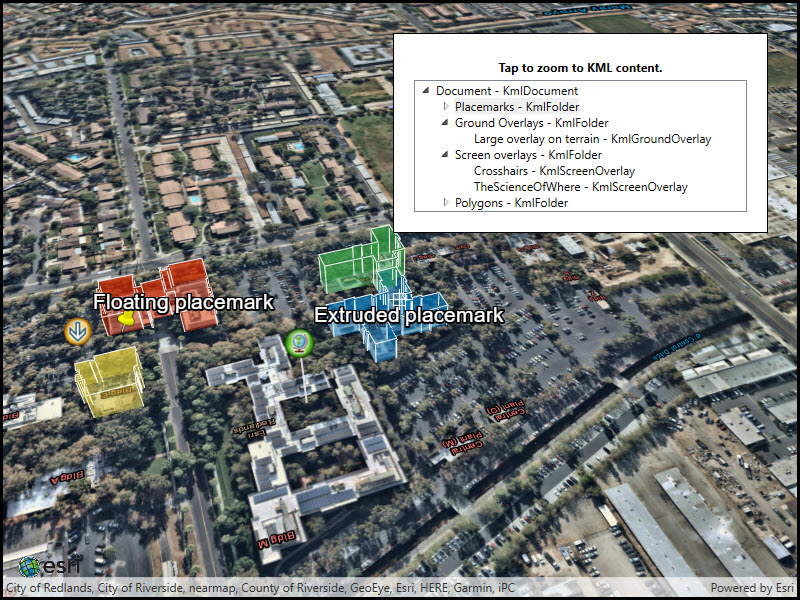

Image of list KML contents

Use case

KML files can contain a hierarchy of features, including network links to other KML content. A user may wish to traverse through the contents of KML nodes to know what data is contained within each node and, recursively, their children.

How to use the sample

The contents of the KML file are shown in a tree. Select a node to zoom to that node. Not all nodes can be zoomed to (e.g. screen overlays).

How it works

  1. Add the KML file to the scene as a layer.
  2. Explore the root nodes of the KmlDataset recursively explored to create a view model.
  • Each node is enabled for display at this step. KML files may include nodes that are turned off by default.
  1. When a node is selected, use the node's Extent to determine a viewpoint and set the SceneView object's viewpoint do it.

Relevant API

  • KmlContainer
  • KmlDataset
  • KmlDocument
  • KmlFolder
  • KmlGroundOverlay
  • KmlLayer
  • KmlNetworkLink
  • KmlNode
  • KmlPlacemark
  • KmlScreenOverlay

About the data

This is an example KML file meant to demonstrate how Runtime supports several common features.

Tags

Keyhole, KML, KMZ, layers, OGC

Sample Code

ListKmlContents.xaml.csListKmlContents.xaml.csListKmlContents.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Ogc;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.ListKmlContents
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "List KML contents",
        category: "Layers",
        description: "List the contents of a KML file.",
        instructions: "The contents of the KML file are shown in a tree. Select a node to zoom to that node. Not all nodes can be zoomed to (e.g. screen overlays).",
        tags: new[] { "KML", "KMZ", "Keyhole", "OGC", "layers" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("da301cb122874d5497f8a8f6c81eb36e")]
    public partial class ListKmlContents
    {
        // Hold a list of LayerDisplayVM; this is the ViewModel.
        private readonly ObservableCollection<LayerDisplayVM> _viewModelList = new ObservableCollection<LayerDisplayVM>();

        public ListKmlContents()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Add a basemap.
            MySceneView.Scene = new Scene(BasemapStyle.ArcGISImagery);
            MySceneView.Scene.BaseSurface.ElevationSources.Add(new ArcGISTiledElevationSource(new Uri("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer")));

            // Get the URL to the data.
            Uri kmlUrl = new Uri(DataManager.GetDataFolder("da301cb122874d5497f8a8f6c81eb36e", "esri_test_data.kmz"));

            // Create the KML dataset and layer.
            KmlDataset dataset = new KmlDataset(kmlUrl);
            KmlLayer layer = new KmlLayer(dataset);

            // Add the layer to the map.
            MySceneView.Scene.OperationalLayers.Add(layer);

            try
            {
                await dataset.LoadAsync();

                // Build the ViewModel from the expanded list of layer infos.
                foreach (KmlNode node in dataset.RootNodes)
                {
                    // LayerDisplayVM is a custom type made for this sample to serve as the ViewModel; it is not a part of ArcGIS Maps SDK for .NET.
                    LayerDisplayVM nodeVm = new LayerDisplayVM(node, null);
                    _viewModelList.Add(nodeVm);
                    LayerDisplayVM.BuildLayerInfoList(nodeVm, _viewModelList);
                }

                // Update the list of layers, using the root node from the list.
                LayerTreeView.ItemsSource = _viewModelList;
            }
            catch (Exception e)
            {
                MessageBox.Show(e.ToString(), "Error");
            }
        }

        private void LayerTreeView_OnSelectedItemChanged(object sender, RoutedPropertyChangedEventArgs<object> e)
        {
            // Get the KML node.
            LayerDisplayVM selectedItem = (LayerDisplayVM)e.NewValue;

            _ = NavigateToNode(selectedItem.Node);
        }

        #region viewpoint_conversion

        private async Task NavigateToNode(KmlNode node)
        {
            try
            {
                // Get a corrected Runtime viewpoint using the KmlViewpoint.
                bool viewpointNeedsAltitudeAdjustment;
                Viewpoint runtimeViewpoint = ViewpointFromKmlViewpoint(node, out viewpointNeedsAltitudeAdjustment);
                if (viewpointNeedsAltitudeAdjustment)
                {
                    runtimeViewpoint = await GetAltitudeAdjustedViewpointAsync(node, runtimeViewpoint);
                }

                // Set the viewpoint.
                if (runtimeViewpoint != null && !runtimeViewpoint.TargetGeometry.IsEmpty)
                {
                    await MySceneView.SetViewpointAsync(runtimeViewpoint);
                }
            }
            catch (Exception e)
            {
                MessageBox.Show(e.ToString(), "Error");
            }
        }

        private Viewpoint ViewpointFromKmlViewpoint(KmlNode node, out bool needsAltitudeFix)
        {
            KmlViewpoint kvp = node.Viewpoint;
            // If KmlViewpoint is specified, use it.
            if (kvp != null)
            {
                // Altitude adjustment is needed for everything except Absolute altitude mode.
                needsAltitudeFix = (kvp.AltitudeMode != KmlAltitudeMode.Absolute);
                switch (kvp.Type)
                {
                    case KmlViewpointType.LookAt:
                        return new Viewpoint(kvp.Location,
                            new Camera(kvp.Location, kvp.Range, kvp.Heading, kvp.Pitch, kvp.Roll));

                    case KmlViewpointType.Camera:
                        return new Viewpoint(kvp.Location,
                            new Camera(kvp.Location, kvp.Heading, kvp.Pitch, kvp.Roll));

                    default:
                        throw new InvalidOperationException("Unexpected KmlViewPointType: " + kvp.Type);
                }
            }

            if (node.Extent != null && !node.Extent.IsEmpty)
            {
                // When no altitude specified, assume elevation should be taken into account.
                needsAltitudeFix = true;

                // Workaround: it's possible for "IsEmpty" to be true but for width/height to still be zero.
                if (node.Extent.Width == 0 && node.Extent.Height == 0)
                {
                    // Defaults based on Google Earth.
                    return new Viewpoint(node.Extent, new Camera(node.Extent.GetCenter(), 1000, 0, 45, 0));
                }
                else
                {
                    Envelope tx = node.Extent;
                    // Add padding on each side.
                    double bufferDistance = Math.Max(node.Extent.Width, node.Extent.Height) / 20;
                    Envelope bufferedExtent = new Envelope(
                        tx.XMin - bufferDistance, tx.YMin - bufferDistance,
                        tx.XMax + bufferDistance, tx.YMax + bufferDistance,
                        tx.ZMin - bufferDistance, tx.ZMax + bufferDistance,
                        SpatialReferences.Wgs84);
                    return new Viewpoint(bufferedExtent);
                }
            }
            else
            {
                // Can't fly to.
                needsAltitudeFix = false;
                return null;
            }
        }

        // Asynchronously adjust the given viewpoint, taking into consideration elevation and KML altitude mode.
        private async Task<Viewpoint> GetAltitudeAdjustedViewpointAsync(KmlNode node, Viewpoint baseViewpoint)
        {
            // Get the altitude mode; assume clamp-to-ground if not specified.
            KmlAltitudeMode altMode = KmlAltitudeMode.ClampToGround;
            if (node.Viewpoint != null)
            {
                altMode = node.Viewpoint.AltitudeMode;
            }

            // If the altitude mode is Absolute, the base viewpoint doesn't need adjustment.
            if (altMode == KmlAltitudeMode.Absolute)
            {
                return baseViewpoint;
            }

            double altitude;
            Envelope lookAtExtent = baseViewpoint.TargetGeometry as Envelope;
            MapPoint lookAtPoint = baseViewpoint.TargetGeometry as MapPoint;

            if (lookAtExtent != null)
            {
                // Get the altitude for the extent.
                try
                {
                    altitude = await MySceneView.Scene.BaseSurface.GetElevationAsync(lookAtExtent.GetCenter());
                }
                catch (Exception)
                {
                    altitude = 0;
                }

                // Apply elevation adjustment to the geometry.
                Envelope target;
                if (altMode == KmlAltitudeMode.ClampToGround)
                {
                    target = new Envelope(
                        lookAtExtent.XMin, lookAtExtent.YMin,
                        lookAtExtent.XMax, lookAtExtent.YMax,
                        altitude, lookAtExtent.Depth + altitude,
                        lookAtExtent.SpatialReference);
                }
                else
                {
                    target = new Envelope(
                        lookAtExtent.XMin, lookAtExtent.YMin,
                        lookAtExtent.XMax, lookAtExtent.YMax,
                        lookAtExtent.ZMin + altitude, lookAtExtent.ZMax + altitude,
                        lookAtExtent.SpatialReference);
                }

                if (node.Viewpoint != null)
                {
                    // Return adjusted geometry with adjusted camera if a viewpoint was specified on the node.
                    return new Viewpoint(target, baseViewpoint.Camera.Elevate(altitude));
                }
                else
                {
                    // Return adjusted geometry.
                    return new Viewpoint(target);
                }
            }
            else if (lookAtPoint != null)
            {
                // Get the altitude adjustment.
                try
                {
                    altitude = await MySceneView.Scene.BaseSurface.GetElevationAsync(lookAtPoint);
                }
                catch (Exception)
                {
                    altitude = 0;
                }

                // Apply elevation adjustment to the geometry.
                MapPoint target;
                if (altMode == KmlAltitudeMode.ClampToGround)
                {
                    target = new MapPoint(lookAtPoint.X, lookAtPoint.Y, altitude, lookAtPoint.SpatialReference);
                }
                else
                {
                    target = new MapPoint(
                        lookAtPoint.X, lookAtPoint.Y, lookAtPoint.Z + altitude,
                        lookAtPoint.SpatialReference);
                }

                if (node.Viewpoint != null)
                {
                    // Return adjusted geometry with adjusted camera if a viewpoint was specified on the node.
                    return new Viewpoint(target, baseViewpoint.Camera.Elevate(altitude));
                }
                else
                {
                    // Google Earth defaults: 1000m away and 45-degree tilt.
                    return new Viewpoint(target, new Camera(target, 1000, 0, 45, 0));
                }
            }
            else
            {
                throw new InvalidOperationException("KmlNode has unexpected Geometry for its Extent: " +
                                                    baseViewpoint.TargetGeometry);
            }
        }

        #endregion viewpoint_conversion
    }

    public class LayerDisplayVM
    {
        public KmlNode Node { get; set; }

        public List<LayerDisplayVM> Children { get; set; }

        private LayerDisplayVM Parent { get; set; }

        public LayerDisplayVM(KmlNode info, LayerDisplayVM parent)
        {
            Node = info;
            Parent = parent;
        }

        // Override ToString to enhance display formatting.
        public override string ToString()
        {
            return Node.GetType().Name + " - " + Node.Name;
        }

        public static void BuildLayerInfoList(LayerDisplayVM root, IList<LayerDisplayVM> result)
        {
            // Make the node visible.
            root.Node.IsVisible = true;

            // Initialize the child collection for the root.
            root.Children = new List<LayerDisplayVM>();

            // Recursively add children. KmlContainers and KmlNetworkLinks can both have children.
            var containerNode = root.Node as KmlContainer;
            var networkLinkNode = root.Node as KmlNetworkLink;

            List<KmlNode> children = new List<KmlNode>();
            if (containerNode != null)
            {
                children.AddRange(containerNode.ChildNodes);
            }

            if (networkLinkNode != null)
            {
                children.AddRange(networkLinkNode.ChildNodes);
            }

            foreach (KmlNode node in children)
            {
                // Create the view model for the sublayer.
                LayerDisplayVM layerVm = new LayerDisplayVM(node, root);

                // Add the sublayer to the root's sublayer collection.
                root.Children.Add(layerVm);

                // Recursively add children.
                BuildLayerInfoList(layerVm, result);
            }
        }
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
