Find the location for an address.
Use case
A user can input a raw address into your app's search bar and zoom to the address location.
How to use the sample

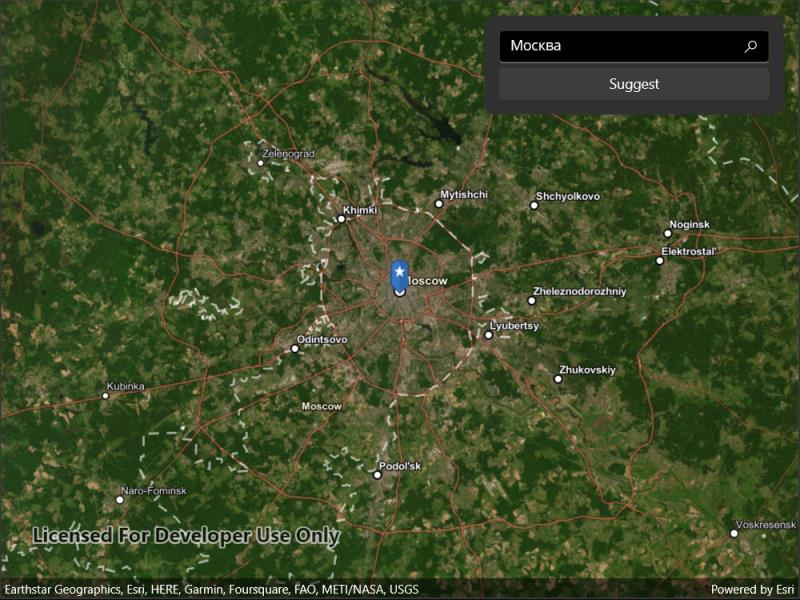

For simplicity, the sample comes loaded with a set of suggested addresses. Choose an address from the suggestions or submit your own address to show its location on the map in a callout.
How it works
- Create a
LocatorTaskusing the URL to a locator service. - Set the
GeocodeParametersfor the locator task and specify the geocode's attributes. - Get the matching results from the
GeocodeResultusinglocatorTask.GeocodeAsync(addressString, geocodeParameters). - Create a
Graphicwith the geocode result's location and store the geocode result's attributes in the graphic's attributes. - Show the graphic in a
GraphicsOverlay.
Relevant API
- GeocodeParameters
- GeocodeResult
- LocatorTask
Additional information
This sample uses the World Geocoding Service. For more information, see the Geocoding service help topic on the ArcGIS Developer website.
Tags
address, geocode, locator, search
Sample Code
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.
using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.Tasks.Geocoding;
using Esri.ArcGISRuntime.UI;
using System.Reflection;
namespace ArcGIS.Samples.FindAddress
{
[ArcGIS.Samples.Shared.Attributes.Sample(
name: "Find address",
category: "Search",
description: "Find the location for an address.",
instructions: "For simplicity, the sample comes loaded with a set of suggested addresses. Choose an address from the suggestions or submit your own address to show its location on the map in a callout.",
tags: new[] { "address", "geocode", "locator", "search" })]
[ArcGIS.Samples.Shared.Attributes.EmbeddedResource(@"PictureMarkerSymbols\pin_star_blue.png")]
public partial class FindAddress : ContentPage
{
// Addresses for suggestion.
private readonly string[] _addresses =
{
"277 N Avenida Caballeros, Palm Springs, CA",
"380 New York St, Redlands, CA 92373",
"Београд",
"Москва",
"北京"
};
// The LocatorTask provides geocoding services
private LocatorTask _geocoder;
// Service Uri to be provided to the LocatorTask (geocoder)
private Uri _serviceUri = new Uri("https://geocode-api.arcgis.com/arcgis/rest/services/World/GeocodeServer");
public FindAddress()
{
InitializeComponent();
// Create the UI, setup the control references and execute initialization
_ = Initialize();
MyMapView.GeoViewTapped += MyMapView_GeoViewTapped;
}
private async Task Initialize()
{
// Create new Map with basemap
Map myMap = new Map(BasemapStyle.ArcGISImagery);
// Assign the map to the MapView
MyMapView.Map = myMap;
try
{
// Initialize the LocatorTask with the provided service Uri
_geocoder = await LocatorTask.CreateAsync(_serviceUri);
// Enable the UI controls now that the LocatorTask is ready
MySuggestButton.IsEnabled = true;
MySearchBar.IsEnabled = true;
}
catch (Exception e)
{
await Application.Current.MainPage.DisplayAlert("Error", e.ToString(), "OK");
}
}
private void Handle_TextChanged(object sender, System.EventArgs e)
{
updateSearch();
}
private async void updateSearch()
{
// Get the text in the search bar
string enteredText = MySearchBar.Text;
// Clear existing marker
MyMapView.GraphicsOverlays.Clear();
// Return gracefully if the textbox is empty or the geocoder isn't ready
if (String.IsNullOrWhiteSpace(enteredText) || _geocoder == null) { return; }
try
{
// Get suggestions based on the input text
IReadOnlyList<SuggestResult> suggestions = await _geocoder.SuggestAsync(enteredText);
// Stop gracefully if there are no suggestions
if (suggestions.Count < 1) { return; }
// Get the full address for the first suggestion
SuggestResult firstSuggestion = suggestions.First();
IReadOnlyList<GeocodeResult> addresses = await _geocoder.GeocodeAsync(firstSuggestion.Label);
// Stop gracefully if the geocoder does not return a result
if (addresses.Count < 1) { return; }
// Place a marker on the map - 1. Create the overlay
GraphicsOverlay resultOverlay = new GraphicsOverlay();
// 2. Get the Graphic to display
Graphic point = await GraphicForPoint(addresses.First().DisplayLocation);
// 3. Add the Graphic to the GraphicsOverlay
resultOverlay.Graphics.Add(point);
// 4. Add the GraphicsOverlay to the MapView
MyMapView.GraphicsOverlays.Add(resultOverlay);
// Update the map extent to show the marker
MyMapView.SetViewpoint(new Viewpoint(addresses.First().Extent));
}
catch (Exception e)
{
await Application.Current.MainPage.DisplayAlert("Error", e.ToString(), "OK");
}
}
/// <summary>
/// Creates and returns a Graphic associated with the given MapPoint
/// </summary>
private async Task<Graphic> GraphicForPoint(MapPoint point)
{
// Get current assembly that contains the image
Assembly currentAssembly = Assembly.GetExecutingAssembly();
// Get image as a stream from the resources
// Picture is defined as EmbeddedResource and DoNotCopy
Stream resourceStream = currentAssembly.GetManifestResourceStream(
"ArcGIS.Resources.PictureMarkerSymbols.pin_star_blue.png");
// Create new symbol using asynchronous factory method from stream
PictureMarkerSymbol pinSymbol = await PictureMarkerSymbol.CreateAsync(resourceStream);
pinSymbol.Width = 60;
pinSymbol.Height = 60;
// The image is a pin; offset the image so that the pinpoint
// is on the point rather than the image's true center
pinSymbol.LeaderOffsetX = 30;
pinSymbol.OffsetY = 14;
return new Graphic(point, pinSymbol);
}
private async void SuggestionButtonTapped(object sender, System.EventArgs e)
{
try
{
// Display the list of suggestions; returns the selected option
string action = await Application.Current.MainPage.DisplayActionSheet("Choose an address to geocode", "Cancel", null, _addresses);
if (action == "Cancel")
{
return;
}
// Update the search
MySearchBar.Text = action;
updateSearch();
}
catch (Exception ex)
{
await Application.Current.MainPage.DisplayAlert("Error", ex.Message, "OK");
}
}
/// <summary>
/// Handle tap event on the map; displays callouts showing the address for a tapped search result
/// </summary>
private async void MyMapView_GeoViewTapped(object sender, Esri.ArcGISRuntime.Maui.GeoViewInputEventArgs e)
{
try
{
// Search for the graphics underneath the user's tap
IReadOnlyList<IdentifyGraphicsOverlayResult> results = await MyMapView.IdentifyGraphicsOverlaysAsync(e.Position, 12, false);
// Return gracefully if there was no result
if (results.Count < 1 || results.First().Graphics.Count < 1) { return; }
// Reverse geocode to get addresses
IReadOnlyList<GeocodeResult> addresses = await _geocoder.ReverseGeocodeAsync(e.Location);
// Get the first result
GeocodeResult address = addresses.First();
// Use the city and region for the Callout Title
string calloutTitle = address.Attributes["City"] + ", " + address.Attributes["Region"];
// Use the metro area for the Callout Detail
string calloutDetail = address.Attributes["MetroArea"].ToString();
// Define the callout
CalloutDefinition calloutBody = new CalloutDefinition(calloutTitle, calloutDetail);
// Show the callout on the map at the tapped location
MyMapView.ShowCalloutAt(e.Location, calloutBody);
}
catch (Exception ex)
{
await Application.Current.MainPage.DisplayAlert("Error", ex.ToString(), "OK");
}
}
}
}
