Analyze hotspots

View inMAUIUWPWPFWinUIView on GitHub

Use a geoprocessing service and a set of features to identify statistically significant hot spots and cold spots.

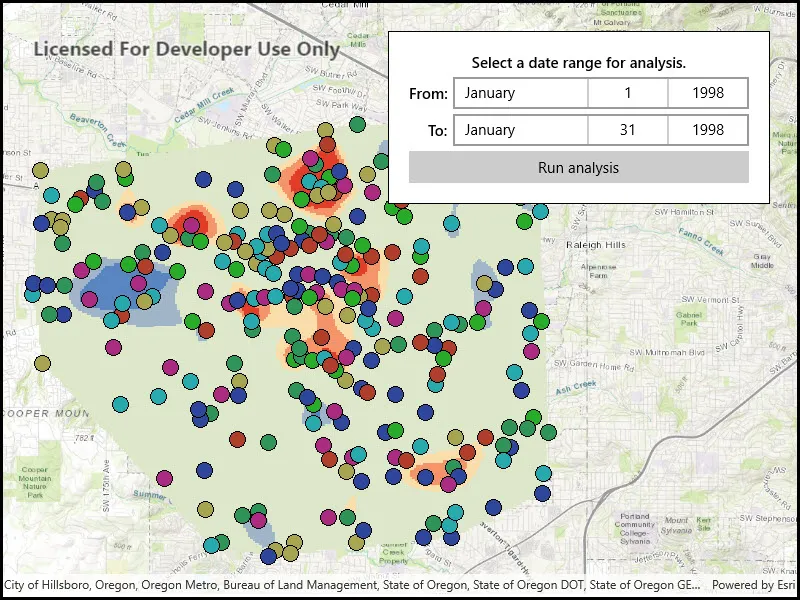

Image of analyze hotspots

Use case

This tool identifies statistically significant spatial clusters of high values (hot spots) and low values (cold spots). For example, a hotspot analysis based on the frequency of 911 calls within a set region.

How to use the sample

Select a date range (between 1998-01-01 and 1998-05-31) from the dialog and tap on Analyze. The results will be shown on the map upon successful completion of the GeoprocessingJob.

How it works

  1. Create a GeoprocessingTask with the URL set to the endpoint of a geoprocessing service.
  2. Create a query string with the date range as an input of GeoprocessingParameters.
  3. Use the GeoprocessingTask to create a GeoprocessingJob with the GeoprocessingParameters instance.
  4. Start the GeoprocessingJob and wait for it to complete and return a GeoprocessingResult.
  5. Get the resulting ArcGISMapImageLayer using GeoprocessingResult.MapImageLayer.
  6. Add the layer to the map's operational layers.

Relevant API

  • GeoprocessingJob
  • GeoprocessingParameters
  • GeoprocessingResult
  • GeoprocessingTask

Tags

analysis, density, geoprocessing, hot spots, hotspots

Sample Code

AnalyzeHotspots.xaml.csAnalyzeHotspots.xaml.csAnalyzeHotspots.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Tasks;
using Esri.ArcGISRuntime.Tasks.Geoprocessing;
using Microsoft.UI.Xaml;
using System;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.AnalyzeHotspots
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Analyze hotspots",
        category: "Geoprocessing",
        description: "Use a geoprocessing service and a set of features to identify statistically significant hot spots and cold spots.",
        instructions: "Select a date range (between 1998-01-01 and 1998-05-31) from the dialog and tap on Analyze. The results will be shown on the map upon successful completion of the `GeoprocessingJob`.",
        tags: new[] { "analysis", "density", "geoprocessing", "hot spots", "hotspots" })]
    public partial class AnalyzeHotspots
    {
        // Url for the geoprocessing service
        private const string _hotspotUrl =
            "https://sampleserver6.arcgisonline.com/arcgis/rest/services/911CallsHotspot/GPServer/911%20Calls%20Hotspot";

        // The geoprocessing task for hot spot analysis
        private GeoprocessingTask _hotspotTask;

        // The job that handles the communication between the application and the geoprocessing task
        private GeoprocessingJob _hotspotJob;

        public AnalyzeHotspots()
        {
            InitializeComponent();

            // Create the UI, setup the control references and execute initialization
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create a map with a topographic basemap
            MyMapView.Map = new Map(BasemapStyle.ArcGISTopographic);

            // Set the initial start date for the DatePicker defined in xaml
            DateTimeOffset myFromDate = new DateTimeOffset(new DateTime(1998, 1, 1));
            FromDate.Date = myFromDate;

            // Set the initial end date for the DatePicker defined in xaml
            DateTimeOffset myToDate = new DateTimeOffset(new DateTime(1998, 1, 31));
            ToDate.Date = myToDate;

            try
            {
                // Create a new geoprocessing task
                _hotspotTask = await GeoprocessingTask.CreateAsync(new Uri(_hotspotUrl));
            }
            catch (Exception e)
            {
                await new MessageDialog2(e.ToString(), "Error").ShowAsync();
            }
        }

        private void OnCancelTaskClicked(object sender, RoutedEventArgs e)
        {
            // Cancel current geoprocessing job
            if (_hotspotJob.Status == JobStatus.Started)
                _hotspotJob.CancelAsync();

            // Hide the BusyOverlay indication
            ShowBusyOverlay(false);
        }

        private async void OnAnalyzeHotspotsClicked(object sender, RoutedEventArgs e)
        {
            // Clear any existing results
            MyMapView.Map.OperationalLayers.Clear();

            // Show the BusyOverlay indication
            ShowBusyOverlay();

            // Get the 'from' and 'to' dates from the date pickers for the geoprocessing analysis
            DateTimeOffset myFromDate = FromDate.Date;
            DateTimeOffset myToDate = ToDate.Date;

            // The end date must be at least one day after the start date
            if (myToDate <= myFromDate.AddDays(1))
            {
                // Show error message
                var message = new MessageDialog2("Please select valid time range. There has to be at least one day in between To and From dates.",
                    "Invalid date range");
                _ = message.ShowAsync();

                // Remove the BusyOverlay
                ShowBusyOverlay(false);
                return;
            }

            // Create the parameters that are passed to the used geoprocessing task
            GeoprocessingParameters myHotspotParameters = new GeoprocessingParameters(GeoprocessingExecutionType.AsynchronousSubmit);

            // Construct the date query
            string myQueryString = $"(\"DATE\" > date '{myFromDate:yyyy-MM-dd} 00:00:00' AND \"DATE\" < date '{myToDate:yyyy-MM-dd} 00:00:00')";

            // Add the query that contains the date range used in the analysis
            myHotspotParameters.Inputs.Add("Query", new GeoprocessingString(myQueryString));

            // Create job that handles the communication between the application and the geoprocessing task
            _hotspotJob = _hotspotTask.CreateJob(myHotspotParameters);
            try
            {
                // Execute the geoprocessing analysis and wait for the results
                GeoprocessingResult myAnalysisResult = await _hotspotJob.GetResultAsync();

                // Add results to a map using map server from a geoprocessing task
                // Load to get access to full extent
                await myAnalysisResult.MapImageLayer.LoadAsync();

                // Add the analysis layer to the map view
                MyMapView.Map.OperationalLayers.Add(myAnalysisResult.MapImageLayer);

                // Zoom to the results
                await MyMapView.SetViewpointAsync(new Viewpoint(myAnalysisResult.MapImageLayer.FullExtent));
            }
            catch (TaskCanceledException)
            {
                // This is thrown if the task is canceled. Ignore.
            }
            catch (Exception ex)
            {
                // Display error messages if the geoprocessing task fails
                if (_hotspotJob.Status == JobStatus.Failed && _hotspotJob.Error != null)
                {
                    var message = new MessageDialog2("Executing geoprocessing failed. " + _hotspotJob.Error.Message, "Geoprocessing error");
                    await message.ShowAsync();
                }
                else
                {
                    var message = new MessageDialog2("An error occurred. " + ex.ToString(), "Sample error");
                    await message.ShowAsync();
                }
            }
            finally
            {
                // Remove the BusyOverlay
                ShowBusyOverlay(false);
            }
        }

        private void ShowBusyOverlay(bool visibility = true)
        {
            // Function to toggle the visibility of interaction with the GUI for the user to
            // specify dates for the hot spot analysis. When the analysis is running, the GUI
            // for changing the dates is 'grayed-out' and the progress bar with a cancel
            // button (aka. BusyOverlay object) becomes active.

            if (visibility)
            {
                // The geoprocessing task is processing. The busyOverly is present.
                BusyOverlay.Visibility = Visibility.Visible;
                Progress.IsIndeterminate = true;
            }
            else
            {
                // The user can interact with the date pickers. The BusyOverlay is invisible.
                BusyOverlay.Visibility = Visibility.Collapsed;
                Progress.IsIndeterminate = false;
            }
        }
    }
}
