Visualizing Data with the Spatially Enabled DataFrame

The Spatially Enabled Dataframe has a plot() method that uses a syntax and symbology similar to matplotlib for visualizing features on a map. With this functionality, you can easily visualize aspects of your data both on a map and on a matplotlib chart using the same symbology!

Some unique characteristics of working with the visualization capabalities on the SDF:

Uses Pythonic syntax
Uses the same syntax as visualizing charts on Pandas DataFrames
Uses symbology familiar to users of matplotlib
Works on features and attributes simultaneously, eliminating to a great extent the need to iterate over all features (rows)
Handles reading and writing to multiple formats aiding data conversion

Checkout the Introduction to Spatially Enabled DataFrame guide to learn how to create a Spatially Enabled DataFrame.

Quickstart: Get Data

Let us read a census data on major cities and load that into a Spatially Enabled DataFrame

from arcgis import GIS

gis = GIS()
# create an anonymous connection to ArcGIS Online and get a public item
item = gis.content.search(
    "USA Major Cities", item_type="Feature layer", outside_org=True)[0]
flayer = item.layers[0]

# Specify a SQL query and get a sub-set of the original data as a DataFrame
df = flayer.query(where="AGE_45_54 < 1500").sdf

# Visualize the top 5 records
df.head()

	FID	NAME	CLASS	ST	STFIPS	PLACEFIPS	POP_CLASS	POPULATION	POP2010	...	MARHH_NO_C	MHH_CHILD	FHH_CHILD	FAMILIES	AVE_FAM_SZ	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	SHAPE
0	1	Ammon	city	ID	16	1601990	6	15181	13816	...	1131	106	335	3352	3.61	4747	271	3205	1271	{"x": -12462673.723706165, "y": 5384674.994080...
1	2	Blackfoot	city	ID	16	1607840	6	11946	11899	...	1081	174	381	2958	3.31	4547	318	2788	1441	{"x": -12506251.313993266, "y": 5341537.793529...
2	4	Burley	city	ID	16	1611260	6	10727	10345	...	861	139	358	2499	3.37	3885	241	2183	1461	{"x": -12667411.402393516, "y": 5241722.820606...
3	6	Chubbuck	city	ID	16	1614680	6	14655	13922	...	1281	172	370	3586	3.4	4961	229	3324	1408	{"x": -12520053.904151963, "y": 5300220.333409...
4	12	Jerome	city	ID	16	1641320	6	11403	10890	...	779	210	385	2640	3.44	3985	292	2219	1474	{"x": -12747828.64784961, "y": 5269214.8197742...

5 rows × 50 columns

Note: If the above cell looks new to you, please checkout the Introduction to Spatially Enabled DataFrame guide.

Let us create a map of the United States

m1 = gis.map("United States")
m1

m1.zoom = 4
m1.center = [39, -98]

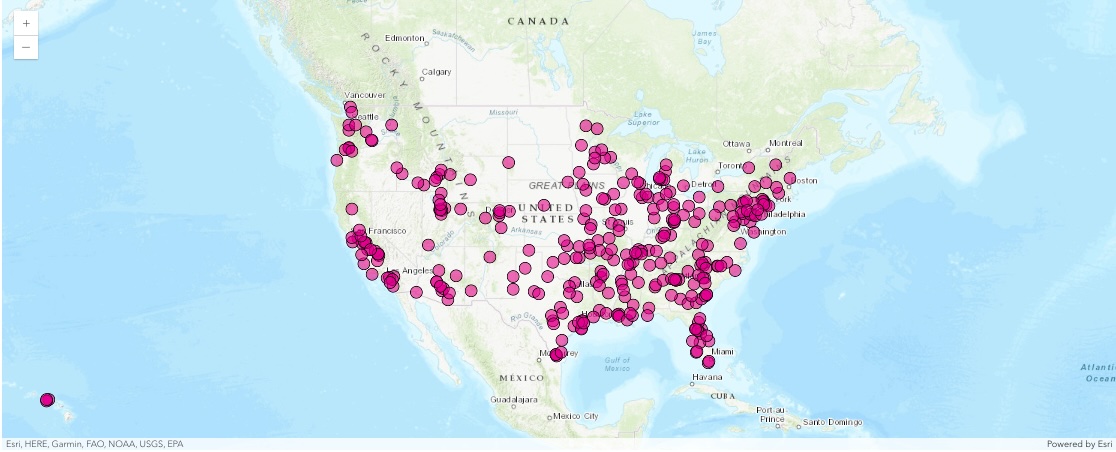

Plot the DataFrame - Using Defaults

You can quickly visualize the points by calling the plot() method off the DataFrame's spatial accessor and passing the map you created above.

df.spatial.plot(map_widget=m1)

True

You can customize the symbols, their color, shape, border etc. like you would in a typical matplotlib plot. The rest of this guide talks about such customizations and suggestions to visualize your spatial and non-spatial data.

The code below plots the same set of points on a new map using a common structure used amongst many different Python packages for defining symbology. It is built off of the matplotlib libraries for simple, straightforward plotting. We'll explain some of the parameters below, and the plot() API Reference outlines more options.

m2 = GIS().map("United States")
m2

m2.center = [39, -98]
m2.zoom = 4

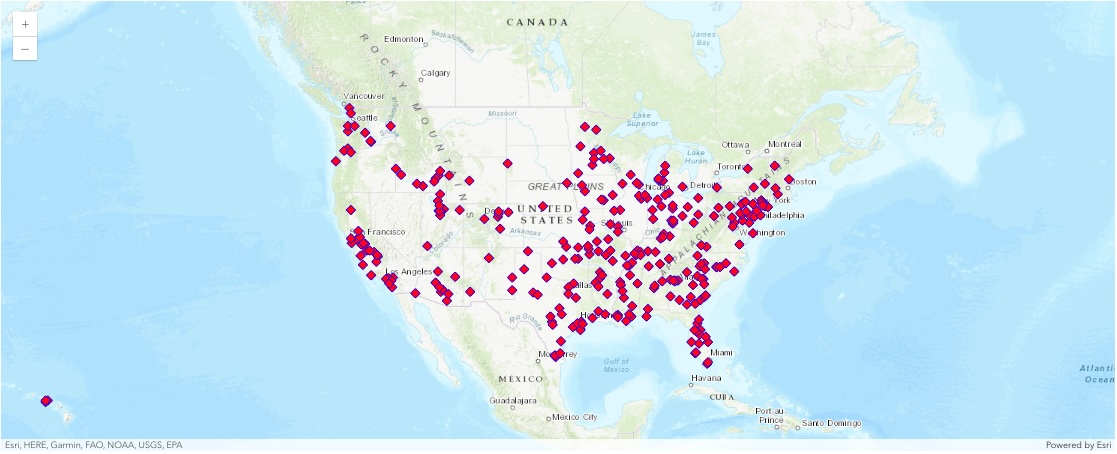

Plot the DataFrame - Setting Symbol Properties

from arcgis.map.renderers import SimpleRenderer
from arcgis.map.symbols import (
    SimpleMarkerSymbolEsriSMS,
    SimpleMarkerSymbolStyle,
    SimpleLineSymbolEsriSLS,
    SimpleLineSymbolStyle,
)

renderer = SimpleRenderer(
    symbol=SimpleMarkerSymbolEsriSMS(
        style=SimpleMarkerSymbolStyle.esri_sms_diamond.value,
        size=10,
        outline=SimpleLineSymbolEsriSLS(
            color=[0, 0, 255, 255],
            width=0.7,
            style=SimpleLineSymbolStyle.esri_sls_solid.value,
        ),
        color=[255, 0, 0, 255],
    ),
)

df.spatial.plot(
    map_widget=m2,
    renderer=renderer,
)

True

If this type of plotting is new to you, this is a good time to checkout matplotlib.pyplot documentation and Pandas dataframe plot documentation to get an idea.

gis = GIS()
m3 = gis.map("United States")
m3

Screenshot

m3.center = [39, -98]
m3.zoom = 4

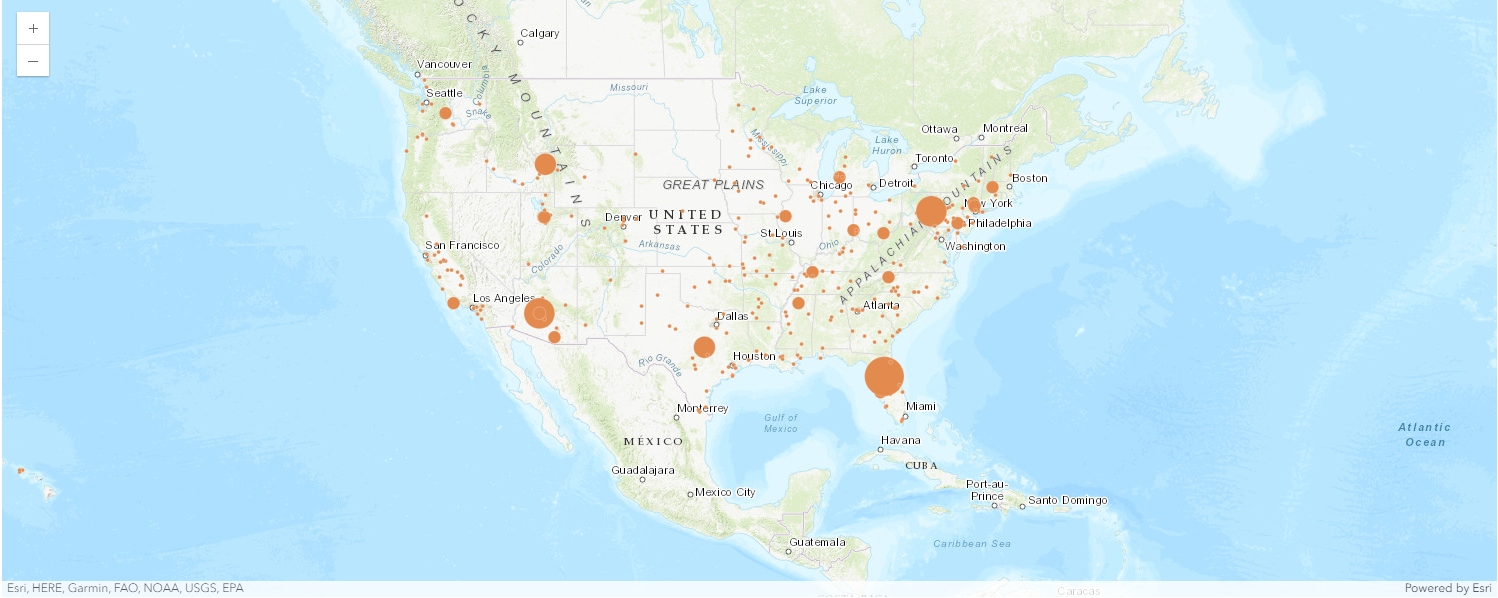

Plot the DataFrame - Using Class Break Symbology

df.spatial.plot(map_widget=m3)

True

renderer_manager = m3.content.renderer(0)
smm = renderer_manager.smart_mapping()
smm.class_breaks_renderer(break_type="size", field="POP2010")

Visualizing Unique Values with Arcade Expressions

Arcade is an expression language that can be used across the ArcGIS Platform. Whether writing simple scripts to control how features are rendered, or expressions to control label text, Arcade provides a simple scripting syntax to deliver these capabilities.

In the sense of visualization, Arcade expressions are used to create rich and dynamic symbology. This example will follow the JavaScript guide.

Obtain the Data

Access the enterprise to gain access to the FeatureLayer information and query it into a Spatially Enabled DataFrame.

item = gis.content.get("8444e275037549c1acab02d2626daaee")
flayer = item.layers[0]
df2 = flayer.query().sdf

fset = flayer.query()

from arcgis.geometry import Geometry

g = Geometry(fset.features[0].geometry)
g

Write Arcade Expressions and Stops

Arcade expressions require the stops to be manually provided. In this case, we first create an opacity visual variable based on a percent of dominant parties in registered citizens.

from arcgis.map.renderers import TransparencyInfoVisualVariable

opacity_expression = (
    "var republican = $feature.MP06025a_B;var democrat = $feature.MP06024a_B;"
    "var independent = $feature.MP06026a_B;var parties = [republican, democrat, independent];"
    "var total = Sum(parties);var max = Max(parties);return (max / total) * 100;"
)
opacity_stops = [
    {"value": 33, "transparency": 0.05 * 255, "label": "< 33%"},
    {"value": 44, "transparency": 1.0 * 255, "label": "> 44%"},
]

vv = [
    TransparencyInfoVisualVariable(
        stops=opacity_stops, value_expression=opacity_expression
    )
]

Next we develop another Arcade expression to obtain the majority party in a given county.

from arcgis.map.renderers import UniqueValueRenderer, UniqueValueInfo
from arcgis.map.symbols import SimpleFillSymbolEsriSFS

arcade_expression = (
    "var republican = $feature.MP06025a_B;var democrat = $feature.MP06024a_B;"
    "var independent = $feature.MP06026a_B;var parties = [republican, democrat, independent];"
    "return Decode( Max(parties),republican, 'republican', democrat, 'democrat',independent, "
    "'independent','n/a' );"
)
uv = [
    UniqueValueInfo(
        label="Democrat",
        symbol=SimpleFillSymbolEsriSFS(
            **{
                "type": "esriSFS",
                "color": [0, 195, 255, 255],
                "outline": {
                    "type": "esriSLS",
                    "color": [0, 0, 0, 51],
                    "width": 0.5,
                    "style": "esriSLSSolid",
                },
                "style": "esriSFSSolid",
            }
        ),
        value="democrat",
    ),
    UniqueValueInfo(
        label="Republican",
        symbol=SimpleFillSymbolEsriSFS(
            **{
                "type": "esriSFS",
                "color": [255, 0, 46, 255],
                "outline": {
                    "type": "esriSLS",
                    "color": [0, 0, 0, 51],
                    "width": 0.5,
                    "style": "esriSLSSolid",
                },
                "style": "esriSFSSolid",
            }
        ),
        value="republican",
    ),
    UniqueValueInfo(
        label="Independent/other party",
        symbol=SimpleFillSymbolEsriSFS(
            **{
                "type": "esriSFS",
                "color": [250, 255, 0, 255],
                "outline": {
                    "type": "esriSLS",
                    "color": [0, 0, 0, 51],
                    "width": 0.5,
                    "style": "esriSLSSolid",
                },
                "style": "esriSFSSolid",
            }
        ),
        value="independent",
    ),
]


uv_rend = UniqueValueRenderer(
    unique_value_infos=uv, value_expression=arcade_expression, visual_variables=vv
)

gis = GIS()
m3_ua = gis.map("United States")
m3_ua

m3_ua.center = [39, -98]
m3_ua.zoom = 4

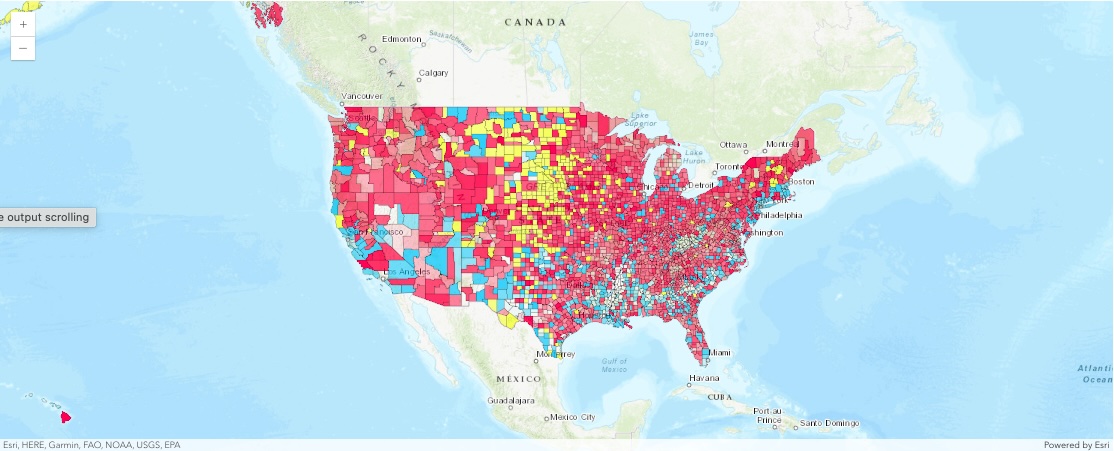

Visualize the Data

Provide the color scheme, and the arcade_expression to render the data in a dynamic/rich form.

df2.spatial.plot(map_widget=m3_ua, renderer=uv_rend)

True

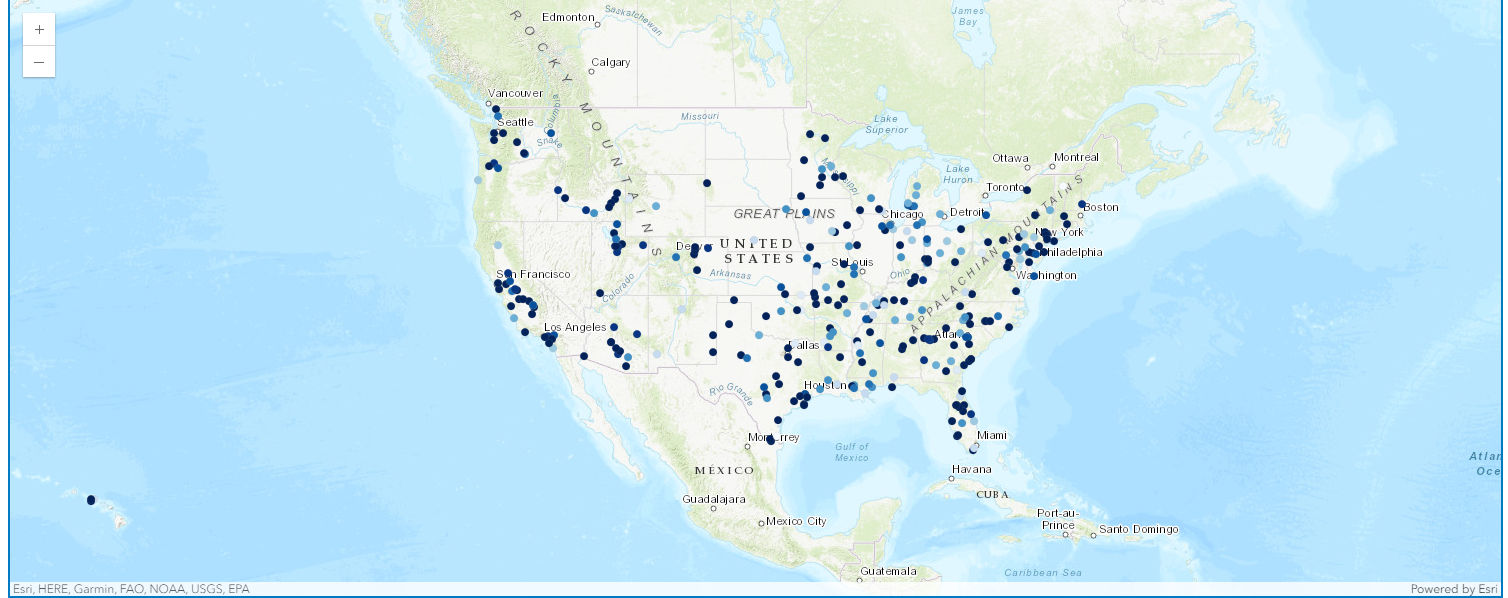

Visualizing classes with different colors

Often, you may want to classify the numerical values in your data into groups and visualize them on a map. You can accomplish this with a class break renderer which splits your data into specific number of groups and uses color to differentiate each group. You can choose the algorithm that performs the class splits or go with the defualt.

Let us visualize the same major cities point dataset using its POPULATION column.

df[["ST", "NAME", "POPULATION"]].head()

	ST	NAME	POPULATION
0	ID	Ammon	15181
1	ID	Blackfoot	11946
2	ID	Burley	10727
3	ID	Chubbuck	14655
4	ID	Jerome	11403

m4 = gis.map("USA")
m4

Screenshot

df.spatial.plot(map_widget=m4)

True

rend_manager = m4.content.renderer(0)
smm = rend_manager.smart_mapping()
smm.class_breaks_renderer(
    break_type="color",
    field="POPULATION",
    num_classes=20,
    classification_method="natural-breaks",
)

Visualizing line features using simple symbols

Let us search for USA freeway layer and visualize it by looping through the different line symbols

search_result = gis.content.search(
    "title:USA Freeway System AND owner:esri_dm", item_type="Feature Layer"
)
freeway_item = search_result[0]
freeway_item

USA Freeway System
This layer presents rural and urban interstate highways.

Feature Layer Collection by esri_dm
Last Modified: February 06, 2023
5 comments, 5465042 views

freeway_sdf = freeway_item.layers[0].query().sdf
freeway_sdf.head()

	OBJECTID	ROUTE_NUM	CLASS	NUMBER	DIST_MILES	DIST_KM	SHAPE
0	1	CG8	C	G8	5.12996	8.25588	{"paths": [[[-121.892261711658, 37.32391610061...
1	2	I105	I	105	19.83041	31.91401	{"paths": [[[-118.368428716304, 33.93055610296...
2	3	I205	I	205	48.25566	77.66011	{"paths": [[[-122.561879717577, 45.54969107336...
3	4	I215	I	215	93.43523	150.36972	{"paths": [[[-117.319118714291, 34.14458511089...
4	5	I238	I	238	2.03548	3.27579	{"paths": [[[-122.137358724846, 37.69015308551...

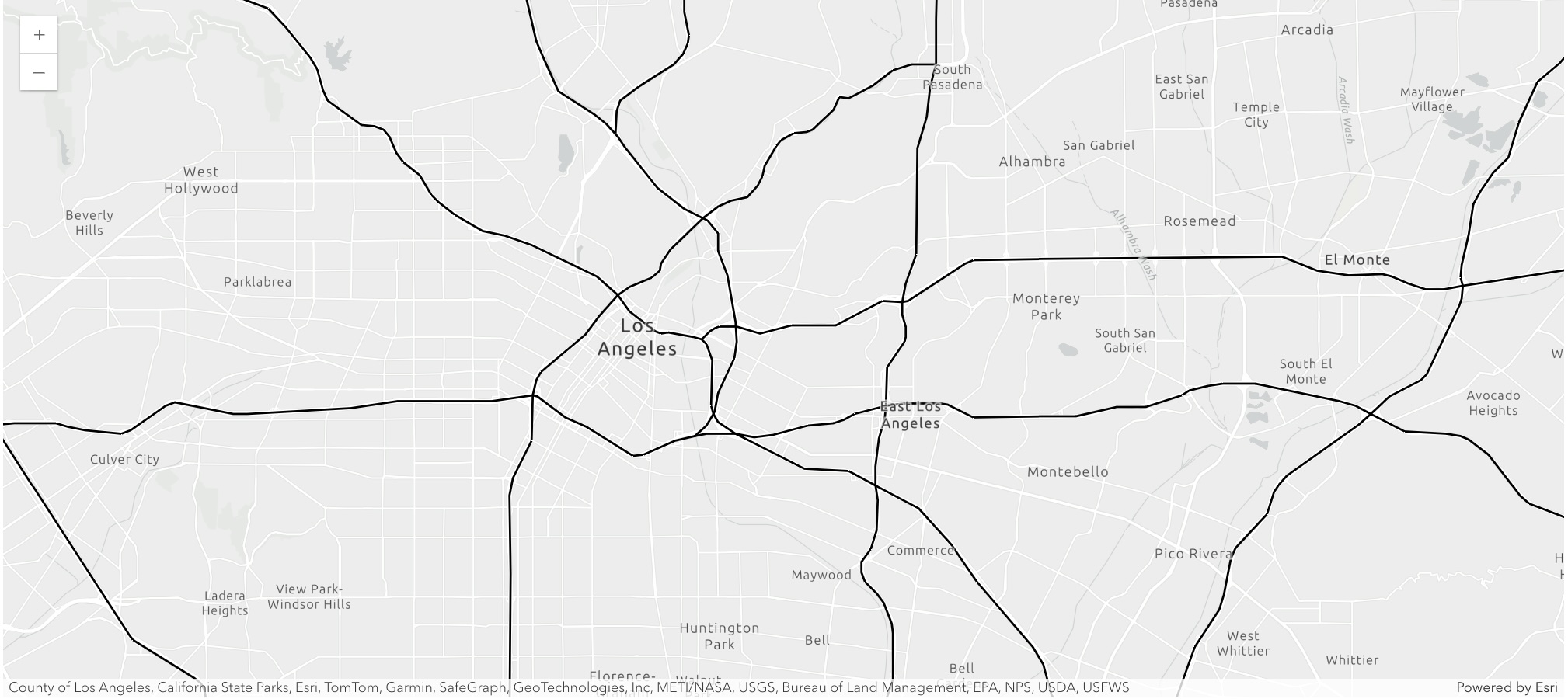

m8 = gis.map("USA")
m8

m8.center = [34.05, -118.2]
m8.zoom = 12
m8.basemap.basemap = "gray-vector"

freeway_sdf.spatial.plot(
    map_widget=m8,
)

True

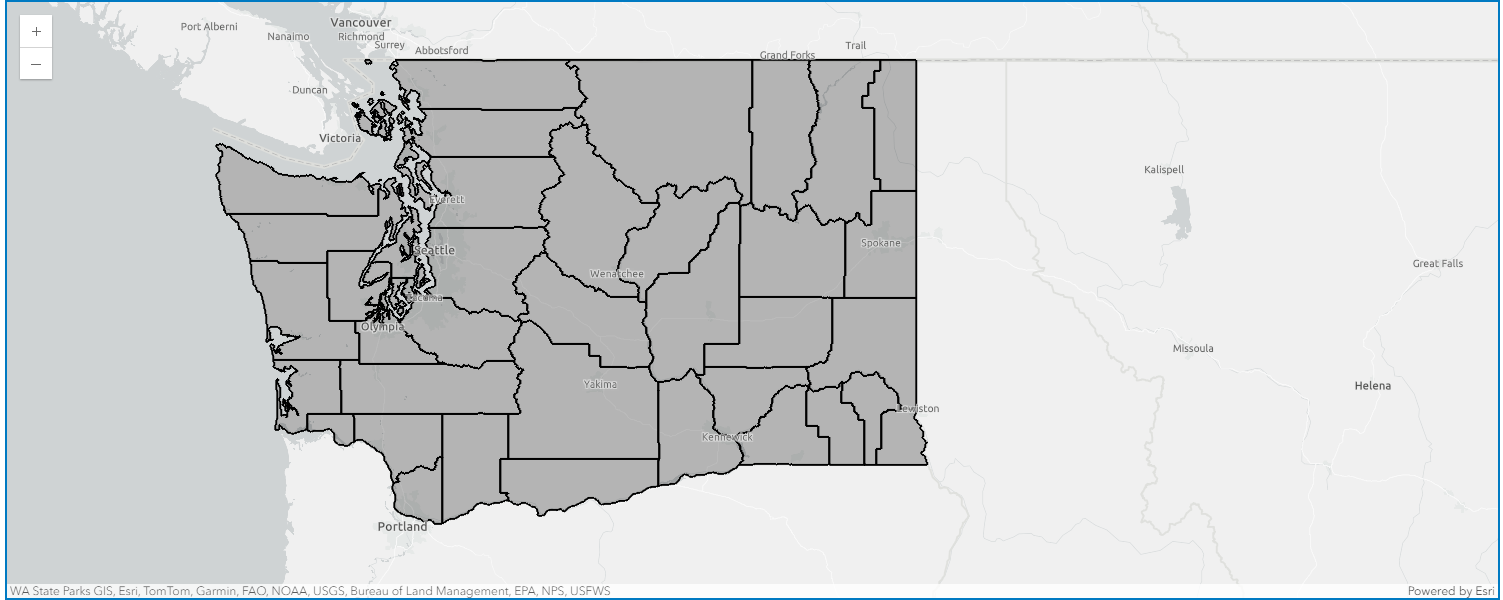

Visualizing area features using different symbols

from arcgis.features import FeatureLayer

fl = FeatureLayer(
    "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Census/MapServer/2"
)
county_sdf = fl.query("STATE_NAME='Washington'", out_sr=4326).sdf
county_sdf.head()

	Shape_Length	Shape_Area	OBJECTID	NAME	STATE_NAME	STATE_FIPS	CNTY_FIPS	FIPS	POP2000	POP2007	...	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	NO_FARMS97	AVG_SIZE97	CROP_ACR97	AVG_SALE97	SQMI	SHAPE
0	3.879553	0.590994	2953	Adams	Washington	53	001	53001	16428	17555	...	5773	544	3576	1653	628.0	1746.0	808651.0	321.45	1930.0	{"rings": [[[-119.36961802215399, 46.737285024...
1	2.127905	0.193369	2954	Asotin	Washington	53	003	53003	20551	21237	...	9111	747	5612	2752	140.0	2175.0	87282.0	69.59	640.6	{"rings": [[[-117.48006100031489, 46.085736986...
2	3.259149	0.531696	2955	Benton	Washington	53	005	53005	142475	164259	...	55963	3097	36344	16522	1078.0	568.0	440291.0	278.79	1760.0	{"rings": [[[-119.87687899986594, 46.562399986...
3	6.259164	0.932106	2956	Chelan	Washington	53	007	53007	66616	71939	...	30407	5386	16178	8843	1113.0	111.0	41046.0	131.54	2993.7	{"rings": [[[-121.17981297788657, 47.896832976...
4	5.62703	0.551224	2957	Clallam	Washington	53	009	53009	64525	70908	...	30683	3519	19757	7407	292.0	72.0	12116.0	20.58	1764.3	{"rings": [[[-124.73315299891175, 48.163761012...

5 rows × 53 columns

m9 = gis.map("Seattle, WA")
m9.basemap.basemap = "gray-vector"
m9

Screenshot

county_sdf.spatial.plot(map_widget=m9)

True

Conclusion

The Spatially Enabled DataFrame gives you powerful visualization capabilities that allows you to plot your data on the interactive map widget. You specify colors and symbols using the same syntax that you would specify for a normal Pandas or a matplotlib plot.
