Local server geoprocessing

View on GitHub
Sample viewer app

Create contour lines from local raster data using a local geoprocessing package .gpkx and the contour geoprocessing tool.

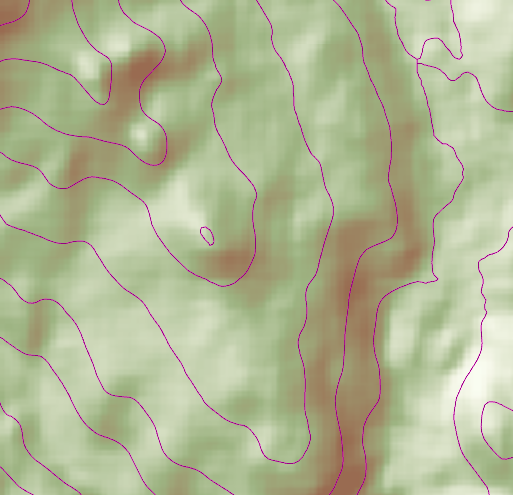

screenshot

Use case

For executing offline geoprocessing tasks in your ArcGIS Runtime apps via an offline (local) server.

How to use the sample

Contour Line Controls (Top Left):

  • Interval - Specifies the spacing between contour lines.
  • Generate Contours - Adds contour lines to map using interval.
  • Clear Results - Removes contour lines from map.

How it works

  1. Add raster data to map using as an ArcGISTiledLayer.
  2. Create and run the Local Server.
    • LocalServer::instance creates the Local Server.
    • LocalServer::start() starts the server asynchronously.
  3. Wait for server to be in the LocalServerStatus::Started state.
    • LocalServer::statusChanged() fires whenever the running status of the Local Server changes.
  4. Start a LocalGeoprocessingService and run a GeoprocessingTask
    • new LocalGeoprocessingService(Url, ServiceType), creates a local geoprocessing service
    • LocalGeoprocessingService::start() starts the service asynchronously.
    • new GeoprocessingTask(LocalGeoprocessingService.url() + "/Contour"), creates a geoprocessing task that uses the contour lines tool
  5. Create GeoprocessingParameters and add a GeoprocessingDouble as a parameter using set interval.
    • new GeoprocessingParameters(ExecutionType), creates geoprocessing parameters
    • inputs.insert("ContourInterval", new GeoprocessingDouble(double)), creates a parameter with name ContourInterval with the interval set as its value.
    • gpParams.setInputs(inputs), sets the input with the interval value.
  6. Create and start a GeoprocessingJob using the parameters from above.
    • GeoprocessingTask::createJob(GeoprocessingParameters), creates a geoprocessing job
    • GeoprocessingJob::start(), starts the job.
  7. Add contour lines as an ArcGISMapImageLayer to map.
    • Get url from local geoprocessing service, LocalGeoprocessingService::url()
    • Get server job id of geoprocessing job, GeoprocessingJob::serverJobId()
    • Replace GPServer from url with MapServer/jobs/jobId, to get generate contour lines data
    • create a map image layer from that new url and add that layer to the map

Relevant API

  • GeoprocessingDouble
  • GeoprocessingJob
  • GeoprocessingParameter
  • GeoprocessingParameters
  • GeoprocessingTask
  • LocalGeoprocessingService
  • LocalGeoprocessingService::serviceType
  • LocalServer
  • LocalServerStatus

Offline Data

Read more about how to set up the sample's offline data here.

Link Local Location
Contour geoprocessing package <userhome>/ArcGIS/Runtime/Data/gpkx/Contour.gpkx
Raster Hillshade TPKX <userhome>/ArcGIS/Runtime/Data/tpkx/RasterHillshade.tpkx

Additional information

Local Server can be downloaded for Windows and Linux platforms. Local Server is not supported on macOS.

Tags

geoprocessing, local, offline, parameters, processing, service

Sample Code

LocalServerGeoprocessing.cppLocalServerGeoprocessing.cppLocalServerGeoprocessing.hLocalServerGeoprocessing.qml
