Export tiles

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.export_tiles {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;

  exports com.esri.samples.export_tiles;
}

/*
 * Copyright 2017 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.export_tiles;

import java.io.File;
import java.io.IOException;
import java.util.concurrent.ExecutionException;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.geometry.Point2D;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Alert;
import javafx.scene.control.Button;
import javafx.scene.control.ProgressBar;
import javafx.scene.layout.StackPane;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.concurrent.Job;
import com.esri.arcgisruntime.concurrent.ListenableFuture;
import com.esri.arcgisruntime.data.TileCache;
import com.esri.arcgisruntime.geometry.Envelope;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.layers.ArcGISTiledLayer;
import com.esri.arcgisruntime.layers.Layer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.Basemap;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
import com.esri.arcgisruntime.tasks.tilecache.ExportTileCacheParameters;
import com.esri.arcgisruntime.tasks.tilecache.ExportTileCacheTask;

public class ExportTilesSample extends Application {

  private MapView mapView;

  @Override
  public void start(Stage stage) {

    try {
      // create stack pane and application scene
      StackPane stackPane = new StackPane();
      Scene scene = new Scene(stackPane);

      // set title, size, and add scene to stage
      stage.setTitle("Export Tiles Sample");
      stage.setWidth(800);
      stage.setHeight(700);
      stage.setScene(scene);
      stage.show();

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // create a new map with the imagery basemap style
      ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_IMAGERY);

      // set the map to the map view
      mapView = new MapView();
      mapView.setMap(map);
      // set the viewpoint over California, USA
      mapView.setViewpointAsync(new Viewpoint(35, -117, 1e7));

      // create a graphics overlay for the map view
      var graphicsOverlay = new GraphicsOverlay();
      mapView.getGraphicsOverlays().add(graphicsOverlay);

      // create a graphic to show a red outline square around the tiles to be downloaded
      Graphic downloadArea = new Graphic();
      graphicsOverlay.getGraphics().add(downloadArea);
      var simpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbol.Style.SOLID, Color.RED, 2);
      downloadArea.setSymbol(simpleLineSymbol);

      // update the square whenever the viewpoint changes
      mapView.addViewpointChangedListener(viewpointChangedEvent -> {
        if (map.getLoadStatus() == LoadStatus.LOADED) {
          // upper left corner of the downloaded tile cache area
          Point2D minScreenPoint = new Point2D(50, 50);
          // lower right corner of the downloaded tile cache area
          Point2D maxScreenPoint = new Point2D(mapView.getWidth() - 50, mapView.getHeight() - 50);
          // convert screen points to map points
          Point minPoint = mapView.screenToLocation(minScreenPoint);
          Point maxPoint = mapView.screenToLocation(maxScreenPoint);
          // use the points to define and return an envelope
          if (minPoint != null && maxPoint != null) {
            Envelope envelope = new Envelope(minPoint, maxPoint);
            downloadArea.setGeometry(envelope);
          }
        }
      });

      // when the map has loaded, create a tiled layer from it and export tiles
      map.addDoneLoadingListener(() -> {
        if (map.getLoadStatus() == LoadStatus.LOADED) {

          // check that the layer from the basemap is a tiled layer
          Layer layer = map.getBasemap().getBaseLayers().get(0);
          if (layer instanceof ArcGISTiledLayer) {
            ArcGISTiledLayer tiledLayer = (ArcGISTiledLayer) layer;
            // create progress bar to show task progress
            var progressBar = new ProgressBar(0.0);
            progressBar.setVisible(false);

            // create button to export tiles
            Button exportTilesButton = new Button("Export Tiles");
            // when the button is clicked, export the tiles to a temporary file
            exportTilesButton.setOnAction(e -> {
              try {
                // disable the button and show the progress bar
                exportTilesButton.setDisable(true);
                progressBar.setVisible(true);

                // create a file
                File tempFile = File.createTempFile("tiles", ".tpkx");
                tempFile.deleteOnExit();

                // create a new export tile cache task
                var exportTileCacheTask = new ExportTileCacheTask(tiledLayer.getUri());

                // create parameters for the export tiles job
                double mapScale = mapView.getMapScale();
                // the max scale parameter is set to 10% of the map's scale to limit the
                // number of tiles exported to within the tiled layer's max tile export limit
                ListenableFuture<ExportTileCacheParameters> exportTileCacheParametersListenableFuture =
                  exportTileCacheTask.createDefaultExportTileCacheParametersAsync(downloadArea.getGeometry(), mapScale, mapScale * 0.1);

                exportTileCacheParametersListenableFuture.addDoneListener(() -> {
                  try {
                    var exportTileCacheParameters = exportTileCacheParametersListenableFuture.get();

                    // create a job with the parameters
                    var exportTileCacheJob = exportTileCacheTask.exportTileCache(exportTileCacheParameters, tempFile.getAbsolutePath());

                    // start the job and wait for it to finish
                    exportTileCacheJob.start();
                    exportTileCacheJob.addProgressChangedListener(() -> progressBar.setProgress(exportTileCacheJob.getProgress() / 100.0));
                    exportTileCacheJob.addJobDoneListener(() -> {
                      if (exportTileCacheJob.getStatus() == Job.Status.SUCCEEDED) {

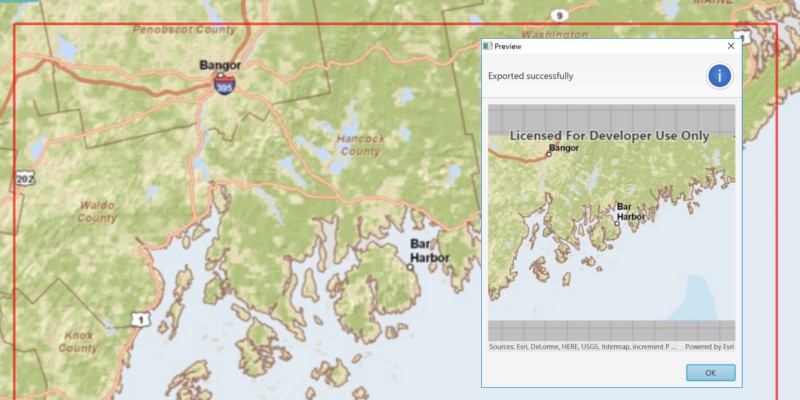

                        // show preview of exported tiles in alert window
                        TileCache tileCache = exportTileCacheJob.getResult();
                        Alert preview = new Alert(Alert.AlertType.INFORMATION);
                        preview.initOwner(mapView.getScene().getWindow());
                        preview.setTitle("Preview");
                        preview.setHeaderText("Exported to " + tileCache.getPath());
                        MapView previewMapView = new MapView();
                        previewMapView.setMinSize(400, 400);
                        ArcGISTiledLayer tiledLayerPreview = new ArcGISTiledLayer(tileCache);
                        ArcGISMap previewMap = new ArcGISMap(new Basemap(tiledLayerPreview));
                        previewMapView.setMap(previewMap);
                        preview.getDialogPane().setContent(previewMapView);
                        preview.show();
                        // dispose of the preview mapview's resources
                        preview.setOnCloseRequest(event -> previewMapView.dispose());

                      } else {
                        new Alert(Alert.AlertType.ERROR, exportTileCacheJob.getError().getMessage()).show();
                      }
                      // reset the UI
                      progressBar.setVisible(false);
                      progressBar.setProgress(0);
                      exportTilesButton.setDisable(false);
                    });

                  } catch (InterruptedException | ExecutionException ex) {
                    new Alert(Alert.AlertType.ERROR, ex.getMessage()).show();
                    progressBar.setVisible(false);
                    progressBar.setProgress(0);
                  }
                });

              } catch (IOException ex) {
                new Alert(Alert.AlertType.ERROR, "Failed to create temporary file").show();
              }

            });
            // add the map view, button, and progress bar to stack pane
            stackPane.getChildren().addAll(mapView, exportTilesButton, progressBar);
            StackPane.setAlignment(exportTilesButton, Pos.BOTTOM_CENTER);
            StackPane.setMargin(exportTilesButton, new Insets(0, 0, 100, 0));
            StackPane.setAlignment(progressBar, Pos.BOTTOM_CENTER);
            StackPane.setMargin(progressBar, new Insets(0, 0, 80, 0));
          }

        } else {
          new Alert(Alert.AlertType.ERROR, "Map could not be loaded").show();
        }
      });

    } catch (Exception e) {
      // on any error, display the stack trace.
      e.printStackTrace();
    }
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {

    if (mapView != null) {
      mapView.dispose();
    }
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }

}
