Visualize hidden infrastructure in its real-world location using augmented reality.

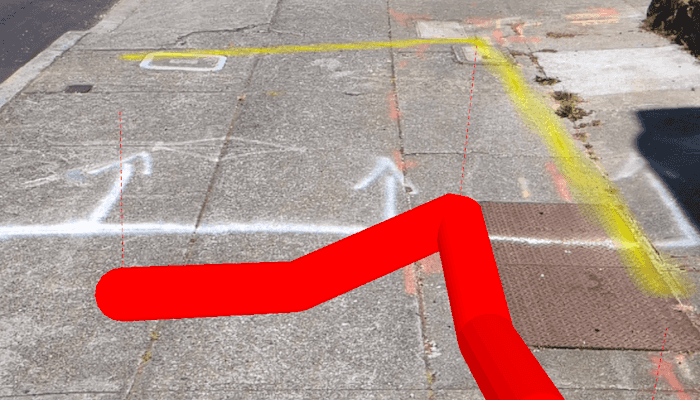

Image of augment reality to show hidden infrastructure

Use case

You can use AR to “x-ray” the ground to see pipes, wiring, or other infrastructure that isn’t otherwise visible. For example, you could use this feature to trace the flow of water through a building to help identify the source of a leak.

How to use the sample

When you open the sample, you’ll see a map centered on your current location. Tap on the map to draw pipes around your location. After drawing the pipes, input an elevation offset value to place the drawn infrastructure above or below ground. When you are ready, tap the camera button to view the infrastructure you drew in AR.

How it works

Draw pipes on the map. See the “Create and edit geometries” sample to learn how to use the geometry editor for creating graphics.
Add a WorldScaleSceneView composable to the augmented reality screen, available in the ArcGIS Maps SDK for Kotlin toolkit.
- The component is available both in World tracking and Geospatial tracking modes. Geospatial tracking uses street view data to calibrate augmented reality positioning and is available with an ARCORE API key.
Pass a SceneView into the world scale scene view and set the base surface background grid to not be visible and the base surface opacity to 0.0.
Create an ArcGISTiledElevationSource and add it to the scene’s base surface. Set the navigation constraint to unconstrained to allow going underground if needed.
Configure a graphics overlay and renderer for showing the drawn pipes. This sample uses a SolidStrokeSymbolLayer with a MultilayerPolylineSymbol to draw the pipes.

Relevant API

GeometryEditor
GraphicsOverlay
MultilayerPolylineSymbol
SolidStrokeSymbolLayer
Surface
WorldScaleSceneView

About the data

This sample uses Esri’s world elevation service to ensure that the infrastructure you create is accurately placed beneath the ground.

Real-scale AR relies on having data in real-world locations near the user. It isn’t practical to provide pre-made data like other ArcGIS Maps SDKs for Native Apps samples, so you must draw your own nearby sample “pipe infrastructure” prior to starting the AR experience.

Additional information

You may notice that pipes you draw underground appear to float more than you would expect. That floating is a normal result of the parallax effect that looks unnatural because you’re not used to being able to see underground/obscured objects. Compare the behavior of underground pipes with equivalent pipes drawn above the surface - the behavior is the same, but probably feels more natural above ground because you see similar scenes day-to-day (e.g. utility wires).

This sample requires a device that is compatible with ARCore.

Unlike other scene samples, there’s no need for a basemap while navigating, because context is provided by the camera feed showing the real environment. The base surface’s opacity is set to zero to prevent it from interfering with the AR experience.

This sample uses the WorldScaleSceneView toolkit component. For information about setting up the toolkit, as well as code for the underlying component, visit the toolkit docs.

Note that apps using ARCore must comply with ARCore’s user privacy requirements. See this page for more information.

Sample Code

MainActivity.kt

AugmentedRealityViewModel.kt

MapViewModel.kt

SharedRepository.kt

AugmentRealityToShowHiddenInfrastructureRouteNavGraph.kt

AugmentedRealityScreen.kt

MapScreen.kt

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure

import android.Manifest
import android.os.Bundle
import android.widget.Toast
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.activity.result.contract.ActivityResultContracts
import androidx.compose.runtime.Composable
import androidx.navigation.compose.rememberNavController
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components.SharedRepository
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.navigation.AugmentRealityToShowHiddenInfrastructureNavGraph
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme

class MainActivity : ComponentActivity() {

    private var isLocationPermissionGranted = false

    private val requestPermissionLauncher = registerForActivityResult(
        ActivityResultContracts.RequestPermission()
    ) { isGranted ->
        if (isGranted) {
            isLocationPermissionGranted = true
        } else {
            Toast.makeText(this, "Location permission is required to run this sample!", Toast.LENGTH_SHORT).show()
        }

        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                AugmentRealityToNavigateRoute(isLocationPermissionGranted)
            }
        }
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)
        ArcGISEnvironment.applicationContext = applicationContext

        val hasNonDefaultAPIKey = BuildConfig.GOOGLE_API_KEY != "DEFAULT_GOOGLE_API_KEY"

        SharedRepository.updateHasNonDefaultAPIKey(hasNonDefaultAPIKey)
        SharedRepository.pipeInfoList.clear()

        requestLocationPermission()
    }

    private fun requestLocationPermission() {
        requestPermissionLauncher.launch(Manifest.permission.ACCESS_FINE_LOCATION)
    }

}

@Composable
fun AugmentRealityToNavigateRoute(isLocationPermissionGranted: Boolean) {
    val navController = rememberNavController()
    AugmentRealityToShowHiddenInfrastructureNavGraph(
        navController = navController,
        isLocationPermissionGranted = isLocationPermissionGranted,
    )
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components

import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.geometry.GeodeticCurveType
import com.arcgismaps.geometry.GeometryEngine
import com.arcgismaps.geometry.LinearUnit
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.Polyline
import com.arcgismaps.geometry.PolylineBuilder
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.ElevationSource
import com.arcgismaps.mapping.NavigationConstraint
import com.arcgismaps.mapping.symbology.MultilayerPolylineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.SolidStrokeSymbolLayer
import com.arcgismaps.mapping.symbology.StrokeSymbolLayerLineStyle3D
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.SurfacePlacement
import com.arcgismaps.toolkit.ar.WorldScaleSceneViewProxy
import com.arcgismaps.toolkit.ar.WorldScaleVpsAvailability
import kotlinx.coroutines.launch

class AugmentedRealityViewModel(app: Application) : AndroidViewModel(app) {

    val worldScaleSceneViewProxy = WorldScaleSceneViewProxy()

    var isVpsAvailable by mutableStateOf(false)

    // Graphics overlay for the 3D pipes
    val pipeGraphicsOverlay = GraphicsOverlay().apply {
        sceneProperties.surfacePlacement = SurfacePlacement.Absolute
    }

    // Graphics overlay for the shadow of pipes underground
    val pipeShadowGraphicsOverlay = GraphicsOverlay().apply {
        opacity = 0.6f
    }

    // Graphics overlay for the leaders
    val leaderGraphicsOverlay = GraphicsOverlay().apply {
        sceneProperties.surfacePlacement = SurfacePlacement.Absolute
    }

    // Create a scene with an elevation source and grid and surface hidden
    val arcGISScene = ArcGISScene().apply {
        baseSurface.apply {
            elevationSources.add(ElevationSource.fromTerrain3dService())
            backgroundGrid.isVisible = false
            opacity = 0.0f
            navigationConstraint = NavigationConstraint.None
        }
    }

    // Define a red 3D stroke symbol to show the pipe
    private val pipeStrokeSymbol = SolidStrokeSymbolLayer(
        width = 0.3,
        color = Color.red,
        lineStyle3D = StrokeSymbolLayerLineStyle3D.Tube
    )
    val pipeSymbol = MultilayerPolylineSymbol(listOf(pipeStrokeSymbol))

    // Define a red 2D stroke symbol to show the pipe shadow
    private val pipeShadowSymbol = SimpleLineSymbol(
        style = SimpleLineSymbolStyle.Solid,
        color = Color.yellow,
        width = 0.3f
    )

    val leaderSymbol = SimpleLineSymbol(
        style = SimpleLineSymbolStyle.Dash,
        color = Color.red,
        width = 0.1f
    )

    init {
        // For each pipe in the shared repository
        SharedRepository.pipeInfoList.forEach {
            viewModelScope.launch {
                // Densify the polyline to ensure it has enough points for elevation sampling
                val densifiedPolyline = GeometryEngine.densifyGeodeticOrNull(
                    geometry = it.polyline,
                    maxSegmentLength = 1.0,
                    lengthUnit = LinearUnit.meters,
                    curveType = GeodeticCurveType.Geodesic
                ) as Polyline
                // Add Z values to the polyline using the base surface elevation and elevation offset
                val densifiedPolylineWithZ = addZValues(densifiedPolyline, it.elevationOffset)
                // Add the 3D pipe to the pipe graphics overlay
                pipeGraphicsOverlay.graphics.add(Graphic(densifiedPolylineWithZ, pipeSymbol))
                // Only add the shadow if the pipe is underground
                if (it.elevationOffset < 0) {
                    // Add the 2D pipe shadow to the shadow graphics overlay
                    pipeShadowGraphicsOverlay.graphics.add(Graphic(it.polyline, pipeShadowSymbol))
                    // Get the original polyline with Z values
                    val originalPolylineWithZ = addZValues(it.polyline, it.elevationOffset)
                    // Add leader lines connecting pipe vertices to shadow vertices
                    addLeaderLines(originalPolylineWithZ, it.elevationOffset)
                }
            }
        }
    }

    /**
     * Adds Z values to the polyline by getting the elevation from the base surface.
     */
    private suspend fun addZValues(polyline: Polyline, elevationOffset: Float): Polyline {
        // Create a new polyline builder to construct the polyline with Z values
        val polylineBuilder = PolylineBuilder(SpatialReference(3857))
        // For each point in each part of the densified polyline
        polyline.parts.forEach { part ->
            part.points.forEach { point ->
                arcGISScene.baseSurface.elevationSources.first().load().onSuccess {
                    arcGISScene.baseSurface.getElevation(point).let { elevationResult ->
                        // Get the elevation at the point
                        elevationResult.getOrNull()?.let { elevation ->
                            // Add the point with the elevation offset to the polyline builder
                            polylineBuilder.addPoint(
                                GeometryEngine.createWithZ(
                                    point,
                                    elevation + elevationOffset
                                )
                            )
                        }
                    }
                }
            }
        }
        return polylineBuilder.toGeometry()
    }

    /**
     * Adds leader lines from the pipe vertices to the shadow vertices.
     */
    private fun addLeaderLines(pipePolyline: Polyline, elevationOffset: Float) {
        // For each point in each part of the densified polyline
        pipePolyline.parts.forEach { part ->
            part.points.forEach { point ->
                // Create a line from the 3D pipe vertex to a pont offset by the elevation offset
                val offsetPoint = GeometryEngine.createWithZ(
                    point,
                    point.z?.minus(elevationOffset)
                )
                val leaderLine = Polyline(listOf(point, offsetPoint))
                leaderGraphicsOverlay.graphics.add(Graphic(leaderLine, leaderSymbol))
            }
        }
    }

    /**
     * Checks if the current viewpoint camera location is within the VPS availability area.
     */
    fun onCurrentViewpointCameraChanged(location: Point) {
        viewModelScope.launch {
            worldScaleSceneViewProxy.checkVpsAvailability(location.y, location.x).onSuccess {
                isVpsAvailable = it == WorldScaleVpsAvailability.Available
            }
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components

import android.app.Application
import androidx.compose.runtime.MutableState
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableFloatStateOf
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.geometry.GeometryType
import com.arcgismaps.geometry.Polyline
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.LocationDisplay
import com.arcgismaps.mapping.view.geometryeditor.GeometryEditor
import kotlinx.coroutines.launch

class MapViewModel(app: Application) : AndroidViewModel(app) {

    val arcGISMap = ArcGISMap(BasemapStyle.ArcGISImagery)
    val graphicsOverlay = GraphicsOverlay()
    val geometryEditor = GeometryEditor()

    private var _statusText by mutableStateOf("Tap on map or use current location to create start point")
    val statusText get() = _statusText

    private var _showElevationDialog by mutableStateOf(false)
    val showElevationDialog get() = _showElevationDialog

    private var _elevationInput by mutableFloatStateOf(0f)
    val elevationInput get() = _elevationInput

    var graphic = Graphic()

    var polyline: Polyline? = null

    private val _isGeometryBeingEdited = mutableStateOf(false)
    val isGeometryBeingEdited: MutableState<Boolean> = _isGeometryBeingEdited

    init {
        startPolylineEditing()
    }

    /**
     * Initialize the location display.
     */
    fun initialize(locationDisplay: LocationDisplay) {
        with(viewModelScope) {
            launch {
                locationDisplay.dataSource.start()
            }
            launch {
                geometryEditor.geometry.collect {
                    (it as? Polyline)?.let { polyline ->
                        _isGeometryBeingEdited.value =
                            geometryEditor.isStarted.value && (polyline.parts.firstOrNull()?.points?.toList()?.size
                                ?: 0) > 1
                    }
                }
            }
        }
    }

    /**
     * Starts the GeometryEditor for creating a polyline.
     */
    fun startPolylineEditing() {
        geometryEditor.start(GeometryType.Polyline)
        _statusText = "Polyline editing started. Tap to add points."
    }

    /**
     * Completes the polyline and adds it as a graphic to the map.
     */
    fun completePolyline() {
        polyline = geometryEditor.stop() as? Polyline
        if (polyline != null) {
            graphic = Graphic(
                polyline, symbol = SimpleLineSymbol(style = SimpleLineSymbolStyle.Solid, color = Color.red, width = 2f)
            )
            _showElevationDialog = true
            graphicsOverlay.graphics.add(graphic)

            _statusText = "Polyline completed. Tap again to continue adding polylines or proceed to rendering in AR."
        } else {
            _statusText = "No geometry created. Try again."
        }
    }

    /**
     * Adds the pipe information to the shared repository and resets the UI state.
     */
    fun onElevationConfirmed(elevation: Float) {
        polyline?.let { pipelineGeometry ->
            _elevationInput = elevation
            _showElevationDialog = false
            _isGeometryBeingEdited.value = false
            SharedRepository.pipeInfoList.add(PipeInfo(pipelineGeometry, _elevationInput))
        }
    }
}

data class PipeInfo(
    val polyline: Polyline, val elevationOffset: Float
)

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components

import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue

/**
 * Shared repository to hold the route result generated in the route view model and passed to the augmented reality view
 * model.
 */
object SharedRepository {

    private var _pipeInfoList: MutableList<PipeInfo> = mutableListOf()
    val pipeInfoList
        get() = _pipeInfoList

    private var _hasNonDefaultAPIKey by mutableStateOf(false)
    val hasNonDefaultAPIKey: Boolean
        get() = _hasNonDefaultAPIKey

    fun updateHasNonDefaultAPIKey(hasNonDefaultAPIKey: Boolean) {
        _hasNonDefaultAPIKey = hasNonDefaultAPIKey
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.navigation

import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.stringResource
import androidx.navigation.NavHostController
import androidx.navigation.compose.NavHost
import androidx.navigation.compose.composable
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.R
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.screens.AugmentedRealityScreen
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.screens.MapScreen

@Composable
fun AugmentRealityToShowHiddenInfrastructureNavGraph(
    navController: NavHostController,
    modifier: Modifier = Modifier,
    isLocationPermissionGranted: Boolean
) {
    NavHost(
        navController = navController,
        startDestination = "route_screen",
        modifier = modifier
    ) {
        composable("route_screen") {
            MapScreen(
                sampleName = stringResource(R.string.augment_reality_to_show_hidden_infrastructure_app_name),
                locationPermissionGranted = isLocationPermissionGranted,
                onNavigateToARScreen = { navController.navigate("ar_screen") }
            )

        }
        composable("ar_screen") {
            AugmentedRealityScreen(
                sampleName = stringResource(R.string.augment_reality_to_show_hidden_infrastructure_app_name)
            )
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.screens

import android.content.Context
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Done
import androidx.compose.material.icons.filled.MoreVert
import androidx.compose.material.icons.filled.Settings
import androidx.compose.material3.Button
import androidx.compose.material3.Card
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.DropdownMenu
import androidx.compose.material3.DropdownMenuItem
import androidx.compose.material3.FloatingActionButton
import androidx.compose.material3.Icon
import androidx.compose.material3.IconButton
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.material3.TextButton
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.saveable.rememberSaveable
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.text.LinkAnnotation
import androidx.compose.ui.text.SpanStyle
import androidx.compose.ui.text.TextLinkStyles
import androidx.compose.ui.text.buildAnnotatedString
import androidx.compose.ui.text.withLink
import androidx.compose.ui.unit.dp
import androidx.compose.ui.window.Dialog
import androidx.core.content.edit
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.LoadStatus
import com.arcgismaps.toolkit.ar.WorldScaleSceneView
import com.arcgismaps.toolkit.ar.WorldScaleSceneViewStatus
import com.arcgismaps.toolkit.ar.WorldScaleTrackingMode
import com.arcgismaps.toolkit.ar.rememberWorldScaleSceneViewStatus
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.R
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components.AugmentedRealityViewModel
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components.SharedRepository
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

private const val KEY_PREF_ACCEPTED_PRIVACY_INFO = "ACCEPTED_PRIVACY_INFO"

@Composable
fun AugmentedRealityScreen(sampleName: String) {
    val augmentedRealityViewModel: AugmentedRealityViewModel = viewModel()

    var displayCalibrationView by remember { mutableStateOf(false) }
    var initializationStatus by rememberWorldScaleSceneViewStatus()

    // Initialize the world scale tracking mode based on whether a google API key is provided
    val initialWorldScaleTrackingMode = when {
        SharedRepository.hasNonDefaultAPIKey -> { WorldScaleTrackingMode.Geospatial() }
        else -> { WorldScaleTrackingMode.World() }
    }

    var trackingMode by remember { mutableStateOf(initialWorldScaleTrackingMode) }

    var showDropdownMenu by remember { mutableStateOf(false) }
    var isPipeShadowVisible by remember { mutableStateOf(true) }
    var isLeaderVisible by remember { mutableStateOf(true) }

    val sharedPreferences = LocalContext.current.getSharedPreferences("", Context.MODE_PRIVATE)
    var acceptedPrivacyInfo by rememberSaveable {
        mutableStateOf(
            sharedPreferences.getBoolean(
                KEY_PREF_ACCEPTED_PRIVACY_INFO,
                false
            )
        )
    }
    var showPrivacyInfo by rememberSaveable { mutableStateOf(!acceptedPrivacyInfo) }

    Scaffold(
        topBar = {
            SampleTopAppBar(title = sampleName, actions = {
                var actionsExpanded by remember { mutableStateOf(false) }
                IconButton(onClick = { actionsExpanded = !actionsExpanded }) {
                    Icon(Icons.Default.MoreVert, "More")
                }
                DropdownMenu(
                    expanded = actionsExpanded, onDismissRequest = { actionsExpanded = false }) {
                    DropdownMenuItem(text = { Text("World tracking") }, onClick = {
                        trackingMode = WorldScaleTrackingMode.World()
                        actionsExpanded = false
                    })
                    DropdownMenuItem(text = { Text("Geospatial tracking") }, onClick = {
                        trackingMode = WorldScaleTrackingMode.Geospatial()
                        actionsExpanded = false
                    })
                }
            })
        },
        content = {
            if (showPrivacyInfo) {
                PrivacyInfoDialog(
                    hasCurrentlyAccepted = acceptedPrivacyInfo,
                    onUserResponse = { accepted ->
                        acceptedPrivacyInfo = accepted
                        sharedPreferences.edit { putBoolean(KEY_PREF_ACCEPTED_PRIVACY_INFO, accepted) }
                        showPrivacyInfo = false
                    }
                )
            } else if (!acceptedPrivacyInfo) {
                Column(
                    modifier = Modifier.fillMaxSize(),
                    verticalArrangement = Arrangement.Center,
                    horizontalAlignment = Alignment.CenterHorizontally
                ) {
                    Text(text = "Privacy Info not accepted")
                    Button(onClick = { showPrivacyInfo = true }) {
                        Text(text = "Show Privacy Info")
                    }
                }
            } else {
                Box(
                    modifier = Modifier
                        .fillMaxSize()
                        .padding(it),
                ) {
                    WorldScaleSceneView(
                        modifier = Modifier.fillMaxSize(),
                        arcGISScene = augmentedRealityViewModel.arcGISScene,
                        graphicsOverlays = listOf(
                            augmentedRealityViewModel.pipeGraphicsOverlay,
                            augmentedRealityViewModel.pipeShadowGraphicsOverlay,
                            augmentedRealityViewModel.leaderGraphicsOverlay
                        ),
                        onCurrentViewpointCameraChanged = { camera ->
                            if (camera.location.x != 0.0 && camera.location.y != 0.0) {
                                augmentedRealityViewModel.onCurrentViewpointCameraChanged(camera.location)
                            }
                        },
                        worldScaleSceneViewProxy = augmentedRealityViewModel.worldScaleSceneViewProxy,
                        worldScaleTrackingMode = trackingMode,
                        onInitializationStatusChanged = { status ->
                            initializationStatus = status
                        }) {
                        Box(modifier = Modifier.fillMaxSize()) {
                            if (trackingMode is WorldScaleTrackingMode.World) {
                                if (displayCalibrationView) {
                                    CalibrationView(
                                        onDismiss = { displayCalibrationView = false },
                                        modifier = Modifier.align(Alignment.BottomCenter),
                                    )
                                }
                            }
                        }
                    }
                    WorldScaleSceneViewStatusHandler(
                        initializationStatus = initializationStatus,
                        trackingMode = trackingMode,
                        arcGISSceneLoadStatus = augmentedRealityViewModel.arcGISScene.loadStatus.collectAsStateWithLifecycle().value
                    )
                    if (trackingMode is WorldScaleTrackingMode.Geospatial) {
                        Box(
                            modifier = Modifier
                                .fillMaxWidth()
                                .background(Color.Gray.copy(alpha = 0.5f))
                                .padding(8.dp),
                            contentAlignment = Alignment.Center
                        ) {
                            Text(
                                text = if (augmentedRealityViewModel.isVpsAvailable) {
                                    "VPS available"
                                } else {
                                    "VPS unavailable"
                                },
                                color = Color.White
                            )
                        }
                    }
                }
            }
        },
        floatingActionButton = {
            if (!displayCalibrationView) {
                FloatingActionButtonOptions(
                    showDropdownMenu = showDropdownMenu,
                    isPipeShadowVisible = isPipeShadowVisible,
                    isLeaderVisible = isLeaderVisible,
                    trackingMode = trackingMode,
                    onToggleDropdownMenu = { showDropdownMenu = !showDropdownMenu },
                    onTogglePipeShadowVisibility = {
                        isPipeShadowVisible = !isPipeShadowVisible
                        augmentedRealityViewModel.pipeShadowGraphicsOverlay.isVisible = isPipeShadowVisible
                    },
                    onToggleLeaderVisibility = {
                        isLeaderVisible = !isLeaderVisible
                        augmentedRealityViewModel.leaderGraphicsOverlay.isVisible = isLeaderVisible
                    },
                    onShowCalibrationView = { displayCalibrationView = true }
                )
            }
        }
    )
}

@Composable
private fun PrivacyInfoDialog(
    hasCurrentlyAccepted: Boolean,
    onUserResponse: (accepted: Boolean) -> Unit
) {
    Dialog(onDismissRequest = {
        onUserResponse(hasCurrentlyAccepted)
    }) {
        Card {
            Column(
                modifier = Modifier.padding(16.dp)
            ) {
                LegalTextArCore()
                Spacer(Modifier.height(16.dp))
                LegalTextGeospatial()
                Row(
                    modifier = Modifier.fillMaxWidth(),
                    horizontalArrangement = Arrangement.SpaceBetween
                ) {
                    TextButton(onClick = {
                        onUserResponse(false)
                    }) {
                        Text(text = "Decline")
                    }

                    TextButton(onClick = {
                        onUserResponse(true)
                    }) {
                        Text(text = "Accept")
                    }
                }
            }
        }
    }
}

@Composable
private fun WorldScaleSceneViewStatusHandler(
    initializationStatus: WorldScaleSceneViewStatus,
    trackingMode: WorldScaleTrackingMode,
    arcGISSceneLoadStatus: LoadStatus
) {
    Box(
        modifier = Modifier.fillMaxSize(),
        contentAlignment = Alignment.Center
    ) {
        when (initializationStatus) {
            is WorldScaleSceneViewStatus.Initializing -> {
                TextWithScrim(
                    if (trackingMode is WorldScaleTrackingMode.Geospatial) {
                        "Initializing AR in geospatial mode..."
                    } else {
                        "Initializing AR in world mode..."
                    }
                )
            }

            is WorldScaleSceneViewStatus.Initialized -> {
                when (arcGISSceneLoadStatus) {
                    is LoadStatus.Loading, LoadStatus.NotLoaded -> {
                        CircularProgressIndicator(modifier = Modifier.align(Alignment.Center))
                    }

                    is LoadStatus.FailedToLoad -> {
                        TextWithScrim("Failed to load world scale AR scene: " + arcGISSceneLoadStatus.error)
                    }

                    else -> {}
                }
            }

            is WorldScaleSceneViewStatus.FailedToInitialize -> {
                TextWithScrim(
                    text = "World scale AR failed to initialize: " + (initializationStatus.error.message
                        ?: initializationStatus.error)
                )
            }
        }
    }
}

@Composable
private fun FloatingActionButtonOptions(
    showDropdownMenu: Boolean,
    isPipeShadowVisible: Boolean,
    isLeaderVisible: Boolean,
    trackingMode: WorldScaleTrackingMode,
    onToggleDropdownMenu: () -> Unit,
    onTogglePipeShadowVisibility: () -> Unit,
    onToggleLeaderVisibility: () -> Unit,
    onShowCalibrationView: () -> Unit
) {
    Column {
        FloatingActionButton(
            modifier = Modifier.padding(bottom = 18.dp),
            onClick = onToggleDropdownMenu
        ) {
            Icon(Icons.Default.Settings, contentDescription = "Toggle visibility of shadows and leaders")
        }
        DropdownMenu(
            expanded = showDropdownMenu,
            onDismissRequest = onToggleDropdownMenu
        ) {
            DropdownMenuItem(
                text = { Text("Shadows") },
                leadingIcon = {
                    if (isPipeShadowVisible) {
                        Icon(Icons.Default.Done, contentDescription = "Visible")
                    }
                },
                onClick = onTogglePipeShadowVisibility
            )
            DropdownMenuItem(
                text = { Text("Leaders") },
                leadingIcon = {
                    if (isLeaderVisible) {
                        Icon(Icons.Default.Done, contentDescription = "Visible")
                    }
                },
                onClick = onToggleLeaderVisibility
            )
        }
        if (trackingMode is WorldScaleTrackingMode.World) {
            FloatingActionButton(
                modifier = Modifier
                    .align(Alignment.End)
                    .padding(bottom = 16.dp),
                onClick = onShowCalibrationView
            ) {
                Icon(
                    painter = painterResource(R.drawable.baseline_straighten_24),
                    contentDescription = "Show calibration view"
                )
            }
        }
    }
}

/**
 * Displays the provided [text] on top of a half-transparent gray background.
 */
@Composable
private fun TextWithScrim(text: String) {
    Column(
        modifier = Modifier
            .background(Color.Gray.copy(alpha = 0.5f))
            .fillMaxSize(),
        verticalArrangement = Arrangement.Center,
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Text(text = text)
    }
}

/**
 * Displays the required privacy information for use of ARCore
 */
@Composable
private fun LegalTextArCore() {
    val textLinkStyle =
        TextLinkStyles(style = SpanStyle(color = Color.Blue))
    Text(text = buildAnnotatedString {
        append("This application runs on ")
        withLink(
            LinkAnnotation.Url(
                "https://play.google.com/store/apps/details?id=com.google.ar.core",
                textLinkStyle
            )
        ) {
            append("Google Play Services for AR")
        }
        append("  (ARCore), which is provided by Google and governed by the ")
        withLink(
            LinkAnnotation.Url(
                "https://policies.google.com/privacy",
                textLinkStyle
            )
        ) {
            append("Google Privacy Policy.")
        }
    })
}

/**
 * Displays the required privacy information for use of the Geospatial API
 */
@Composable
private fun LegalTextGeospatial() {
    Text(text = buildAnnotatedString {
        append("To power this session, Google will process sensor data (e.g., camera and location).")
        appendLine()
        withLink(
            LinkAnnotation.Url(
                "https://support.google.com/ar?p=how-google-play-services-for-ar-handles-your-data",
                TextLinkStyles(style = SpanStyle(color = Color.Blue))
            )
        ) {
            append("Learn more")
        }
    })
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.screens

import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.material3.AlertDialog
import androidx.compose.material3.Button
import androidx.compose.material3.Icon
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Slider
import androidx.compose.material3.Text
import androidx.compose.material3.TextButton
import androidx.compose.runtime.Composable
import androidx.compose.runtime.LaunchedEffect
import androidx.compose.runtime.collectAsState
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableFloatStateOf
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.clip
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.unit.dp
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.location.LocationDisplayAutoPanMode
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.arcgismaps.toolkit.geoviewcompose.rememberLocationDisplay
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.R
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components.MapViewModel
import com.esri.arcgismaps.sample.augmentrealitytoshowhiddeninfrastructure.components.SharedRepository
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar
import kotlin.math.roundToInt

/**
 * Main screen layout for the sample app
 */
@Composable
fun MapScreen(sampleName: String, locationPermissionGranted: Boolean, onNavigateToARScreen: () -> Unit) {

    val mapViewModel: MapViewModel = viewModel()

    // Initialize the location display with auto pan mode set to recenter
    val locationDisplay = rememberLocationDisplay().apply {
        setAutoPanMode(LocationDisplayAutoPanMode.Recenter)
    }
    var isViewmodelInitialized by remember { mutableStateOf(false) }
    LaunchedEffect(isViewmodelInitialized) {
        if (!isViewmodelInitialized && locationPermissionGranted) {
            mapViewModel.initialize(locationDisplay)
            isViewmodelInitialized = true
        }
    }

    val isGeometryBeingEdited by remember { mutableStateOf(mapViewModel.isGeometryBeingEdited) }
    val canUndo by mapViewModel.geometryEditor.canUndo.collectAsState()
    val showElevationDialog = mapViewModel.showElevationDialog
    val pipeInfoList = SharedRepository.pipeInfoList

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) }, content = {
            Box(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(it),
            ) {
                MapView(
                    modifier = Modifier.fillMaxSize(),
                    arcGISMap = mapViewModel.arcGISMap,
                    locationDisplay = locationDisplay,
                    geometryEditor = mapViewModel.geometryEditor,
                    graphicsOverlays = listOf(mapViewModel.graphicsOverlay),
                    onSingleTapConfirmed = {
                        if (!mapViewModel.geometryEditor.isStarted.value) {
                            mapViewModel.startPolylineEditing()
                        }
                    }
                )
                if (mapViewModel.statusText != "") {
                    Box(
                        modifier = Modifier
                            .align(Alignment.TopCenter)
                            .padding(8.dp)
                            .clip(RoundedCornerShape(10.dp))
                            .background(Color.Black.copy(alpha = 0.8f))
                            .padding(16.dp)
                    ) {
                        Text(
                            text = mapViewModel.statusText, color = Color.White
                        )
                    }
                }
                Box(
                    modifier = Modifier
                        .fillMaxSize()
                        .padding(bottom = 24.dp),
                    contentAlignment = Alignment.BottomCenter
                ) {
                    Column(
                        horizontalAlignment = Alignment.CenterHorizontally
                    ) {
                        Row(
                            horizontalArrangement = Arrangement.spacedBy(8.dp)
                        ) {
                            // Allow undoing of last vertex while editing geometry
                            if (canUndo) {
                                Button (onClick = { mapViewModel.geometryEditor.undo() }) {
                                    Icon(
                                        painter = painterResource(R.drawable.baseline_undo_24),
                                        contentDescription = "Close button"
                                    )
                                }
                            }
                            // Complete polyline once enough vertices have been added
                            if (isGeometryBeingEdited.value) {
                                Button(onClick = { mapViewModel.completePolyline() }) {
                                    Text("Complete polyline")
                                }
                            }
                            // Clear all polyline graphics and start over
                            if (mapViewModel.graphicsOverlay.graphics.isNotEmpty()) {
                                Button(onClick = {
                                    mapViewModel.graphicsOverlay.graphics.clear()
                                    mapViewModel.startPolylineEditing()
                                    SharedRepository.pipeInfoList.clear()
                                }) {
                                    Text("Clear polylines")
                                }
                            }
                        }
                        if (pipeInfoList.isNotEmpty()) {
                            Button(
                                onClick = onNavigateToARScreen,
                                modifier = Modifier.padding(top = 8.dp)
                            ) {
                                Text("Show hidden infrastructure in AR")
                            }
                        }
                    }
                }
            }
        }
    )

    if (showElevationDialog) {
        var elevationInput by remember { mutableFloatStateOf(mapViewModel.elevationInput) }
        AlertDialog(
            onDismissRequest = { },
            title = { Text("Elevation offset") },
            text = {
                Column {
                    Text("Enter a pipe elevation offset in meters between -10 and 10.")
                    Slider(
                        value = elevationInput,
                        onValueChange = { elevationInput = it },
                        valueRange = -10f..10f,
                        steps = 19
                    )
                    Text(modifier = Modifier.align(Alignment.End), text = "${elevationInput.roundToInt()} m")
                }
            },
            confirmButton = {
                TextButton(onClick = {
                    mapViewModel.onElevationConfirmed(elevationInput)
                }) {
                    Text("Confirm")
                }
            },
        )
    }
}
