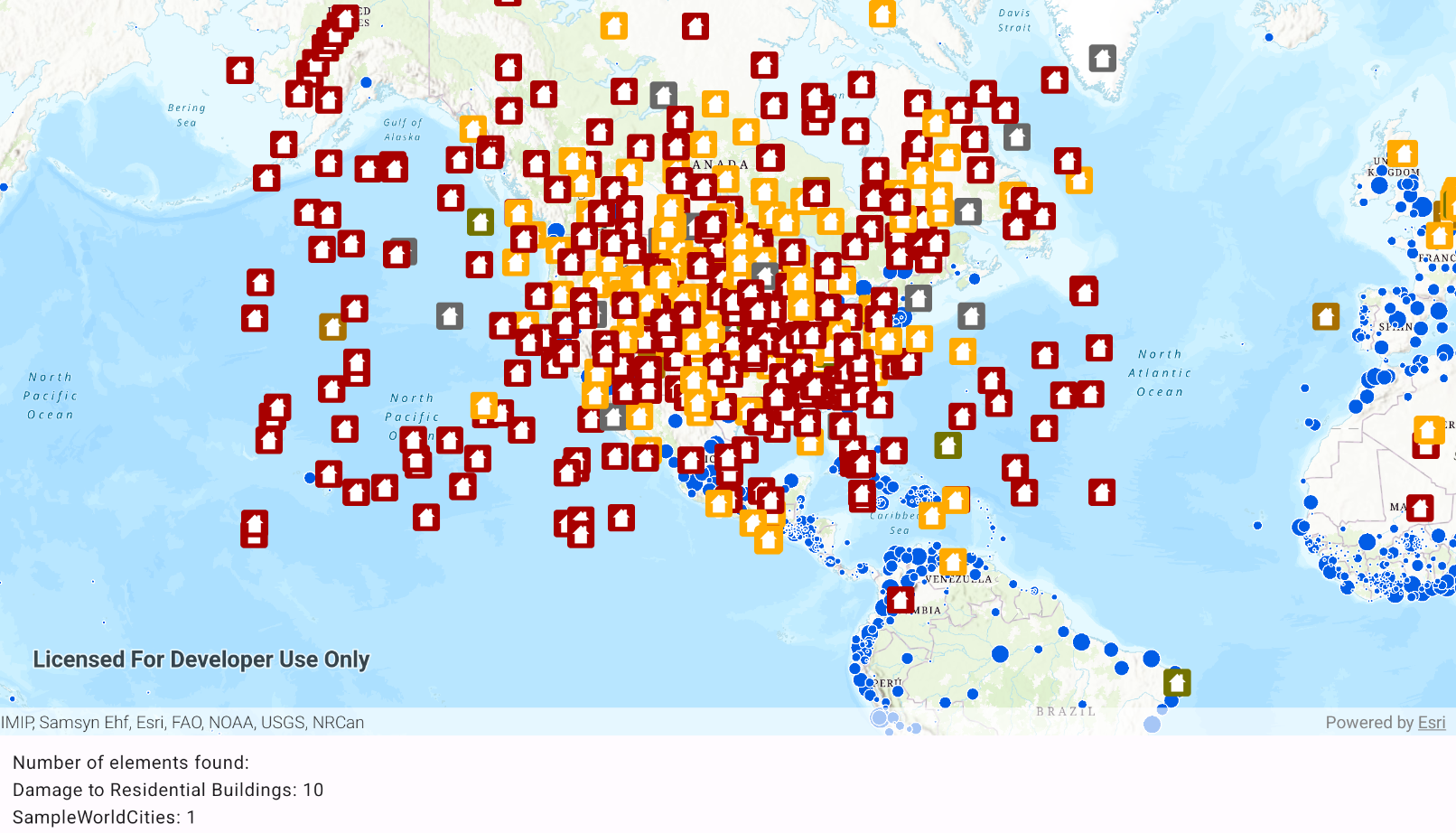

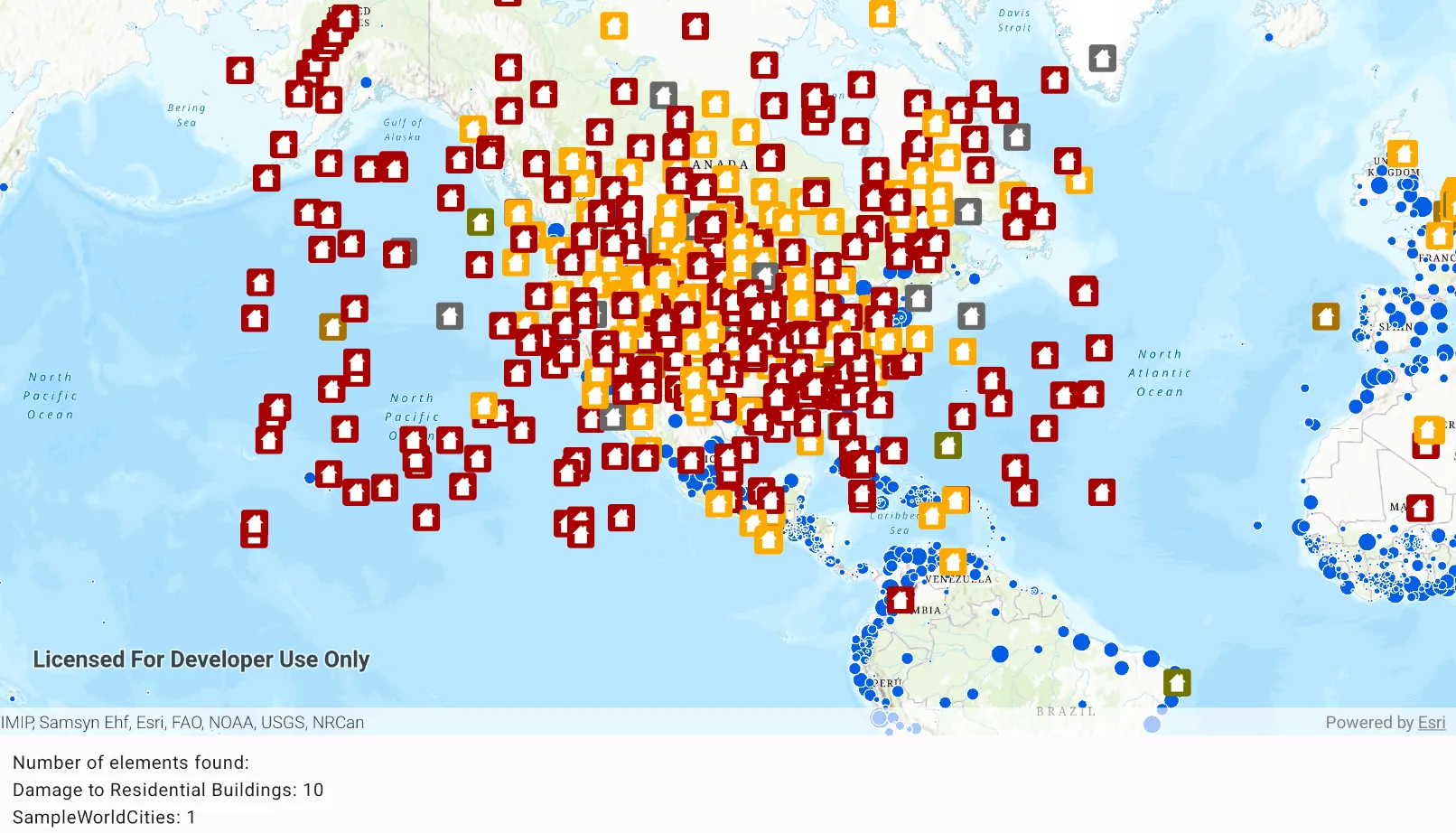

Identify layer features

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.identifylayerfeatures

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.identifylayerfeatures.screens.MainScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                IdentifyLayerFeaturesApp()
            }
        }
    }

    @Composable
    private fun IdentifyLayerFeaturesApp() {
        Surface(
            color = MaterialTheme.colorScheme.background
        ) {
            MainScreen(
                sampleName = getString(R.string.identify_layer_features_app_name)
            )
        }
    }
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.identifylayerfeatures.screens

import android.app.Application
import androidx.compose.animation.animateContentSize
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.remember
import androidx.compose.runtime.rememberCoroutineScope
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.unit.dp
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.esri.arcgismaps.sample.identifylayerfeatures.components.MapViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

/**
 * Main screen layout for the sample app
 */
@Composable
fun MainScreen(sampleName: String) {
    // coroutineScope that will be cancelled when this call leaves the composition
    val sampleCoroutineScope = rememberCoroutineScope()
    // get the application property that will be used to construct MapViewModel
    val sampleApplication = LocalContext.current.applicationContext as Application
    // create a ViewModel to handle MapView interactions
    val mapViewModel = remember { MapViewModel(sampleApplication, sampleCoroutineScope) }
    // create a Viewpoint


    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = {
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(it)
            ) {
                MapView(
                    modifier = Modifier
                        .fillMaxSize()
                        .weight(1f)
                        .animateContentSize(),
                    arcGISMap = mapViewModel.map,
                    mapViewProxy = mapViewModel.mapViewProxy,
                    onSingleTapConfirmed = mapViewModel::identify
                )
                // Bottom text to display the identify results
                Row(
                    modifier = Modifier
                        .padding(12.dp)
                        .fillMaxWidth()
                        .animateContentSize()
                ) {
                    Text(text = mapViewModel.bottomTextBanner.value)
                }
                // display a dialog if the sample encounters an error
                mapViewModel.messageDialogVM.apply {
                    if (dialogStatus) {
                        MessageDialog(
                            title = messageTitle,
                            description = messageDescription,
                            onDismissRequest = ::dismissDialog
                        )
                    }
                }
            }
        }
    )
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.identifylayerfeatures.components

import android.app.Application
import androidx.compose.runtime.mutableStateOf
import androidx.compose.ui.unit.dp
import androidx.lifecycle.AndroidViewModel
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.ArcGISMapImageLayer
import com.arcgismaps.mapping.layers.FeatureLayer.Companion.createWithFeatureTable
import com.arcgismaps.mapping.view.IdentifyLayerResult
import com.arcgismaps.mapping.view.SingleTapConfirmedEvent
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.identifylayerfeatures.R
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.CoroutineScope
import kotlinx.coroutines.launch

class MapViewModel(
    application: Application,
    private val sampleCoroutineScope: CoroutineScope
) : AndroidViewModel(application) {

    // create a map using the topographic basemap style
    val map: ArcGISMap = ArcGISMap(BasemapStyle.ArcGISTopographic)

    // create a mapViewProxy that will be used to identify features in the MapView
    // should also be passed to the composable MapView this mapViewProxy is associated with
    val mapViewProxy = MapViewProxy()

    // create a ViewModel to handle dialog interactions
    val messageDialogVM: MessageDialogViewModel = MessageDialogViewModel()

    // string text to display the identify layer results
    val bottomTextBanner = mutableStateOf("Tap on the map to identify feature layers")

    init {
        // create a feature layer of damaged property data
        val featureTable = ServiceFeatureTable(application.getString(R.string.damage_assessment))
        val featureLayer = createWithFeatureTable(featureTable)

        // create a layer with world cities data
        val mapImageLayer = ArcGISMapImageLayer(application.getString(R.string.world_cities))
        sampleCoroutineScope.launch {
            mapImageLayer.load().onSuccess {
                mapImageLayer.apply {
                    subLayerContents.value[1].isVisible = false
                    subLayerContents.value[2].isVisible = false
                }
            }.onFailure { error ->
                // show the message dialog and pass the error message to be displayed in the dialog
                messageDialogVM.showMessageDialog(error.message.toString(), error.cause.toString())
            }
        }

        // add the world cities layer with and the damaged properties feature layer
        map.apply {
            // set initial Viewpoint to North America
            initialViewpoint = Viewpoint(39.8, -98.6, 5e7)
            operationalLayers.addAll(listOf(mapImageLayer, featureLayer))
        }

    }

    /**
     * Identify the feature layer results and display the resulting information
     */
    private fun handleIdentifyResult(result: Result<List<IdentifyLayerResult>>) {
        sampleCoroutineScope.launch {
            result.onSuccess { identifyResultList ->
                val message = StringBuilder()
                var totalCount = 0
                identifyResultList.forEach { identifyLayerResult ->
                    val geoElementsCount = geoElementsCountFromResult(identifyLayerResult)
                    val layerName = identifyLayerResult.layerContent.name
                    message.append(layerName).append(": ").append(geoElementsCount)

                    // add new line character if not the final element in array
                    if (identifyLayerResult != identifyResultList[identifyResultList.size - 1]) {
                        message.append("\n")
                    }
                    totalCount += geoElementsCount
                }
                // if any elements were found show the results, else notify user that no elements were found
                if (totalCount > 0) {
                    bottomTextBanner.value = "Number of elements found:\n${message}"
                } else {
                   bottomTextBanner.value = "Number of elements found: N/A"
                    messageDialogVM.showMessageDialog(
                        title = "No element found",
                        description = "Tap an area on the map with visible features"
                    )
                }
            }.onFailure { error ->
                messageDialogVM.showMessageDialog(
                    title = "Error identifying results: ${error.message.toString()}",
                    description = error.cause.toString()
                )
            }
        }
    }

    /**
     * Gets a count of the GeoElements in the passed result layer.
     * This method recursively calls itself to descend into sublayers and count their results.
     * @param result from a single layer.
     * @return the total count of GeoElements.
     */
    private fun geoElementsCountFromResult(result: IdentifyLayerResult): Int {
        var subLayerGeoElementCount = 0
        for (sublayerResult in result.sublayerResults) {
            // recursively call this function to accumulate elements from all sublayers
            subLayerGeoElementCount += geoElementsCountFromResult(sublayerResult)
        }
        return subLayerGeoElementCount + result.geoElements.size
    }

    /**
     * Identifies the tapped screen coordinate in the provided [singleTapConfirmedEvent]
     */
    fun identify(singleTapConfirmedEvent: SingleTapConfirmedEvent) {
        sampleCoroutineScope.launch {
            // identify the layers on the tapped coordinate
            val identifyResult = mapViewProxy.identifyLayers(
                screenCoordinate = singleTapConfirmedEvent.screenCoordinate,
                tolerance = 12.dp,
                maximumResults = 10
            )
            // use the layer result to display feature information
            handleIdentifyResult(identifyResult)
        }
    }
}
