Query feature table

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.queryfeaturetable

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.queryfeaturetable.screens.MainScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                QueryFeatureTableApp()
            }
        }
    }

    @Composable
    private fun QueryFeatureTableApp() {
        Surface(
            color = MaterialTheme.colorScheme.background
        ) {
            MainScreen(
                sampleName = getString(R.string.query_feature_table_app_name)
            )
        }
    }
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.queryfeaturetable.components

import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue
import androidx.lifecycle.AndroidViewModel
import com.arcgismaps.Color
import com.arcgismaps.data.FeatureQueryResult
import com.arcgismaps.data.QueryParameters
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleRenderer
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.queryfeaturetable.R
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.CoroutineScope
import kotlinx.coroutines.launch
import java.util.Locale

class MapViewModel(
    application: Application,
    private val sampleCoroutineScope: CoroutineScope
) : AndroidViewModel(application) {

    // create a ViewModel to handle dialog interactions
    val messageDialogVM: MessageDialogViewModel = MessageDialogViewModel()

    // create a service feature table and a feature layer from it
    private val serviceFeatureTable: ServiceFeatureTable = ServiceFeatureTable(
        application.getString(R.string.us_daytime_population_url)
    )

    // create the feature layer using the service feature table
    private val featureLayer: FeatureLayer by lazy {
        FeatureLayer.createWithFeatureTable(serviceFeatureTable)
    }

    // map used to display the feature layer
    val map = ArcGISMap(BasemapStyle.ArcGISTopographic)

    private var usaViewpoint = Viewpoint(
        center = Point(-11e6, 5e6, SpatialReference.webMercator()),
        scale = 1e8
    )

    // create a MapViewProxy to handle MapView operations
    var mapViewProxy by mutableStateOf(MapViewProxy())

    init {

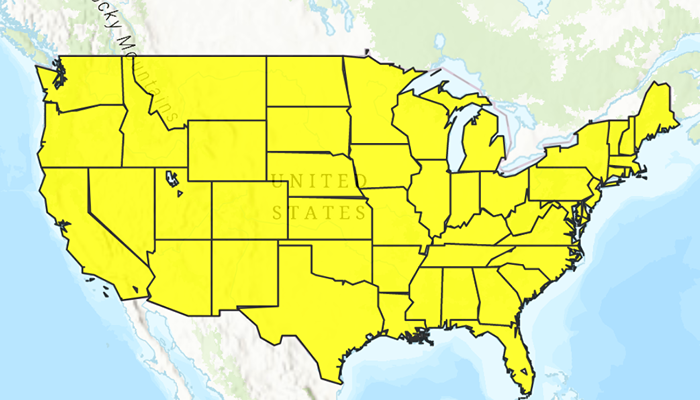

        // use symbols to show U.S. states with a black outline and yellow fill
        val lineSymbol = SimpleLineSymbol(
            style = SimpleLineSymbolStyle.Solid,
            color = Color.black,
            width = 1.0f
        )
        val fillSymbol = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(255, 255, 0, 255),
            outline = lineSymbol
        )

        // set featurelayer properties
        featureLayer.apply {
            // set renderer for the feature layer
            renderer = SimpleRenderer(fillSymbol)
            opacity = 0.8f
            maxScale = 10000.0
        }
        // add the feature layer to the map's operational layers
        map.apply {
            initialViewpoint = usaViewpoint
            operationalLayers.add(featureLayer)
        }
    }

    /**
     * Search for a U.S. state using [searchQuery] in the feature table, and if found add it
     * to the featureLayer, zoom to it, and select it.
     */
    fun searchForState(searchQuery: String) {
        // clear any previous selections
        featureLayer.clearSelection()
        // create a query for the state that was entered
        val queryParameters = QueryParameters().apply {
            // make search case insensitive
            whereClause = ("upper(STATE_NAME) LIKE '%" + searchQuery.uppercase(Locale.US) + "%'")
        }

        sampleCoroutineScope.launch {
            // call select features
            val featureQueryResult = serviceFeatureTable.queryFeatures(queryParameters).getOrElse {
                messageDialogVM.showMessageDialog(it.message.toString(), it.cause.toString())
            } as FeatureQueryResult

            val feature = featureQueryResult.firstOrNull()
            if (feature != null) {
                // select the feature
                featureLayer.selectFeature(feature)
                // get the extent of the first feature in the result to zoom to
                val envelope = feature.geometry?.extent
                    ?: return@launch messageDialogVM.showMessageDialog("Error retrieving geometry extent")
                // update the map's viewpoint to the feature's geometry
                mapViewProxy.setViewpointGeometry(envelope)
            } else {
                messageDialogVM.showMessageDialog("No states found with name: $searchQuery")
            }
        }
    }
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.queryfeaturetable.screens

import android.app.Application
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Scaffold
import androidx.compose.runtime.Composable
import androidx.compose.runtime.remember
import androidx.compose.runtime.rememberCoroutineScope
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.esri.arcgismaps.sample.queryfeaturetable.components.MapViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

/**
 * Main screen layout for the sample app
 */
@Composable
fun MainScreen(sampleName: String) {
    // coroutineScope that will be cancelled when this call leaves the composition
    val sampleCoroutineScope = rememberCoroutineScope()
    // get the application context
    val application = LocalContext.current.applicationContext as Application
    // create a ViewModel to handle MapView interactions
    val mapViewModel = remember { MapViewModel(application, sampleCoroutineScope) }

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = {
            Column(modifier = Modifier
                .fillMaxSize()
                .padding(it)) {
                // composable function that wraps the MapView
                MapView(
                    modifier = Modifier
                        .fillMaxWidth()
                        .weight(1f),
                    arcGISMap = mapViewModel.map,
                    mapViewProxy = mapViewModel.mapViewProxy
                )
                SearchBar(
                    modifier = Modifier.fillMaxWidth(),
                    onQuerySubmit = mapViewModel::searchForState
                )
            }

            mapViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    // display a dialog if the sample encounters an error
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.queryfeaturetable.screens

import android.content.res.Configuration
import android.view.KeyEvent
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.text.KeyboardActions
import androidx.compose.foundation.text.KeyboardOptions
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Close
import androidx.compose.material3.Icon
import androidx.compose.material3.IconButton
import androidx.compose.material3.OutlinedTextField
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.saveable.rememberSaveable
import androidx.compose.runtime.setValue
import androidx.compose.ui.Modifier
import androidx.compose.ui.focus.FocusRequester
import androidx.compose.ui.focus.focusRequester
import androidx.compose.ui.input.key.onKeyEvent
import androidx.compose.ui.platform.LocalFocusManager
import androidx.compose.ui.text.input.ImeAction
import androidx.compose.ui.text.input.KeyboardType
import androidx.compose.ui.tooling.preview.Preview

@Composable
fun SearchBar(
    modifier: Modifier = Modifier,
    onQuerySubmit: (String) -> Unit
) {
    // query text typed in OutlinedTextField
    var text by rememberSaveable { mutableStateOf("") }
    // remember the OutlinedTextField's focus requester to change focus on search
    val focusRequester = remember { FocusRequester() }
    // focus manager is used to clear focus from OutlinedTextField on search
    val focusManager = LocalFocusManager.current

    Row(modifier) {
        OutlinedTextField(
            modifier = modifier.focusRequester(focusRequester).onKeyEvent {
                // submit query when enter is tapped
                if (it.nativeKeyEvent.keyCode == KeyEvent.KEYCODE_ENTER) {
                    onQuerySubmit(text)
                    focusManager.clearFocus()
                }
                false
            },
            value = text,
            maxLines = 1,
            singleLine = true,
            onValueChange = { text = it.lines()[0] },
            label = { Text("Search for a US state") },
            keyboardOptions = KeyboardOptions(
                keyboardType = KeyboardType.Text,
                imeAction = ImeAction.Search
            ),
            keyboardActions = KeyboardActions(
                onSearch = {
                    onQuerySubmit(text)
                    focusManager.clearFocus()
                },
            ),
            trailingIcon = {
                IconButton(onClick = {
                    text = ""
                    focusManager.clearFocus()
                }) {
                    Icon(
                        Icons.Filled.Close,
                        contentDescription = "ClearIcon"
                    )
                }
            },
        )
    }

}

@Preview(showBackground = true)
@Preview(uiMode = Configuration.UI_MODE_NIGHT_YES, showBackground = true)
@Composable
fun PreviewSearchBar() {
    SearchBar(onQuerySubmit = {})
}
