Show location history

View inMAUIUWPWPFWinUIView on GitHubSample viewer app

Display your location history on the map.

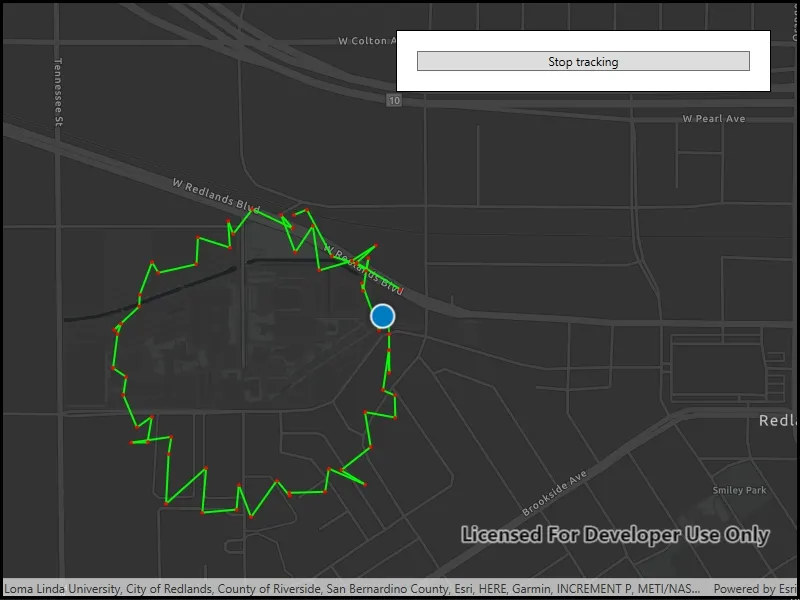

Image of show location history

Use case

You can track device location history and display it as lines and points on the map. The history can be used to visualize how the user moved through the world, to retrace their steps, or to create new feature geometry. An unmapped trail, for example, could be added to the map using this technique.

How to use the sample

Click 'Start tracking' to start tracking your location, which will appear as points on the map. A line will connect the points for easier visualization. Click 'Stop tracking' to stop updating the location history. This sample uses a simulated data source to allow the sample to be useful on desktop/non-mobile devices. To track a user's real position, use the SystemLocationDataSource instead.

How it works

  1. If necessary, request location permission from the operating system.
  2. Create a graphics overlay to show each point and another graphics overlay for displaying the route line.
  3. Create a SimulatedLocationDataSource and initialize it with a polyline. Start the SimulatedLocationDataSource to begin receiving location updates.
  • NOTE: To track a user's real position, use SystemLocationDataSource instead.
  1. Subscribe to the LocationChanged event to handle location updates.
  2. Every time the location updates, store that location, display a point on the map, and recreate the route line.

Relevant API

  • Location.Position
  • LocationDataSource
  • LocationDataSource.LocationChanged
  • LocationDataSource.UpdateLocation
  • LocationDisplay.AutoPanMode
  • LocationDisplay.DataSource
  • LocationDisplay.IsEnabled
  • MapView.LocationDisplay
  • SimulatedLocationDataSource

About the data

A custom set of points is used to create a Polyline and initialize a SimulatedLocationDataSource. This simulated location data source enables easier testing and allows the sample to be used on devices without an actively updating GPS signal.

Tags

bread crumb, breadcrumb, GPS, history, movement, navigation, real-time, trace, track, trail

Sample Code

ShowLocationHistory.xaml.csShowLocationHistory.xaml.csShowLocationHistory.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Location;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using System;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.ShowLocationHistory
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Show location history",
        category: "Location",
        description: "Display your location history on the map.",
        instructions: "Click 'Start tracking' to start tracking your location, which will appear as points on the map. A line will connect the points for easier visualization. Click 'Stop tracking' to stop updating the location history. This sample uses a simulated data source to allow the sample to be useful on desktop/non-mobile devices. To track a user's real position, use the `SystemLocationDataSource` instead.",
        tags: new[] { "GPS", "bread crumb", "breadcrumb", "history", "movement", "navigation", "real-time", "trace", "track", "trail" })]
    public partial class ShowLocationHistory
    {
        // Track whether location tracking is enabled.
        private bool _isTrackingEnabled;

        // Location data source provides location data updates.
        private LocationDataSource _locationDataSource;

        // Graphics overlay to display the location history (points).
        private GraphicsOverlay _locationHistoryOverlay;

        // Graphics overlay to display the line created by the location points.
        private GraphicsOverlay _locationHistoryLineOverlay;

        // Polyline builder to more efficiently manage large location history graphic.
        private PolylineBuilder _polylineBuilder;

        // Track previous location to ensure the route line appears behind the animating location symbol.
        private MapPoint _lastPosition;

        public ShowLocationHistory()
        {
            InitializeComponent();
            Initialize();
        }

        private void Initialize()
        {
            // Add event handler for when this sample is unloaded.
            Unloaded += SampleUnloaded;

            // Create new Map with basemap.
            Map myMap = new Map(BasemapStyle.ArcGISDarkGray);

            // Display the map.
            MyMapView.Map = myMap;

            // Create and add graphics overlay for displaying the trail.
            _locationHistoryLineOverlay = new GraphicsOverlay();
            SimpleLineSymbol locationLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, System.Drawing.Color.Lime, 2);
            _locationHistoryLineOverlay.Renderer = new SimpleRenderer(locationLineSymbol);
            MyMapView.GraphicsOverlays.Add(_locationHistoryLineOverlay);

            // Create and add graphics overlay for showing points.
            _locationHistoryOverlay = new GraphicsOverlay();
            SimpleMarkerSymbol locationPointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Circle, System.Drawing.Color.Red, 3);
            _locationHistoryOverlay.Renderer = new SimpleRenderer(locationPointSymbol);
            MyMapView.GraphicsOverlays.Add(_locationHistoryOverlay);

            // Create the polyline builder.
            _polylineBuilder = new PolylineBuilder(SpatialReferences.WebMercator);

            // Start location services.
            _ = HandleLocationReady();
        }

        private async Task HandleLocationReady()
        {
            // Create a polyline of mock data.
            var simulatedLocations = (Polyline)Geometry.FromJson("{\"paths\":[[[-13185646.046666779,4037971.5966668758],[-13185586.780000051,4037827.6633333955], [-13185514.813333312,4037709.1299999417],[-13185569.846666701,4037522.8633330846], [-13185591.01333339,4037378.9299996048],[-13185629.113333428,4037283.6799995075], [-13185770.93000024,4037425.4966663187],[-13185821.730000293,4037546.146666442], [-13185880.996667018,4037704.8966666036],[-13185948.730000421,4037874.2300001099], [-13185974.130000448,4037946.1966668498],[-13186120.180000596,4037958.896666863], [-13186264.113334076,4037984.296666889],[-13186336.080000836,4038001.2300002342], [-13186314.91333415,4037757.8133333195],[-13186272.580000773,4037560.9633331187], [-13186187.913334005,4037463.59666635],[-13186431.33000092,4037404.3299996229], [-13186676.863334503,4037290.0299995062],[-13187625.130002158,4038589.6633341513], [-13187333.030001862,4038756.8800009824],[-13187091.730001617,4038617.1800008402], [-13186791.163334643,4038805.5633343654],[-13186721.313334571,4038801.3300010278], [-13186833.49666802,4038195.9633337436],[-13186977.677439401,4037699.8176972247], [-13186784.921301765,4037820.4541915278],[-13186749.517113185,4038150.8932846226], [-13186649.860878762,4038288.5762400767],[-13186556.760975549,4038323.9804286221], [-13186472.839936033,4038481.3323777127],[-13186373.183701571,4038489.1999751539], [-13186344.335844241,4038242.6819215398],[-13186126.665647998,4038308.245233661], [-13185814.584282301,4038358.0733508728],[-13185651.987268206,4038116.8003622484], [-13185203.534213299,4038048.6145176427],[-13184576.748949422,4038150.8932845518], [-13184251.55492135,4037833.5668537691],[-13184146.653621957,4037524.1080205571], [-13183949.963685593,4037621.1417224966],[-13183687.71043711,4037781.1162040718], [-13183480.530370807,4037875.5273735262],[-13182307.629999243,4037859.7460188437], [-13181376.039484169,4037820.9297473822],[-13180716.162869323,4038364.3575478429], [-13180182.439136729,4038810.7446696493],[-13178474.523192419,4040237.2426458625], [-13178321.134040033,4039740.6894803117],[-13177958.020228144,4039140.1550991111], [-13177073.512224896,4037459.5898928214],[-13177757.842101147,4037589.9384406791], [-13178386.308314031,4037799.427178307],[-13180095.012208173,4037811.6550856642], [-13180126.165447287,4036845.9046731163],[-13179806.844746364,4036324.0879179495], [-13180928.361354485,4035887.9425703473],[-13181598.155995468,4035428.432293402], [-13182984.47513606,4034447.105261297],[-13182229.264383668,4033222.8051626245], [-13182058.735615831,4033339.8690072047],[-13181939.035180708,4033691.2477038498], [-13182116.65518121,4033861.1450956347],[-13181792.305615077,4034085.1007484416], [-13182027.845180977,4034467.3698799671],[-13181877.254310986,4034644.9898804692], [-13181630.130832028,4034517.5668366305],[-13181386.868657427,4034424.8955320208], [-13181228.555178719,4034652.7124891868],[-13181379.14604871,4034942.3103160923], [-13181267.168222306,4035189.4337950516],[-13181074.103004368,4035015.6750989081], [-13180807.673003616,4034934.5877073747],[-13180618.469090037,4034814.8872722536], [-13180599.162568243,4035374.7764042714],[-13181047.073873857,4035494.476839392], [-13181317.365178969,4035413.3894478586],[-13180765.198655669,4035143.0981427468], [-13180328.871263131,4034892.1133594285],[-13180270.951697765,4035258.9372735149], [-13180325.009958787,4035718.4324922049],[-13180707.279090302,4035695.2646660525], [-13181413.897788007,4035536.9511873648],[-13181618.54691902,4035807.2424924765], [-13181884.976919774,4036065.949884512],[-13182159.129529245,4035861.3007534989], [-13182174.57474668,4035668.2355355616],[-13182417.83692128,4035664.374231203], [-13182784.660835361,4035409.5281435261],[-13182997.032575091,4035255.0759691764], [-13182618.624747934,4034679.7416197238]]], \"spatialReference\":{\"wkid\":102100,\"latestWkid\":3857}}");

            // Create a simulated location data source using the mock data.
            var parameters = new SimulationParameters(DateTimeOffset.Now, 150);
            var simulatedSource = new SimulatedLocationDataSource();
            simulatedSource.SetLocationsWithPolyline(simulatedLocations, parameters);

            // Set the location data source to the simulated source.
            _locationDataSource = simulatedSource;
            // Use this instead if you want real location: _locationDataSource = new SystemLocationDataSource();

            try
            {
                // Start the data source.
                await _locationDataSource.StartAsync();

                if (_locationDataSource.Status == LocationDataSourceStatus.Started)
                {
                    // Set the location display data source and enable location display.
                    MyMapView.LocationDisplay.DataSource = _locationDataSource;
                    MyMapView.LocationDisplay.IsEnabled = true;
                    MyMapView.LocationDisplay.AutoPanMode = LocationDisplayAutoPanMode.Recenter;
                    MyMapView.LocationDisplay.InitialZoomScale = 10000;

                    // Enable the button to start location tracking.
                    LocationTrackingButton.IsEnabled = true;
                }
                else
                {
                    ShowMessage("There was a problem enabling location", "Error");
                }
            }
            catch (Exception e)
            {
                System.Diagnostics.Debug.WriteLine(e);
                ShowMessage("There was a problem enabling location", "Error");
            }
        }

        private void ToggleLocationTracking()
        {
            // Toggle location tracking.
            _isTrackingEnabled = !_isTrackingEnabled;

            // Apply new configuration.
            if (_isTrackingEnabled)
            {
                // Configure new symbology first.
                _locationDataSource.LocationChanged += LocationDataSourceOnLocationChanged;

                // Update the UI.
                LocationTrackingButton.Content = "Stop tracking";
            }
            else
            {
                // Stop updating.
                _locationDataSource.LocationChanged -= LocationDataSourceOnLocationChanged;

                // Update the UI.
                LocationTrackingButton.Content = "Start tracking";
            }
        }

        private void LocationDataSourceOnLocationChanged(object sender, Location e)
        {
            // Remove the old line.
            _locationHistoryLineOverlay.Graphics.Clear();

            // Add any previous position to the history.
            if (_lastPosition != null)
            {
                _polylineBuilder.AddPoint(_lastPosition);
                _locationHistoryOverlay.Graphics.Add(new Graphic(_lastPosition));
            }

            // Store the current position.
            _lastPosition = e.Position;

            // Add the updated line.
            _locationHistoryLineOverlay.Graphics.Add(new Graphic(_polylineBuilder.ToGeometry()));
        }

        private void LocationTrackingButton_OnClick(object sender, RoutedEventArgs e) => ToggleLocationTracking();

        private void ShowMessage(string title, string detail) => MessageBox.Show(detail, title);

        private void SampleUnloaded(object sender, RoutedEventArgs e)
        {
            // Stop the location data source.
            MyMapView.LocationDisplay?.DataSource?.StopAsync();
        }
    }
}
