Create terrain surface from a local raster

View inMAUIUWPWPFWinUIView on GitHub

Set the terrain surface with elevation described by a raster file.

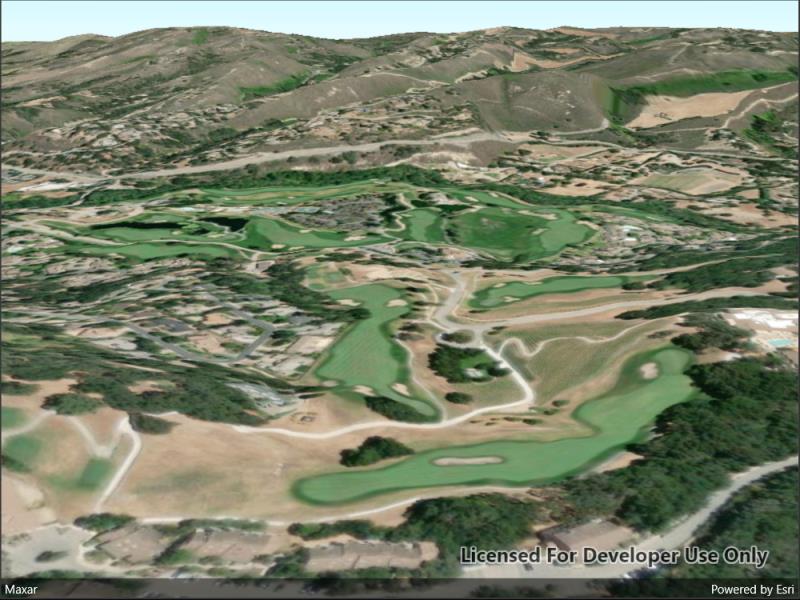

Image of create terrain surface from local raster

Use case

In a scene view, the terrain surface is what the basemap, operational layers, and graphics are draped onto. For example, when viewing a scene in a mountainous region, applying a terrain surface to the scene will help in recognizing the slopes, valleys, and elevated areas.

How to use the sample

When loaded, the sample will show a scene with a terrain surface applied. Pan and zoom to explore the scene and observe how the terrain surface allows visualizing elevation differences.

How it works

  1. Create a Scene and add it to a SceneView.
  2. Create a RasterElevationSource with a list of raster file paths.
  3. Add this source to the scene's base surface: Scene.BaseSurface.ElevationSources.Add(rasterElevationSource).

Relevant API

  • RasterElevationSource
  • Surface

Additional information

Supported raster formats include:

  • ASRP/USRP
  • CIB1, 5, 10
  • DTED0, 1, 2
  • GeoTIFF
  • HFA
  • HRE
  • IMG
  • JPEG
  • JPEG 2000
  • NITF
  • PNG
  • RPF
  • SRTM1, 2

Tags

3D, elevation, raster, surface, terrain

Sample Code

CreateTerrainSurfaceRaster.xaml.csCreateTerrainSurfaceRaster.xaml.csCreateTerrainSurfaceRaster.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Mapping;

namespace ArcGIS.Samples.CreateTerrainSurfaceRaster
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Create terrain surface from a local raster",
        category: "Scene",
        description: "Set the terrain surface with elevation described by a raster file.",
        instructions: "When loaded, the sample will show a scene with a terrain surface applied. Pan and zoom to explore the scene and observe how the terrain surface allows visualizing elevation differences.",
        tags: new[] { "3D", "elevation", "raster", "surface", "terrain" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("98092369c4ae4d549bbbd45dba993ebc")]
    public partial class CreateTerrainSurfaceRaster : ContentPage
    {
        public CreateTerrainSurfaceRaster()
        {
            InitializeComponent();
            Initialize();
        }

        private void Initialize()
        {
            // Create the scene.
            MySceneView.Scene = new Scene(BasemapStyle.ArcGISImageryStandard);

            // Get the path to the elevation raster.
            string packagePath = DataManager.GetDataFolder("98092369c4ae4d549bbbd45dba993ebc", "MontereyElevation.dt2");

            // Create the elevation source from a list of paths.
            RasterElevationSource elevationSource = new RasterElevationSource(new[] { packagePath });

            // Create a surface to display the elevation source.
            Surface elevationSurface = new Surface();

            // Add the elevation source to the surface.
            elevationSurface.ElevationSources.Add(elevationSource);

            // Add the surface to the scene.
            MySceneView.Scene.BaseSurface = elevationSurface;

            // Set an initial camera viewpoint.
            Camera camera = new Camera(36.51, -121.80, 300.0, 0, 70.0, 0.0);
            MySceneView.SetViewpointCamera(camera);
        }
    }
}
