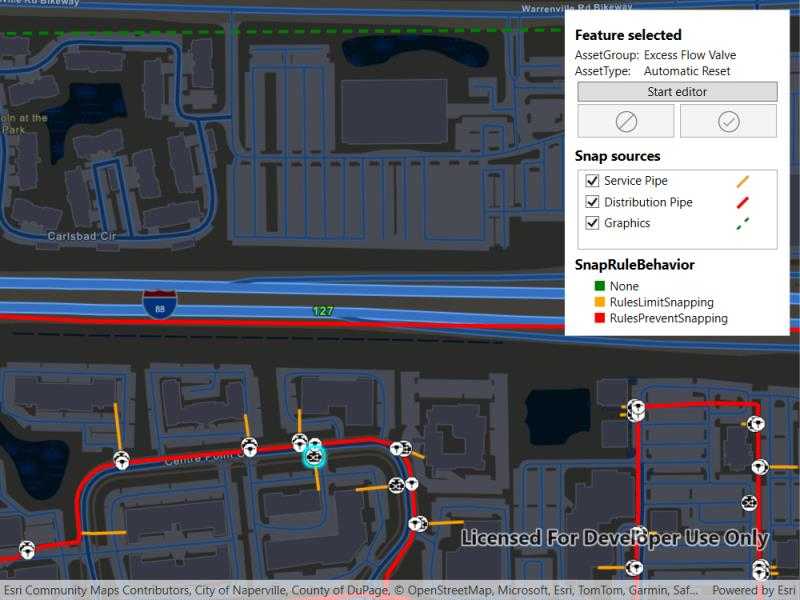

Snap geometry edits with utility network rules

<UserControl x:Class="ArcGIS.WPF.Samples.SnapGeometryEditsWithUtilityNetworkRules.SnapGeometryEditsWithUtilityNetworkRules"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:converters="clr-namespace:ArcGIS.WPF.Viewer.Converters"
             xmlns:esri="http://schemas.esri.com/arcgis/runtime/2013">
    <UserControl.Resources>
        <DataTemplate x:Key="SnapSettingTemplate">
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="150" />
                    <ColumnDefinition Width="auto" />
                </Grid.ColumnDefinitions>
                <CheckBox Grid.Column="0"
                          Content="{Binding Path=Name}"
                          IsChecked="{Binding Path=SnapSourceSettings.IsEnabled}" />
                <Image Grid.Column="1"
                       Width="15"
                       Height="15"
                       Margin="1"
                       Source="{Binding Path=Symbol}" />
            </Grid>
        </DataTemplate>
        <converters:BoolNegationConverter x:Key="BoolNegationConverter" />
        <Style x:Key="ButtonIconStyle" TargetType="Button">
            <Style.Setters>
                <Setter Property="FontFamily" Value="{StaticResource CalciteUIIconsMediumFontFamily}" />
                <Setter Property="FontSize" Value="24" />
                <Setter Property="Background" Value="White" />
                <Setter Property="HorizontalAlignment" Value="Stretch" />
                <Setter Property="Padding" Value="3" />
                <Setter Property="Margin" Value="3" />
            </Style.Setters>
            <Style.Triggers>
                <Trigger Property="IsEnabled" Value="False">
                    <Setter Property="Opacity" Value="0.8" />
                </Trigger>
            </Style.Triggers>
        </Style>
    </UserControl.Resources>
    <Grid>
        <esri:MapView x:Name="MyMapView" GeoViewTapped="MyMapView_GeoViewTapped" />
        <Border x:Name="SnappingControls"
                Margin="10"
                HorizontalAlignment="Right"
                VerticalAlignment="Top"
                Background="White"
                Visibility="Collapsed">
            <Grid>
                <Grid.RowDefinitions>
                    <RowDefinition Height="auto" />
                    <RowDefinition Height="*" />
                </Grid.RowDefinitions>
                <StackPanel Grid.Row="0"
                            Margin="10"
                            Orientation="Vertical">
                    <TextBlock x:Name="InstructionsLabel"
                               Padding="0,5"
                               FontSize="14"
                               Text="Tap a point feature to edit."
                               TextWrapping="Wrap" />
                    <StackPanel x:Name="SelectedFeaturePanel" Visibility="Collapsed">
                        <TextBlock Padding="0,5,0,0"
                                   FontSize="14"
                                   FontWeight="Bold"
                                   Text="Feature selected" />
                        <Grid Margin="0,3">
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition Width="auto" />
                                <ColumnDefinition Width="*" />
                            </Grid.ColumnDefinitions>
                            <Grid.RowDefinitions>
                                <RowDefinition Height="auto" />
                                <RowDefinition Height="auto" />
                            </Grid.RowDefinitions>
                            <TextBlock Grid.Row="0"
                                       Grid.Column="0"
                                       Margin="0,0,5,0"
                                       Text="AssetGroup:" />
                            <TextBlock x:Name="SelectedAssetGroupLabel"
                                       Grid.Row="0"
                                       Grid.Column="1" />
                            <TextBlock Grid.Row="1"
                                       Grid.Column="0"
                                       Margin="0,0,5,0"
                                       Text="AssetType:" />
                            <TextBlock x:Name="SelectedAssetTypeLabel"
                                       Grid.Row="1"
                                       Grid.Column="1" />
                        </Grid>
                        <Button x:Name="GeometryEditorButton"
                                Width="200"
                                Click="GeometryEditorButton_Click"
                                Content="Start editor"
                                IsEnabled="{Binding GeometryEditor.IsStarted, ElementName=MyMapView, Converter={StaticResource BoolNegationConverter}}" />
                        <Grid Width="205">
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition Width="0.5*" />
                                <ColumnDefinition Width="0.5*" />
                            </Grid.ColumnDefinitions>
                            <Button Grid.Column="0"
                                    Click="DiscardButton_Click"
                                    IsEnabled="{Binding GeometryEditor.IsStarted, ElementName=MyMapView}"
                                    Margin="3"
                                    ToolTipService.ToolTip="Discard edits"
                                    Style="{StaticResource ButtonIconStyle}"
                                    Content="{StaticResource CalciteUIIcons_Glyph_CircleDisallowed}" />
                            <Button x:Name="SaveButton"
                                    Grid.Column="1"
                                    Click="SaveButton_Click"
                                    IsEnabled="{Binding GeometryEditor.CanUndo, ElementName=MyMapView}"
                                    Margin="3"
                                    ToolTipService.ToolTip="Save edits"
                                    Style="{StaticResource ButtonIconStyle}"
                                    Content="{StaticResource CalciteUIIcons_Glyph_CheckCircle}" />
                        </Grid>
                    </StackPanel>
                    <StackPanel x:Name="SnapSourcesPanel" Visibility="Collapsed">
                        <TextBlock Padding="0,5"
                                   FontSize="14"
                                   FontWeight="Bold"
                                   Text="Snap sources" />
                        <ListView x:Name="SnapSourcesList"
                                  Grid.Column="1"
                                  ItemTemplate="{StaticResource SnapSettingTemplate}" />
                        <TextBlock Padding="0,5"
                                   FontSize="14"
                                   FontWeight="Bold"
                                   Text="SnapRuleBehavior" />
                        <StackPanel Margin="20,0,0,0" Orientation="Horizontal">
                            <Rectangle Grid.Column="0"
                                       Width="10"
                                       Height="10"
                                       Margin="0,0,5,0"
                                       Fill="Green" />
                            <TextBlock Text="None" />
                        </StackPanel>
                        <StackPanel Margin="20,0,0,0" Orientation="Horizontal">
                            <Rectangle Grid.Column="0"
                                       Width="10"
                                       Height="10"
                                       Margin="0,0,5,0"
                                       Fill="Orange" />
                            <TextBlock Text="RulesLimitSnapping" />
                        </StackPanel>
                        <StackPanel Margin="20,0,0,0" Orientation="Horizontal">
                            <Rectangle Grid.Column="0"
                                       Width="10"
                                       Height="10"
                                       Margin="0,0,5,0"
                                       Fill="Red" />
                            <TextBlock Text="RulesPreventSnapping" />
                        </StackPanel>
                    </StackPanel>
                </StackPanel>
            </Grid>
        </Border>
    </Grid>
</UserControl>

// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UI.Controls;
using System;
using System.IO;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Media;
using Esri.ArcGISRuntime.UI.Editing;
using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.UtilityNetworks;
using System.Collections.Generic;
using Geometry = Esri.ArcGISRuntime.Geometry.Geometry;

namespace ArcGIS.WPF.Samples.SnapGeometryEditsWithUtilityNetworkRules
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Snap geometry edits with utility network rules",
        category: "Utility network",
        description: "Use the Geometry Editor to edit geometries using utility network connectivity rules.",
        instructions: "To edit a geometry, tap a point geometry to be edited in the map to select it. Then edit the geometry by clicking the button to start the geometry editor.",
        tags: new[] { "edit", "feature", "geometry editor", "graphics", "layers", "map", "snapping", "utility network" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("0fd3a39660d54c12b05d5f81f207dffd")]
    public partial class SnapGeometryEditsWithUtilityNetworkRules
    {
        // Layer name for the pipeline subtype feature layer.
        private const string PipelineLayerName = "PipelineLine";

        // Subtype names for utility network features.
        private const string ServicePipeLayerName = "Service Pipe";
        private const string DistributionPipeName = "Distribution Pipe";

        private const string DeviceLayerName = "PipelineDevice";
        private const string ExcessFlowValveName = "Excess Flow Valve";

        private const string JunctionLayerName = "PipelineJunction";
        private const string ControllableTeeName = "Controllable Tee";

        // Identifier for non-UN features.
        private const string GraphicsId = "Graphics";

        // Default symbology for graphic and sublayers used to restore after edit.
        private readonly Renderer _defaultGraphicRenderer = new SimpleRenderer(new SimpleLineSymbol(SimpleLineSymbolStyle.Dash, System.Drawing.Color.Gray, 3));
        private Renderer _defaultDistributionRenderer = null;
        private Renderer _defaultServiceRenderer = null;

        // Hold references to the selected feature.
        private Feature _selectedFeature;

        // Hold references to the subtype sublayers for the distribution and service pipe layers.
        private SubtypeSublayer _distributionPipeLayer;
        private SubtypeSublayer _servicePipeLayer;

        // Hold a reference to the utility network geodatabase.
        private Geodatabase _geodatabase;

        // Graphic json
        string graphicJson = "{\"paths\":[[[-9811826.6810284462,5132074.7700250093],[-9811786.4643617794,5132440.9533583419],[-9811384.2976951133,5132354.1700250087],[-9810372.5310284477,5132360.5200250093],[-9810353.4810284469,5132066.3033583425]]],\"spatialReference\":{\"wkid\":102100,\"latestWkid\":3857}}";

        public SnapGeometryEditsWithUtilityNetworkRules()
        {
            InitializeComponent();
            _ = InitializeAsync();
        }

        private async Task InitializeAsync()
        {
            try
            {
                // Create a map.
                MyMapView.Map = new Map(BasemapStyle.ArcGISStreetsNight)
                {
                    InitialViewpoint = new Viewpoint(new MapPoint(-9811055.156028448, 5131792.19502501, SpatialReferences.WebMercator), 1e4)
                };

                // Set the map load setting feature tiling mode.
                // Enabled with full resolution when supported is used to ensure that snapping to geometries occurs in full resolution.
                // Snapping in full resolution improves snapping accuracy.
                MyMapView.Map.LoadSettings.FeatureTilingMode = FeatureTilingMode.EnabledWithFullResolutionWhenSupported;

                await AddLayersToMapFromGeodatabase();

                // Create a graphics overlay and add it to the map view.
                MyMapView.GraphicsOverlays.Add(new GraphicsOverlay() { Id = GraphicsId, Renderer = _defaultGraphicRenderer });
                MyMapView.GraphicsOverlays[0].Graphics.Add(new Graphic(Geometry.FromJson(graphicJson)));

                // Create and add a geometry editor to the map view.
                MyMapView.GeometryEditor = new GeometryEditor();

                // Enable snapping on the geometry layer.
                MyMapView.GeometryEditor.SnapSettings.IsEnabled = true;
                MyMapView.GeometryEditor.SnapSettings.IsFeatureSnappingEnabled = true;

                // Show the UI.
                SnappingControls.Visibility = Visibility.Visible;
            }
            catch (Exception ex)
            {
                // Show an error message.
                MessageBox.Show(ex.Message);
            }
        }

        private async Task AddLayersToMapFromGeodatabase()
        {
            // Get the path to the local geodatabase for this platform (temp directory, for example).
            string geodatabasePath = DataManager.GetDataFolder("0fd3a39660d54c12b05d5f81f207dffd", "NapervilleGasUtilities.geodatabase");

            // See if the geodatabase file is already present.
            if (File.Exists(geodatabasePath))
            {
                // Open the geodatabase.
                _geodatabase = await Geodatabase.OpenAsync(geodatabasePath);

                // Subscribe to the unloaded event to close the geodatabase when the sample is closed.
                Unloaded += SampleUnloaded;

                // Get and load feature tables from the geodatabase.
                // Create subtype feature layers from the feature tables and add them to the map.
                var pipeTable = _geodatabase.GetGeodatabaseFeatureTable(PipelineLayerName);
                await pipeTable.LoadAsync();

                var pipeLayer = new SubtypeFeatureLayer(pipeTable);
                MyMapView.Map.OperationalLayers.Add(pipeLayer);

                var deviceTable = _geodatabase.GetGeodatabaseFeatureTable(DeviceLayerName);
                await deviceTable.LoadAsync();

                SubtypeFeatureLayer devicelayer = new SubtypeFeatureLayer(deviceTable);
                MyMapView.Map.OperationalLayers.Add(devicelayer);

                var junctionTable = _geodatabase.GetGeodatabaseFeatureTable(JunctionLayerName);
                await junctionTable.LoadAsync();

                SubtypeFeatureLayer junctionlayer = new SubtypeFeatureLayer(junctionTable);
                MyMapView.Map.OperationalLayers.Add(junctionlayer);

                // Add the utility network to the map and load it.
                var utilityNetwork = _geodatabase.UtilityNetworks.FirstOrDefault();
                MyMapView.Map.UtilityNetworks.Add(utilityNetwork);
                await utilityNetwork.LoadAsync();

                // Load the map.
                await MyMapView.Map.LoadAsync();

                // Ensure all layers are loaded.
                await Task.WhenAll(MyMapView.Map.OperationalLayers.ToList().Select(layer => layer.LoadAsync()).ToList());

                // Set the visibility of the sublayers and store the default renderer for the distribution and service pipe layers.
                // In this sample we will only set a small subset of sublayers to be visible.
                foreach (var sublayer in pipeLayer.SubtypeSublayers)
                {
                    switch (sublayer.Name)
                    {
                        case DistributionPipeName:
                            _distributionPipeLayer = sublayer;
                            _defaultDistributionRenderer = sublayer.Renderer;
                            break;
                        case ServicePipeLayerName:
                            _servicePipeLayer = sublayer;
                            _defaultServiceRenderer = sublayer.Renderer;
                            break;
                        default:
                            sublayer.IsVisible = false;
                            break;
                    }
                }

                // To avoid too much visual clutter, only show the Excess Flow Valve and Controllable Tee sublayers in the device layer.
                foreach (var sublayer in devicelayer.SubtypeSublayers)
                {
                    switch (sublayer.Name)
                    {
                        case ExcessFlowValveName:
                        case ControllableTeeName:
                            sublayer.IsVisible = true;
                            break;
                        default:
                            sublayer.IsVisible = false;
                            break;
                    }
                }
            }
        }

        private async Task SetSnapSettings(UtilityAssetType assetType)
        {
            // Get the snap rules associated with the asset type.
            SnapRules snapRules = await SnapRules.CreateAsync(MyMapView.Map.UtilityNetworks[0], assetType);

            // Synchronize the snap source collection with the map's operational layers using the snap rules.
            // Setting SnapSourceEnablingBehavior.SetFromRules will enable snapping for the layers and sublayers specified in the snap rules.
            MyMapView.GeometryEditor.SnapSettings.SyncSourceSettings(snapRules, SnapSourceEnablingBehavior.SetFromRules);

            // Enable snapping for the graphics overlay.
            var graphicsSourceSetting = MyMapView.GeometryEditor.SnapSettings.SourceSettings.First(sourceSetting => sourceSetting.Source is GraphicsOverlay);
            graphicsSourceSetting.IsEnabled = true;

            var snapSources = new List<SnapSourceSettingsVM>();

            foreach (var sourceSetting in MyMapView.GeometryEditor.SnapSettings.SourceSettings)
            {
                if (sourceSetting.Source is GraphicsOverlay graphicsOverlay)
                {
                    snapSources.Add(new SnapSourceSettingsVM(sourceSetting));
                }
                else if (sourceSetting.Source is SubtypeFeatureLayer subtypeFeatureLayer && subtypeFeatureLayer.Name == PipelineLayerName)
                {
                    foreach (var subtypeSublayer in sourceSetting.ChildSourceSettings)
                    {
                        switch ((subtypeSublayer.Source as SubtypeSublayer).Name)
                        {
                            case ServicePipeLayerName:
                            case DistributionPipeName:
                                snapSources.Add(new SnapSourceSettingsVM(subtypeSublayer));
                                break;
                        }
                    }
                }
            }

            // Create a list of snap source settings with snapping enabled.
            SnapSourcesList.ItemsSource = snapSources;
        }

        private void GeometryEditorButton_Click(object sender, RoutedEventArgs e)
        {
            // Get the symbol for the selected feature.
            Symbol symbol = ((GeodatabaseFeatureTable)_selectedFeature.FeatureTable).LayerInfo?.DrawingInfo?.Renderer?.GetSymbol(_selectedFeature);

            // Set the vertex symbol for the geometry editor tool.
            MyMapView.GeometryEditor.Tool.Style.VertexSymbol = MyMapView.GeometryEditor.Tool.Style.FeedbackVertexSymbol = MyMapView.GeometryEditor.Tool.Style.SelectedVertexSymbol = symbol;
            MyMapView.GeometryEditor.Tool.Style.VertexTextSymbol = null;

            // Hide the selected feature.
            if (_selectedFeature != null && _selectedFeature.FeatureTable?.Layer is FeatureLayer selectedFeatureLayer)
            {
                selectedFeatureLayer.SetFeatureVisible(_selectedFeature, false);
            }

            // Start the geometry editor.
            MyMapView.GeometryEditor.Start(_selectedFeature.Geometry);
        }

        private void DiscardButton_Click(object sender, RoutedEventArgs e)
        {
            // Discard the current edit.
            MyMapView.GeometryEditor.Stop();

            // Reset the selection.
            ResetSelections();
        }

        private async void SaveButton_Click(object sender, RoutedEventArgs e)
        {
            // Stop the geometry editor and get the updated geometry.
            Geometry geometry = MyMapView.GeometryEditor.Stop();

            try
            {
                // Update the feature with the new geometry.
                _selectedFeature.Geometry = geometry;
                await ((GeodatabaseFeatureTable)_selectedFeature.FeatureTable).UpdateFeatureAsync(_selectedFeature);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.ToString(), "Error");
            }

            // Reset the selection.
            ResetSelections();
        }

        private async void MyMapView_GeoViewTapped(object sender, GeoViewInputEventArgs e)
        {
            if (MyMapView.GeometryEditor.IsStarted) return;

            // Identify the feature at the tapped location.
            var identifyResult = await MyMapView.IdentifyLayersAsync(e.Position, 5, false);

            // As we are using subtype feature layers in this sample the returned features are contained in the sublayer results.
            ArcGISFeature feature = identifyResult?.FirstOrDefault()?.SublayerResults?.FirstOrDefault()?.GeoElements?.FirstOrDefault() as ArcGISFeature;

            // In this sample we only allow selection of point features.
            // If the identified feature is null or the feature is not a point feature then reset the selection and return.
            if (feature == null || feature.FeatureTable.GeometryType != GeometryType.Point)
            {
                ResetSelections();
                return;
            }
            else if (_selectedFeature != null && feature != _selectedFeature && _selectedFeature.FeatureTable?.Layer is FeatureLayer selectedFeatureLayer)
            {
                // If a feature is already selected and the tapped feature is not the selected feature then clear the previous selection.
                selectedFeatureLayer.ClearSelection();
            }

            // Update the selected feature.
            _selectedFeature = feature;

            // Select the feature on the layer.
            (_selectedFeature.FeatureTable?.Layer as FeatureLayer).SelectFeature(_selectedFeature);

            // Create a utility element for the selected feature using the utility network.
            UtilityElement element = MyMapView.Map.UtilityNetworks[0]?.CreateElement(feature);

            // Update the UI visibility.
            UpdateUI();

            // Update the UI with the selected feature information.
            SelectedAssetGroupLabel.Text = element?.AssetGroup.Name;
            SelectedAssetTypeLabel.Text = element?.AssetType.Name;

            await SetSnapSettings(element.AssetType);
        }

        private void ResetSelections()
        {
            if (_selectedFeature != null && _selectedFeature.FeatureTable?.Layer is FeatureLayer selectedFeatureLayer)
            {
                // Clear the existing selection and show the selected feature;
                selectedFeatureLayer.ClearSelection();
                selectedFeatureLayer.SetFeatureVisible(_selectedFeature, true);
            }

            // Reset the selected feature and layer.
            _selectedFeature = null;

            // Update the UI visibility.
            UpdateUI();

            // Revert back to the default renderer for the distribution and service pipe layers and graphics overlay.
            _distributionPipeLayer.Renderer = _defaultDistributionRenderer;
            _servicePipeLayer.Renderer = _defaultServiceRenderer;
            MyMapView.GraphicsOverlays[0].Renderer = _defaultGraphicRenderer;

            // Clear the snap sources list.
            SnapSourcesList.ItemsSource = null;
        }

        private void UpdateUI()
        {
            InstructionsLabel.Visibility = _selectedFeature != null ? Visibility.Collapsed : Visibility.Visible;
            SelectedFeaturePanel.Visibility = SnapSourcesPanel.Visibility = _selectedFeature != null ? Visibility.Visible : Visibility.Collapsed;
        }

        private void SampleUnloaded(object sender, RoutedEventArgs e)
        {
            // Close the geodatabase when the sample closes.
            _geodatabase.Close();
        }

    }

    public class SnapSourceSettingsVM
    {
        public SnapSourceSettings SnapSourceSettings { get; }
        private Symbol _rulesPreventSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, System.Drawing.Color.Red, 4);
        private Symbol _rulesLimitSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, System.Drawing.Color.Orange, 3);
        private Symbol _noneSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Dash, System.Drawing.Color.Green, 3);

        // Wrap the snap source settings in a view model to expose them to the UI.
        public SnapSourceSettingsVM(SnapSourceSettings snapSourceSettings)
        {
            SnapSourceSettings = snapSourceSettings;

            // Set the symbol for the snap source displayed in the UI.
            _ = SetSymbolAsync();
        }

        private async Task SetSymbolAsync()
        {
            Symbol symbol = null;

            switch (SnapSourceSettings.RuleBehavior)
            {
                case SnapRuleBehavior.None:
                    symbol = _noneSymbol;
                    break;
                case SnapRuleBehavior.RulesLimitSnapping:
                    symbol = _rulesLimitSymbol;
                    break;
                case SnapRuleBehavior.RulesPreventSnapping:
                    symbol = _rulesPreventSymbol;
                    break;
            }

            if (SnapSourceSettings.Source is SubtypeSublayer sublayer)
            {
                sublayer.Renderer = new SimpleRenderer(symbol);
            }
            else if (SnapSourceSettings.Source is GraphicsOverlay graphicsOverlay)
            {
                graphicsOverlay.Renderer = new SimpleRenderer(symbol);
            }

            if (symbol != null)
            {
                var swatch = await symbol.CreateSwatchAsync();
                _symbol = await swatch.ToImageSourceAsync();
            }
        }

        private ImageSource _symbol;

        public ImageSource Symbol => _symbol;

        public string Name
        {
            get
            {
                if (SnapSourceSettings.Source is ILayerContent content)
                {
                    return content.Name;
                }

                if (SnapSourceSettings.Source is GraphicsOverlay overlay)
                {
                    return overlay.Id ?? string.Empty;
                }

                return string.Empty;
            }
        }
    }
}
