Spatially Enabled DataFrames - Advanced Topics

The information in this section provides a brief introduction to advanced topics with the Spatially Enabled DataFrame structure.

One of the most important tasks for software applications is to quickly retrieve and process information. Enterprise systems, whether storing GIS information or not, all utilize the concept of indexing to allow for quick searching through large data stores to locate and select specific information for subsequent processing.

This document will outline how row and column indexing work in Spatially Enabled Dataframes and also demonstrate building a spatial index on dataframe geometries to allow for quick searching, accessing, and processing. The document will also demonstrate spatial joins to combine dataframes.

DataFrame Index

As mentioned in the Introduction to the Spatially Enabled DataFrame guide, the Pandas DataFrame structure underlies the ArcGIS API for Python's Spatially Enabled DataFrame. Pandas DataFrames are analagous to spreadsheets. They have a row axis and a column axis. Each of these axes are indexed and labeled for quick and easy identification, data alignment, and retrieval and updating of data subsets.

Let's explore the axes labels and indices and how they allow for data exploraation:

from arcgis.gis import GIS
gis = GIS()

When working with an ArcGIS Online feature layer, the query() method returns a FeatureSet object which has a sdf method to instantiate a Spatially Enabled DataFrame.

from arcgis import GIS
item = gis.content.get("85d0ca4ea1ca4b9abf0c51b9bd34de2e")
flayer = item.layers[0]
df = flayer.query(where="AGE_45_54 < 1500").sdf
df.head()

	FID	NAME	CLASS	ST	STFIPS	PLACEFIPS	POP_CLASS	POPULATION	POP2010	...	MARHH_NO_C	MHH_CHILD	FHH_CHILD	FAMILIES	AVE_FAM_SZ	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	SHAPE
0	1	Ammon	city	ID	16	1601990	6	15181	13816	...	1131	106	335	3352	3.61	4747	271	3205	1271	{"x": -12462673.723706165, "y": 5384674.994080...
1	2	Blackfoot	city	ID	16	1607840	6	11946	11899	...	1081	174	381	2958	3.31	4547	318	2788	1441	{"x": -12506251.313993266, "y": 5341537.793529...
2	4	Burley	city	ID	16	1611260	6	10727	10345	...	861	139	358	2499	3.37	3885	241	2183	1461	{"x": -12667411.402393516, "y": 5241722.820606...
3	6	Chubbuck	city	ID	16	1614680	6	14655	13922	...	1281	172	370	3586	3.4	4961	229	3324	1408	{"x": -12520053.904151963, "y": 5300220.333409...
4	12	Jerome	city	ID	16	1641320	6	11403	10890	...	779	210	385	2640	3.44	3985	292	2219	1474	{"x": -12747828.64784961, "y": 5269214.8197742...

5 rows × 50 columns

Describing the DataFrame

The DataFrame.info() provides a concise summary of the object. This method prints information about a DataFrame including the index dtype and column dtypes, non-null values and memory usage.

Example: Displaying info on Spatially Enabled DataFrame (SEDF)

df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 316 entries, 0 to 315
Data columns (total 50 columns):
 #   Column      Non-Null Count  Dtype
---  ------      --------------  -----
 0   FID         316 non-null    Int64
 1   NAME        316 non-null    string
 2   CLASS       316 non-null    string
 3   ST          316 non-null    string
 4   STFIPS      316 non-null    string
 5   PLACEFIPS   316 non-null    string
 6   CAPITAL     316 non-null    string
 7   POP_CLASS   316 non-null    Int32
 8   POPULATION  316 non-null    Int32
 9   POP2010     316 non-null    Int32
 10  WHITE       316 non-null    Int32
 11  BLACK       316 non-null    Int32
 12  AMERI_ES    316 non-null    Int32
 13  ASIAN       316 non-null    Int32
 14  HAWN_PI     316 non-null    Int32
 15  HISPANIC    316 non-null    Int32
 16  OTHER       316 non-null    Int32
 17  MULT_RACE   316 non-null    Int32
 18  MALES       316 non-null    Int32
 19  FEMALES     316 non-null    Int32
 20  AGE_UNDER5  316 non-null    Int32
 21  AGE_5_9     316 non-null    Int32
 22  AGE_10_14   316 non-null    Int32
 23  AGE_15_19   316 non-null    Int32
 24  AGE_20_24   316 non-null    Int32
 25  AGE_25_34   316 non-null    Int32
 26  AGE_35_44   316 non-null    Int32
 27  AGE_45_54   316 non-null    Int32
 28  AGE_55_64   316 non-null    Int32
 29  AGE_65_74   316 non-null    Int32
 30  AGE_75_84   316 non-null    Int32
 31  AGE_85_UP   316 non-null    Int32
 32  MED_AGE     316 non-null    Float64
 33  MED_AGE_M   316 non-null    Float64
 34  MED_AGE_F   316 non-null    Float64
 35  HOUSEHOLDS  316 non-null    Int32
 36  AVE_HH_SZ   316 non-null    Float64
 37  HSEHLD_1_M  316 non-null    Int32
 38  HSEHLD_1_F  316 non-null    Int32
 39  MARHH_CHD   316 non-null    Int32
 40  MARHH_NO_C  316 non-null    Int32
 41  MHH_CHILD   316 non-null    Int32
 42  FHH_CHILD   316 non-null    Int32
 43  FAMILIES    316 non-null    Int32
 44  AVE_FAM_SZ  316 non-null    Float64
 45  HSE_UNITS   316 non-null    Int32
 46  VACANT      316 non-null    Int32
 47  OWNER_OCC   316 non-null    Int32
 48  RENTER_OCC  316 non-null    Int32
 49  SHAPE       316 non-null    geometry
dtypes: Float64(5), Int32(37), Int64(1), geometry(1), string(6)
memory usage: 91.2 KB

We can see that the SHAPE column is of type geometry. This means that compared to the legacy SpatialDataFrame class, geometry columns are now unique instead of being just of type object.

We can get information about each axis label (aka, index) with the axes property on the spatial dataframe.

print("{:<15}{}\n\n{}{}".format("Row axis: ", df.axes[0], "Column axis: ", df.axes[1]))

Row axis:      RangeIndex(start=0, stop=316, step=1)

Column axis: Index(['FID', 'NAME', 'CLASS', 'ST', 'STFIPS', 'PLACEFIPS', 'CAPITAL',
       'POP_CLASS', 'POPULATION', 'POP2010', 'WHITE', 'BLACK', 'AMERI_ES',
       'ASIAN', 'HAWN_PI', 'HISPANIC', 'OTHER', 'MULT_RACE', 'MALES',
       'FEMALES', 'AGE_UNDER5', 'AGE_5_9', 'AGE_10_14', 'AGE_15_19',
       'AGE_20_24', 'AGE_25_34', 'AGE_35_44', 'AGE_45_54', 'AGE_55_64',
       'AGE_65_74', 'AGE_75_84', 'AGE_85_UP', 'MED_AGE', 'MED_AGE_M',
       'MED_AGE_F', 'HOUSEHOLDS', 'AVE_HH_SZ', 'HSEHLD_1_M', 'HSEHLD_1_F',
       'MARHH_CHD', 'MARHH_NO_C', 'MHH_CHILD', 'FHH_CHILD', 'FAMILIES',
       'AVE_FAM_SZ', 'HSE_UNITS', 'VACANT', 'OWNER_OCC', 'RENTER_OCC',
       'SHAPE'],
      dtype='object')

Row axis information informs us we can retrieve information using the the dataframe loc attribute and any value in the range 0-317 inclusive to access a row. Column axis information tells us we can use any string in the index to return an attribute column:

df.loc[0] #the first row returned

FID                                                           1
NAME                                                      Ammon
CLASS                                                      city
ST                                                           ID
STFIPS                                                       16
PLACEFIPS                                               1601990
CAPITAL
POP_CLASS                                                     6
POPULATION                                                15181
POP2010                                                   13816
WHITE                                                     13002
BLACK                                                        73
AMERI_ES                                                     67
ASIAN                                                       113
HAWN_PI                                                       9
HISPANIC                                                    884
OTHER                                                       307
MULT_RACE                                                   245
MALES                                                      6750
FEMALES                                                    7066
AGE_UNDER5                                                 1468
AGE_5_9                                                    1503
AGE_10_14                                                  1313
AGE_15_19                                                  1058
AGE_20_24                                                   734
AGE_25_34                                                  2031
AGE_35_44                                                  1767
AGE_45_54                                                  1446
AGE_55_64                                                  1136
AGE_65_74                                                   665
AGE_75_84                                                   486
AGE_85_UP                                                   209
MED_AGE                                                    29.6
MED_AGE_M                                                  28.0
MED_AGE_F                                                  30.8
HOUSEHOLDS                                                 4476
AVE_HH_SZ                                                  3.05
HSEHLD_1_M                                                  457
HSEHLD_1_F                                                  648
MARHH_CHD                                                  1618
MARHH_NO_C                                                 1131
MHH_CHILD                                                   106
FHH_CHILD                                                   335
FAMILIES                                                   3352
AVE_FAM_SZ                                                 3.61
HSE_UNITS                                                  4747
VACANT                                                      271
OWNER_OCC                                                  3205
RENTER_OCC                                                 1271
SHAPE         {'x': -12462673.723706165, 'y': 5384674.994080...
Name: 0, dtype: object

df['POP2010'] #the data from the `POP2010` attribute column

0      13816
1      11899
2      10345
3      13922
4      10890
       ...
311     9089
312    10272
313     9761
314     7855
315     9845
Name: POP2010, Length: 316, dtype: Int32

Slicing DataFrames

We can access rows, columns and subsets of rows and columns using Python slicing:

#rows 0-9 with a subset of columns indexed as a list
df.loc[0:9][['FID', 'NAME', 'ST', 'POP2010', 'POPULATION']]

	FID	NAME	ST	POP2010	POPULATION
0	1	Ammon	ID	13816	15181
1	2	Blackfoot	ID	11899	11946
2	4	Burley	ID	10345	10727
3	6	Chubbuck	ID	13922	14655
4	12	Jerome	ID	10890	11403
5	13	Kuna	ID	15210	18179
6	21	Rexburg	ID	25484	28019
7	143	Macomb	IL	19288	19838
8	151	Minooka	IL	10924	11815
9	186	Plano	IL	10856	11164

We can use indexing to access SHAPE information and draw it on a map:

df[df['NAME'].str.contains('Camp Pendleton South')]

	FID	NAME	CLASS	ST	STFIPS	PLACEFIPS	CAPITAL	POP_CLASS	POPULATION	POP2010	...	MARHH_NO_C	MHH_CHILD	FHH_CHILD	FAMILIES	AVE_FAM_SZ	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	SHAPE
69	1035	Camp Pendleton South	Census Designated Place	CA	06	0610561		6	10450	10616	...	389	37	169	2500	3.69	2865	296	11	2558	{"x": -13066535.250599463, "y": 3925680.810605...

1 rows × 50 columns

Note that, the resulting Series might not show as in row 69 everytime, so it is important to the update the following cell to point to the corresponding row according to the current output. Also, SHAPE is one of the many Key Value Pairs of the dict object created from the resulting Series, that we are going to print as it is, and render on the map.

camp_pendleton_s_geodefn = dict(df.loc[69]).get("SHAPE") #geometry definition from row 2
print(camp_pendleton_s_geodefn)

{'x': -13066535.250599463, 'y': 3925680.810605321, 'spatialReference': {'wkid': 102100, 'latestWkid': 3857}}

m = gis.map("San Diego, CA", 8)
m

# draw the camp `point`

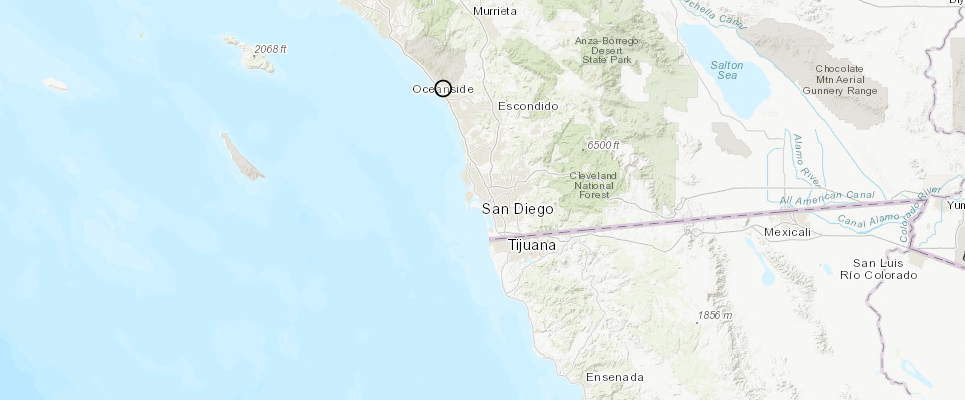

m.draw(camp_pendleton_s_geodefn)

Spatial Index

In addition to row and column indices to search a DataFrame, we can use a spatial indexes to quickly access information based on its location and relationship with other features. They are based on the concept of a minimum bounding rectangle - the smallest rectangle that contains an entire geometric shape. Each of these rectangles are then grouped into leaf nodes representing a single shape and node structures containing groups of shapes according to whatever algorithm the different types of spatial indexing use. Querying these rectangles requires magnitudes fewer compute resources for accessing and processing geometries relative to accessing the entire feature array of coordinate pairs that compose a shape. Access to points, complex lines and irregularly-shaped polygons becomes much quicker and easier through different flavors of spatial indexing.

The Spatially Enabled DataFrame uses an implementation of spatial indexing known as QuadTree indexing, which searches nodes when determining locations, relationships and attributes of specific features. QuadTree indexes are the default spatial index, but the SEDF also supports r-tree implementations. In the DataFrame Index section of this notebook, the USA Major Cities feature layer was queried and the sdf property was called on the results to create a DataFrame. The sindex method on the DataFrame creates a QuadTree index:

si = df.spatial.sindex('quadtree',reset=False)

Let's visually inspect the external frame of the QuadTree index. We'll then plot the spatial dataframe to ensure the spatial index encompasses all our features:

midx = gis.map("United States", 3)
midx

midx.center = [39, -98]
midx.basemap = 'gray-vector'

# draw the spatial index envelope
df.spatial.plot(map_widget=midx)

True

Let's use the feature we drew earlier to define a spatial reference variable for use throughout the rest of this guide.

sp_ref = camp_pendleton_s_geodefn['spatialReference']
sp_ref

{'wkid': 102100, 'latestWkid': 3857}

import time
from arcgis.geometry import Geometry, Polygon

#define a symbol to visualize the spatial index quadrants
sym = {
    "type": "esriSFS",
    "style": "esriSFSSolid",
    "color": [0,0,0,0],
    "outline": {
        "type": "esriSLS",
        "style": "esriSLSSolid",
        "color": [0,0,0,255],
        "width": 4}
}

# loop through the children of the root index and draw each extent
# using a different outline color
for i in range(len(si._index.children)):
    sym["outline"]["color"][i] = 255
    if i > 0:
        sym["outline"]["color"][i] = 255
        sym["outline"]["color"][i-1] = 0
    child = si._index.children[i]
    width_factor = child.width/2
    height_factor = child.width/2
    minx = child.center[0] - width_factor
    miny = child.center[1] - height_factor
    maxx = child.center[0] + width_factor
    maxy = child.center[1] + height_factor
    child_geom = Geometry({
        'rings':[[[minx,miny], [minx, maxy], [maxx, maxy], [maxx, miny], [minx, miny]]],
        'spatialReference': sp_ref})
    #child_extent = Polygon(child_geom)
    midx.draw(shape = child_geom, symbol = sym)
    time.sleep(2)

Intersection with the Spatial Index

Up to this point in this guide, we've talked about using indexing for querying attributes in the dataframe. For example:

query = df['ST'] == 'MI'
df[query]

	FID	NAME	CLASS	ST	STFIPS	PLACEFIPS	POP_CLASS	POPULATION	POP2010	...	MARHH_NO_C	MHH_CHILD	FHH_CHILD	FAMILIES	AVE_FAM_SZ	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	SHAPE
101	1514	Allendale	Census Designated Place	MI	26	2601340	6	19709	17579	...	939	94	200	2639	3.26	4834	227	2511	2096	{"x": -9568014.259185659, "y": 5309698.1042234...
102	1523	Big Rapids	city	MI	26	2608300	6	10614	10601	...	436	82	322	1323	2.88	3623	293	1136	2194	{"x": -9515614.1943842, "y": 5419013.554990504...
103	1526	Cadillac	city	MI	26	2612320	6	10547	10355	...	999	179	526	2625	2.9	4927	647	2519	1761	{"x": -9508449.13740055, "y": 5504118.53341087...
104	1528	Coldwater	city	MI	26	2617020	6	10828	10945	...	897	213	445	2628	3.14	4827	572	2576	1679	{"x": -9462596.578807637, "y": 5152066.1922501...
105	1529	Comstock Park	Census Designated Place	MI	26	2617700	6	10892	10088	...	920	167	557	2639	2.96	4656	484	1979	2193	{"x": -9537405.970997674, "y": 5316589.2811759...
106	1538	Farmington	city	MI	26	2627380	6	10674	10372	...	1129	66	287	2735	2.92	4959	335	2876	1748	{"x": -9281637.643149175, "y": 5230343.3917462...
107	1546	Grand Haven	city	MI	26	2633340	6	11073	10412	...	1277	115	320	2721	2.82	5815	1046	3239	1530	{"x": -9597693.318165638, "y": 5320625.9222716...
108	1575	Muskegon Heights	city	MI	26	2656360	6	10657	10856	...	460	143	1183	2682	3.23	4842	846	2042	1954	{"x": -9600424.098598039, "y": 5342825.5598096...
109	1600	Sturgis	city	MI	26	2676960	6	10944	10994	...	835	195	467	2632	3.28	4595	507	2333	1755	{"x": -9508726.380150843, "y": 5131255.7167436...

9 rows × 50 columns

We can query multiple attributes and filter on the column output as well:

query = (df['POP2010'] > 20000) & (df['ST'] == 'OH')
df[query][['NAME','ST','POP2010','HOUSEHOLDS','HSEHLD_1_F', 'HSEHLD_1_M']]

	NAME	ST	POP2010	HOUSEHOLDS	HSEHLD_1_F	HSEHLD_1_M
166	Athens	OH	23832	6903	2474	2573
195	Oxford	OH	21371	5799	2033	1850

As GIS analysts and data scientists, we also want to query based on geographic location. We can do that by building a spatial index with the sindex property of the spatial dataframe. The resulting quadtree index allows us to query based on specific geometries in relation to other geometries.

Let's continue looking at the dataframe wer're working with: US cities with a population between the ages of 45 and 54 of less than 1500.

We can draw the entire extent of our dataframe using the dataframe's geoextent property. Let's get the bounding box coordinates:

df_geoextent = df.spatial.full_extent
df_geoextent

(-17595352.55942164,
 2429395.3372018305,
 -7895099.852443745,
 6266417.1716177985)

Let's use these coordinates, place them in more descriptive variable names, then create a bounding box to make a geometry object representing the extent of our dataframe. Finally we'll draw it on the a map:

df_geoextent_geom = df.spatial.bbox
df_geoextent_geom

m1 = gis.map("United States", 3)
m1

m1.center = [39, -98]

sym_poly = {
  "type": "esriSFS",
  "style": "esriSFSSolid",
  "color": [0,0,0,0],  # hollow, no fill
    "outline": {
     "type": "esriSLS",
     "style": "esriSLSSolid",
     "color": [255,0,0,255],  # red border
     "width": 3}
}

# draw the dataframe extent with AOI
m1.draw(shape = df_geoextent_geom, symbol = sym_poly)

Now, let's define a second set of coordinates representing a bounding box for which we want to query the features from our dataframe that fall within it.

We can define our list of coordinates, and then draw it on the map to make sure it falls within our dataframe extent:

area_of_interest = [-13043219.122301877, 3911134.034258818, -13243219.102301877, 4111134.0542588173]
minx, miny, maxx, maxy = area_of_interest[0], area_of_interest[1], area_of_interest[2], area_of_interest[3]

area_of_interest_ring = [[[minx, miny], [minx, maxy], [maxx, maxy], [maxx, miny], [minx, miny]]]
area_of_interest_geom = Geometry({'rings': area_of_interest_ring, 'spatialReference': sp_ref})

sym_poly_aoi = {
  "type": "esriSFS",
  "style": "esriSFSSolid",
  "color": [0,0,0,0],  # hollow, no fill
    "outline": {
     "type": "esriSLS",
     "style": "esriSLSSolid",
     "color": [0,255,0,255],   # green border
     "width": 3}
}

m1.draw(shape = area_of_interest_geom, symbol = sym_poly_aoi)

We can see that our area of interest box falls within the dataframe extent. The spatial index has an intersect method which takes a bounding box as input and returns a list of integer values from the row index of our spatial dataframe. We can use the dataframe's iloc integer-indexing attribute to then loop through the dataframe and put draw the features on a map

index_of_features = si.intersect(area_of_interest)

df.iloc[index_of_features]

	FID	NAME	CLASS	ST	STFIPS	PLACEFIPS	POP_CLASS	POPULATION	POP2010	...	MARHH_NO_C	MHH_CHILD	FHH_CHILD	FAMILIES	AVE_FAM_SZ	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	SHAPE
32	454	Muscoy	Census Designated Place	CA	06	0650132	6	11161	10644	...	302	194	308	1933	4.76	2443	212	1268	963	{"x": -13063141.654215325, "y": 4049605.974486...
69	1035	Camp Pendleton South	Census Designated Place	CA	06	0610561	6	10450	10616	...	389	37	169	2500	3.69	2865	296	11	2558	{"x": -13066535.250599463, "y": 3925680.810605...
70	1053	Citrus	Census Designated Place	CA	06	0613560	6	11329	10866	...	541	116	255	2195	4.33	2701	86	1854	761	{"x": -13123874.444099307, "y": 4044252.329385...
71	1062	Commerce	city	CA	06	0614974	6	13227	12823	...	549	169	424	2709	4.17	3470	88	1619	1763	{"x": -13151212.145498956, "y": 4027601.902958...
77	1158	Home Gardens	Census Designated Place	CA	06	0634302	6	12223	11570	...	573	135	298	2336	4.35	2865	105	1952	808	{"x": -13080593.064290542, "y": 4012558.291540...
81	1177	Laguna Woods	city	CA	06	0639259	6	17960	16192	...	3264	6	15	3873	2.07	13016	1714	8730	2572	{"x": -13105613.458129246, "y": 3976538.093303...

6 rows × 50 columns

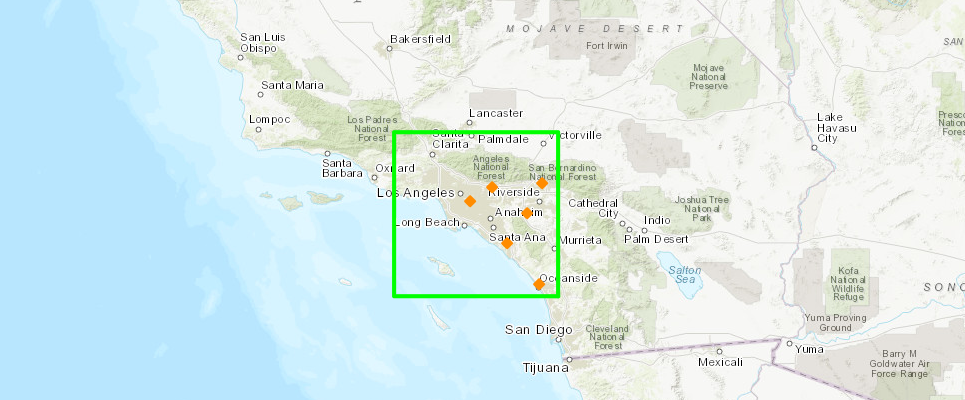

Let us plot these features that intersect on a map:

m2 = gis.map("Los Angeles, CA", 7)
m2

m2.center = [34, -118]

m2.draw(shape = area_of_interest_geom, symbol = sym_poly_aoi)

pt_sym = {
    "type": "esriSMS",
    "style": "esriSMSDiamond",
    "color": [255,140,0,255],  # yellowish
    "size": 8,
    "angle": 0,
    "xoffset": 0,
    "yoffset": 0,
    "outline": {
        "color": [255,140,0,255],
        "width": 1}
 }

# draw the AOI that intersects
for pt_index in index_of_features:
    m2.draw(shape = df.iloc[pt_index]['SHAPE'], symbol = pt_sym)

Thus we were able to use the spatial indexes to query features that fall within an extent.

Spatial Joins

DataFrames are table-like structures comprised of rows and columns. In relational database, SQL joins are fundamental operations that combine columns from one or more tables using values that are common to each. They occur in almost all database queries.

A Spatial join is a table operation that affixes data from one feature layer’s attribute table to another based on a spatial relationship. The spatial join involves matching rows from the Join Features (data frame1) to the Target Features (data frame2) based on their spatial relationship.

Let's look at how joins work with dataframes by using subsets of our original DataFrame and the pandas merge fucntionality. We'll then move onto examining a spatial join to combine features from one dataframe with another based on a common attribute value.

Query the DataFrame to extract 3 attribute columns of information from 2 states, Ohio and Michigan:

query = (df['ST'] == 'OH') | (df['ST'] == 'MI')
df1 = df[query][['NAME', 'ST', 'POP2010']]
df1

	NAME	ST	POP2010
101	Allendale	MI	17579
102	Big Rapids	MI	10601
103	Cadillac	MI	10355
104	Coldwater	MI	10945
105	Comstock Park	MI	10088
106	Farmington	MI	10372
107	Grand Haven	MI	10412
108	Muskegon Heights	MI	10856
109	Sturgis	MI	10994
166	Athens	OH	23832
167	Cambridge	OH	10635
168	Celina	OH	10400
192	Galion	OH	10512
193	London	OH	9904
194	Northbrook	OH	10668
195	Oxford	OH	21371
196	Springdale	OH	11223
197	Trenton	OH	11869
198	University Heights	OH	13539
199	Van Wert	OH	10846

Query the dataframe again for 8 attribute columns from one state, Ohio

query = df['ST'] == 'OH'
df2 = df[query][['NAME', 'POPULATION','BLACK', 'HAWN_PI', 'HISPANIC', 'WHITE', 'MULT_RACE', 'OTHER']]
df2

	NAME	POPULATION	BLACK	HAWN_PI	HISPANIC	WHITE	MULT_RACE	OTHER
166	Athens	25431	1047	10	576	20586	559	138
167	Cambridge	10541	361	3	129	9857	316	33
168	Celina	10566	50	41	293	9873	164	111
192	Galion	10385	50	1	140	10264	120	42
193	London	10543	596	0	169	8830	287	61
194	Northbrook	10825	2974	6	377	6995	379	141
195	Oxford	23054	859	2	491	18719	478	127
196	Springdale	11507	3355	44	1965	6169	331	977
197	Trenton	12393	115	2	198	11418	224	35
198	University Heights	13884	3133	4	374	9726	215	121
199	Van Wert	11042	180	1	435	10263	221	130

The Pandas merge capability joins dataframes in a style similar to SQL joins, with parameters to indicate the column of shared information and the type of join to perform:

An inner join (the default), is analagous to a SQL left inner join, keeping the order from the left table in the output and returning only those records from the right table that match the value in the column specified with the on parameter:

import pandas as pd

pd.merge(df1, df2, on='NAME', how='inner')

	NAME	ST	POP2010	POPULATION	BLACK	HAWN_PI	HISPANIC	WHITE	MULT_RACE	OTHER
0	Athens	OH	23832	25431	1047	10	576	20586	559	138
1	Cambridge	OH	10635	10541	361	3	129	9857	316	33
2	Celina	OH	10400	10566	50	41	293	9873	164	111
3	Galion	OH	10512	10385	50	1	140	10264	120	42
4	London	OH	9904	10543	596	0	169	8830	287	61
5	Northbrook	OH	10668	10825	2974	6	377	6995	379	141
6	Oxford	OH	21371	23054	859	2	491	18719	478	127
7	Springdale	OH	11223	11507	3355	44	1965	6169	331	977
8	Trenton	OH	11869	12393	115	2	198	11418	224	35
9	University Heights	OH	13539	13884	3133	4	374	9726	215	121
10	Van Wert	OH	10846	11042	180	1	435	10263	221	130

Notice how all the rows from the left DataFrame appear in the result with all the attribute columns and values appended from the right DataFrame where the column value of NAME matched. The POP2010 attribute from the left DataFrame is combined with all the attributes from the right DataFrame.

An outer join combines all rows from both outputs together and orders the results according to the original row index:

pd.merge(df1, df2, on='NAME', how = 'outer')

	NAME	ST	POP2010	POPULATION	BLACK	HAWN_PI	HISPANIC	WHITE	MULT_RACE	OTHER
0	Allendale	MI	17579	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
1	Big Rapids	MI	10601	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
2	Cadillac	MI	10355	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
3	Coldwater	MI	10945	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
4	Comstock Park	MI	10088	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
5	Farmington	MI	10372	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
6	Grand Haven	MI	10412	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
7	Muskegon Heights	MI	10856	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
8	Sturgis	MI	10994	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>	<NA>
9	Athens	OH	23832	25431	1047	10	576	20586	559	138
10	Cambridge	OH	10635	10541	361	3	129	9857	316	33
11	Celina	OH	10400	10566	50	41	293	9873	164	111
12	Galion	OH	10512	10385	50	1	140	10264	120	42
13	London	OH	9904	10543	596	0	169	8830	287	61
14	Northbrook	OH	10668	10825	2974	6	377	6995	379	141
15	Oxford	OH	21371	23054	859	2	491	18719	478	127
16	Springdale	OH	11223	11507	3355	44	1965	6169	331	977
17	Trenton	OH	11869	12393	115	2	198	11418	224	35
18	University Heights	OH	13539	13884	3133	4	374	9726	215	121
19	Van Wert	OH	10846	11042	180	1	435	10263	221	130

The rows where the on parameter value is the same in both tables have all attributes from both DataFrames in the result. The rows from the first DataFrame that do not have a matching NAME value in the second dataframe have values filled in with NaN values.

A spatial join works similarly on matching attribute values. However, instead of joining on an attribue field (like you did earlier), you will join based on the spatial relationship between the records in the two tables.

Example: Merging State Statistics Information with Cities

The goal is to get Wyoming's city locations and census data joined with Wyoming's state census data.

If you do not have access to the ArcPy site-package from the Python interpreter used to execute the following cells, you must authenticate to an ArcGIS Online Organization or ArcGIS Enterprise portal.

from arcgis.gis import GIS

g2 = GIS(profile="your_enterprise_profile")

import pandas as pd
from arcgis.features import GeoAccessor, GeoSeriesAccessor

import os
data_pth = r'/path/to/your/data/census_2010/example'
cities = r"cities.shp"
states = r"states.shp"

sdf_target = pd.DataFrame.spatial.from_featureclass(os.path.join(data_pth, cities))
sdf_target.head()

	FID	NAME	CLASS	ST	STFIPS	PLACEFIP	AREALAND	AREAWATER	POP_CLASS	...	MARHH_NO_C	MHH_CHILD	FHH_CHILD	FAMILIES	AVE_FAM_SZ	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	SHAPE
0	0	College	Census Designated Place	AK	02	16750	18.670	0.407	6	...	936	152	339	2640	3.13	4501	397	2395	1709	{"x": -147.8271911572905, "y": 64.848300194159...
1	1	Fairbanks	City	AK	02	24230	31.857	0.815	6	...	2259	395	1058	7187	3.15	12357	1282	3863	7212	{"x": -147.72638163006846, "y": 64.83809069704...
2	2	Kalispell	City	MT	30	40075	5.458	0.004	6	...	1433	147	480	3494	2.92	6532	390	3458	2684	{"x": -114.31606412429451, "y": 48.19780017936...
3	3	Post Falls	City	ID	16	64810	9.656	0.045	6	...	1851	205	467	4670	3.13	6697	328	4611	1758	{"x": -116.93792709825782, "y": 47.71555468018...
4	4	Dishman	Census Designated Place	WA	53	17985	3.378	0.000	6	...	1096	131	345	2564	2.96	4408	257	2635	1516	{"x": -117.27780913774282, "y": 47.65654568420...

5 rows × 48 columns

Define a SpatialReference object to pass as the second argument in the from_featureclass function, so calling the method can also project (or transform) output GeoDataFrame to your desired spatial reference. Note: this requires arcpy to work.

from arcgis.geometry import SpatialReference

sdf_join = pd.DataFrame.spatial.from_featureclass(os.path.join(data_pth, states), sr=SpatialReference(4326).as_arcpy)
sdf_join.head()

	FID	STATE_NAME	DRAWSEQ	STATE_FIPS	SUB_REGION	STATE_ABBR	SHAPE
0	0	Hawaii	1	15	Pacific	HI	{"rings": [[[-160.07380334546815, 22.004177347...
1	1	Washington	2	53	Pacific	WA	{"rings": [[[-122.40201531038355, 48.225216372...
2	2	Montana	3	30	Mountain	MT	{"rings": [[[-111.47542530020736, 44.702162369...
3	3	Maine	4	23	New England	ME	{"rings": [[[-69.77727626137293, 44.0741483685...
4	4	North Dakota	5	38	West North Central	ND	{"rings": [[[-98.73043728833767, 45.9382713702...

We will use python's list comprehensions to create lists of the attribute columns in the DataFrame, then print out the lists to see the names of all the attribute columns.

sdf_target_cols = [column for column in sdf_target.columns]
sdf_join_cols = [column for column in sdf_join.columns]

Print out a list of columns in the sdf_target dataframe created from the cities shapefile:

for a,b,c,d in zip(sdf_target_cols[::4],sdf_target_cols[1::4],sdf_target_cols[2::4], sdf_target_cols[3::4]):
    print("{:<30}{:<30}{:<30}{:<}".format(a,b,c,d))

FID                           NAME                          CLASS                         ST
STFIPS                        PLACEFIP                      CAPITAL                       AREALAND
AREAWATER                     POP_CLASS                     POP2000                       POP2007
WHITE                         BLACK                         AMERI_ES                      ASIAN
HAWN_PI                       OTHER                         MULT_RACE                     HISPANIC
MALES                         FEMALES                       AGE_UNDER5                    AGE_5_17
AGE_18_21                     AGE_22_29                     AGE_30_39                     AGE_40_49
AGE_50_64                     AGE_65_UP                     MED_AGE                       MED_AGE_M
MED_AGE_F                     HOUSEHOLDS                    AVE_HH_SZ                     HSEHLD_1_M
HSEHLD_1_F                    MARHH_CHD                     MARHH_NO_C                    MHH_CHILD
FHH_CHILD                     FAMILIES                      AVE_FAM_SZ                    HSE_UNITS
VACANT                        OWNER_OCC                     RENTER_OCC                    SHAPE

Print out a list of columns in the sdf_join dataframe created from the states shapefile:

for a,b,c,d,e in zip(sdf_join_cols[::5],sdf_join_cols[1::5],sdf_join_cols[2::5],sdf_join_cols[3::5],sdf_join_cols[4::5]):
    print("{:<20}{:<20}{:<20}{:<20}{:<}".format(a,b,c,d,e))

FID                 STATE_NAME          DRAWSEQ             STATE_FIPS          SUB_REGION

Create a DataFrame for the cities in Wyoming:

sdf_target.loc[0]['SHAPE'].as_arcpy

q = sdf_target['ST'] == 'WY'
left = sdf_target[q].copy()
left.head()

	FID	NAME	CLASS	ST	STFIPS	PLACEFIP	CAPITAL	AREALAND	AREAWATER	POP_CLASS	...	MARHH_NO_C	MHH_CHILD	FHH_CHILD	FAMILIES	AVE_FAM_SZ	HSE_UNITS	VACANT	OWNER_OCC	RENTER_OCC	SHAPE
711	711	Green River	City	WY	56	33740		13.706	0.315	6	...	1278	113	251	3214	3.22	4426	249	3169	1008	{"x": -109.46492712301152, "y": 41.51419117328...
712	712	Rock Springs	City	WY	56	67235		18.441	0.000	6	...	2012	220	536	4931	3.02	8359	1011	5274	2074	{"x": -109.22240010498797, "y": 41.59092714080...
715	715	Evanston	City	WY	56	25620		10.245	0.044	6	...	976	139	369	2940	3.30	4665	607	2805	1253	{"x": -110.96461812552366, "y": 41.26330015271...
764	764	Laramie	City	WY	56	45050		11.138	0.019	6	...	2496	174	587	5608	2.83	11994	658	5379	5957	{"x": -105.58725462620347, "y": 41.31292665660...
766	766	Cheyenne	City	WY	56	13900	State	21.108	0.082	7	...	6299	490	1610	14174	2.93	23782	1458	14739	7585	{"x": -104.80204559586696, "y": 41.14554516058...

5 rows × 48 columns

Create a dataframe for the state of Wyoming:

q = sdf_join.STATE_ABBR == 'WY'
right = sdf_join[q].copy()
right.head()

	FID	STATE_NAME	DRAWSEQ	STATE_FIPS	SUB_REGION	STATE_ABBR	SHAPE
6	6	Wyoming	7	56	Mountain	WY	{"rings": [[[-104.05361529329527, 41.698218366...

Perform the spatial join:

Before performing a spatial join between these two DataFrame objects, we can check the SpatialReference of each one of them to validate if they are the same SR - this is a pre-requisite of joining two DataFrames.

left.spatial.sr

{'wkid': 4326, 'latestWkid': 4326}

right.spatial.sr

{'wkid': 4326, 'latestWkid': 4326}

sdf2 = left.spatial.join(right)
sdf2

	FID_left	NAME	CLASS	ST	STFIPS	PLACEFIP	CAPITAL	AREALAND	AREAWATER	POP_CLASS	...	OWNER_OCC	RENTER_OCC	SHAPE	index_right	FID_right	STATE_NAME	DRAWSEQ	STATE_FIPS	SUB_REGION	STATE_ABBR
0	711	Green River	City	WY	56	33740		13.706	0.315	6	...	3169	1008	{"x": -109.46492712301152, "y": 41.51419117328...	6	6	Wyoming	7	56	Mountain	WY
1	712	Rock Springs	City	WY	56	67235		18.441	0.000	6	...	5274	2074	{"x": -109.22240010498797, "y": 41.59092714080...	6	6	Wyoming	7	56	Mountain	WY
2	715	Evanston	City	WY	56	25620		10.245	0.044	6	...	2805	1253	{"x": -110.96461812552366, "y": 41.26330015271...	6	6	Wyoming	7	56	Mountain	WY
3	764	Laramie	City	WY	56	45050		11.138	0.019	6	...	5379	5957	{"x": -105.58725462620347, "y": 41.31292665660...	6	6	Wyoming	7	56	Mountain	WY
4	766	Cheyenne	City	WY	56	13900	State	21.108	0.082	7	...	14739	7585	{"x": -104.80204559586696, "y": 41.14554516058...	6	6	Wyoming	7	56	Mountain	WY
5	1216	Sheridan	City	WY	56	69845		8.486	0.018	6	...	4446	2559	{"x": -106.95897260592156, "y": 44.79671814410...	6	6	Wyoming	7	56	Mountain	WY
6	1218	Casper	City	WY	56	13150		23.945	0.316	6	...	13616	6727	{"x": -106.32506361818486, "y": 42.83466364743...	6	6	Wyoming	7	56	Mountain	WY
7	1219	Gillette	City	WY	56	31855		13.369	0.025	6	...	4867	2523	{"x": -105.50525462413556, "y": 44.28266365145...	6	6	Wyoming	7	56	Mountain	WY

8 rows × 55 columns

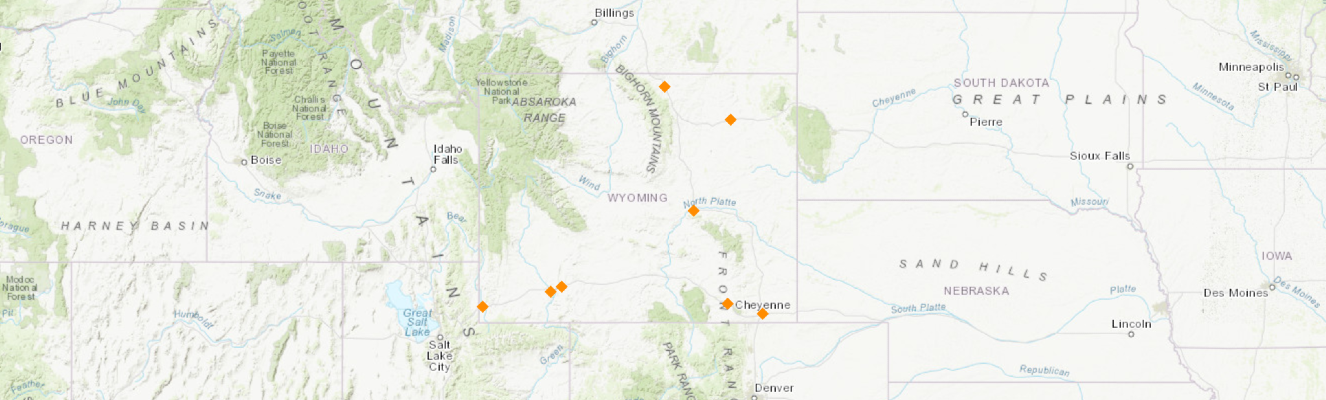

Notice, you retain the geometry type of your left DataFrame (points) in this case, however, you get all the attributes from both the left and right DataFrames. Let us plot the results of the spatial join on a map:

m3 = gis.map("Wyoming", 6)
m3

m3.center = [43, -107]

from arcgis.geometry import Geometry

# draw the spatial join results on Wyoming state
for idx, row in sdf2.iterrows():
    m3.draw(row['SHAPE'], symbol=pt_sym)

Conclusion

Spatially Enabled DataFrame give you powerful data analysis and data wrangling capabilities. In addition to performing sql like operations on attribute data, you can perform geographic queries. This guide demonstrated some of these advanced capabilities of the SEDF.
