This sample demonstrates how to add and delete items in a user’s portal.

Use case

Portals allow you to share and publish data with others. For example, you may create or collect some data on your device and want to upload that to a cloud storage location to share with others or simply save for later use. In this case, a CSV file is created and uploaded to ArcGIS Online.

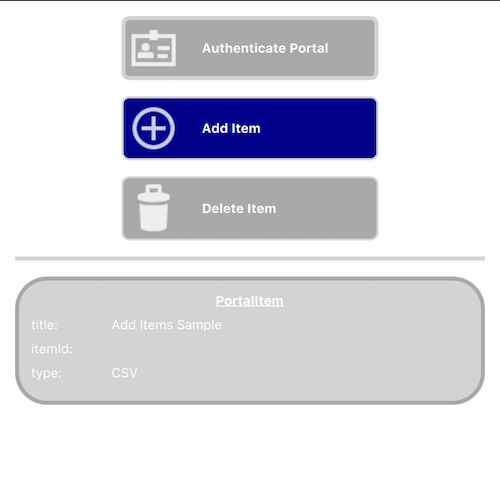

How to use the sample

Press the Authenticate Portal button and sign into your ArcGIS Online account.
Press the Add Item button, and this will add the CSV to your Portal.
Press the Delete Item button, and this will delete that same item from your Portal.

How it works

A Portal is created with a Credential using OAuthModeUser. The Portal instance is loaded and the OAuth sign in page is displayed. The user must now provide credentials.
Once the sign-in process is complete, a PortalItem of type CSV is created using this Portal instance.
When the portal is successfully loaded, the PortalUser object is obtained from the Portal.
When the “Add Item” button is clicked, the item is added via the PortalUser’s addPortalItemWithUrlAsync method. The PortalItem and the local URL of the CSV file are supplied as parameters.
When the item has been successfully added, it is loaded in order to retrieve online properties such as the itemId.’
When the “Delete Item” button is clicked, the item is passed as a parameter for the portalUser’s deleteItemAsync method.

Relevant API

Portal
PortalItem
PortalUser::addPortalItemWithUrlAsync
PortalUser::deleteItemAsync

Sample Code

AddItemsToPortal.cpp

AddItemsToPortal.h

AddItemsToPortal.qml

main.cpp

// [WriteFile Name=AddItemsToPortal, Category=CloudAndPortal]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "AddItemsToPortal.h"

// ArcGIS Maps SDK headers
#include "Authentication/OAuthUserConfiguration.h"
#include "Error.h"
#include "ErrorException.h"
#include "ErrorInformationKeys.h"
#include "MapTypes.h"
#include "Portal.h"
#include "PortalItem.h"
#include "PortalItemListModel.h"
#include "PortalTypes.h"
#include "PortalUser.h"

// Qt headers
#include <QFuture>
#include <QVariantMap>

// Other headers
#include "OAuthUserConfigurationManager.h"

using namespace Esri::ArcGISRuntime;
using namespace Esri::ArcGISRuntime::Authentication;
using namespace Esri::ArcGISRuntime::Toolkit;

AddItemsToPortal::AddItemsToPortal(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent),
  m_portal(new Portal(true, this))
{
  const QString redirectUrl{"urn:ietf:wg:oauth:2.0:oob"};
  OAuthUserConfiguration* config = new OAuthUserConfiguration(m_portal->url(), "iLkGIj0nX8A4EJda", redirectUrl, this);
  OAuthUserConfigurationManager::addConfiguration(config);

  m_item = new PortalItem(m_portal, PortalItemType::CSV, this);
  m_item->setTitle("Add Items Sample");
}

AddItemsToPortal::~AddItemsToPortal() = default;

void AddItemsToPortal::init()
{
  // Register the types for QML
  qmlRegisterType<AddItemsToPortal>("Esri.Samples", 1, 0, "AddItemsToPortalSample");
}

void AddItemsToPortal::componentComplete()
{
  QQuickItem::componentComplete();

  if (m_portal)
  {
    connect(m_portal, &Portal::loadStatusChanged, this, [this]()
    {
      emit portalLoadedChanged();

      if (m_portal->loadStatus() != LoadStatus::Loaded)
        return;

      m_user = m_portal->portalUser();
      m_busy = false;
      connectUserSignals();
    });
  }

  if (m_item)
  {
    connect(m_item, &PortalItem::loadStatusChanged, this, [this]()
    {
      if (m_item->loadStatus() != LoadStatus::Loaded)
        return;

      m_busy = false;
      emit portalItemIdChanged();
      emit portalItemTitleChanged();
      emit portalItemLoadedChanged();
      if (m_alreadyExisted)
        setStatusText("Item already exists; using existing item instead. " + m_item->itemId());
      else
        setStatusText("Succesfully loaded item from portal. " + m_item->itemId());
    });
  }
}

bool AddItemsToPortal::portalLoaded() const
{
  return m_portal && (m_portal->loadStatus() == LoadStatus::Loaded);
}

bool AddItemsToPortal::portalItemLoaded() const
{
  return m_item && (m_item->loadStatus() == LoadStatus::Loaded);
}

QString AddItemsToPortal::portalItemId() const
{
  if (m_itemDeleted || !m_item)
    return QString();

  return m_item->itemId();
}

QString AddItemsToPortal::portalItemTitle() const
{
  if (m_itemDeleted || !m_item)
    return QString();

  return m_item->title();
}

QString AddItemsToPortal::portalItemTypeName() const
{
  if (m_itemDeleted || !m_item)
    return QString();

  return m_item->typeName();
}

bool AddItemsToPortal::itemDeleted() const
{
  return m_itemDeleted;
}

QString AddItemsToPortal::statusText() const
{
  return m_statusText;
}

bool AddItemsToPortal::busy() const
{
  return m_busy;
}

void AddItemsToPortal::authenticatePortal()
{
  if (!m_portal)
    return;
  if (m_portal->loadStatus() == LoadStatus::FailedToLoad)
    m_portal->retryLoad();
  else
    m_portal->load();
}

void AddItemsToPortal::addItem()
{
  if (!m_user || !m_item)
    return;

  m_busy = true;

  //! [PortalUser addItemWithUrlAsync]
  QUrl localCSV("qrc:/Samples/CloudAndPortal/AddItemsToPortal/add_item_sample.csv");
  m_user->addPortalItemWithUrlAsync(m_item, localCSV, "add_item_sample.csv" ).then(this,
  [this]()
  {
    m_busy = false;

    setStatusText("Successfully added item. " + m_item->itemId());
    m_item->load();
  })
  //! [PortalUser addItemWithUrlAsync]
  .onFailed(
  [this](const ErrorException& e)
  {
    m_busy = false;

    // Check for service error 409 "Conflict" - item already exists
    const QVariantMap additionalInfo = e.error().additionalInformation();
    if (additionalInfo.contains(ErrorInformationKeys::serviceError()) &&
        additionalInfo.value(ErrorInformationKeys::serviceError()).toInt() == 409)
    {
      m_alreadyExisted = true;
      setStatusText("Item already exists; fetching existing item instead. " + m_item->itemId());
      fetchItem();
    }
    else
    {
      setStatusText(e.error().message());
    }
  });
}

void AddItemsToPortal::deleteItem()
{
  if (!m_user || !m_item)
    return;

  m_busy = true;

  m_user->deletePortalItemAsync(m_item).then(this,
  [this]()
  {
    m_busy = false;
    m_itemDeleted = true;

    emit itemDeletedChanged();
    emit portalItemIdChanged();
    emit portalItemTitleChanged();
    emit portalItemTypeNameChanged();

    setStatusText("Successfully deleted item. " + m_item->itemId());
  }).onFailed(
  [this](const ErrorException& e)
  {
    m_busy = false;

    setStatusText(e.error().message());
  });
}

void AddItemsToPortal::fetchItem()
{
  if (!m_user || !m_item)
    return;

  m_busy = true;

  m_user->fetchContentAsync().then(this,
  [this]()
  {
    m_busy = false;

    for (PortalItem* item : *m_user->items())
    {
      if (item->title() == "Add Items Sample")
      {
        m_item->setItemId(item->itemId());
        m_item->load();
        return;
      }
    }
  });
}

void AddItemsToPortal::connectUserSignals()
{
  if (!m_user)
    return;

  connect(m_user, &PortalUser::errorOccurred, this, [this](const Error& error)
  {
    m_busy = false;
    setStatusText(QString(error.message() + ": " + error.additionalMessage()));
  });
}

void AddItemsToPortal::setStatusText(const QString &statusText)
{
  m_statusText = statusText;
  emit statusTextChanged();
}

// [WriteFile Name=AddItemsToPortal, Category=CloudAndPortal]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ADDITEMSTOPORTAL_H
#define ADDITEMSTOPORTAL_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
    class Portal;
    class PortalItem;
    class PortalUser;
}

class AddItemsToPortal : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(bool portalLoaded READ portalLoaded NOTIFY portalLoadedChanged)
  Q_PROPERTY(bool portalItemLoaded READ portalItemLoaded NOTIFY portalItemLoadedChanged)
  Q_PROPERTY(QString portalItemId READ portalItemId NOTIFY portalItemIdChanged)
  Q_PROPERTY(QString portalItemTitle READ portalItemTitle NOTIFY portalItemTitleChanged)
  Q_PROPERTY(QString portalItemTypeName READ portalItemTypeName NOTIFY portalItemTypeNameChanged)
  Q_PROPERTY(bool itemDeleted READ itemDeleted NOTIFY itemDeletedChanged)
  Q_PROPERTY(QString statusText READ statusText NOTIFY statusTextChanged)
  Q_PROPERTY(bool busy READ busy NOTIFY busyChanged)

public:
  explicit AddItemsToPortal(QQuickItem* parent = nullptr);
  ~AddItemsToPortal() override;

  void componentComplete() override;
  static void init();

  Q_INVOKABLE void authenticatePortal();
  Q_INVOKABLE void addItem();
  Q_INVOKABLE void deleteItem();

signals:
  void portalLoadedChanged();
  void portalItemLoadedChanged();
  void portalItemTitleChanged();
  void portalItemIdChanged();
  void portalItemTypeNameChanged();
  void itemDeletedChanged();
  void statusTextChanged();
  void busyChanged();

private:
  void fetchItem();
  bool portalLoaded() const;
  bool portalItemLoaded() const;
  QString portalItemId() const;
  QString portalItemTitle() const;
  QString portalItemTypeName() const;
  bool itemDeleted() const;
  QString statusText() const;
  bool busy() const;

  void setStatusText(const QString& msg);
  void connectUserSignals();

  Esri::ArcGISRuntime::Portal* m_portal = nullptr;
  Esri::ArcGISRuntime::PortalItem* m_item = nullptr;
  Esri::ArcGISRuntime::PortalUser* m_user = nullptr;
  bool m_itemDeleted = false;
  QString m_statusText;
  bool m_busy = false;
  bool m_alreadyExisted = false;
};

#endif // ADDITEMSTOPORTAL_H

// [WriteFile Name=AddItemsToPortal, Category=CloudAndPortal]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import Esri.ArcGISRuntime.Toolkit

AddItemsToPortalSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    onPortalItemTitleChanged: portalItemModel.setProperty(0, "value", portalItemTitle);
    onPortalItemIdChanged: portalItemModel.setProperty(1, "value", portalItemId);
    onPortalItemTypeNameChanged: portalItemModel.setProperty(2, "value", portalItemTypeName);

    Flickable {
        anchors.fill: parent
        interactive: true
        boundsBehavior: Flickable.StopAtBounds
        contentHeight: parent.height * 1.5
        contentWidth: parent.width
        Column {
            anchors {
                fill: parent
                margins: 16
            }
            spacing: 16

            Rectangle {
                id: authenticationButton
                anchors.horizontalCenter: parent.horizontalCenter
                height: 64
                width: Math.min(256, parent.width)
                color: enabled ? "darkblue" : "darkgrey"
                border{
                    color: "lightgrey"
                    width: 2
                }
                radius: 8
                enabled: !portalLoaded

                Row {
                    anchors.fill: parent
                    spacing: 16

                    Image {
                        anchors.verticalCenter: parent.verticalCenter
                        source: !portalLoaded ?
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_account_dark.png" :
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_checkedcircled_dark.png"
                        fillMode: Image.PreserveAspectFit
                        height: 64
                        width: height
                    }

                    Text {
                        anchors.verticalCenter: parent.verticalCenter
                        text: "Authenticate Portal"
                        font.bold: true
                        color: "white"
                    }
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        authenticatePortal();
                        authenticationButton.border.width = 4;
                    }
                }
            }

            Rectangle {
                id: addItemButton
                anchors.horizontalCenter: parent.horizontalCenter
                height: authenticationButton.height
                width: authenticationButton.width
                color: enabled ? "darkblue" : "darkgrey"
                border{
                    color: authenticationButton.border.color
                    width: 2
                }
                radius: authenticationButton.radius
                enabled: !portalItemLoaded && portalLoaded

                Row {
                    anchors.fill: parent
                    spacing: 16

                    Image {
                        anchors.verticalCenter: parent.verticalCenter
                        source: portalItemLoaded ?
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_checkedcircled_dark.png" :
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_addencircled_dark.png"

                        fillMode: Image.PreserveAspectFit
                        height: 64
                        width: height
                    }

                    Text {
                        anchors.verticalCenter: parent.verticalCenter
                        text: "Add Item"
                        font.bold: true
                        color: "white"
                    }
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        addItemButton.border.width = 4
                        addItem();
                    }
                }
            }

            Rectangle {
                id: deleteItemButton
                anchors.horizontalCenter: parent.horizontalCenter
                height: authenticationButton.height
                width: authenticationButton.width
                color: enabled ? "darkblue" : "darkgrey"
                border {
                    color: authenticationButton.border.color
                    width: 2
                }
                radius: authenticationButton.radius
                enabled: portalItemLoaded && !itemDeleted

                Row {
                    anchors.fill: parent
                    spacing: 16

                    Image {
                        anchors.verticalCenter: parent.verticalCenter
                        source: !itemDeleted ?
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_trash_dark.png" :
                                    "qrc:/Samples/CloudAndPortal/AddItemsToPortal/ic_menu_checkedcircled_dark.png"

                        fillMode: Image.PreserveAspectFit
                        height: 64
                        width: height
                    }

                    Text {
                        anchors.verticalCenter: parent.verticalCenter
                        text: "Delete Item"
                        font.bold: true
                        color: "white"
                    }
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: {
                        deleteItemButton.border.width = 2
                        deleteItem();
                    }
                }
            }

            Rectangle {
                anchors {
                    left: parent.left
                    right: parent.right
                }
                height: 4
                color: "lightgrey"
            }

            Rectangle {
                id: itemView
                anchors {
                    left: parent.left
                    right: parent.right
                }
                height: 128
                color: "lightsteelblue"
                border {
                    color: "darkgrey"
                    width: 4
                }
                radius: 32
                clip: true

                Text {
                    id: portalItemLabel
                    anchors{
                        top: parent.top
                        horizontalCenter: parent.horizontalCenter
                        margins: 4
                    }
                    color: "white"
                    font.bold: true
                    text: "PortalItem"
                    font.underline: true
                    horizontalAlignment: Text.AlignHCenter
                }

                ListModel {
                    id: portalItemModel

                    Component.onCompleted: {
                        append({"label": "title", "value": portalItemTitle });
                        append({"label": "itemId", "value": portalItemId});
                        append({"label": "type", "value": portalItemTypeName});
                    }
                }

                ListView {
                    anchors {
                        top: portalItemLabel.bottom
                        left: parent.left
                        right: parent.right
                        bottom: parent.bottom
                        margins: 16
                    }
                    clip: true
                    model: portalItemModel
                    delegate: Text {
                        color: "white"
                        text: label + ":\t" + value
                        wrapMode: Text.Wrap
                        elide: Text.ElideRight
                    }
                }
            }

            Text {
                id: statusBar
                anchors{
                    left: parent.left
                    right: parent.right
                }
                wrapMode: Text.Wrap
                elide: Text.ElideRight
                text: statusText
            }
        }
    }

    // Declare Authenticator to handle any authentication challenges
    Authenticator {
        anchors.fill: parent
    }

    BusyIndicator {
        anchors.centerIn: parent
        running: busy
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

#ifdef QT_WEBVIEW_WEBENGINE_BACKEND
#include <QtWebEngineQuick>
#endif // QT_WEBVIEW_WEBENGINE_BACKEND

#include "Esri/ArcGISRuntime/Toolkit/register.h"
#include "ArcGISRuntimeEnvironment.h"

#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#include "AddItemsToPortal.h"

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#ifdef QT_WEBVIEW_WEBENGINE_BACKEND
  QtWebEngineQuick::initialize();
#endif // QT_WEBVIEW_WEBENGINE_BACKEND

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("Add Items to Portal"));

  // Initialize the sample
  AddItemsToPortal::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  Esri::ArcGISRuntime::Toolkit::registerComponents(*(view.engine()));

  // Set the source
  view.setSource(QUrl("qrc:/Samples/CloudAndPortal/AddItemsToPortal/AddItemsToPortal.qml"));

  view.show();

  return app.exec();
}

Use case

How to use the sample

How it works

Relevant API

Tags

Sample Code
