Display content of utility network container

A utility network container allows a dense collection of features to be represented by a single feature, which can be used to reduce map clutter.

Use case

Offering a container view for features aids in the review for valid, structural attachment, and containment relationships. It also helps determine if a dataset has an association role set. Container views often model a cluster of electrical devices on a pole top or inside a cabinet or vault.

How to use the sample

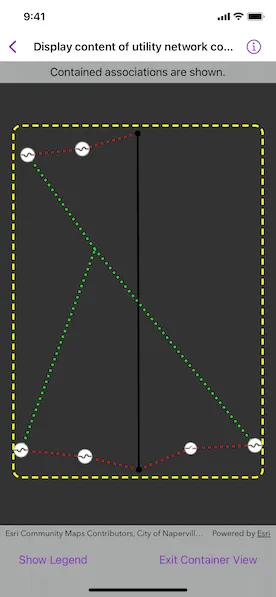

Tap a container feature to show all features inside the container. The container is shown as a polygon graphic with the content features contained within. The viewpoint and scale of the map are also changed to the container’s extent. Connectivity and attachment associations inside the container are shown as dotted lines.

How it works

1. Create and load a web map that includes ArcGIS Pro Subtype Group Layers with only container features visible (i.e. fuse bank, switch bank, transformer bank, hand hole, and junction box).
2. Create a MapView and add the onSingleTapGesture(perform:) modifier to detect tap events.
3. Get and load the first UtilityNetwork from the web map.
4. Add a GraphicsOverlay for displaying a container view.
5. Identify the tapped feature and create an UtilityElement from it.
6. Get the associations for this element using UtilityNetwork.associations(for:ofKind:).
7. Turn-off the visibility of all of the map’s operationalLayers.
8. Get the features for the UtilityElement(s) from the associations using UtilityNetwork.features(for:).
9. Add a Graphic with the same geometry and symbol as these features.
10. Add another Graphic that represents this extent and zoom to this extent with some buffer.
11. Get associations for this extent using UtilityNetwork.associations(forExtent:ofKind:).
12. Add a Graphic to represent the association geometry between them using a symbol that distinguishes between attachment and connectivity association type.
13. Turn-on the visibility of all operationalLayers, clear the Graphic objects, and zoom out to previous extent to exit container view.

Relevant API

• SubtypeFeatureLayer
• UtilityAssociation
• UtilityAssociation.Kind
• UtilityElement
• UtilityNetwork

About the data

The Naperville Electric SubtypeGroupLayers with Containers web map contains a utility network used to find associations shown in this sample. Authentication is required and handled within the sample code.

Tags

associations, connectivity association, containment association, structural attachment associations, utility network
