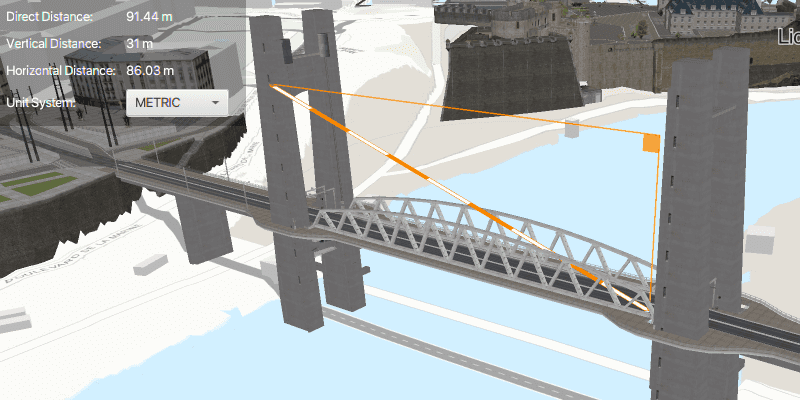

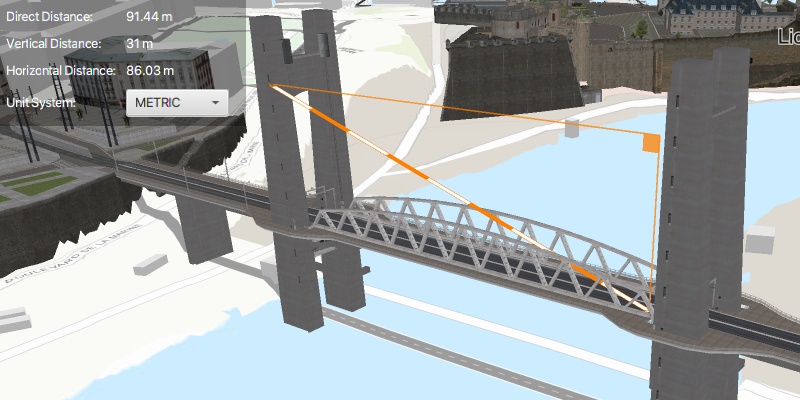

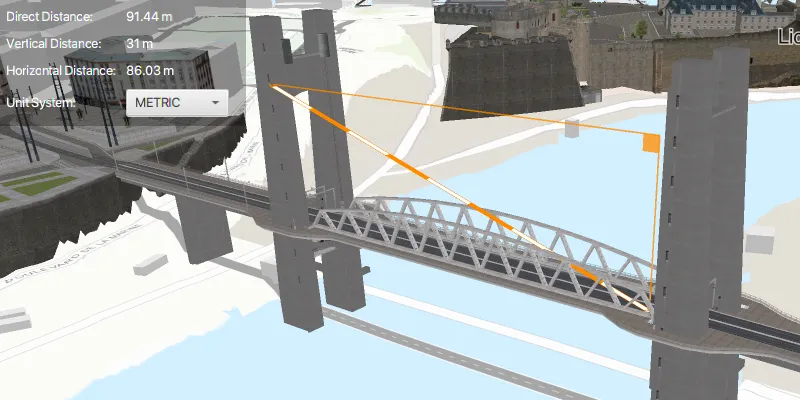

Distance measurement analysis

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.distance_measurement_analysis {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;
  requires javafx.fxml;

  // make all @FXML annotated objects reflectively accessible to the javafx.fxml module
  opens com.esri.samples.distance_measurement_analysis to javafx.fxml;

  exports com.esri.samples.distance_measurement_analysis;
}

/*
 * Copyright 2018 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.distance_measurement_analysis;

import java.text.DecimalFormat;
import java.util.concurrent.ExecutionException;

import javafx.event.EventHandler;
import javafx.fxml.FXML;
import javafx.geometry.Point2D;
import javafx.scene.control.Alert;
import javafx.scene.control.ComboBox;
import javafx.scene.control.Label;
import javafx.scene.input.MouseButton;
import javafx.scene.input.MouseEvent;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.UnitSystem;
import com.esri.arcgisruntime.concurrent.ListenableFuture;
import com.esri.arcgisruntime.geoanalysis.LocationDistanceMeasurement;
import com.esri.arcgisruntime.geometry.Distance;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.geometry.SpatialReferences;
import com.esri.arcgisruntime.layers.ArcGISSceneLayer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISScene;
import com.esri.arcgisruntime.mapping.ArcGISTiledElevationSource;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.Surface;
import com.esri.arcgisruntime.mapping.view.AnalysisOverlay;
import com.esri.arcgisruntime.mapping.view.Camera;
import com.esri.arcgisruntime.mapping.view.SceneView;

public class DistanceMeasurementAnalysisController {

  @FXML private SceneView sceneView;
  @FXML private Label directDistanceLabel;
  @FXML private Label verticalDistanceLabel;
  @FXML private Label horizontalDistanceLabel;
  @FXML private ComboBox<UnitSystem> unitSystemComboBox;

  private LocationDistanceMeasurement distanceMeasurement;

  public void initialize() {

    // authentication with an API key or named user is required to access basemaps and other location services
    String yourAPIKey = System.getProperty("apiKey");
    ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

    // create a scene with a basemap style and set it to the scene view
    ArcGISScene scene = new ArcGISScene(BasemapStyle.ARCGIS_TOPOGRAPHIC);
    sceneView.setArcGISScene(scene);

    // add base surface for elevation data
    Surface surface = new Surface();
    surface.getElevationSources().add(new ArcGISTiledElevationSource(
      "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"));
    scene.setBaseSurface(surface);

    final String buildings = "http://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer/layers/0";
    ArcGISSceneLayer sceneLayer = new ArcGISSceneLayer(buildings);
    sceneLayer.setAltitudeOffset(1); // offset for visual purposes
    scene.getOperationalLayers().add(sceneLayer);

    // create an analysis overlay and add it to the scene view
    AnalysisOverlay analysisOverlay = new AnalysisOverlay();
    sceneView.getAnalysisOverlays().add(analysisOverlay);

    // initialize a distance measurement and add it to the analysis overlay
    Point start = new Point(-4.494677, 48.384472, 24.772694, SpatialReferences.getWgs84());
    Point end = new Point(-4.495646, 48.384377, 58.501115, SpatialReferences.getWgs84());
    distanceMeasurement = new LocationDistanceMeasurement(start, end);
    analysisOverlay.getAnalyses().add(distanceMeasurement);

    // zoom to the initial measurement
    scene.addDoneLoadingListener(() -> {
      if (scene.getLoadStatus() == LoadStatus.LOADED) {
        sceneView.setViewpointCamera(new Camera(start, 200.0, 0.0, 45.0, 0.0));
      } else {
        new Alert(Alert.AlertType.ERROR, "Scene failed to load").show();
      }
    });

    // show the distances in the UI when the measurement changes
    DecimalFormat decimalFormat = new DecimalFormat("#.##");
    distanceMeasurement.addMeasurementChangedListener(e -> {
      Distance directDistance = e.getDirectDistance();
      Distance verticalDistance = e.getVerticalDistance();
      Distance horizontalDistance = e.getHorizontalDistance();
      directDistanceLabel.setText(decimalFormat.format(directDistance.getValue()) + " " + directDistance.getUnit()
          .getAbbreviation());
      verticalDistanceLabel.setText(decimalFormat.format(verticalDistance.getValue()) + " " + verticalDistance
          .getUnit().getAbbreviation());
      horizontalDistanceLabel.setText(decimalFormat.format(horizontalDistance.getValue()) + " " + horizontalDistance
          .getUnit().getAbbreviation());
    });

    // add the unit system options to the UI initialized with the measurement's default value (METRIC)
    unitSystemComboBox.getItems().addAll(UnitSystem.values());
    unitSystemComboBox.setValue(distanceMeasurement.getUnitSystem());

    // remove the default mouse move handler
    sceneView.setOnMouseMoved(null);

    // create a handler to update the measurement's end location when the mouse moves
    EventHandler<MouseEvent> mouseMoveEventHandler = event -> {
      Point2D point2D = new Point2D(event.getX(), event.getY());
      // get the scene location from the screen position
      ListenableFuture<Point> pointFuture = sceneView.screenToLocationAsync(point2D);
      pointFuture.addDoneListener(() -> {
        try {
          // update the end location
          Point point = pointFuture.get();
          distanceMeasurement.setEndLocation(point);
        } catch (InterruptedException | ExecutionException e) {
          e.printStackTrace();
        }
      });
    };

    // mouse click to start/stop moving a measurement
    sceneView.setOnMouseClicked(event -> {
      if (event.isStillSincePress() && event.getButton() == MouseButton.PRIMARY) {
        // get the clicked location
        Point2D point2D = new Point2D(event.getX(), event.getY());
        ListenableFuture<Point> pointFuture = sceneView.screenToLocationAsync(point2D);
        pointFuture.addDoneListener(() -> {
          try {
            Point point = pointFuture.get();
            if (sceneView.getOnMouseMoved() == null) {
              // reset the measurement at the clicked location and start listening for mouse movement
              sceneView.setOnMouseMoved(mouseMoveEventHandler);
              distanceMeasurement.setStartLocation(point);
              distanceMeasurement.setEndLocation(point);
            } else {
              // set the measurement end location and stop listening for mouse movement
              sceneView.setOnMouseMoved(null);
              distanceMeasurement.setEndLocation(point);
            }
          } catch (InterruptedException | ExecutionException e) {
            e.printStackTrace();
          }
        });
      }
    });
  }

  /**
   * Update the measurement's unit system when the combo box option is changed.
   */
  @FXML
  private void changeUnitSystem() {

    distanceMeasurement.setUnitSystem(unitSystemComboBox.getValue());
  }

  /**
   * Stops and releases all resources used in application.
   */
  void terminate() {

    if (sceneView != null) {
      sceneView.dispose();
    }
  }

}

/*
 * Copyright 2018 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.distance_measurement_analysis;

import java.io.IOException;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class DistanceMeasurementAnalysisSample extends Application {

  private static DistanceMeasurementAnalysisController controller;

  @Override
  public void start(Stage stage) throws IOException {
    // set up the scene
    FXMLLoader loader = new FXMLLoader(getClass().getResource("/distance_measurement_analysis/main.fxml"));
    Parent root = loader.load();
    controller = loader.getController();
    Scene scene = new Scene(root);

    // set up the stage
    stage.setTitle("Distance Measurement Analysis Sample");
    stage.setWidth(800);
    stage.setHeight(700);
    stage.setScene(scene);
    stage.show();
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {
    controller.terminate();
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
