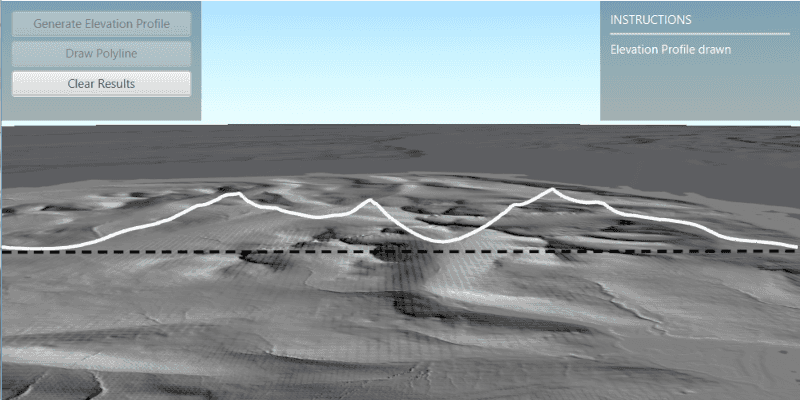

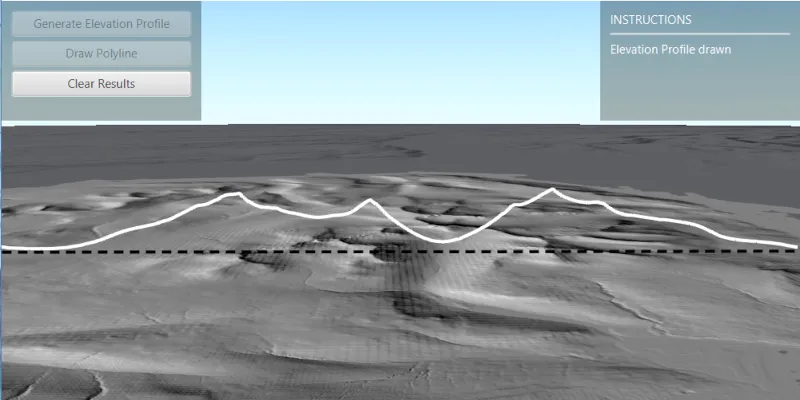

Generate elevation profile with Local Server

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.local_server_generate_elevation_profile {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;
  requires javafx.fxml;

  // make all @FXML annotated objects reflectively accessible to the javafx.fxml module
  opens com.esri.samples.local_server_generate_elevation_profile to javafx.fxml;

  exports com.esri.samples.local_server_generate_elevation_profile;
}

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.local_server_generate_elevation_profile;

import java.io.File;
import java.io.FileNotFoundException;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Scanner;
import java.util.concurrent.CountDownLatch;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;

import javafx.application.Platform;
import javafx.fxml.FXML;
import javafx.geometry.Point2D;
import javafx.scene.control.Alert;
import javafx.scene.control.Alert.AlertType;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.ProgressBar;
import javafx.scene.input.MouseButton;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.concurrent.Job;
import com.esri.arcgisruntime.concurrent.ListenableFuture;
import com.esri.arcgisruntime.data.Feature;
import com.esri.arcgisruntime.data.FeatureCollection;
import com.esri.arcgisruntime.data.FeatureCollectionTable;
import com.esri.arcgisruntime.data.FeatureTable;
import com.esri.arcgisruntime.data.Field;
import com.esri.arcgisruntime.data.ServiceGeodatabase;
import com.esri.arcgisruntime.geometry.GeometryEngine;
import com.esri.arcgisruntime.geometry.GeometryType;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.geometry.PointCollection;
import com.esri.arcgisruntime.geometry.Polyline;
import com.esri.arcgisruntime.geometry.SpatialReferences;
import com.esri.arcgisruntime.layers.FeatureLayer;
import com.esri.arcgisruntime.layers.RasterLayer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.localserver.LocalGeoprocessingService;
import com.esri.arcgisruntime.localserver.LocalGeoprocessingService.ServiceType;
import com.esri.arcgisruntime.localserver.LocalServer;
import com.esri.arcgisruntime.localserver.LocalServerStatus;
import com.esri.arcgisruntime.mapping.ArcGISScene;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.Camera;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.LayerSceneProperties;
import com.esri.arcgisruntime.mapping.view.SceneView;
import com.esri.arcgisruntime.raster.HillshadeRenderer;
import com.esri.arcgisruntime.raster.Raster;
import com.esri.arcgisruntime.raster.RasterFunction;
import com.esri.arcgisruntime.raster.RasterFunctionArguments;
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
import com.esri.arcgisruntime.symbology.SimpleMarkerSymbol;
import com.esri.arcgisruntime.symbology.SimpleRenderer;
import com.esri.arcgisruntime.tasks.geoprocessing.GeoprocessingFeatures;
import com.esri.arcgisruntime.tasks.geoprocessing.GeoprocessingJob;
import com.esri.arcgisruntime.tasks.geoprocessing.GeoprocessingString;
import com.esri.arcgisruntime.tasks.geoprocessing.GeoprocessingTask;

public class LocalServerGenerateElevationProfileController {

  @FXML private Button drawPolylineButton;
  @FXML private Button generateProfileButton;
  @FXML private Button clearResultsButton;
  @FXML private Label instructionsLabel;
  @FXML private ProgressBar progressBar;
  @FXML private SceneView sceneView;
  @FXML private VBox vBox;

  private ArcGISScene scene;
  private FeatureCollection featureCollection;
  private FeatureLayer featureLayer;
  private GeoprocessingTask gpTask;
  private GraphicsOverlay graphicsOverlay;
  private LocalGeoprocessingService localGPService;
  private Polyline polyline;
  private Raster arranRaster;
  private RasterLayer rasterLayer;
  private Viewpoint rasterExtentViewPoint;

  private static LocalServer server;

  /**
   * Called after FXML loads. Sets up scene.
   */
  public void initialize() {

    try {

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // create a scene with a topographic basemap style
      scene = new ArcGISScene(BasemapStyle.ARCGIS_HILLSHADE_DARK);

      // create a new raster from local file and display it on the scene
      arranRaster = new Raster(new File
        (System.getProperty("data.dir"), "./samples-data/local_server/Arran_10m_raster.tif").getAbsolutePath());

      // when the scene has loaded, display the raster
      scene.addDoneLoadingListener(() -> {
        if (scene.getLoadStatus() == LoadStatus.LOADED) {
          displayRaster(arranRaster);
        } else if (scene.getLoadStatus() == LoadStatus.FAILED_TO_LOAD) {
          new Alert(AlertType.ERROR, "Scene failed to load").show();
        }
      });

      // set up a new feature collection
      featureCollection = new FeatureCollection();

      // create a graphics overlay for displaying the sketched polyline and add it to the scene view's list of
      // graphics overlays
      graphicsOverlay = new GraphicsOverlay();
      SimpleLineSymbol lineSymbol = new SimpleLineSymbol(SimpleLineSymbol.Style.DASH, Color.BLACK, 3);
      graphicsOverlay.setRenderer(new SimpleRenderer(lineSymbol));
      sceneView.getGraphicsOverlays().add(graphicsOverlay);

      // start the local server instance
      startLocalServer();

      // set the scene to the scene view
      sceneView.setArcGISScene(scene);

    } catch (Exception e) {
      // on any exception, print the stack trace
      e.printStackTrace();
    }
  }

  /**
   * Creates a new raster, applies various raster functions to mask the data to only show data above sea level, and adds
   * it to a raster layer. Applies a hillshade renderer to the raster layer, and adds the raster layer to the scene's
   * list of operational layers.
   */
  private void displayRaster(Raster raster) {


    // raster function on raster data
    try {
      Raster maskedRaster = applyMaskingRasterFunction(raster);
      // create a raster layer from the raster
      rasterLayer = new RasterLayer(maskedRaster);
      // set a hillshade renderer to the raster layer
      rasterLayer.setRasterRenderer(new HillshadeRenderer(30, 210, 1));
    } catch (FileNotFoundException e) {
      e.printStackTrace();
    }

    // once the raster layer has loaded, set the viewpoint of the scene view to the raster layer's full extent
    rasterLayer.addDoneLoadingListener(() -> {
      if (rasterLayer.getLoadStatus() == LoadStatus.LOADED && rasterLayer.getFullExtent() != null) {
        // centered on the raster covering the Isle of Arran, Scotland
        rasterExtentViewPoint = new Viewpoint(rasterLayer.getFullExtent());
        sceneView.setViewpointAsync(rasterExtentViewPoint);
      } else {
        new Alert(AlertType.ERROR, "Raster layer failed to load.").show();
      }
    });
    // add the raster layer to the scene's operational layers
    scene.getOperationalLayers().add(rasterLayer);
  }

  /**
   * Checks that there is a valid install of Local Server, and if so starts the Local Server, and then starts a local
   * geoprocessing service from the create_elevation_profile_model geoprocessing package.
   */
  private void startLocalServer() {

    // check that there is a valid install on user machine
    if (LocalServer.INSTANCE.checkInstallValid()) {
      progressBar.setVisible(true);
      server = LocalServer.INSTANCE;

      // check the local server instance status
      server.addStatusChangedListener(serverStatus -> {
        if (serverStatus.getNewStatus() == LocalServerStatus.STARTED) {
          try {
            // get the path to the geoprocessing package (created in ArcGIS Pro) that creates elevation profile from
            // raster data
            String geoprocessingPackagePath = new File(System.getProperty("data.dir"), "./samples-data/local_server" +
              "/create_elevation_profile_model.gpkx").getAbsolutePath();

            // create new local geoprocessing service with map server result to display elevation profile on scene
            localGPService =
              new LocalGeoprocessingService(geoprocessingPackagePath, ServiceType.ASYNCHRONOUS_SUBMIT_WITH_MAP_SERVER_RESULT);
          } catch (Exception e) {
            e.printStackTrace();
          }

          localGPService.addStatusChangedListener(serviceStatus -> {
            // create geoprocessing task once local geoprocessing service is started
            if (serviceStatus.getNewStatus() == LocalServerStatus.STARTED) {
              // add the name of the model used to create the gpkx in ArcGIS Pro to the Url of the local geoprocessing task
              // e.g. the model name in this sample's gpkx created in ArcGIS Pro is CreateElevationProfileModel
              gpTask = new GeoprocessingTask(localGPService.getUrl() + "/CreateElevationProfileModel");

              // handle UI behaviour
              instructionsLabel.setText("Draw a polyline on the scene with the 'Draw Polyline' button");
              drawPolylineButton.setDisable(false);
              progressBar.setVisible(false);
            } else if (localGPService.getStatus() == LocalServerStatus.FAILED) {
              // display an information alert and close the application if the geoprocessing service failed to start
              showMessage("Local Server Status Error", "Local Geoprocessing Service failed to start.");
            }
          });
          localGPService.startAsync();

        } else if (server.getStatus() == LocalServerStatus.FAILED) {
          // display an information alert and close the application if the server failed to start
          showMessage("Local Server Status Error", "Local Server failed to start.");
        }
      });
      // start the local server
      server.startAsync();

    } else {
      // display an information alert and close the application if a local server install path couldn't be located
      showMessage("Local Server Install Error", "Local Server install path couldn't be located.");
    }
  }

  /**
   * Generates an elevation profile when the "Generate Elevation Profile" button is clicked. The elevation profile is
   * generated from an input raster (Isle of Arran Lidar data) and a polyline sketched by the user.
   */
  @FXML
  protected void handleGenerateElevationProfile() {

    generateProfileButton.setDisable(true);
    // tracking progress of generating elevation profile
    progressBar.setVisible(true);

    // create the feature collection table from sketched polyline
    createFeatureCollectionTableWithPolylineFeature();

    // create default parameters and get their inputs
    var defaultParamsListener = gpTask.createDefaultParametersAsync();
    defaultParamsListener.addDoneListener(() -> {
      try {
        var params = defaultParamsListener.get();
        var inputParams = params.getInputs();

        // input polyline path
        // name of input parameter, input type (geoprocessing feature, pointing to polyline)
        inputParams.put("Input_Polyline", new GeoprocessingFeatures(featureCollection.getTables().get(0)));

        // input raster data
        // name of input parameter, input type (geoprocessing string pointing to raster file)
        inputParams.put("Input_Raster", new GeoprocessingString(arranRaster.getPath()));

        // create geoprocessing job from the geoprocessing parameters to show elevation profile on the scene
        GeoprocessingJob gpJob = gpTask.createJob(params);
        gpJob.addJobDoneListener(() -> {
          if (gpJob.getStatus() == Job.Status.SUCCEEDED) {

            // convert geoprocesser server url to that of a map server, and get the job id
            var serviceUrl = localGPService.getUrl();
            var mapServerUrl = serviceUrl.replace("GPServer", "MapServer/jobs/" + gpJob.getServerJobId());

            // create a service geodatabase from the map server url
            var serviceGeodatabase = new ServiceGeodatabase(mapServerUrl);
            serviceGeodatabase.addDoneLoadingListener(() -> {

              FeatureTable featureTable = serviceGeodatabase.getTable(0);
              featureLayer = new FeatureLayer(featureTable);

              featureLayer.addDoneLoadingListener(() -> {

                featureLayer.getSceneProperties().setSurfacePlacement(LayerSceneProperties.SurfacePlacement.ABSOLUTE);
                featureLayer.setRenderer(new SimpleRenderer(
                  new SimpleLineSymbol(SimpleLineSymbol.Style.SOLID, Color.WHITE, 3)));

                sceneView.setViewpointCameraAsync(createCameraFacingElevationProfile(), 2);
                instructionsLabel.setText("Elevation Profile drawn");
              });
              scene.getOperationalLayers().add(featureLayer);

              // handle UI
              generateProfileButton.setDisable(true);
              clearResultsButton.setDisable(false);

            });
            serviceGeodatabase.loadAsync();

          } else {
            new Alert(AlertType.ERROR, "Geoprocess Job Fail. Error: " +
              gpJob.getError().getMessage()).showAndWait();
          }
          progressBar.setVisible(false);

        });
        gpJob.start();

      } catch (InterruptedException | ExecutionException e) {
        e.printStackTrace();
      }
    });
  }

  /**
   * Creates a feature collection table, and adds a feature to it constructed from the sketched polyline. A feature
   * collection table is the parameter type required for the GeoprocessingFeatures constructor in this sample.
   */
  @FXML
  private void createFeatureCollectionTableWithPolylineFeature() {

    // create name field for polyline
    List<Field> polylineField = new ArrayList<>();
    polylineField.add(Field.createString("Name", "Name of feature", 20));

    // create a feature collection table
    FeatureCollectionTable featureCollectionTable = new FeatureCollectionTable(polylineField, GeometryType.POLYLINE,
      SpatialReferences.getWebMercator(), true, false);

    // add the feature collection table to the feature collection and load it
    featureCollection.addDoneLoadingListener(() -> {
      if (featureCollection.getLoadStatus() == LoadStatus.LOADED) {

        // add the feature collection table to the feature collection, and create a feature from it, using the polyline
        // sketched by the user
        featureCollection.getTables().add(featureCollectionTable);
        Map<String, Object> attributes = new HashMap<>();
        attributes.put(polylineField.get(0).getName(), "ElevationSection");
        Feature addedFeature = featureCollectionTable.createFeature(attributes, polyline);

        // add feature to collection table
        featureCollectionTable.addFeatureAsync(addedFeature);

      } else {
        new Alert(AlertType.ERROR, "Feature collection failed to load").show();
      }
    });
    featureCollection.loadAsync();

  }

  /**
   * Handles "Draw Polyline" button. Creates a temporary graphics overlay and adds points clicked on the scene
   * to a point collection. On right click of the mouse button, the points are used to construct a polyline which is
   * returned.
   */
  @FXML
  private void handleDrawPolyline() {

    vBox.setDisable(true);
    instructionsLabel.setText("Click on the map to draw polyline path, then right click to save it");
    drawPolylineButton.setDisable(true);

    // create a temporary graphics overlay to display point collection on map
    var tempGraphicsOverlay = new GraphicsOverlay();
    sceneView.getGraphicsOverlays().add(tempGraphicsOverlay);
    var simpleMarkerSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbol.Style.CROSS, Color.BLACK, 10);
    tempGraphicsOverlay.setRenderer(new SimpleRenderer(simpleMarkerSymbol));

    // create a point collection with the same spatial reference as the raster layer
    var rasterLayerSpatialReference = rasterLayer.getSpatialReference();
    PointCollection pointCollection = new PointCollection(rasterLayerSpatialReference);

    sceneView.setOnMouseClicked(event -> {
      if (event.isStillSincePress() && event.getButton() == MouseButton.PRIMARY && vBox.isDisabled()) {

        // get the clicked location
        var point2D = new Point2D(event.getX(), event.getY());
        ListenableFuture<Point> pointFuture = sceneView.screenToLocationAsync(point2D);
        pointFuture.addDoneListener(() -> {
          // project the clicked location point, and add it to the point collection and temporarily display the clicked
          // location on the map
          try {
            Point point = pointFuture.get();
            Point projectedPoint = (Point) GeometryEngine.project(point, rasterLayerSpatialReference);

            // check that the user has clicked within the extent of the raster
            if (GeometryEngine.intersects(projectedPoint, rasterLayer.getFullExtent())) {
              pointCollection.add(projectedPoint);
              tempGraphicsOverlay.getGraphics().add(new Graphic(projectedPoint));
            } else {
              new Alert(AlertType.ERROR, "Clicked point must be within raster layer extent").show();
              drawPolylineButton.setDisable(false);
            }
          } catch (Exception e) {
            e.printStackTrace();
          }
        });

      } else if (event.getButton() == MouseButton.SECONDARY && tempGraphicsOverlay.getGraphics().size() > 1) {
        // clear the temporary graphics overlay displaying clicked points
        tempGraphicsOverlay.getGraphics().clear();

        // create a polyline from the clicked points on the scene and add it as a graphic to the graphics overlay
        polyline = new Polyline(pointCollection);
        Graphic graphic = new Graphic(polyline);
        graphicsOverlay.getGraphics().add(graphic);
        new Alert(AlertType.INFORMATION, "Polyline sketched").show();

        // handle UI
        vBox.setDisable(false);
        drawPolylineButton.setDisable(true);
        generateProfileButton.setDisable(false);
        instructionsLabel.setText("Generate an elevation profile along the polyline using the Generate Elevation " +
          "Profile button");
        // clear point collection
        pointCollection.clear();
      } else if (event.getButton() == MouseButton.SECONDARY && tempGraphicsOverlay.getGraphics().size() == 1) {
        new Alert(AlertType.WARNING, "More than one point required to draw polyline").show();
      }
    });
  }

  /**
   * Remove feature layer from list of operational layers (retains the raster layer), and graphics from the scene.
   */
  @FXML
  protected void handleClearResults() {

    // remove all graphics
    graphicsOverlay.getGraphics().clear();

    // remove last operational layer added to the scene (feature layer), retains the raster layer
    scene.getOperationalLayers().remove(1);

    // handle UI after checking there is still an operational layer in the scene (raster layer)
    generateProfileButton.setDisable(true);
    drawPolylineButton.setDisable(false);
    clearResultsButton.setDisable(true);
    sceneView.setViewpointAsync(rasterExtentViewPoint);
    featureCollection.getTables().clear();
    instructionsLabel.setVisible(true);
    instructionsLabel.setText("Draw a polyline on the scene with the 'Draw Polyline' button");
  }

  /**
   * Performs a sequence of raster functions to the original raster data that finds data with a value above 0m (sea
   * level) and masks the data to only show that data above sea level. The data is masked for visual purposes to show
   * only the island extent, and also masks out the edge effects from the original data.
   *
   * @param originalRaster the initial raster to perform raster function on
   * @return masked raster (hides data at or below sea level (0m))
   * @throws FileNotFoundException if the json raster functions are not found
   */
  private Raster applyMaskingRasterFunction(Raster originalRaster) throws FileNotFoundException {

    // initiate raster for output
    Raster maskedRaster;

    // raster function to get pixels above 0m (above sea level)
    var aboveSeaLevelJsonFile = new File(System.getProperty("data.dir"), "./samples-data/local_server" +
      "/raster_functions/above_sea_level_raster_calculation.json");
    String aboveSeaLevelRasterFunctionScanner = new Scanner(aboveSeaLevelJsonFile).useDelimiter("\\A").next();
    var aboveSeaLevelRasterFunction = RasterFunction.fromJson(aboveSeaLevelRasterFunctionScanner);
    RasterFunctionArguments aboveSeaLevelArguments = aboveSeaLevelRasterFunction.getArguments();
    // apply the raster function to the input raster
    aboveSeaLevelArguments.setRaster(aboveSeaLevelArguments.getRasterNames().get(0), originalRaster);
    Raster aboveSeaLevelRaster = new Raster(aboveSeaLevelRasterFunction); // gets raster composed of 1s and 0s, 1
    // represents data above sea level

    // raster function to restore elevation profiles post above sea level calculations
    var restoreElevationJsonFile = new File(System.getProperty("data.dir"), "./samples-data/local_server" +
      "/raster_functions/restore_elevation_raster_calculation.json");
    String restoreElevationRasterFunctionScanner = new Scanner(restoreElevationJsonFile).useDelimiter("\\A").next();
    var restoreElevationRasterFunction = RasterFunction.fromJson(restoreElevationRasterFunctionScanner);
    RasterFunctionArguments restoreElevationArguments = restoreElevationRasterFunction.getArguments();
    // set the rasters to the raster function arguments
    restoreElevationArguments.setRaster(restoreElevationArguments.getRasterNames().get(0), originalRaster);
    restoreElevationArguments.setRaster(restoreElevationArguments.getRasterNames().get(1), aboveSeaLevelRaster);
    Raster restoredElevationRaster = new Raster(restoreElevationRasterFunction); // creates new raster with elevation
    // values restored above 0

    // raster function to mask out values below sea level (pixels with value of 0)
    var maskJsonFile = new File(System.getProperty("data.dir"), "./samples-data/local_server/raster_functions/mask.json");
    String maskScanner = new Scanner(maskJsonFile).useDelimiter("\\A").next();
    var maskRasterFunction = RasterFunction.fromJson(maskScanner);
    RasterFunctionArguments maskArguments = maskRasterFunction.getArguments();
    // apply the raster function to the restored elevation raster
    maskArguments.setRaster(maskArguments.getRasterNames().get(0), restoredElevationRaster);
    maskedRaster = new Raster(maskRasterFunction); // creates new raster with values equal to 0 masked out

    return maskedRaster;
  }

  /**
   * Calculates a camera position and heading angle that is placed perpendicularly to the polyline sketch.
   * @return camera with calculated camera position and heading angle
   */
  private Camera createCameraFacingElevationProfile() {

    // get the polyline's end point coordinates
    var endPoint = polyline.getParts().get(0).getEndPoint();
    var endPointX = endPoint.getX();
    var endPointY = endPoint.getY();
    // get the polyline's center point coordinates
    var centerPoint = polyline.getExtent().getCenter();
    var centerX = centerPoint.getX();
    var centerY = centerPoint.getY();
    // calculate the position of a point perpendicular to the centre of the polyline
    double lengthX = endPointX - centerX;
    double lengthY = endPointY - centerY;
    var cameraPositionPoint = new Point(centerX + lengthY * 2, centerY - lengthX * 2, 1200,
      SpatialReferences.getWebMercator());

    // calculate the heading for the camera position so that it points perpendicularly towards the elevation profile
    double theta;
    double cameraHeadingPerpToProfile;
    // account for switching opposite and adjacent depending on angle direction from drawn line
    if (lengthY < 0) { // accounts for a downwards angle
      theta = Math.toDegrees(Math.atan((centerX - endPointX) / (centerY - endPointY)));
      cameraHeadingPerpToProfile = theta + 90;
    } else { // accounts for an upwards angle
      theta = Math.toDegrees(Math.atan((centerY - endPointY) / (centerX - endPointX)));
      // determine if theta is positive or negative, then account accordingly for calculating the angle back from north
      // and then rotate that value by + or - 90 to get the angle perpendicular to the drawn line
      double angleFromNorth = (90 - theta);
      // if theta is positive, rotate angle anticlockwise by 90 degrees, else, clockwise by 90 degrees
      if (theta > 0) {
        cameraHeadingPerpToProfile = angleFromNorth - 90;
      } else {
        cameraHeadingPerpToProfile = angleFromNorth + 90;
      }
    }
    // create a new camera from the calculated camera position point and camera angle perpendicular to profile
    return new Camera(cameraPositionPoint, cameraHeadingPerpToProfile, 80, 0);

  }

  /**
   * Displays an information alert and closes the application when dialog is closed.
   *
   * @param title header text of the dialog
   * @param message content text of the dialog
   */
  private void showMessage(String title, String message) {

    Platform.runLater(() -> {
      Alert dialog = new Alert(AlertType.INFORMATION);
      dialog.initOwner(sceneView.getScene().getWindow());
      dialog.setHeaderText(title);
      dialog.setContentText(message);
      dialog.showAndWait();

      Platform.exit();
    });
  }

  /**
   * Stops and releases all resources used in application.
   */
  void terminate() throws InterruptedException {

    if (sceneView != null) {
      sceneView.dispose();

      CountDownLatch latch = new CountDownLatch(1);
      server.stopAsync().addDoneListener(latch::countDown);
      if (!latch.await(2, TimeUnit.SECONDS)) {
        System.err.println("Local server failed to shutdown in 2 seconds");
      }
    }
  }
}

/*
 * Copyright 2017 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.local_server_generate_elevation_profile;

import java.io.IOException;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class LocalServerGenerateElevationProfileSample extends Application {

  private static LocalServerGenerateElevationProfileController controller;

  @Override
  public void start(Stage stage) throws IOException {
    // set up the scene
    FXMLLoader loader = new FXMLLoader(getClass().getResource("/local_server_generate_elevation_profile/main.fxml"));
    Parent root = loader.load();
    controller = loader.getController();
    Scene scene = new Scene(root);

    // set up the stage
    stage.setTitle("Local Server Generate Elevation Profile");
    stage.setWidth(800);
    stage.setHeight(700);
    stage.setScene(scene);
    stage.show();
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() throws InterruptedException {
    controller.terminate();
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
