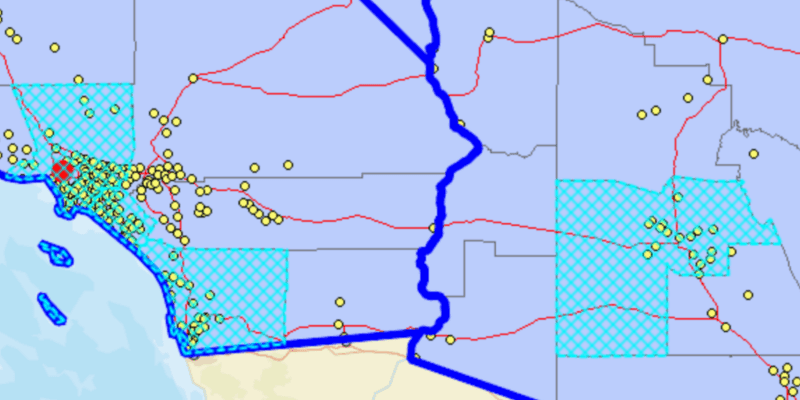

Query map image sublayer

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.query_map_image_sublayer {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;

  exports com.esri.samples.query_map_image_sublayer;
}

/*
 * Copyright 2018 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.query_map_image_sublayer;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Alert;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.Spinner;
import javafx.scene.layout.Background;
import javafx.scene.layout.BackgroundFill;
import javafx.scene.layout.CornerRadii;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;
import javafx.scene.paint.Paint;
import javafx.stage.Stage;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.concurrent.ListenableFuture;
import com.esri.arcgisruntime.data.Feature;
import com.esri.arcgisruntime.data.FeatureQueryResult;
import com.esri.arcgisruntime.data.QueryParameters;
import com.esri.arcgisruntime.data.ServiceFeatureTable;
import com.esri.arcgisruntime.layers.ArcGISMapImageLayer;
import com.esri.arcgisruntime.layers.ArcGISMapImageSublayer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.symbology.SimpleFillSymbol;
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
import com.esri.arcgisruntime.symbology.SimpleMarkerSymbol;

public class QueryMapImageSublayerSample extends Application {

  private MapView mapView;

  @Override
  public void start(Stage stage) {

    try {
      // create a stack pane and application scene
      StackPane stackPane = new StackPane();
      Scene scene = new Scene(stackPane);
      scene.getStylesheets().add(getClass().getResource("/query_map_image_sublayer/style.css").toExternalForm());

      // size the stage and add a title
      stage.setTitle("Query Map Image Sublayer Sample");
      stage.setWidth(800);
      stage.setHeight(700);
      stage.setScene(scene);
      stage.show();

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // create a map with the streets basemap style
      ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_STREETS);

      // create and add a map image layer to the map's operational layers
      ArcGISMapImageLayer imageLayer = new ArcGISMapImageLayer("https://sampleserver6.arcgisonline.com/arcgis/rest/services/USA/MapServer");
      map.getOperationalLayers().add(imageLayer);

      // create a map view and set the map to it
      mapView = new MapView();
      mapView.setMap(map);

      // set a viewpoint on the map view
      mapView.setViewpoint(new Viewpoint(36.75056, -115.44154, 6000000));

      // create a graphics overlay to show the results in
      GraphicsOverlay graphicsOverlay = new GraphicsOverlay();
      mapView.getGraphicsOverlays().add(graphicsOverlay);

      // create symbols for showing the results of each sublayer
      SimpleMarkerSymbol citySymbol = new SimpleMarkerSymbol(SimpleMarkerSymbol.Style.CIRCLE, Color.RED, 16);
      SimpleLineSymbol stateSymbol = new SimpleLineSymbol(SimpleLineSymbol.Style.SOLID, Color.BLUE, 6);
      SimpleLineSymbol countyLineSymbol = new SimpleLineSymbol(SimpleLineSymbol.Style.DASH, Color.CYAN, 2);
      SimpleFillSymbol countySymbol = new SimpleFillSymbol(SimpleFillSymbol.Style.DIAGONAL_CROSS, Color.CYAN,
          countyLineSymbol);

      // create a VBox to hold the controls
      VBox controlsVBox = new VBox(6);
      controlsVBox.setBackground(new Background(new BackgroundFill(Paint.valueOf("rgba(0,0,0,0.3)"), CornerRadii.EMPTY,
          Insets.EMPTY)));
      controlsVBox.setPadding(new Insets(10.0));
      controlsVBox.setMaxSize(170, 100);
      controlsVBox.getStyleClass().add("panel-region");

      // create a spinner to input the population filter
      Label label = new Label("Population greater than");
      Spinner<Integer> populationSpinner = new Spinner<>(0, 100000000, 1800000);
      populationSpinner.setEditable(true);

      // create a button to execute the query, disable initially
      Button queryButton = new Button("Query");
      queryButton.setDisable(true);

      // add the controls to the VBox
      controlsVBox.getChildren().addAll(label, populationSpinner, queryButton);

      // wait until the layer is loaded before enabling the query button
      imageLayer.addDoneLoadingListener(() -> {
        if (imageLayer.getLoadStatus() == LoadStatus.LOADED) {
          queryButton.setDisable(false);

          // get and load each sublayer to query
          ArcGISMapImageSublayer citiesSublayer = (ArcGISMapImageSublayer) imageLayer.getSublayers().get(0);
          ArcGISMapImageSublayer statesSublayer = (ArcGISMapImageSublayer) imageLayer.getSublayers().get(2);
          ArcGISMapImageSublayer countiesSublayer = (ArcGISMapImageSublayer) imageLayer.getSublayers().get(3);
          citiesSublayer.loadAsync();
          statesSublayer.loadAsync();
          countiesSublayer.loadAsync();

          // query the sublayers when the button is clicked
          queryButton.setOnAction(e -> {

            // clear any previous results
            graphicsOverlay.getGraphics().clear();

            // create query parameters filtering based on population and the map view's current viewpoint
            QueryParameters populationQuery = new QueryParameters();
            populationQuery.setWhereClause("POP2000 > " + populationSpinner.getValue());
            populationQuery.setGeometry(mapView.getCurrentViewpoint(Viewpoint.Type.BOUNDING_GEOMETRY)
                .getTargetGeometry());

            // query each sublayer's feature table with the query parameters and display the result features as graphics
            if (citiesSublayer.getLoadStatus() == LoadStatus.LOADED) {
              ServiceFeatureTable citiesTable = citiesSublayer.getTable();
              ListenableFuture<FeatureQueryResult> citiesQuery = citiesTable.queryFeaturesAsync(populationQuery);
              citiesQuery.addDoneListener(() -> {
                try {
                  FeatureQueryResult result = citiesQuery.get();
                  for (Feature feature : result) {
                    Graphic cityGraphic = new Graphic(feature.getGeometry(), citySymbol);
                    graphicsOverlay.getGraphics().add(cityGraphic);
                  }
                } catch (Exception ex) {
                  new Alert(Alert.AlertType.ERROR, "Failed to query cities").show();
                }
              });
            }

            if (statesSublayer.getLoadStatus() == LoadStatus.LOADED) {
              ServiceFeatureTable statesTable = statesSublayer.getTable();
              ListenableFuture<FeatureQueryResult> statesQuery = statesTable.queryFeaturesAsync(populationQuery);
              statesQuery.addDoneListener(() -> {
                try {
                  FeatureQueryResult result = statesQuery.get();
                  for (Feature feature : result) {
                    Graphic stateGraphic = new Graphic(feature.getGeometry(), stateSymbol);
                    graphicsOverlay.getGraphics().add(stateGraphic);
                  }
                } catch (Exception ex) {
                  new Alert(Alert.AlertType.ERROR, "Failed to query states").show();
                }
              });
            }

            if (countiesSublayer.getLoadStatus() == LoadStatus.LOADED) {
              ServiceFeatureTable countiesTable = countiesSublayer.getTable();
              ListenableFuture<FeatureQueryResult> countiesQuery = countiesTable.queryFeaturesAsync(populationQuery);
              countiesQuery.addDoneListener(() -> {
                try {
                  FeatureQueryResult result = countiesQuery.get();
                  for (Feature feature : result) {
                    Graphic countyGraphic = new Graphic(feature.getGeometry(), countySymbol);
                    graphicsOverlay.getGraphics().add(countyGraphic);
                  }
                } catch (Exception ex) {
                  new Alert(Alert.AlertType.ERROR, "Failed to query counties").show();
                }
              });
            }

          });
        } else {
          new Alert(Alert.AlertType.ERROR,  imageLayer.getLoadError().getMessage()).show();
        }
      });

      // add the mapview and controls to the stack pane
      stackPane.getChildren().addAll(mapView, controlsVBox);
      StackPane.setAlignment(controlsVBox, Pos.TOP_LEFT);
      StackPane.setMargin(controlsVBox, new Insets(10, 0, 0, 10));

    } catch (Exception e) {
      // on any error, display the stack trace.
      e.printStackTrace();
    }
  }

  @Override
  public void stop() {

    // releases resources when the application closes
    if (mapView != null) {
      mapView.dispose();
    }
  }

  /**
   * Starting point of this application.
   *
   * @param args arguments to this application.
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
