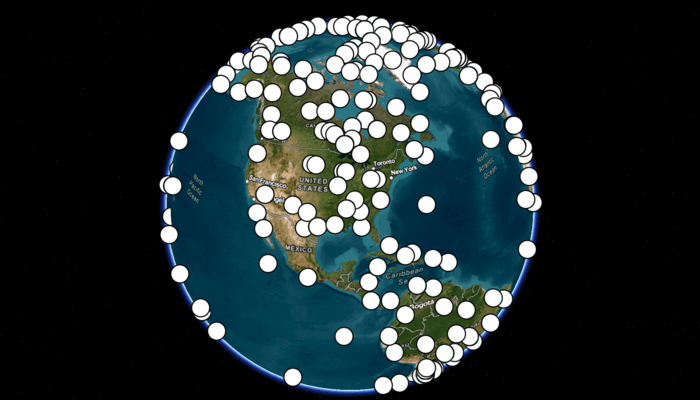

Add point scene layer

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addpointscenelayer

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.addpointscenelayer.screens.AddPointSceneLayerScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                AddPointSceneLayerApp()
            }
        }
    }

    @Composable
    private fun AddPointSceneLayerApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            AddPointSceneLayerScreen(
                sampleName = getString(R.string.add_point_scene_layer_app_name)
            )
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addpointscenelayer.components

import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Surface
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.ArcGISSceneLayer
import com.arcgismaps.mapping.ArcGISTiledElevationSource
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.launch

class AddPointSceneLayerViewModel(app: Application) : AndroidViewModel(app) {
    // Add the airports point scene layer
    val sceneLayer = ArcGISSceneLayer(
        uri = "https://tiles.arcgis.com/tiles/V6ZHFr6zdgNZuVG0/arcgis/rest/services/Airports_PointSceneLayer/SceneServer/layers/0"

    )
    // Add an elevation source to display elevation
    val elevationSource = ArcGISTiledElevationSource(
        uri = "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"
    )

    val viewpoint = Viewpoint(
        Point(
            x = -98.6, // longitude
            y = 39.8,  // latitude
            spatialReference = SpatialReference.wgs84()
        ),
        scale = 1e8
    )

    // Scene with world airports point scene layer
    val arcGISScene by mutableStateOf(
        ArcGISScene(BasemapStyle.ArcGISImagery).apply {
            // Set initial viewpoint to show the world
            initialViewpoint = viewpoint
            operationalLayers.add(sceneLayer)

            baseSurface = Surface().apply {
                elevationSources.add(elevationSource)
            }
        }
    )

    // Message dialog for error handling
    val messageDialogVM = MessageDialogViewModel()

    init {
        viewModelScope.launch {
            arcGISScene.load().onFailure { messageDialogVM.showMessageDialog(it) }
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addpointscenelayer.screens

import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Scaffold
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.toolkit.geoviewcompose.SceneView
import com.esri.arcgismaps.sample.addpointscenelayer.components.AddPointSceneLayerViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

/**
 * Main screen layout for the Add Point Scene Layer sample
 */
@Composable
fun AddPointSceneLayerScreen(sampleName: String) {
    val sceneViewModel: AddPointSceneLayerViewModel = viewModel()
    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = { padding ->
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(padding),
            ) {
                SceneView(
                    modifier = Modifier
                        .fillMaxSize()
                        .weight(1f),
                    arcGISScene = sceneViewModel.arcGISScene
                )
            }

            sceneViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}
