Rotate a map.

Use case
A user may wish to view the map in an orientation other than north-facing.
How to use the sample

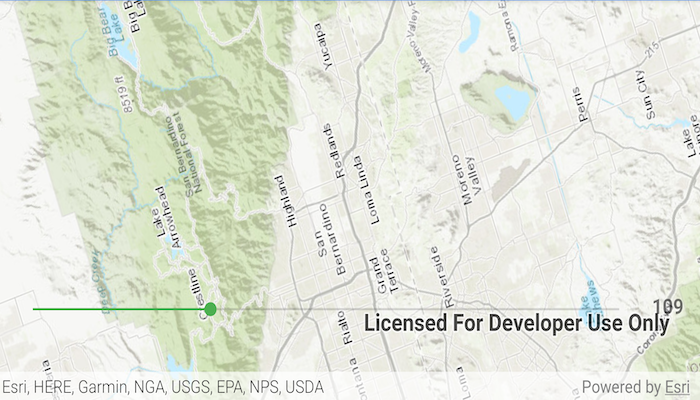

Use the slider to rotate the map. If the map is not pointed north, the slider will show the heading relative to north in degrees. Slide the slider to zero to set the map’s heading back to north.
How it works
- Instantiate an
ArcGISMapobject. - Set the map to a
MapViewobject. - Use
awaitSetViewpointRotation(...)to set the rotation angle.
Relevant API
- ArcGISMap
- MapView
Tags
rotate, rotation, viewpoint
Sample Code
MainActivity.kt
/* Copyright 2022 Esri * * Licensed under the Apache License, Version 2.0 (the "License"); * you may not use this file except in compliance with the License. * You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. * */
package com.esri.arcgismaps.sample.setviewpointrotation
import android.os.Bundleimport com.esri.arcgismaps.sample.sampleslib.EdgeToEdgeCompatActivityimport androidx.databinding.DataBindingUtilimport androidx.lifecycle.lifecycleScopeimport com.arcgismaps.ApiKeyimport com.arcgismaps.ArcGISEnvironmentimport com.arcgismaps.mapping.ArcGISMapimport com.arcgismaps.mapping.BasemapStyleimport com.arcgismaps.mapping.Viewpointimport com.esri.arcgismaps.sample.setviewpointrotation.databinding.SetViewpointRotationActivityMainBindingimport kotlinx.coroutines.launch
class MainActivity : EdgeToEdgeCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState)
// authentication with an API key or named user is // required to access basemaps and other location services ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)
// set up data binding for the activity val activityMainBinding: SetViewpointRotationActivityMainBinding = DataBindingUtil.setContentView(this, R.layout.set_viewpoint_rotation_activity_main) val mapView = activityMainBinding.mapView val rotationSlider = activityMainBinding.rotationSlider val rotationValueText = activityMainBinding.rotationValueText lifecycle.addObserver(mapView)
// create a map with a topographic basemap and initial position val map = ArcGISMap(BasemapStyle.ArcGISTopographic) // set the map to be displayed in this view mapView.map = map mapView.setViewpoint(Viewpoint(34.056295, -117.195800, 10000.0))
rotationSlider.addOnChangeListener { _, angle, _ -> // set the text to the value rotationValueText.text = angle.toInt().toString() // rotate map view to the progress angle lifecycleScope.launch { mapView.setViewpointRotation(angle.toDouble()) } } }}
