Animate 3D graphic

View inWPFWinUIUWPFormsiOSAndroid
View on GitHub

An OrbitGeoElementCameraController follows a graphic while the graphic's position and rotation are animated.

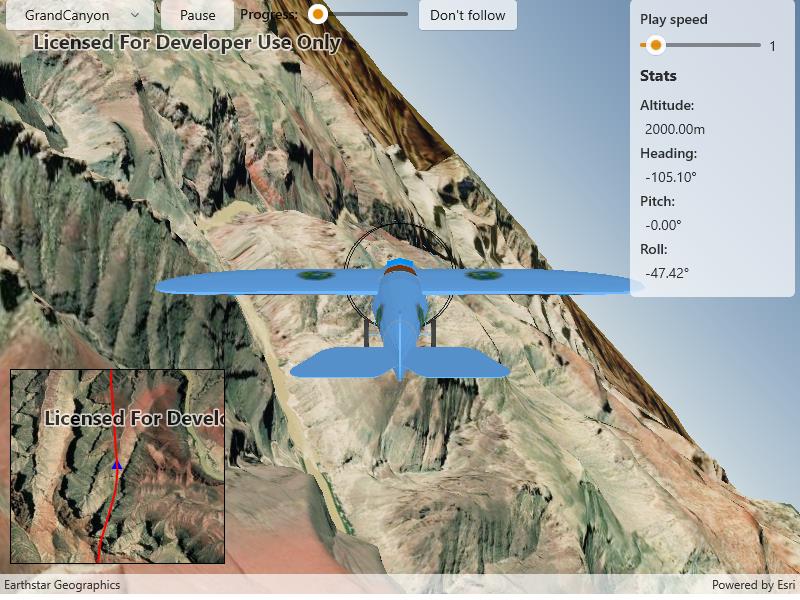

Image of animate 3D graphic

Use case

Visualize movement through a 3D landscape.

How to use the sample

Animation Controls:

  • Select a mission -- select a flight path
  • Play/Pause -- toggles playing and stopping the animation
  • Follow/Don't follow -- toggles the camera's free cam mode and follow
  • Mission progress -- shows how far along the route the plane is. Slide to change keyframe in animation
  • Flight speed -- controls speed of animation

How it works

  1. Create a GraphicsOverlay and add it to the SceneView.
  2. Create a ModelSceneSymbol object.
  3. Create a Graphic object and set its geometry to a Point.
  4. Set the ModelSceneSymbol object to the graphic.
  5. Add heading, pitch, and roll attributes to the graphic. Get the attributes from the graphic with Graphic.attributes.
  6. Create a SimpleRenderer object and set its expression properties.
  7. Add graphic and a renderer to the graphics overlay.
  8. Create a OrbitGeoElementCameraController which is set to target the graphic.
  9. Assign the camera controller to the SceneView.
  10. Update the graphic's location, heading, pitch, and roll.

Relevant API

  • Camera
  • GlobeCameraController
  • Graphic
  • GraphicsOverlay
  • ModelSceneSymbol
  • OrbitGeoElementCameraController
  • Renderer
  • Scene
  • SceneProperties
  • SceneView
  • SurfacePlacement

Offline data

This sample downloads the following items from ArcGIS Online automatically:

  • Bristol.zip - A 3D model for use within an ArcGIS Runtime Model Scene Symbol.
  • GrandCanyon.csv - CSV data for a route through the Grand Canyon
  • Hawaii.csv - CSV data for a route in Hawaii
  • Pyrenees.csv - CSV data for a route through the Pyrenees
  • Snowdon.csv - CSV data for a route near Mount Snowdon

Tags

animation, camera, heading, pitch, roll, rotation, visualize

Sample Code

Animate3DGraphic.xamlAnimate3DGraphic.xamlAnimate3DGraphic.xaml.cs
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
<UserControl x:Class="ArcGISRuntime.WinUI.Samples.Animate3DGraphic.Animate3DGraphic"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:esriUI="using:Esri.ArcGISRuntime.UI.Controls">
    <UserControl.Resources>
        <Style x:Key="LabelStyle" TargetType="TextBlock">
            <Setter Property="FontWeight" Value="SemiBold" />
        </Style>
    </UserControl.Resources>
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition Height="*" />
            <RowDefinition Height="225" />
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="225" />
            <ColumnDefinition Width="*" />
            <ColumnDefinition Width="175" />
        </Grid.ColumnDefinitions>
        <esriUI:SceneView x:Name="MySceneView"
                          Grid.Row="0"
                          Grid.RowSpan="3"
                          Grid.Column="0"
                          Grid.ColumnSpan="3"
                          AtmosphereEffect="Realistic" />
        <StackPanel Grid.Row="0"
                    Grid.Column="0"
                    Grid.ColumnSpan="2"
                    Margin="5"
                    Orientation="Horizontal">
            <ComboBox x:Name="MissionSelectionBox"
                      MinWidth="150"
                      VerticalAlignment="Top" />
            <Button x:Name="MissionPlayPause"
                    MinWidth="75"
                    Margin="5,0,0,0"
                    VerticalAlignment="Top"
                    Click="MissionPlayPause_Click"
                    Content="Pause" />
            <TextBlock Margin="5"
                       VerticalAlignment="Top"
                       Style="{StaticResource LabelStyle}"
                       Text="Progress:" />
            <Slider x:Name="MissionProgressBar"
                    Width="100"
                    Margin="5,-2,5,0"
                    VerticalAlignment="Top"
                    Maximum="1"
                    Minimum="0"
                    StepFrequency=".01"
                    ValueChanged="MissionProgressOnSeek" />
            <Button MinWidth="100"
                    Margin="5,0,0,0"
                    VerticalAlignment="Top"
                    Click="ToggleFollowPlane"
                    Content="Don't follow" />
        </StackPanel>
        <Border Grid.Row="0"
                Grid.Column="2"
                Margin="5"
                Padding="5"
                CornerRadius="5">
            <Border.Background>
                <SolidColorBrush Opacity="0.7" Color="White" />
            </Border.Background>
            <StackPanel Margin="5" Opacity=".9">
                <TextBlock Style="{StaticResource LabelStyle}" Text="Play speed" />
                <Grid>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="*" />
                        <ColumnDefinition Width="Auto" />
                    </Grid.ColumnDefinitions>
                    <Slider x:Name="MissionPlaySpeedSlider"
                            Grid.Column="0"
                            Maximum="8"
                            Minimum="0.5"
                            ValueChanged="MissionPlaySpeedChanged"
                            Value="1" />
                    <TextBlock Grid.Column="1"
                               Margin="8"
                               Text="{Binding ElementName=MissionPlaySpeedSlider, Path=Value}" />
                </Grid>
                <TextBlock Margin="0,0,0,10"
                           FontSize="16"
                           FontWeight="Bold"
                           Text="Stats" />
                <TextBlock Style="{StaticResource LabelStyle}" Text="Altitude:" />
                <TextBlock x:Name="AltitudeTextBlock" Margin="5" />
                <TextBlock Style="{StaticResource LabelStyle}" Text="Heading:" />
                <TextBlock x:Name="HeadingTextBlock" Margin="5" />
                <TextBlock Style="{StaticResource LabelStyle}" Text="Pitch:" />
                <TextBlock x:Name="PitchTextBlock" Margin="5" />
                <TextBlock Style="{StaticResource LabelStyle}" Text="Roll:" />
                <TextBlock x:Name="RollTextBlock"
                           Margin="5"
                           FontWeight="Normal" />
            </StackPanel>
        </Border>
        <esriUI:MapView x:Name="InsetMapView"
                        Grid.Row="2"
                        Grid.Column="0"
                        Margin="10,0,0,30"
                        BorderBrush="Black"
                        BorderThickness="1"
                        IsAttributionTextVisible="False" />
    </Grid>
</UserControl>
