Convex hull list

View inMAUIUWPWPFWinUIView on GitHub

Generate convex hull polygon(s) from multiple input geometries.

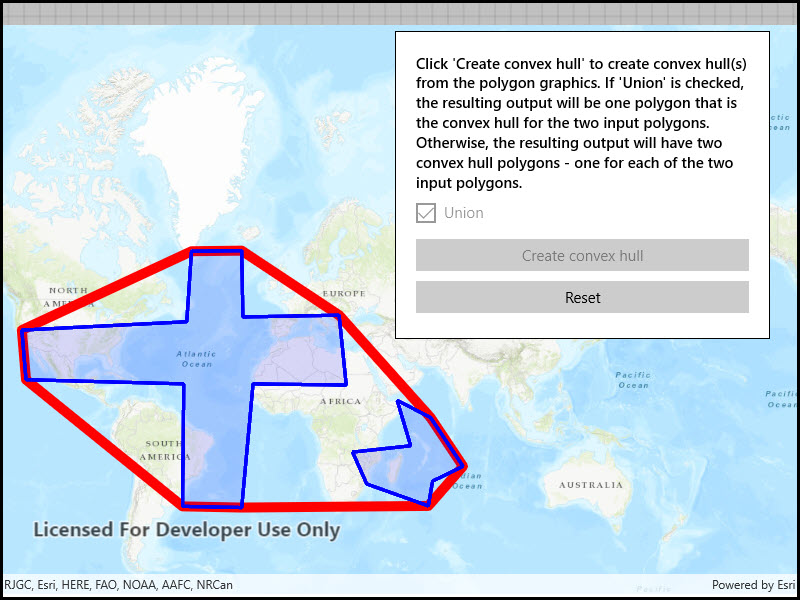

Image of convex hull list

Use case

Creating a convex hull allows for analysis to define the polygon with the least possible perimeter that encloses a group of geometric shapes. As a visual analogy, consider a set of nails in a board where the convex hull is a rubber band stretched around the outermost nails.

How to use the sample

Click the 'Create Convex Hull' button to create convex hull(s) from the polygon graphics. If the 'Union' checkbox is checked, the resulting output will be one polygon being the convex hull for the two input polygons. If the 'Union' checkbox is un-checked, the resulting output will have two convex hull polygons - one for each of the two input polygons. Click the 'Reset' button to start over.

How it works

  1. Create an Map and display it in a MapView.
  2. Create two input polygon graphics and add them to a GraphicsOverlay.
  3. Call inputGeometries.ConvexHull(boolean), specifying a list of geometries for which to generate the convex hull. Set the boolean parameter to true to generate a convex hull for the union of the geometries. Set it to false to create a convex hull for each individual geometry.
  4. Loop through the returned geometries and add them as graphics for display on the map.

Relevant API

  • GeometryEngine.ConvexHull
  • Graphic.ZIndex
  • GraphicsOverlay

Tags

analysis, geometry, outline, perimeter, union

Sample Code

ConvexHullList.xaml.csConvexHullList.xaml.csConvexHullList.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using Microsoft.UI.Xaml;
using System;
using System.Collections.Generic;
using System.Drawing;

namespace ArcGIS.WinUI.Samples.ConvexHullList
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Convex hull list",
        category: "Geometry",
        description: "Generate convex hull polygon(s) from multiple input geometries.",
        instructions: "Click the 'Create Convex Hull' button to create convex hull(s) from the polygon graphics. If the 'Union' checkbox is checked, the resulting output will be one polygon being the convex hull for the two input polygons. If the 'Union' checkbox is un-checked, the resulting output will have two convex hull polygons - one for each of the two input polygons. Click the 'Reset' button to start over.",
        tags: new[] { "analysis", "geometry", "outline", "perimeter", "union" })]
    public partial class ConvexHullList
    {
        // Graphics overlay to display the graphics.
        private GraphicsOverlay _graphicsOverlay;

        // Graphic that represents polygon1.
        private Graphic _polygonGraphic1;

        // Graphic that represents polygon2.
        private Graphic _polygonGraphic2;

        public ConvexHullList()
        {
            InitializeComponent();

            Initialize();
        }

        private void Initialize()
        {
            // Create a map with a topographic basemap.
            Map newMap = new Map(BasemapStyle.ArcGISTopographic);

            // Assign the map to the MapView.
            MyMapView.Map = newMap;

            // Create a graphics overlay to hold the various graphics.
            _graphicsOverlay = new GraphicsOverlay();

            // Add the created graphics overlay to the MapView.
            MyMapView.GraphicsOverlays.Add(_graphicsOverlay);

            // Create a simple line symbol for the outline for the two input polygon graphics.
            SimpleLineSymbol polygonsSimpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.Blue, 4);

            // Create the color that will be used for the fill of the two input polygon graphics. It will be a
            // semi -transparent, blue color.
            Color polygonsFillColor = Color.FromArgb(34, 0, 0, 255);

            // Create the simple fill symbol for the two input polygon graphics - comprised of a fill style, fill
            // color and outline.
            SimpleFillSymbol polygonsSimpleFillSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle.Solid, polygonsFillColor,
                polygonsSimpleLineSymbol);

            // Create the graphic for polygon1 - comprised of a polygon shape and fill symbol.
            _polygonGraphic1 = new Graphic(CreatePolygon1(), polygonsSimpleFillSymbol)
            {
                // Set the Z index for the polygon1 graphic so that it appears above the convex hull graphic(s) added later.
                ZIndex = 1
            };

            // Add the polygon1 graphic to the graphics overlay collection.
            _graphicsOverlay.Graphics.Add(_polygonGraphic1);

            // Create the graphic for polygon2 - comprised of a polygon shape and fill symbol.
            _polygonGraphic2 = new Graphic(CreatePolygon2(), polygonsSimpleFillSymbol)
            {
                // Set the Z index for the polygon2 graphic so that it appears above the convex hull graphic(s) added later.
                ZIndex = 1
            };

            // Add the polygon2 graphic to the graphics overlay collection.
            _graphicsOverlay.Graphics.Add(_polygonGraphic2);
        }

        private Polygon CreatePolygon1()
        {
            // Create a point collection that represents polygon1. Use the same spatial reference as the underlying base map.
            PointCollection pointCollection1 = new PointCollection(SpatialReferences.WebMercator)
            {
                // Add all of the polygon1 boundary map points to the point collection.
                new MapPoint(-4983189.15470412, 8679428.55774286),
                new MapPoint(-5222621.66664186, 5147799.00666126),
                new MapPoint(-13483043.3284937, 4728792.11077023),
                new MapPoint(-13273539.8805482, 2244679.79941622),
                new MapPoint(-5372266.98660294, 2035176.3514707),
                new MapPoint(-5432125.11458738, -4100281.76693377),
                new MapPoint(-2469147.7793579, -4160139.89491821),
                new MapPoint(-1900495.56350578, 2035176.3514707),
                new MapPoint(2768438.41928007, 1975318.22348627),
                new MapPoint(2409289.65137346, 5477018.71057565),
                new MapPoint(-2409289.65137346, 5387231.518599),
                new MapPoint(-2469147.7793579, 8709357.62173508)
           };
            // Create a polyline geometry from the point collection.
            Polygon polygon1 = new Polygon(pointCollection1);

            // Return the polygon.
            return polygon1;
        }

        private Polygon CreatePolygon2()
        {
            // Create a point collection that represents polygon2. Use the same spatial reference as the underlying base map.
            PointCollection pointCollection2 = new PointCollection(SpatialReferences.WebMercator)
            {
                // Add all of the polygon2 boundary map points to the point collection.
                new MapPoint(5993520.19456882, -1063938.49607736),
                new MapPoint(3085421.63862418, -1383120.04490055),
                new MapPoint(3794713.96934239, -2979027.78901651),
                new MapPoint(6880135.60796657, -4078430.90162972),
                new MapPoint(7092923.30718203, -2837169.32287287),
                new MapPoint(8617901.81822617, -2092412.37561875),
                new MapPoint(6986529.4575743, 354646.16535905),
                new MapPoint(5319692.48038653, 1205796.96222089)
           };
            // Create a polyline geometry from the point collection.
            Polygon polygon2 = new Polygon(pointCollection2);

            // Return the polygon.
            return polygon2;
        }

        private async void ConvexHullListButton_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                // Get the boolean value whether to create a single convex hull (true) or independent convex hulls (false).
                bool unionBool = (bool)ConvexHullListCheckBox.IsChecked;

                // Add the geometries of the two polygon graphics to a list of geometries. It will be used as the 1st
                // input parameter of the GeometryEngine.ConvexHull function.
                List<Geometry> inputListOfGeomtries = new List<Geometry>
                {
                    _polygonGraphic1.Geometry,
                    _polygonGraphic2.Geometry
                };

                // Get the returned result from the convex hull operation. When unionBool = true there will be one returned
                // polygon, when unionBool = false there will be one convex hull returned per input geometry.
                IEnumerable<Geometry> convexHullGeometries = GeometryEngine.ConvexHull(inputListOfGeomtries, unionBool);

                // Loop through the returned geometries.
                foreach (Geometry oneGeometry in convexHullGeometries)
                {
                    // Create a simple line symbol for the outline of the convex hull graphic(s).
                    SimpleLineSymbol convexHullSimpleLineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.Red, 10);

                    // Create the simple fill symbol for the convex hull graphic(s) - comprised of a fill style, fill
                    // color and outline. It will be a hollow (i.e.. see-through) polygon graphic with a thick red outline.
                    SimpleFillSymbol convexHullSimpleFillSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle.Null, Color.Red,
                        convexHullSimpleLineSymbol);

                    // Create the graphic for the convex hull(s) - comprised of a polygon shape and fill symbol.
                    Graphic convexHullGraphic = new Graphic(oneGeometry, convexHullSimpleFillSymbol)
                    {
                        // Set the Z index for the convex hull graphic(s) so that they appear below the initial input graphics
                        // added earlier (polygon1 and polygon2).
                        ZIndex = 0
                    };

                    // Add the convex hull graphic to the graphics overlay collection.
                    _graphicsOverlay.Graphics.Add(convexHullGraphic);
                }

                // Disable the button after has been used.
                ConvexHullListCheckBox.IsEnabled = false;
                ConvexHullListButton.IsEnabled = false;
            }
            catch (Exception ex)
            {
                // Display an error message if there is a problem generating convex hull operation.
                var theMessageDialog = new MessageDialog2("Geometry Engine Failed: " + ex.Message);
                await theMessageDialog.ShowAsync();
            }
        }

        private void ResetButton_Click(object sender, RoutedEventArgs e)
        {
            // Clear all existing graphics.
            _graphicsOverlay.Graphics.Clear();

            // Re-enable the button.
            ConvexHullListCheckBox.IsEnabled = true;
            ConvexHullListButton.IsEnabled = true;

            // Add the polygons.
            _graphicsOverlay.Graphics.Add(_polygonGraphic1);
            _graphicsOverlay.Graphics.Add(_polygonGraphic2);
        }
    }
}
