Find dynamic entities from a data source that match a query.

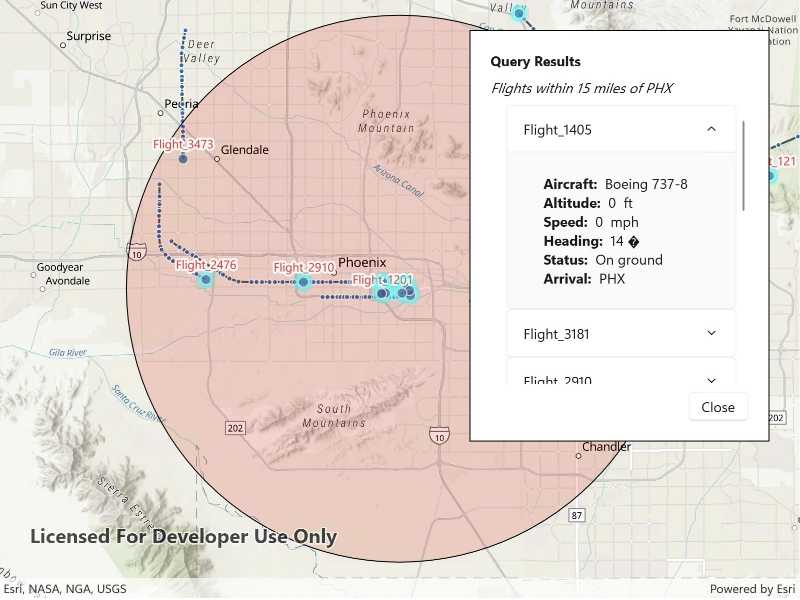

Image of Query Dynamic Entities

Use case

Developers can query a DynamicEntityDataSource to find dynamic entities that meet spatial and/or attribute criteria. The query returns a collection of dynamic entities matching the DynamicEntityQueryParameters or Track IDs at the moment the query is executed. An example of this is a flight tracking app that monitors airspace near a particular airport, allowing the user to monitor flights based on different criteria such as arrival airport or flight number.

How to use the sample

Tap the "Query Flights" button and select a query to perform from the menu. Once the query is complete, a list of the resulting flights will be displayed. Tap on a flight to see its latest attributes in real-time.

How it works

Create a DynamicEntityDataSource to stream dynamic entity events.
Create a DynamicEntityLayer using the data source and add it to the map's operational layers.
Create DynamicEntityQueryParameters and set its properties to specify the parameters for the query:
1. To spatially filter results, set the geometry and spatialRelationship. The spatial relationship is intersects by default.
2. To query entities with certain attribute values, set the whereClause.
3. To get entities with specific track IDs, modify the trackIDs collection.
To perform a dynamic entities query, use DynamicEntityDataSource.QueryDynamicEntitiesAsync() to query with multiple criteria (such as track IDs, spatial, and/or attribute filters), or use DynamicEntityDataSource.QueryDynamicEntitiesAsync(trackIDs) if you want to query only by track IDs.
When complete, iterate through the returned collection of DynamicEntity objects from the result.
Use the DynamicEntity.DynamicEntityChanged event to get real-time updates when entity attributes change.
Get the new observation from the resulting DynamicEntityChangedEventArgs using the ReceivedObservation property to update the UI with current information.

Relevant API

DynamicEntity
DynamicEntityChangedInfo
DynamicEntityDataSource
DynamicEntityDataSourceInfo
DynamicEntityLayer
DynamicEntityObservation
DynamicEntityQueryParameters
DynamicEntityQueryResult

About the data

This sample uses the PHX Air Traffic JSON portal item, which is hosted on ArcGIS Online and downloaded automatically. The file contains JSON data for mock air traffic around the Phoenix Sky Harbor International Airport in Phoenix, AZ, USA. The decoded data is used to simulate dynamic entity events through a CustomDynamicEntityDataSource, which is displayed on the map with a DynamicEntityLayer.

Additional information

A dynamic entities query is performed on the most recent observation of each dynamic entity in the data source at the time the query is executed. As the dynamic entities change, they may no longer match the query parameters.

Sample Code

QueryDynamicEntities.xaml.cs

QueryDynamicEntities.xaml

FlightInfo.cs

CustomStreamService.cs

Use dark colors for code blocksCopy
// Copyright 2025 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.ArcGISServices;
using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Mapping.Labeling;
using Esri.ArcGISRuntime.RealTime;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Controls;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.QueryDynamicEntities
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Query dynamic entities",
        category: "Search",
        description: "Find dynamic entities from a data source that match a query.",
        instructions: "Tap the \"Query Flights\" button and select a query to perform from the menu. Once the query is complete, a list of the resulting flights will be displayed. Tap on a flight to see its latest attributes in real-time.",
        tags: new[] { "data", "dynamic", "entity", "live", "query", "real-time", "search", "stream", "track" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("c78e297e99ad4572a48cdcd0b54bed30")]
    public partial class QueryDynamicEntities
    {
        private CustomStreamService _dynamicEntityDataSource;
        private DynamicEntityLayer _dynamicEntityLayer;
        private GraphicsOverlay _bufferGraphicsOverlay;
        private Esri.ArcGISRuntime.Geometry.Geometry _phoenixAirportBuffer;
        private ObservableCollection<FlightInfo> _queryResults;
        private readonly MapPoint _phoenixAirport = new MapPoint(-112.0101, 33.4352, SpatialReferences.Wgs84);
        private Microsoft.UI.Dispatching.DispatcherQueue _dispatcherQueue;

        public QueryDynamicEntities()
        {
            InitializeComponent();
            _ = Initialize();
        }

        // Sets up the map, graphics overlays, UI controls, dispatcher queue, and data source for flight tracking.
        private async Task Initialize()
        {
            try
            {
                // Get the dispatcher queue for the current thread to enable UI updates from other threads.
                _dispatcherQueue = Microsoft.UI.Dispatching.DispatcherQueue.GetForCurrentThread();

                // Create the map with a basemap and initial viewpoint.
                MyMapView.Map = new Map(BasemapStyle.ArcGISTopographic);
                MyMapView.SetViewpoint(new Viewpoint(_phoenixAirport, 400000));

                // Create a graphics overlay for the airport buffer and add it to the map view.
                _bufferGraphicsOverlay = new GraphicsOverlay();
                MyMapView.GraphicsOverlays.Add(_bufferGraphicsOverlay);

                // Create a 15-mile geodetic buffer around Phoenix Airport (PHX).
                _phoenixAirportBuffer = GeometryEngine.BufferGeodetic(
                    _phoenixAirport, 15, LinearUnits.Miles, double.NaN, GeodeticCurveType.Geodesic);

                // Create a semi-transparent fill symbol for the buffer and add it as a graphic to the overlay.
                var bufferSymbol = new SimpleFillSymbol(
                    SimpleFillSymbolStyle.Solid,
                    System.Drawing.Color.FromArgb(40, 255, 0, 0),
                    new SimpleLineSymbol(SimpleLineSymbolStyle.Solid, System.Drawing.Color.Black, 1));

                // Add the buffer graphic to the overlay and set it to be initially invisible.
                _bufferGraphicsOverlay.Graphics.Add(new Graphic(_phoenixAirportBuffer, bufferSymbol));
                _bufferGraphicsOverlay.IsVisible = false;

                // Initialize the collection to hold query results and bind it to the results list UI control.
                _queryResults = new ObservableCollection<FlightInfo>();
                ResultsList.ItemsSource = _queryResults;

                // Set up the dynamic entity data source and layer for real-time flight tracking.
                await SetupDynamicEntityDataSource();
            }
            catch (Exception ex)
            {
                await ShowMessageAsync($"Error initializing sample: {ex.Message}", "Error");
            }
        }

        // Creates and configures the dynamic entity data source and layer for real-time flight tracking.
        private async Task SetupDynamicEntityDataSource()
        {
            try
            {
                // Define the fields present in the flight data source.
                var fields = new List<Field>
                {
                    new Field(FieldType.Text, "flight_number", "", 50),
                    new Field(FieldType.Text, "aircraft", "", 50),
                    new Field(FieldType.Float64, "altitude_feet", "", 0),
                    new Field(FieldType.Text, "arrival_airport", "", 10),
                    new Field(FieldType.Float64, "heading", "", 0),
                    new Field(FieldType.Float64, "speed", "", 0),
                    new Field(FieldType.Text, "status", "", 50)
                };

                // Create the data source info with the unique track ID field and spatial reference.
                var dataSourceInfo = new DynamicEntityDataSourceInfo("flight_number", fields)
                {
                    SpatialReference = SpatialReferences.Wgs84
                };

                // Get the path to the local JSON data file containing flight data.
                string dataPath = DataManager.GetDataFolder("c78e297e99ad4572a48cdcd0b54bed30", "phx_air_traffic.json");
                _dynamicEntityDataSource = new CustomStreamService(dataSourceInfo, dataPath, TimeSpan.FromMilliseconds(100));

                _dynamicEntityLayer = new DynamicEntityLayer(_dynamicEntityDataSource)
                {
                    TrackDisplayProperties =
                    {
                        ShowPreviousObservations = true,
                        ShowTrackLine = true,
                        MaximumObservations = 20
                    }
                };

                // Label each dynamic entity with its flight number above the point.
                var labelDefinition = new LabelDefinition(
                    new SimpleLabelExpression("[flight_number]"),
                    new TextSymbol
                    {
                        Color = System.Drawing.Color.Red,
                        Size = 12,
                        HaloColor = System.Drawing.Color.White,
                        HaloWidth = 2
                    })
                {
                    Placement = LabelingPlacement.PointAboveCenter
                };

                _dynamicEntityLayer.LabelDefinitions.Add(labelDefinition);
                _dynamicEntityLayer.LabelsEnabled = true;
                MyMapView.Map.OperationalLayers.Add(_dynamicEntityLayer);
                await _dynamicEntityDataSource.ConnectAsync();
            }
            catch (Exception ex)
            {
                await ShowMessageAsync($"Error setting up data source: {ex.Message}", "Error");
            }
        }

        // Handles query selection from dropdown and initiates appropriate query type.
        private async void OnQuerySelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            var selectedItem = QueryDropdown.SelectedItem as ComboBoxItem;
            if (selectedItem == null)
                return;

            var queryType = selectedItem.Tag as string;
            if (string.IsNullOrEmpty(queryType))
                return;

            // If the query requires a flight number, show the input dialog; otherwise, perform the query directly.
            if (queryType == "QueryTrackId")
            {
                FlightNumberDialog.Visibility = Visibility.Visible;
                FlightNumberInput.SelectAll();
            }
            else
            {
                await PerformQuery(queryType);
            }
        }

        // Processes flight number input and executes track ID query.
        private async void OnFlightNumberQuery(object sender, RoutedEventArgs e)
        {
            var flightNumber = FlightNumberInput.Text?.Trim();
            if (string.IsNullOrWhiteSpace(flightNumber))
            {
                await ShowMessageAsync("Please enter a flight number.", "Input Required");
                return;
            }

            FlightNumberDialog.Visibility = Visibility.Collapsed;
            await PerformQuery("QueryTrackId", flightNumber);
            FlightNumberInput.Text = string.Empty;
        }

        // Cancels flight number input and returns to query selection.
        private void OnFlightNumberCancel(object sender, RoutedEventArgs e)
        {
            FlightNumberDialog.Visibility = Visibility.Collapsed;
            FlightNumberInput.Text = string.Empty;
            QueryDropdown.SelectedIndex = -1;
        }

        // Queries dynamic entities that intersect with the specified geometry and returns the results of the query.
        private async Task<IReadOnlyList<DynamicEntity>> QueryDynamicEntitiesAsync(Geometry geometry)
        {
            // Sets the parameters' geometry and spatial relationship to query within the buffer.
            var parameters = new DynamicEntityQueryParameters
            {
                Geometry = geometry,
                SpatialRelationship = SpatialRelationship.Intersects
            };

            // Performs a dynamic entities query on the data source.
            var queryResult = await _dynamicEntityDataSource.QueryDynamicEntitiesAsync(parameters);

            // Gets the dynamic entities from the query result.
            return queryResult?.ToList();
        }

        // Queries dynamic entities that match the specified attribute where clause and returns the results of the query.
        private async Task<IReadOnlyList<DynamicEntity>> QueryDynamicEntitiesAsync(string whereClause)
        {
            // Sets the parameters' where clause to query the entities' attributes.
            var parameters = new DynamicEntityQueryParameters
            {
                WhereClause = whereClause
            };

            // Performs a dynamic entities query on the data source.
            var queryResult = await _dynamicEntityDataSource.QueryDynamicEntitiesAsync(parameters);

            // Gets the dynamic entities from the query result.
            return queryResult?.ToList();
        }

        // Queries dynamic entities with the specified track IDs and returns the results of the query.
        private async Task<IReadOnlyList<DynamicEntity>> QueryDynamicEntitiesAsync(IEnumerable<string> trackIds)
        {
            // Performs a dynamic entities query on the data source.
            // Use this method when querying only by track IDs.
            var queryResult = await _dynamicEntityDataSource.QueryDynamicEntitiesAsync(trackIds);

            // Gets the dynamic entities from the query result.
            return queryResult?.ToList();
        }

        // Executes the specified query type on the data source
        private async Task PerformQuery(string queryType, string flightNumber = null)
        {
            _queryResults.Clear();
            _dynamicEntityLayer?.ClearSelection();
            _bufferGraphicsOverlay.IsVisible = false;

            // Holds the dynamic entities returned from the query.
            IReadOnlyList<DynamicEntity> results = Array.Empty<DynamicEntity>();

            switch (queryType)
            {
                case "QueryGeometry":
                    results = await QueryDynamicEntitiesAsync(_phoenixAirportBuffer);
                    // Shows the buffer graphic when querying by geometry.
                    _bufferGraphicsOverlay.IsVisible = true;
                    ResultsDescription.Text = "Flights within 15 miles of PHX";
                    break;

                case "QueryAttributes":
                    results = await QueryDynamicEntitiesAsync("status = 'In flight' AND arrival_airport = 'PHX'");
                    ResultsDescription.Text = "Flights arriving in PHX";
                    break;

                case "QueryTrackId":
                    if (!string.IsNullOrWhiteSpace(flightNumber))
                    {
                        results = await QueryDynamicEntitiesAsync(new[] { flightNumber });
                        ResultsDescription.Text = $"Flight {flightNumber}";
                    }

                    ResultsPanel.Visibility = Visibility.Visible;
                    break;
            }

            foreach (var result in results)
            {
                _dynamicEntityLayer.SelectDynamicEntity(result);
                _queryResults.Add(new FlightInfo(result, _dispatcherQueue));
            }

            ResultsPanel.Visibility = Visibility.Visible;
        }

        // Centers the map view on the selected flight's current position.
        private void OnResultSelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            if (ResultsList.SelectedItem is FlightInfo flight && flight.Entity != null)
            {
                var latestObs = flight.Entity.GetLatestObservation();
                if (latestObs?.Geometry is MapPoint point)
                {
                    _ = MyMapView.SetViewpointCenterAsync(point, 50000);
                }
            }
        }

        // Closes the results panel and resets the UI to the initial state.
        private void OnCloseResults(object sender, RoutedEventArgs e)
        {
            ResultsPanel.Visibility = Visibility.Collapsed;
            _queryResults.Clear();

            if (_dynamicEntityLayer != null)
            {
                _dynamicEntityLayer.ClearSelection();
            }

            _bufferGraphicsOverlay.IsVisible = false;
            QueryDropdown.SelectedIndex = -1;
        }

        // Displays a WinUI ContentDialog with the specified message and title.
        private async Task ShowMessageAsync(string message, string title)
        {
            var dialog = new ContentDialog
            {
                Title = title,
                Content = message,
                CloseButtonText = "OK",
                XamlRoot = this.XamlRoot
            };
            await dialog.ShowAsync();
        }
    }
}
