Find place

View inMAUIUWPWPFWinUIView on GitHub

Find places of interest near a location or within a specific area.

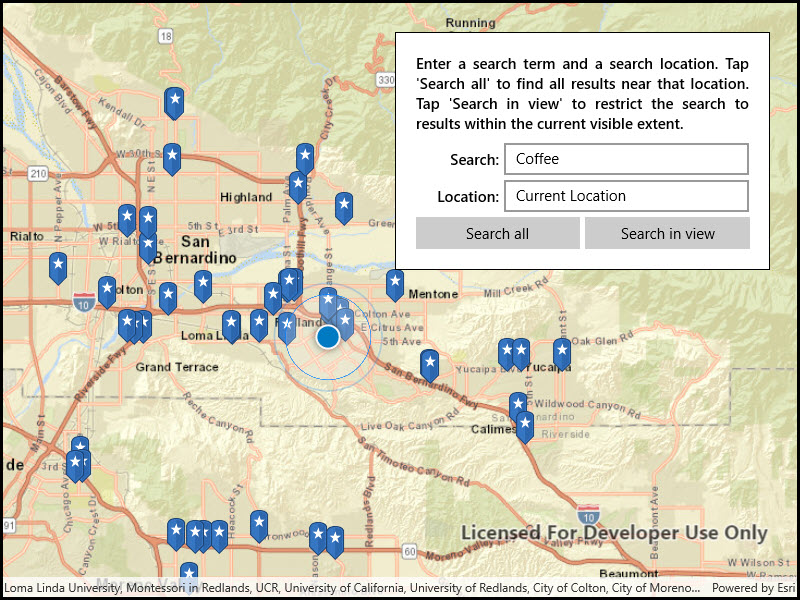

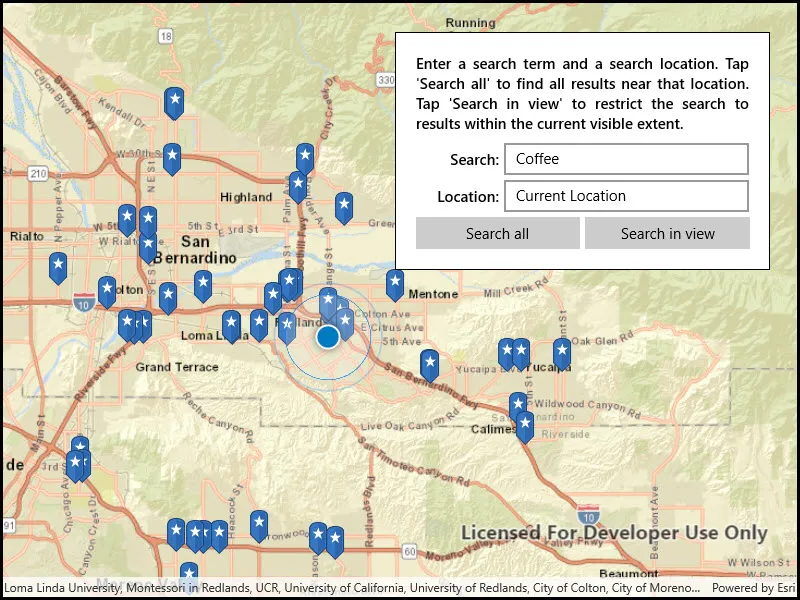

Image of find place

Use case

When getting directions or looking for nearby places, users may only know what the place has ("food"), the type of place ("gym"), or the generic place name ("Starbucks"), rather than the specific address. You can get suggestions and locations for these places of interest (POIs) using a natural language query. Additionally, you can filter the results to a specific area.

How to use the sample

Choose a type of place in the first field and an area to search within in the second field. Click the Search button to show the results of the query on the map. Click on a result pin to show its name and address. If you pan away from the result area, a "Redo search in this area" button will appear. Click it to query again for the currently viewed area on the map.

How it works

  1. Create a LocatorTask using a URL to a locator service.
  2. Find the location for an address (or city name) to build an envelope to search within:
    • Create GeocodeParameters.
    • Add return fields to the parameters' ResultAttributeNames collection. Only add a single "*" option to return all fields.
    • Call locatorTask.GeocodeAsync(locationQueryString, geocodeParameters) to get a list of GeocodeResults.
    • Use the DisplayLocation from one of the results to build an Envelope to search within.
  3. Get place of interest (POI) suggestions based on a place name query:
    • Create SuggestParameters.
    • Add "POI" to the parameters' categories collection.
    • Call locatorTask.SuggestAsync(placeQueryString, suggestParameters) to get a list of SuggestResults.
    • The SuggestResult will have a label to display in the search suggestions list.
  4. Use one of the suggestions or a user-written query to find the locations of POIs:
    • Create GeocodeParameters.
    • Set the parameters' searchArea to the envelope.
    • Call locatorTask.GeocodeAsync(suggestionLabelOrPlaceQueryString, geocodeParameters) to get a list of GeocodeResults.
    • Display the places of interest using the results' DisplayLocations.

Relevant API

  • GeocodeParameters
  • GeocodeResult
  • LocatorTask
  • SuggestParameters
  • SuggestResult

Additional information

This sample uses the World Geocoding Service. For more information, see the Geocoding service help topic on the ArcGIS Developer website.

Tags

businesses, geocode, locations, locator, places of interest, POI, point of interest, search, suggestions

Sample Code

FindPlace.xaml.csFindPlace.xaml.csFindPlace.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Shared.Managers;
using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Location;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.Tasks.Geocoding;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UI.Controls;
using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Controls;
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Reflection;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.FindPlace
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Find place",
        category: "Search",
        description: "Find places of interest near a location or within a specific area.",
        instructions: "Choose a type of place in the first field and an area to search within in the second field. Click the Search button to show the results of the query on the map. Click on a result pin to show its name and address. If you pan away from the result area, a \"Redo search in this area\" button will appear. Click it to query again for the currently viewed area on the map.",
        tags: new[] { "POI", "businesses", "geocode", "locations", "locator", "places of interest", "point of interest", "search", "suggestions" })]
    [ArcGIS.Samples.Shared.Attributes.EmbeddedResource(@"PictureMarkerSymbols\pin_star_blue.png")]
    public partial class FindPlace
    {
        // The LocatorTask provides geocoding services
        private LocatorTask _geocoder;

        // Service Uri to be provided to the LocatorTask (geocoder)
        private Uri _serviceUri = new Uri("https://geocode-api.arcgis.com/arcgis/rest/services/World/GeocodeServer");

        public FindPlace()
        {
            InitializeComponent();

            // Setup the control references and execute initialization
            _ = Initialize();
        }

        private async Task Initialize()
        {
            if (await ApiKeyManager.CheckKeyValidity() != ApiKeyStatus.Valid)
            {
                await new MessageDialog2("Please use the settings dialog to configure an API Key.", "Error").ShowAsync();
                return;
            }

            // Add event handler for when this sample is unloaded.
            Unloaded += SampleUnloaded;

            // Create new Map with basemap
            Map myMap = new Map(BasemapStyle.ArcGISStreets);

            // Subscribe to location changed event so that map can zoom to location
            MyMapView.LocationDisplay.LocationChanged += LocationDisplay_LocationChanged;

            // Enable location display
            MyMapView.LocationDisplay.IsEnabled = true;

            // Enable tap-for-info pattern on results
            MyMapView.GeoViewTapped += MyMapView_GeoViewTapped;

            // Assign the map to the MapView
            MyMapView.Map = myMap;

            // Initialize the LocatorTask with the provided service Uri
            _geocoder = await LocatorTask.CreateAsync(_serviceUri);

            // Enable all controls now that the locator task is ready
            SearchEntry.IsEnabled = true;
            LocationEntry.IsEnabled = true;
            SearchButton.IsEnabled = true;
            SearchViewButton.IsEnabled = true;
        }

        private void LocationDisplay_LocationChanged(object sender, Esri.ArcGISRuntime.Location.Location e)
        {
            // Return if position is null; event is raised with null location after
            if (e.Position == null) { return; }

            // Unsubscribe from further events; only want to zoom to location once
            ((LocationDisplay)sender).LocationChanged -= LocationDisplay_LocationChanged;

            // Zoom to the location.
            MyMapView.SetViewpointCenterAsync(e.Position, 100000);
        }

        /// <summary>
        /// Gets the map point corresponding to the text in the location textbox.
        /// If the text is 'Current Location', the returned map point will be the device's location.
        /// </summary>
        /// <param name="locationText"></param>
        /// <returns></returns>
        private async Task<MapPoint> GetSearchMapPoint(string locationText)
        {
            // Get the map point for the search text
            if (locationText != "Current Location")
            {
                // Geocode the location
                IReadOnlyList<GeocodeResult> locations = await _geocoder.GeocodeAsync(locationText);

                // return if there are no results
                if (locations.Count < 1) { return null; }

                // Get the first result
                GeocodeResult result = locations.First();

                // Return the map point
                return result.DisplayLocation;
            }
            else
            {
                // Get the current device location (if available).
                return MyMapView.LocationDisplay.Location?.Position;
            }
        }

        /// <summary>
        /// Runs a search and populates the map with results based on the provided information
        /// </summary>
        /// <param name="enteredText">Results to search for</param>
        /// <param name="locationText">Location around which to find results</param>
        /// <param name="restrictToExtent">If true, limits results to only those that are within the current extent</param>
        private async Task UpdateSearch(string enteredText, string locationText, bool restrictToExtent = false)
        {
            // Clear any existing markers
            MyMapView.GraphicsOverlays.Clear();

            // Return gracefully if the textbox is empty or the geocoder isn't ready
            if (String.IsNullOrWhiteSpace(enteredText) || _geocoder == null) { return; }

            // Create the geocode parameters
            GeocodeParameters parameters = new GeocodeParameters();

            // Request that the "Address" attribute is included with results, to display in callouts.
            parameters.ResultAttributeNames.Add("Address");

            try
            {
                // Get the MapPoint for the current search location
                MapPoint searchLocation = await GetSearchMapPoint(locationText);

                // Update the geocode parameters if the map point is not null
                if (searchLocation != null)
                {
                    parameters.PreferredSearchLocation = searchLocation;

                    // Raise MinScore to a non-zero value, otherwise PreferredSearchLocation has no effect.
                    parameters.MinScore = 1;
                }

                // Update the search area if desired
                if (restrictToExtent)
                {
                    // Get the current map extent
                    Geometry extent = MyMapView.VisibleArea;

                    // Update the search parameters
                    parameters.SearchArea = extent;
                }

                // Show the progress bar
                ProgressBar.Visibility = Visibility.Visible;

                // Get the location information
                IReadOnlyList<GeocodeResult> locations = await _geocoder.GeocodeAsync(enteredText, parameters);

                // Stop gracefully and show a message if the geocoder does not return a result
                if (locations.Count < 1)
                {
                    ProgressBar.Visibility = Visibility.Collapsed; // 1. Hide the progress bar
                    ShowStatusMessage("No results found"); // 2. Show a message
                    return; // 3. Stop
                }

                // Create the GraphicsOverlay so that results can be drawn on the map
                GraphicsOverlay resultOverlay = new GraphicsOverlay();
                var symbol = await GetPinSymbolAsync();

                // Add each address to the map
                foreach (GeocodeResult location in locations)
                {
                    // Get the Graphic to display
                    var point = new Graphic(location.DisplayLocation, symbol);

                    // Add the specific result data to the point
                    point.Attributes["Match_Title"] = location.Label;
                    point.Attributes["Match_Address"] = location.Attributes["Address"];

                    // Add the Graphic to the GraphicsOverlay
                    resultOverlay.Graphics.Add(point);
                }

                // Hide the progress bar
                ProgressBar.Visibility = Visibility.Collapsed;

                // Add the GraphicsOverlay to the MapView
                MyMapView.GraphicsOverlays.Add(resultOverlay);

                // Update the map viewpoint
                await MyMapView.SetViewpointGeometryAsync(resultOverlay.Extent, 50);
            }
            catch (Exception ex)
            {
                _ = new MessageDialog2(ex.Message, "Error").ShowAsync();
            }
        }

        /// <summary>
        /// Creates and returns a "Pin" symbol used to mark search results on the MapView
        /// </summary>
        private async Task<Esri.ArcGISRuntime.Symbology.Symbol> GetPinSymbolAsync()
        {
            // Get current assembly that contains the image
            Assembly currentAssembly = GetType().GetTypeInfo().Assembly;

            // Get image as a stream from the resources
            // Picture is defined as EmbeddedResource and DoNotCopy
            Stream resourceStream = currentAssembly.GetManifestResourceStream(
                "ArcGIS.WinUI.Viewer.Resources.PictureMarkerSymbols.pin_star_blue.png");

            // Create new symbol using asynchronous factory method from stream
            PictureMarkerSymbol pinSymbol = await PictureMarkerSymbol.CreateAsync(resourceStream);
            pinSymbol.Width = 60;
            pinSymbol.Height = 60;
            // The image is a pin; offset the image so that the pinpoint
            //     is on the point rather than the image's true center
            pinSymbol.LeaderOffsetX = 30;
            pinSymbol.OffsetY = 14;
            return pinSymbol;
        }

        /// <summary>
        /// Shows a callout for any tapped graphics
        /// </summary>
        private async void MyMapView_GeoViewTapped(object sender, GeoViewInputEventArgs e)
        {
            try
            {
                // Search for the graphics underneath the user's tap
                IReadOnlyList<IdentifyGraphicsOverlayResult> results = await MyMapView.IdentifyGraphicsOverlaysAsync(e.Position, 12, false);

                // Clear callouts and return if there was no result
                if (results.Count < 1 || results.First().Graphics.Count < 1) { MyMapView.DismissCallout(); return; }

                // Get the first graphic from the first result
                Graphic matchingGraphic = results.First().Graphics.First();

                // Get the title; manually added to the point's attributes in UpdateSearch
                string title = matchingGraphic.Attributes["Match_Title"] as String;

                // Get the address; manually added to the point's attributes in UpdateSearch
                string address = matchingGraphic.Attributes["Match_Address"] as String;

                // Define the callout
                CalloutDefinition calloutBody = new CalloutDefinition(title, address);

                // Show the callout on the map at the tapped location
                MyMapView.ShowCalloutAt(e.Location, calloutBody);
            }
            catch (Exception ex)
            {
                _ = new MessageDialog2(ex.Message, "Error").ShowAsync();
            }
        }

        /// <summary>
        /// Returns a list of suggestions based on the input search text and limited by the specified parameters
        /// </summary>
        /// <param name="searchText">Text to get suggestions for</param>
        /// <param name="location">Location around which to look for suggestions</param>
        /// <param name="poiOnly">If true, restricts suggestions to only Points of Interest (e.g. businesses, parks),
        /// rather than all matching results</param>
        /// <returns>List of suggestions as strings</returns>
        private async Task<List<string>> GetSuggestResults(string searchText, string location = "", bool poiOnly = false)
        {
            // Quit if string is null, empty, or whitespace
            if (String.IsNullOrWhiteSpace(searchText))
            {
                return new List<string>();
            }

            // Quit if the geocoder isn't ready
            if (_geocoder == null)
            {
                return new List<string>();
            }

            // Create geocode parameters
            SuggestParameters parameters = new SuggestParameters();

            // Restrict suggestions to points of interest if desired
            if (poiOnly) { parameters.Categories.Add("POI"); }

            // Set the location for the suggest parameters
            if (!String.IsNullOrWhiteSpace(location))
            {
                // Get the MapPoint for the current search location
                MapPoint searchLocation = await GetSearchMapPoint(location);

                // Update the geocode parameters if the map point is not null
                if (searchLocation != null)
                {
                    parameters.PreferredSearchLocation = searchLocation;
                }
            }

            // Get the updated results from the query so far
            IReadOnlyList<SuggestResult> results = await _geocoder.SuggestAsync(searchText, parameters);

            // Return the list
            return results.Select(result => result.Label).ToList();
        }

        /// <summary>
        /// Method abstracts the platform-specific message box functionality to maximize re-use of common code
        /// </summary>
        /// <param name="message">Text of the message to show.</param>
        private void ShowStatusMessage(string message)
        {
            _ = new MessageDialog2(message).ShowAsync();
        }

        /// <summary>
        /// Method used to keep the suggestions up-to-date for the search box
        /// </summary>
        private async void MySearchBox_TextChanged(AutoSuggestBox sender, AutoSuggestBoxTextChangedEventArgs args)
        {
            // Dismiss callout, if any
            UserInteracted();

            // Get the current text
            string searchText = SearchEntry.Text;

            // Get the current search location
            string locationText = LocationEntry.Text;

            // Convert the list into a usable format for the suggest box
            List<string> results = await GetSuggestResults(searchText, locationText, true);

            // Quit if there are no results
            if (!results.Any()) { return; }

            // Update the list of options
            SearchEntry.ItemsSource = results;
        }

        /// <summary>
        /// Method used to keep the suggestions up-to-date for the location box
        /// </summary>
        private async void MyLocationBox_TextChanged(AutoSuggestBox sender, AutoSuggestBoxTextChangedEventArgs args)
        {
            // Dismiss callout, if any
            UserInteracted();

            // Get the current text
            string searchText = LocationEntry.Text;

            // Get the results
            List<string> results = await GetSuggestResults(searchText);

            // Quit if there are no results
            if (!results.Any())
            {
                return;
            }

            // Add a 'current location' option to the list
            results.Insert(0, "Current Location");

            // Update the list of options
            LocationEntry.ItemsSource = results;
        }

        /// <summary>
        /// Method called to start a search that is restricted to results within the current extent
        /// </summary>
        private void SearchViewButton_Click(object sender, RoutedEventArgs e)
        {
            // Dismiss callout, if any
            UserInteracted();

            // Get the search text
            string searchText = SearchEntry.Text;

            // Get the location text
            string locationText = LocationEntry.Text;

            // Run the search
            _ = UpdateSearch(searchText, locationText, true);
        }

        /// <summary>
        /// Method called to start an unrestricted search
        /// </summary>
        private void SearchButton_Click(object sender, RoutedEventArgs e)
        {
            // Dismiss callout, if any
            UserInteracted();

            // Get the search text
            string searchText = SearchEntry.Text;

            // Get the location text
            string locationText = LocationEntry.Text;

            // Run the search
            _ = UpdateSearch(searchText, locationText);
        }

        /// <summary>
        /// Method to handle hiding the callout, should be called by all UI event handlers
        /// </summary>
        private void UserInteracted()
        {
            // Hide the callout
            MyMapView.DismissCallout();
        }

        private void SampleUnloaded(object sender, RoutedEventArgs e)
        {
            // Stop the location data source.
            MyMapView.LocationDisplay?.DataSource?.StopAsync();
        }
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
