Render multilayer symbols

View inMAUIWPFWinUIView on GitHub

Show different kinds of multilayer symbols on a map similar to some pre-defined 2D simple symbol styles.

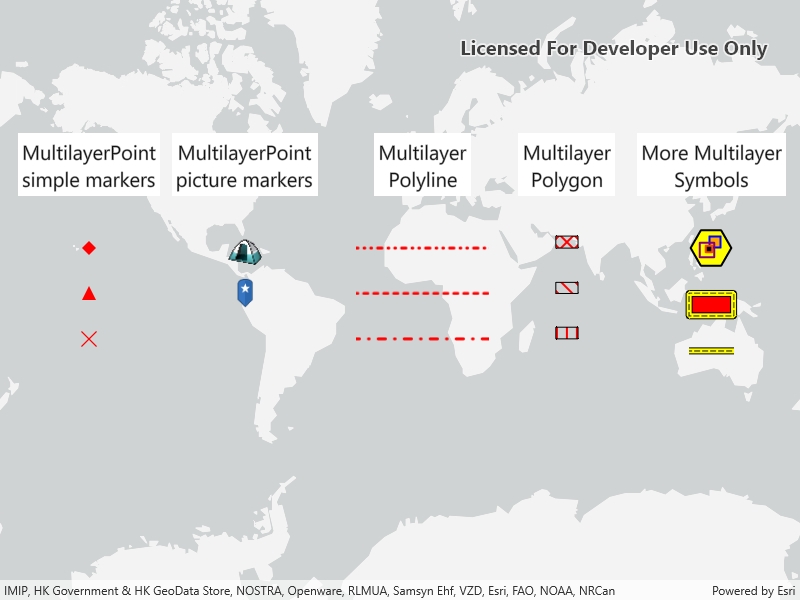

Image of render multilayer symbols

Use case

Allows you to customize a graphic with a multilayer symbol. For example, you may want more customizable symbols than the one that is provided with the API to display a unique representation of a landmark.

How to use the sample

The sample loads multilayer symbols for points, polylines, and polygons.

How it works

  1. Create multilayer symbols for each predefined 2D simple symbol style.
    • For multilayer point symbols, use the MultilayerPoint constructor.
    • For multilayer polyline symbols, use the MultiLayerPolyline constructor.
    • For multilayer polygon symbols, use the MultiLayerPolygon constructor.
  2. Create graphics by passing in a geometry and the associated symbol.
  3. Add graphics to the graphics overlay with graphicsOverlay.Graphics.Add(graphic)

Relevant API

  • Graphic
  • GraphicsOverlay
  • MultiLayerPoint
  • MultiLayerPolygon
  • MultiLayerPolyline
  • PictureMarkerSymbolLayer
  • SolidFillSymbolLayer
  • SolidStrokeSymbolLayer
  • VectorMarkerSymbolLayer

Tags

graphic, marker, multilayer, picture, symbol

Sample Code

RenderMultilayerSymbols.xaml.csRenderMultilayerSymbols.xaml.csRenderMultilayerSymbols.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Symbology;
using Esri.ArcGISRuntime.UI;
using System;
using System.Collections.Generic;
using System.Drawing;
using System.IO;
using System.Reflection;

namespace ArcGIS.WinUI.Samples.RenderMultilayerSymbols
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Render multilayer symbols",
        category: "Symbology",
        description: "Show different kinds of multilayer symbols on a map similar to some pre-defined 2D simple symbol styles.",
        instructions: "The sample loads multilayer symbols for points, polylines, and polygons.",
        tags: new[] { "graphic", "marker", "multilayer", "picture", "symbol" })]
    public partial class RenderMultilayerSymbols
    {
        // This is used to keep consistent distance from each symbol on the column.
        private double _offset = 20.0;

        public RenderMultilayerSymbols()
        {
            InitializeComponent();
            Initialize();
        }

        private void Initialize()
        {
            MyMapView.Map = new Map(BasemapStyle.ArcGISLightGray);
            var overlay = new GraphicsOverlay();

            var textGraphicForMarkers = new Graphic(new MapPoint(-150, 50, SpatialReferences.Wgs84),
                new TextSymbol()
                {
                    Text = "MultilayerPoint\nsimple markers",
                    Color = Color.Black,
                    BackgroundColor = Color.White,
                    Size = 20,
                    OutlineColor = Color.Black,
                    OutlineWidth = 1,
                });
            overlay.Graphics.Add(textGraphicForMarkers);

            AddPointGraphicsWithMarkerSymbols(overlay);

            var textGraphicForPictureMarkers = new Graphic(new MapPoint(-80, 50, SpatialReferences.Wgs84),
                new TextSymbol()
                {
                    Text = "MultilayerPoint\npicture markers",
                    Color = Color.Black,
                    BackgroundColor = Color.White,
                    Size = 20,
                    OutlineColor = Color.Black,
                    OutlineWidth = 1
                });
            overlay.Graphics.Add(textGraphicForPictureMarkers);

            // Create picture marker symbol from a Uri.
            AddPointGraphicsWithPictureMarkerSymbolFromUri(overlay);

            // Create picture marker symbol from embedded resources.
            AddPointGraphicsWithPictureMarkerSymbolFromResources(overlay);

            var textGraphicForLineSymbols = new Graphic(new MapPoint(0, 50, SpatialReferences.Wgs84),
                new TextSymbol()
                {
                    Text = "Multilayer\nPolyline",
                    Color = Color.Black,
                    BackgroundColor = Color.White,
                    Size = 20,
                    OutlineColor = Color.Black,
                    OutlineWidth = 1
                });
            overlay.Graphics.Add(textGraphicForLineSymbols);

            // Create the line marker symbols.
            AddLineGraphicsWithMarkerSymbols(overlay);

            var textGraphicForFillSymbols = new Graphic(new MapPoint(65, 50, SpatialReferences.Wgs84),
                new TextSymbol()
                {
                    Text = "Multilayer\nPolygon",
                    Color = Color.Black,
                    BackgroundColor = Color.White,
                    Size = 20,
                    OutlineColor = Color.Black,
                    OutlineWidth = 1
                });
            overlay.Graphics.Add(textGraphicForFillSymbols);

            // Create the polygon marker symbol.
            AddPolygonGraphicsWithMarkerSymbols(overlay);

            var textGraphicForComplexSymbols = new Graphic(new MapPoint(130, 50, SpatialReferences.Wgs84),
               new TextSymbol()
               {
                   Text = "More Multilayer\nSymbols",
                   Color = Color.Black,
                   BackgroundColor = Color.White,
                   Size = 20,
                   OutlineColor = Color.Black,
                   OutlineWidth = 1
               });
            overlay.Graphics.Add(textGraphicForComplexSymbols);

            // Create the more complex multilayer points, polygons, and polylines.
            AddComplexPointGraphic(overlay);
            AddComplexPolygonGraphic(overlay);
            AddComplexPolylineGraphic(overlay);

            MyMapView.GraphicsOverlays.Add(overlay);
        }

        #region Create a multilayer point symbol.

        private void AddPointGraphicsWithMarkerSymbols(GraphicsOverlay overlay)
        {
            MultilayerPointSymbol markerSymbol;

            // Define a vector element, a diamond in this case.
            Geometry vectorElementGeometry = Geometry.FromJson("{\"rings\":[[[0.0,2.5],[2.5,0.0],[0.0,-2.5],[-2.5,0.0],[0.0,2.5]]]}");
            var vectorElementFill = new SolidFillSymbolLayer(Color.Red);
            var multiLayerPolygonSymbol = new MultilayerPolygonSymbol(new[] { vectorElementFill });
            var vectorMarkerDiamond = new VectorMarkerSymbolElement(vectorElementGeometry, multiLayerPolygonSymbol);
            var vectorMarkerSymbol = new VectorMarkerSymbolLayer(new[] { vectorMarkerDiamond });
            markerSymbol = new MultilayerPointSymbol(new[] { vectorMarkerSymbol });

            // Create point graphics using the diamond symbol created above.
            var diamondGraphic = new Graphic(new MapPoint(-150, 20, SpatialReferences.Wgs84), markerSymbol);
            overlay.Graphics.Add(diamondGraphic);

            // Define a vector element, a triangle in this case.
            vectorElementGeometry = Geometry.FromJson("{\"rings\":[[[0.0,5.0],[5,-5.0],[-5,-5.0],[0.0,5.0]]]}");
            vectorElementFill = new SolidFillSymbolLayer(Color.Red);
            multiLayerPolygonSymbol = new MultilayerPolygonSymbol(new[] { vectorElementFill });
            var vectorMarkerTriangle = new VectorMarkerSymbolElement(vectorElementGeometry, multiLayerPolygonSymbol);
            vectorMarkerSymbol = new VectorMarkerSymbolLayer(new[] { vectorMarkerTriangle });
            markerSymbol = new MultilayerPointSymbol(new[] { vectorMarkerSymbol });

            // Create point graphics using the triangle symbol created above.
            var triangleGraphic = new Graphic(new MapPoint(-150, 20 - _offset, SpatialReferences.Wgs84), markerSymbol);
            overlay.Graphics.Add(triangleGraphic);

            // Define a vector element, a cross in this case.
            vectorElementGeometry = Geometry.FromJson("{\"paths\":[[[-1,1],[0,0],[1,-1]],[[1,1],[0,0],[-1,-1]]]}");
            var vectorElementStroke = new SolidStrokeSymbolLayer(1, Color.Red);
            var multilayerPolylineSymbol = new MultilayerPolylineSymbol(new[] { vectorElementStroke });
            var vectorMarkerX = new VectorMarkerSymbolElement(vectorElementGeometry, multilayerPolylineSymbol);
            vectorMarkerSymbol = new VectorMarkerSymbolLayer(new[] { vectorMarkerX });
            markerSymbol = new MultilayerPointSymbol(new[] { vectorMarkerSymbol });

            // Create point graphics using the cross symbol created above.
            var crossGraphic = new Graphic(new MapPoint(-150, 20 - 2 * _offset, SpatialReferences.Wgs84), markerSymbol);
            overlay.Graphics.Add(crossGraphic);
        }

        #endregion Create a multilayer point symbol.

        #region Create a picture marker symbol from a Uri.

        private void AddPointGraphicsWithPictureMarkerSymbolFromUri(GraphicsOverlay overlay)
        {
            var symbolUri = new Uri("https://static.arcgis.com/images/Symbols/OutdoorRecreation/Camping.png");

            // Create a new symbol using asynchronous factory method from Uri.
            var campsiteMarker = new PictureMarkerSymbolLayer(symbolUri)
            {
                Size = 40
            };
            var campsiteSymbol = new MultilayerPointSymbol(new[] { campsiteMarker });

            var campsitePoint = new MapPoint(-80, 20, SpatialReferences.Wgs84);

            // Create graphic with the location and symbol.
            var campsiteGraphic = new Graphic(campsitePoint, campsiteSymbol);
            overlay.Graphics.Add(campsiteGraphic);
        }

        #endregion Create a picture marker symbol from a Uri.

        #region Create a picture marker symbol from an embedded resource.

        private void AddPointGraphicsWithPictureMarkerSymbolFromResources(GraphicsOverlay overlay)
        {
            // Get current assembly that contains the image.
            Assembly currentAssembly = Assembly.GetExecutingAssembly();

            // Get image as a stream from the resources.
            // Picture is defined as EmbeddedResource.
            using (var stream = currentAssembly.GetManifestResourceStream("ArcGIS.WinUI.Viewer.Resources.PictureMarkerSymbols.pin_star_blue.png"))
            {
                using (var mem = new MemoryStream())
                {
                    stream.CopyTo(mem);

                    // Create a runtime image from the bytes read from the memory stream.
                    var img = new RuntimeImage(mem.ToArray());

                    // Create new PictureMarkerSymbolLayer from the runtime image object.
                    var pinMarker = new PictureMarkerSymbolLayer(img) { Size = 50 };

                    // Create a new multilayerpoint symbol with the PictureMarkerSymbolLayer.
                    var pinSymbol = new MultilayerPointSymbol(new[] { pinMarker });

                    // Create location for the pin.
                    var pinPoint = new MapPoint(-80, 20 - _offset, SpatialReferences.Wgs84);

                    // Create graphic with the location and symbol.
                    var pinGraphic = new Graphic(pinPoint, pinSymbol);
                    overlay.Graphics.Add(pinGraphic);
                }
            }
        }

        #endregion Create a picture marker symbol from an embedded resource.

        #region Create a multilayer polyline symbol.

        private void AddLineGraphicsWithMarkerSymbols(GraphicsOverlay overlay)
        {
            // Multilayer polyline symbol for different line styles.
            MultilayerPolylineSymbol lineSymbol;

            // Stroke used by line symbols.
            SolidStrokeSymbolLayer strokeLayer;
            strokeLayer = new SolidStrokeSymbolLayer(3, Color.Red);
            strokeLayer.CapStyle = StrokeSymbolLayerCapStyle.Round;

            // Create a polyline for the multilayer polyline symbol.
            var polylineBuilder = new PolylineBuilder(SpatialReferences.Wgs84);
            polylineBuilder.AddPoint(new MapPoint(-30, 20, SpatialReferences.Wgs84));
            polylineBuilder.AddPoint(new MapPoint(30, 20, SpatialReferences.Wgs84));

            // Dash geometric effects that define the dash and dot template used by different line style.
            var dashEffect = new DashGeometricEffect();

            // Create a dash effect similar to SimpleLineSymbolStyle.ShortDashDotDot.
            dashEffect.DashTemplate.Add(4);
            dashEffect.DashTemplate.Add(6);
            dashEffect.DashTemplate.Add(0.5);
            dashEffect.DashTemplate.Add(6);
            dashEffect.DashTemplate.Add(0.5);
            dashEffect.DashTemplate.Add(6);
            strokeLayer.GeometricEffects.Add(dashEffect);

            lineSymbol = new MultilayerPolylineSymbol(new List<SymbolLayer> { strokeLayer });

            // Create a polyline graphic with geometry using the symbol created above.
            var shortDashDotGraphic = new Graphic(polylineBuilder.ToGeometry(), lineSymbol);
            overlay.Graphics.Add(shortDashDotGraphic);

            polylineBuilder = new PolylineBuilder(SpatialReferences.Wgs84);
            polylineBuilder.AddPoint(new MapPoint(-30, 20 - _offset, SpatialReferences.Wgs84));
            polylineBuilder.AddPoint(new MapPoint(30, 20 - _offset, SpatialReferences.Wgs84));

            strokeLayer = new SolidStrokeSymbolLayer(3, Color.Red);
            strokeLayer.CapStyle = StrokeSymbolLayerCapStyle.Round;
            dashEffect = new DashGeometricEffect();

            // Create a dash effect similar to SimpleLineSymbolStyle.ShortDash.
            dashEffect.DashTemplate.Add(4);
            dashEffect.DashTemplate.Add(6);
            strokeLayer.GeometricEffects.Add(dashEffect);

            lineSymbol = new MultilayerPolylineSymbol(new List<SymbolLayer> { strokeLayer });

            // Create a polyline graphic with geometry using the symbol created above.
            var shortDashGraphic = new Graphic(polylineBuilder.ToGeometry(), lineSymbol);
            overlay.Graphics.Add(shortDashGraphic);

            polylineBuilder = new PolylineBuilder(SpatialReferences.Wgs84);
            polylineBuilder.AddPoint(new MapPoint(-30, 20 - 2 * _offset, SpatialReferences.Wgs84));
            polylineBuilder.AddPoint(new MapPoint(30, 20 - 2 * _offset, SpatialReferences.Wgs84));

            strokeLayer = new SolidStrokeSymbolLayer(3, Color.Red);
            strokeLayer.CapStyle = StrokeSymbolLayerCapStyle.Round;
            dashEffect = new DashGeometricEffect();

            // Create a dash effect similar to SimpleLineSymbolStyle.DashDotDot.
            dashEffect.DashTemplate.Add(7);
            dashEffect.DashTemplate.Add(9);
            dashEffect.DashTemplate.Add(0.5);
            dashEffect.DashTemplate.Add(9);
            strokeLayer.GeometricEffects.Add(dashEffect);

            lineSymbol = new MultilayerPolylineSymbol(new List<SymbolLayer> { strokeLayer });

            // Create a polyline graphic with geometry using the symbol created above.
            var dashDotGraphic = new Graphic(polylineBuilder.ToGeometry(), lineSymbol);
            overlay.Graphics.Add(dashDotGraphic);
        }

        #endregion Create a multilayer polyline symbol.

        #region Create a multilayer polygon symbol.

        private void AddPolygonGraphicsWithMarkerSymbols(GraphicsOverlay overlay)
        {
            var polygonBuilder = new PolygonBuilder(SpatialReferences.Wgs84);
            polygonBuilder.AddPoint(new MapPoint(60, 25, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(70, 25, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(70, 20, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(60, 20, SpatialReferences.Wgs84));

            // Create a stroke symbol layer to be used by hatch patterns.
            var strokeForHatches = new SolidStrokeSymbolLayer(2, Color.Red);
            var strokeForOutline = new SolidStrokeSymbolLayer(1, Color.Black);

            // Create a diagonal cross pattern hatch symbol layers for diagonal cross fill style.
            var diagonalStroke1 = new HatchFillSymbolLayer(new MultilayerPolylineSymbol(new List<SymbolLayer>() { strokeForHatches }), 45);
            var diagonalStroke2 = new HatchFillSymbolLayer(new MultilayerPolylineSymbol(new List<SymbolLayer>() { strokeForHatches }), -45);

            diagonalStroke1.Separation = 9;
            diagonalStroke2.Separation = 9;

            // Create a multilayer polygon symbol with symbol layers.
            var diagonalCrossPolygonSymbol = new MultilayerPolygonSymbol(new List<SymbolLayer>() { diagonalStroke1, diagonalStroke2, strokeForOutline });

            // Create a polygon graphic with geometry using the symbol created above.
            var diagonalCrossGraphic = new Graphic(polygonBuilder.ToGeometry(), diagonalCrossPolygonSymbol);
            overlay.Graphics.Add(diagonalCrossGraphic);

            polygonBuilder = new PolygonBuilder(SpatialReferences.Wgs84);
            polygonBuilder.AddPoint(new MapPoint(60, 25 - _offset, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(70, 25 - _offset, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(70, 20 - _offset, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(60, 20 - _offset, SpatialReferences.Wgs84));

            // Create a forward diagonal pattern hatch symbol layer for forward diagonal fill style.
            var forwardDiagonal = new HatchFillSymbolLayer(new MultilayerPolylineSymbol(new List<SymbolLayer>() { strokeForHatches }), -45);
            forwardDiagonal.Separation = 9;

            // Create a multilayer polygon symbol with symbol layers.
            var forwardDiagonalPolygonSymbol = new MultilayerPolygonSymbol(new List<SymbolLayer>() { forwardDiagonal, strokeForOutline });

            // Create a polygon graphic with geometry using the symbol created above.
            var forwardDiagonalGraphic = new Graphic(polygonBuilder.ToGeometry(), forwardDiagonalPolygonSymbol);
            overlay.Graphics.Add(forwardDiagonalGraphic);

            polygonBuilder = new PolygonBuilder(SpatialReferences.Wgs84);
            polygonBuilder.AddPoint(new MapPoint(60, 25 - 2 * _offset, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(70, 25 - 2 * _offset, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(70, 20 - 2 * _offset, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(60, 20 - 2 * _offset, SpatialReferences.Wgs84));

            // Create a vertical pattern hatch symbol layer for vertical fill style.
            var vertical = new HatchFillSymbolLayer(new MultilayerPolylineSymbol(new List<SymbolLayer> { strokeForHatches }), 90);
            vertical.Separation = 9;

            // Create a multilayer polygon symbol with symbol layers.
            var verticalPolygonSymbol = new MultilayerPolygonSymbol(new List<SymbolLayer> { vertical, strokeForOutline });

            // Create a polygon graphic with geometry using the symbol created above.
            var verticalPolygonGraphic = new Graphic(polygonBuilder.ToGeometry(), verticalPolygonSymbol);
            overlay.Graphics.Add(verticalPolygonGraphic);
        }

        #endregion Create a multilayer polygon symbol.

        #region Create complex multilayer point symbol.

        private void AddComplexPointGraphic(GraphicsOverlay overlay)
        {
            // Create an orange envelope with reddish outline.
            var orangeFillLayer = new SolidFillSymbolLayer(Color.Orange);
            var pinkOutline = new SolidStrokeSymbolLayer(2, Color.Blue);
            var orangeSquareGeometry = new Envelope(new MapPoint(-0.5, -0.5, SpatialReferences.Wgs84), new MapPoint(0.5, 0.5, SpatialReferences.Wgs84));
            var orangeSquareVectorElement = new VectorMarkerSymbolElement(orangeSquareGeometry, new MultilayerPolygonSymbol(new List<SymbolLayer>() { orangeFillLayer, pinkOutline }));
            var orangeSquareVectorMarkerLayer = new VectorMarkerSymbolLayer(new[] { orangeSquareVectorElement });
            orangeSquareVectorMarkerLayer.Size = 11;
            orangeSquareVectorMarkerLayer.Anchor = new SymbolAnchor(-4, -6, SymbolAnchorPlacementMode.Absolute);

            // Create a black envelope.
            var blackFillLayer = new SolidFillSymbolLayer(Color.Black);
            var orangeOutline = new SolidStrokeSymbolLayer(2, Color.OrangeRed);
            var blackSquareGeometry = new Envelope(new MapPoint(-0.5, -0.5, SpatialReferences.Wgs84), new MapPoint(0.5, 0.5, SpatialReferences.Wgs84));
            var blackSquareVectorElement = new VectorMarkerSymbolElement(blackSquareGeometry, new MultilayerPolygonSymbol(new List<SymbolLayer>() { blackFillLayer, orangeOutline }));
            var blackSquareVectorMarkerLayer = new VectorMarkerSymbolLayer(new[] { blackSquareVectorElement });
            blackSquareVectorMarkerLayer.Size = 6;
            blackSquareVectorMarkerLayer.Anchor = new SymbolAnchor(2, 1, SymbolAnchorPlacementMode.Absolute);

            // Create an envelope with no purple outline.
            var transparentFillLayer = new SolidFillSymbolLayer(Color.Transparent);
            var purpleOutline = new SolidStrokeSymbolLayer(2, Color.Purple);
            var purpleSquareGeometry = new Envelope(new MapPoint(-0.5, -0.5, SpatialReferences.Wgs84), new MapPoint(0.5, 0.5, SpatialReferences.Wgs84));
            var purpleSquareVectorElement = new VectorMarkerSymbolElement(purpleSquareGeometry, new MultilayerPolygonSymbol(new List<SymbolLayer>() { transparentFillLayer, purpleOutline }));
            var purpleSquareVectorMarkerLayer = new VectorMarkerSymbolLayer(new[] { purpleSquareVectorElement });
            purpleSquareVectorMarkerLayer.Size = 14;
            purpleSquareVectorMarkerLayer.Anchor = new SymbolAnchor(4, 2, SymbolAnchorPlacementMode.Absolute);

            // First layer with its marker graphics and nested symbol layers.
            Geometry hexagonElementGeometry = Geometry.FromJson("{\"rings\":[[[-2.89,5.0],[2.89,5.0],[5.77,0.0],[2.89,-5.0],[-2.89,-5.0],[-5.77,0.0],[-2.89,5.0]]]}");
            var yellowFillLayer = new SolidFillSymbolLayer(Color.Yellow);
            var blackOutline = new SolidStrokeSymbolLayer(2, Color.Black);
            var hexagonVectorElement = new VectorMarkerSymbolElement(hexagonElementGeometry, new MultilayerPolygonSymbol(new List<SymbolLayer>() { yellowFillLayer, blackOutline }));
            var hexagonVectorMarkerLayer = new VectorMarkerSymbolLayer(new[] { hexagonVectorElement });
            hexagonVectorMarkerLayer.Size = 35;

            // Create the multilayer point symbol.
            var pointSymbol = new MultilayerPointSymbol(new List<SymbolLayer> { hexagonVectorMarkerLayer, orangeSquareVectorMarkerLayer, blackSquareVectorMarkerLayer, purpleSquareVectorMarkerLayer });

            // Create the multilayer point graphic using the symbols created above.
            var complexPointGraphic = new Graphic(new MapPoint(130, 20, SpatialReferences.Wgs84), pointSymbol);
            overlay.Graphics.Add(complexPointGraphic);
        }

        #endregion Create complex multilayer point symbol.

        #region Create complex multilayer polyline symbol.

        private void AddComplexPolylineGraphic(GraphicsOverlay overlay)
        {
            // Symbol layers for multilayer polyline.
            var blackDashes = new SolidStrokeSymbolLayer(1, Color.Black);
            var dashEffect = new DashGeometricEffect(new double[] { 5, 3 });
            blackDashes.GeometricEffects.Add(dashEffect);
            blackDashes.CapStyle = StrokeSymbolLayerCapStyle.Square;

            // Create the yellow stroke inside.
            var yellowStroke = new SolidStrokeSymbolLayer(5, Color.Yellow);
            yellowStroke.CapStyle = StrokeSymbolLayerCapStyle.Round;

            // Create the black outline.
            var blackOutline = new SolidStrokeSymbolLayer(7, Color.Black);
            blackOutline.CapStyle = StrokeSymbolLayerCapStyle.Round;

            // Create the multilayer polyline symbol.
            var polylineSymbol = new MultilayerPolylineSymbol(new List<SymbolLayer> { blackOutline, yellowStroke, blackDashes });
            var polylineBuilder = new PolylineBuilder(SpatialReferences.Wgs84);
            polylineBuilder.AddPoint(new MapPoint(120, -25, SpatialReferences.Wgs84));
            polylineBuilder.AddPoint(new MapPoint(140, -25, SpatialReferences.Wgs84));

            // Create the multilayer polyline graphic with geometry using the symbols created above.
            var complexLineGraphic = new Graphic(polylineBuilder.ToGeometry(), polylineSymbol);
            overlay.Graphics.Add(complexLineGraphic);
        }

        #endregion Create complex multilayer polyline symbol.

        #region Create complex multilayer polygon symbol.

        private void AddComplexPolygonGraphic(GraphicsOverlay overlay)
        {
            // Create the black outline.
            SolidStrokeSymbolLayer blackOutline = new SolidStrokeSymbolLayer(7, Color.Black);
            blackOutline.CapStyle = StrokeSymbolLayerCapStyle.Round;

            // Create the yellow stroke inside.
            SolidStrokeSymbolLayer yellowStroke = new SolidStrokeSymbolLayer(5, Color.Yellow);
            yellowStroke.CapStyle = StrokeSymbolLayerCapStyle.Round;

            // Symbol layers for multilayer polyline.
            SolidStrokeSymbolLayer blackDashes = new SolidStrokeSymbolLayer(1, Color.Black);
            GeometricEffect dashEffect = new DashGeometricEffect(new double[] { 5, 3 });
            blackDashes.GeometricEffects.Add(dashEffect);
            blackDashes.CapStyle = StrokeSymbolLayerCapStyle.Square;

            // Create a red filling for the polygon.
            SolidFillSymbolLayer redFillLayer = new SolidFillSymbolLayer(Color.Red);

            // Create the multilayer polygon symbol.
            MultilayerPolygonSymbol polygonSymbol = new MultilayerPolygonSymbol(new List<SymbolLayer> { redFillLayer, blackOutline, yellowStroke, blackDashes });

            // Create the polygon.
            PolygonBuilder polygonBuilder = new PolygonBuilder(SpatialReferences.Wgs84);
            polygonBuilder.AddPoint(new MapPoint(120, 0, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(140, 0, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(140, -10, SpatialReferences.Wgs84));
            polygonBuilder.AddPoint(new MapPoint(120, -10, SpatialReferences.Wgs84));

            // Create a multilayer polygon graphic with geometry using the symbols created above.
            Graphic complexPolygonGraphic = new Graphic(polygonBuilder.ToGeometry(), polygonSymbol);
            overlay.Graphics.Add(complexPolygonGraphic);
        }

        #endregion Create complex multilayer polygon symbol.
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
