Certificate authentication with PKI

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Portal;
using Esri.ArcGISRuntime.Security;
using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Controls;
using System;
using System.Net.Http;
using System.Security.Cryptography.X509Certificates;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.CertificateAuthenticationWithPKI
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Certificate authentication with PKI",
        category: "Security",
        description: "Access secured portals using a certificate.",
        instructions: "> **NOTE**: You must provide your own ArcGIS Portal with PKI authentication configured.",
        tags: new[] { "PKI", "X509", "authentication", "certificate", "login", "passwordless", "smartcard", "store" })]
    public partial class CertificateAuthenticationWithPKI
    {
        private string _serverUrl;

        public CertificateAuthenticationWithPKI()
        {
            InitializeComponent();
        }

        public async Task<Credential> CreateCertCredentialAsync(CredentialRequestInfo info)
        {
            // Handle challenges for a secured resource by prompting for a client certificate.
            Credential credential = null;

            try
            {
                // Create an X509 store for reading certificates for the current user.
                var store = new X509Store(StoreName.My, StoreLocation.CurrentUser);

                // Open the store in read-only mode.
                store.Open(OpenFlags.ReadOnly);

                // Get a list of certificates that are currently valid.
                X509Certificate2Collection certificates = store.Certificates.Find(X509FindType.FindByTimeValid, DateTime.Now, true);

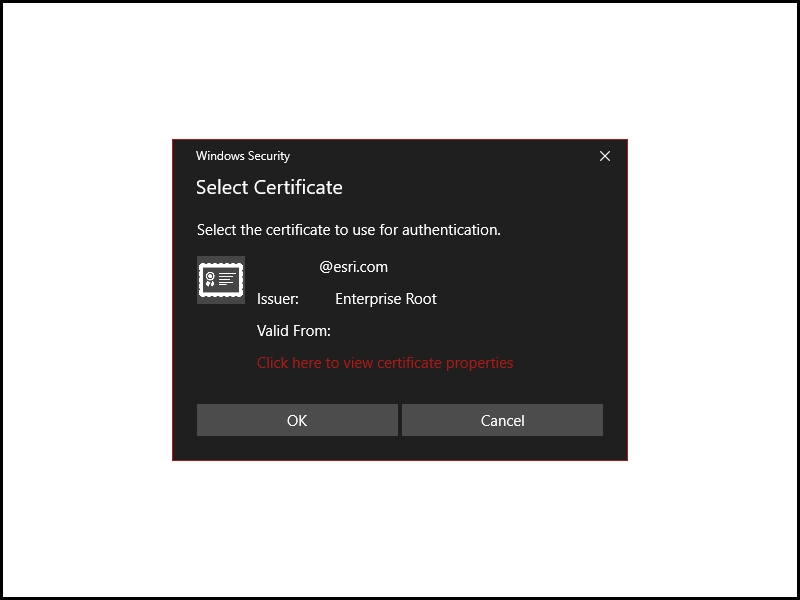

                // Create a dialog for showing the list of certificates.
                ContentDialog dialog = new ContentDialog();
                dialog.CloseButtonText = "Select certificate";

                // Create a list view for rendering the list.
                ListView listview = new ListView();

                // Use a template defined as a resource in XAML.
                listview.ItemTemplate = (DataTemplate)this.Resources["CertificateTemplate"];

                // Display the items in the listview.
                listview.ItemsSource = certificates;

                // Display the listview in the dialog.
                dialog.Content = listview;

                // Display the dialog.
                await dialog.ShowAsync();

                // Make sure the user chose a certificate.
                if (listview.SelectedItems.Count > 0)
                {
                    // Get the chosen certificate.
                    X509Certificate2 cert = (X509Certificate2)listview.SelectedItem;

                    // Create a new CertificateCredential using the chosen certificate.
                    credential = new Esri.ArcGISRuntime.Security.CertificateCredential(new Uri(_serverUrl), cert);
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine(ex);
            }

            // Return the CertificateCredential for the secured portal.
            return credential;
        }

        private async void Button_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                // Workaround for HTTP client bug affecting System.Net.HttpClient.
                // https://github.com/dotnet/corefx/issues/37598
                var httpClient = new Windows.Web.Http.HttpClient();
                await httpClient.GetStringAsync(new Uri(PortalUrlTextbox.Text));
                // End workaround

                // Store the server URL for later reference.
                _serverUrl = PortalUrlTextbox.Text;

                // Configure the authentication manager.
                AuthenticationManager.Current.ChallengeHandler = new ChallengeHandler(CreateCertCredentialAsync);

                // Create the portal.
                ArcGISPortal portal = await ArcGISPortal.CreateAsync(new Uri(_serverUrl));

                // Update the UI with the logged in user.
                LoggedInUsername.Text = portal.User.FullName;
            }
            catch (UriFormatException)
            {
                await new MessageDialog2("Couldn't authenticate. Enter a valid URL first.").ShowAsync();
            }
            catch (HttpRequestException ex)
            {
                if (ex.Message.Contains("404"))
                {
                    await new MessageDialog2("404: Not Found").ShowAsync();
                }
                else if (ex.Message.Contains("403"))
                {
                    await new MessageDialog2("403: Not authorized; did you use the right certificate?").ShowAsync();
                }
                else
                {
                    System.Diagnostics.Debug.WriteLine(ex);
                    await new MessageDialog2("Couldn't authenticate. See debug output for details").ShowAsync();
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine(ex);
                await new MessageDialog2("Error authenticating; see debug output for details.").ShowAsync();
            }
        }
    }
}
