Scene layer selection

View inMAUIUWPWinUIWPFView on GitHub

Identify features in a scene to select.

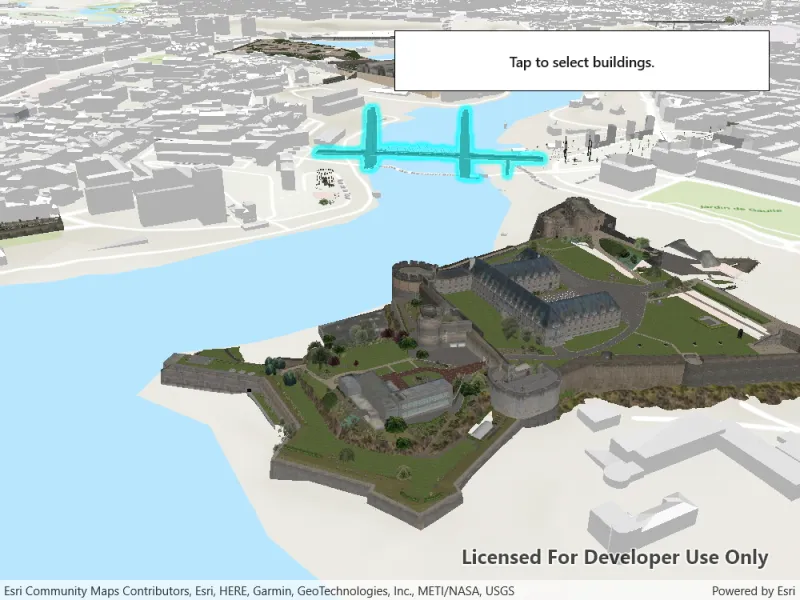

Image of scene layer selection

Use case

You can select features to visually distinguish them with a selection color or highlighting. This can be useful to demonstrate the physical extent or associated attributes of a feature, or to initiate another action such as centering that feature in the scene view.

How to use the sample

Click on a building in the scene layer to select it. Deselect buildings by clicking away from the buildings.

How it works

  1. Create an ArcGISSceneLayer passing in the URL to a scene layer service.
  2. Wait for the user to tap with the sceneView.GeoViewTapped event and get the tapped screen point.
  3. Call sceneView.IdentifyLayersAsync(sceneLayer, screenPoint, tolerance, false, 1) to identify features in the scene.
  4. From the resulting IdentifyLayerResult, get the list of identified GeoElements with result.GeoElements.
  5. Get the first element in the list, checking that it is a feature, and call sceneLayer.SelectFeature(feature) to select it.

Relevant API

  • ArcGISSceneLayer
  • Scene
  • SceneView

About the data

This sample shows a Brest, France Scene hosted on ArcGIS Online.

Tags

3D, Brest, buildings, identify, model, query, search, select

Sample Code

SceneLayerSelection.xaml.csSceneLayerSelection.xaml.csSceneLayerSelection.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Mapping;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.SceneLayerSelection
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Scene layer selection",
        category: "Layers",
        description: "Identify features in a scene to select.",
        instructions: "Click on a building in the scene layer to select it. Deselect buildings by clicking away from the buildings.",
        tags: new[] { "3D", "Brest", "buildings", "identify", "model", "query", "search", "select" })]
    public partial class SceneLayerSelection
    {
        public SceneLayerSelection()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create a new Scene with a topographic basemap.
            Scene scene = new Scene(BasemapStyle.ArcGISTopographic);

            // Add a base surface with elevation data.
            Surface elevationSurface = new Surface();
            Uri elevationService = new Uri("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer");
            elevationSurface.ElevationSources.Add(new ArcGISTiledElevationSource(elevationService));
            scene.BaseSurface = elevationSurface;

            // Add a scene layer.
            Uri buildingsService = new Uri("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer/layers/0");
            ArcGISSceneLayer buildingsLayer = new ArcGISSceneLayer(buildingsService);
            scene.OperationalLayers.Add(buildingsLayer);

            // Assign the Scene to the SceneView.
            MySceneView.Scene = scene;

            try
            {
                // Create a camera with an interesting view.
                Camera viewCamera = new Camera(48.378, -4.494, 200, 345, 65, 0);

                // Set the viewpoint with the camera.
                MySceneView.SetViewpointCamera(viewCamera);
            }
            catch (Exception e)
            {
                await new MessageDialog2(e.ToString(), "Error").ShowAsync();
            }
        }

        private async void SceneViewTapped(object sender, Esri.ArcGISRuntime.UI.Controls.GeoViewInputEventArgs e)
        {
            // Get the scene layer from the scene (first and only operational layer).
            ArcGISSceneLayer sceneLayer = (ArcGISSceneLayer)MySceneView.Scene.OperationalLayers.First();

            // Clear any existing selection.
            sceneLayer.ClearSelection();

            try
            {
                // Identify the layer at the tap point.
                // Use a 10-pixel tolerance around the point and return a maximum of one feature.
                IdentifyLayerResult result = await MySceneView.IdentifyLayerAsync(sceneLayer, e.Position, 10, false, 1);

                // Get the GeoElements that were identified (will be 0 or 1 element).
                IReadOnlyList<GeoElement> geoElements = result.GeoElements;

                // If a GeoElement was identified, select it in the scene.
                if (geoElements.Any())
                {
                    GeoElement geoElement = geoElements.FirstOrDefault();
                    if (geoElement != null)
                    {
                        // Select the feature to highlight it in the scene view.
                        sceneLayer.SelectFeature((Feature)geoElement);
                    }
                }
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.ToString(), "Error").ShowAsync();
            }
        }
    }
}
