Query feature count and extent

View inMAUIUWPWPFWinUIView on GitHub

Zoom to features matching a query and count the features in the current visible extent.

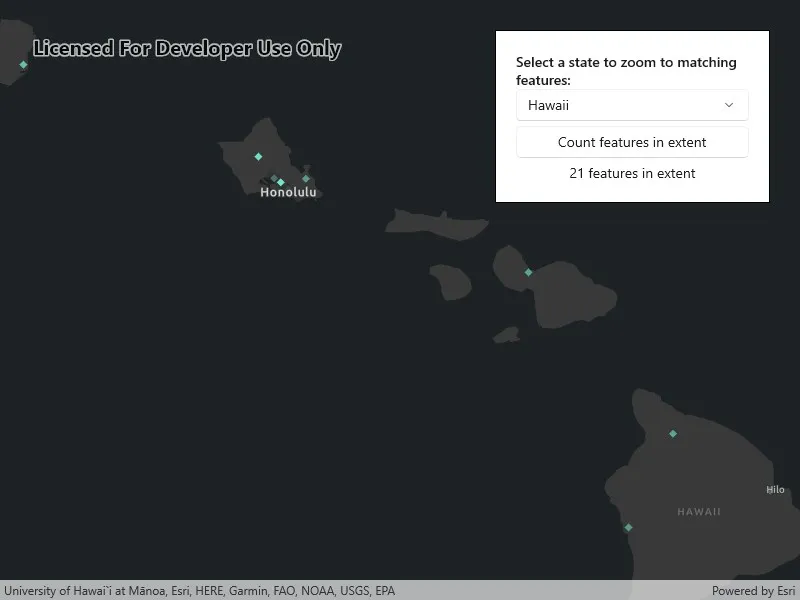

Image of query feature count and extent

Use case

Queries can be used to search for features in a feature table using text entry. This is helpful for finding a specific feature by name in a large feature table. A query can also be used to count features in an extent. This could be used to count the number of a traffic incidents in a particular region when working with an incident dataset for a larger area.

How to use the sample

Use the picker to zoom to the extent of the state specified. Use the button to count the features in the current extent.

How it works

Querying by state abbreviation:

  1. A QueryParameters object is created with a WhereClause.
  2. FeatureTable.QueryExtentAsync is called with the QueryParameters object to obtain the extent that contains all matching features.
  3. The extent is converted to a Viewpoint, which is passed to MapView.SetViewpointAsync.

Counting features in the current extent:

  1. The current visible extent is obtained from a call to MapView.GetCurrentViewpoint(ViewpointType).
  2. A QueryParameters object is created with the visible extent and a defined SpatialRelationship (in this case 'intersects').
  3. The count of matching features is obtained from a call to FeatureTable.QueryFeatureCountAsync.

Relevant API

  • FeatureTable.QueryExtentAsync
  • FeatureTable.QueryFeatureCountAsync
  • MapView.GetCurrentViewpoint(ViewpointType)
  • QueryParameters
  • QueryParameters.Geometry
  • QueryParameters.SpatialRelationship
  • QueryParameters.WhereClause

About the data

See the Medicare Hospital Spending per Patient, 2016 layer on ArcGIS Online.

Hospitals in blue/turquoise spend less than the national average. Red/salmon indicates higher spending relative to other hospitals, while gray is average.

Tags

count, feature layer, feature table, features, filter, number, query

Sample Code

QueryFeatureCountAndExtent.xaml.csQueryFeatureCountAndExtent.xaml.csQueryFeatureCountAndExtent.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Geometry;
using Esri.ArcGISRuntime.Mapping;
using Microsoft.UI.Xaml;
using System;
using System.Collections.Generic;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.QueryFeatureCountAndExtent
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Query feature count and extent",
        category: "Analysis",
        description: "Zoom to features matching a query and count the features in the current visible extent.",
        instructions: "Use the picker to zoom to the extent of the state specified. Use the button to count the features in the current extent.",
        tags: new[] { "count", "feature layer", "feature table", "features", "filter", "number", "query" })]
    public partial class QueryFeatureCountAndExtent
    {
        // URL to the feature service.
        private readonly Uri _medicareHospitalSpendLayer =
            new Uri("https://services1.arcgis.com/4yjifSiIG17X0gW4/arcgis/rest/services/Medicare_Hospital_Spending_per_Patient/FeatureServer/0");

        // Key is for ComboBox and value is for query.
        private readonly Dictionary<string, string> _states = new Dictionary<string, string>()
        {
            {"Alabama","AL"}, {"Alaska","AK"}, {"Arizona","AZ"}, {"Arkansas","AR"}, {"California","CA"}, {"Colorado","CO"},
            {"Connecticut","CT"}, {"Delaware","DE"}, {"District of Columbia","DC"}, {"Florida","FL"}, {"Georgia","GA"}, {"Hawaii","HI"}, {"Idaho","ID"},
            {"Illinois","IL"}, {"Indiana","IN"}, {"Iowa","IA"}, {"Kansas","KS"}, {"Kentucky","KY"}, {"Louisiana","LA"}, {"Maine","ME"},
            {"Maryland","MD"}, {"Massachusetts","MA"}, {"Michigan","MI"}, {"Minnesota","MN"}, {"Mississippi","MS"}, {"Missouri","MO"},
            {"Montana","MT"}, {"Nebraska","NE"}, {"Nevada","NV"}, {"New Hampshire","NH"}, {"New Jersey","NJ"}, {"New Mexico","NM"},
            {"New York","NY"}, {"North Carolina","NC"}, {"North Dakota","ND"}, {"Ohio","OH"}, {"Oklahoma","OK"}, {"Oregon","OR"},
            {"Pennsylvania","PA"}, {"Rhode Island","RI"}, {"South Carolina","SC"}, {"South Dakota","SD"}, {"Tennessee","TN"}, {"Texas","TX"},
            {"Utah","UT"}, {"Vermont","VT"}, {"Virginia","VA"}, {"Washington","WA"}, {"West Virginia","WV"}, {"Wisconsin","WI"},
            {"Wyoming","WY"}
        };

        // Feature table to query.
        private ServiceFeatureTable _featureTable;

        public QueryFeatureCountAndExtent()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Populate the ComboBox with states.
            StatesComboBox.ItemsSource = _states.Keys;

            // Create the map with a basemap.
            Map myMap = new Map(BasemapStyle.ArcGISDarkGray);

            // Create the feature table from the service URL.
            _featureTable = new ServiceFeatureTable(_medicareHospitalSpendLayer);

            // Create the feature layer from the table.
            FeatureLayer myFeatureLayer = new FeatureLayer(_featureTable);

            // Add the feature layer to the map.
            myMap.OperationalLayers.Add(myFeatureLayer);

            try
            {
                // Wait for the feature layer and spatial reference to load.
                await myFeatureLayer.LoadAsync();
                await myMap.LoadAsync();

                // Set the map initial extent to the US.
                myMap.InitialViewpoint = new Viewpoint(new MapPoint(-10900000, 4900000, SpatialReferences.WebMercator), 25000000);

                // Add the map to the MapView.
                MyMapView.Map = myMap;
            }
            catch (Exception e)
            {
                await new MessageDialog2(e.ToString(), "Error").ShowAsync();
            }
        }

        private async void StatesComboBox_SelectionChanged(object sender, RoutedEventArgs e)
        {
            // Get the abbreviation of the selected state to match the dataset's State field.
            string stateAbbreviation = _states[StatesComboBox.SelectedItem.ToString()];

            // Create the query parameters.
            QueryParameters queryStates = new QueryParameters() { WhereClause = $"State LIKE '%{stateAbbreviation}%'" };

            try
            {
                // Get the extent from the query.
                Envelope resultExtent = await _featureTable.QueryExtentAsync(queryStates);

                // Create a viewpoint from the extent.
                Viewpoint resultViewpoint = new Viewpoint(resultExtent);

                // Zoom to the viewpoint.
                await MyMapView.SetViewpointAsync(resultViewpoint);

                // Update the UI.
                Results.Text = $"Zoomed to features in {StatesComboBox.SelectedItem}";
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.ToString(), "Error").ShowAsync();
            }
        }

        private async void CountFeaturesButton_Click(object sender, RoutedEventArgs e)
        {
            // Get the current visible extent.
            Geometry currentExtent = MyMapView.GetCurrentViewpoint(ViewpointType.BoundingGeometry).TargetGeometry;

            // Create the query parameters.
            QueryParameters queryCityCount = new QueryParameters
            {
                Geometry = currentExtent,
                // Specify the interpretation of the Geometry query parameters.
                SpatialRelationship = SpatialRelationship.Intersects
            };

            try
            {
                // Get the count of matching features.
                long count = await _featureTable.QueryFeatureCountAsync(queryCityCount);

                // Update the UI.
                Results.Text = $"{count} features in extent";
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.ToString(), "Error").ShowAsync();
            }
        }
    }
}
