Raster layer (file)

View inWPFWinUIMAUIUWPView on GitHub

Create and use a raster layer made from a local raster file.

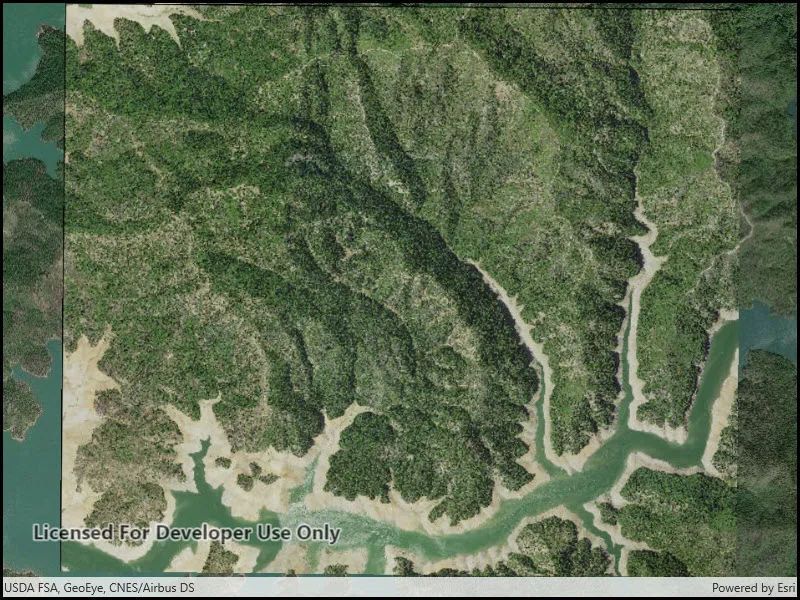

Image of raster layer file

Use case

Rasters can be digital aerial photographs, imagery from satellites, digital pictures, or even scanned maps. An end-user will frequently need to import raster files acquired through various data-collection methods into their map to view and analyze the data.

How to use the sample

When the sample starts, a raster will be loaded from a file and displayed in the map view.

How it works

  1. Create a Raster from a raster file.
  2. Create a RasterLayer from the raster.
  3. Add it as an operational layer with Map.OperationalLayers.Add(layer).

Relevant API

  • Raster
  • RasterLayer

Offline data

This sample downloads the following items from ArcGIS Online automatically:

Additional information

See the topic What is raster data? in the ArcMap documentation for more information about raster images.

Tags

data, image, import, layer, raster, visualization

Sample Code

RasterLayerFile.xaml.csRasterLayerFile.xaml.csRasterLayerFile.xaml
Use dark colors for code blocksCopy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using ArcGIS.Samples.Managers;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Rasters;
using System;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.RasterLayerFile
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Raster layer (file)",
        category: "Layers",
        description: "Create and use a raster layer made from a local raster file.",
        instructions: "When the sample starts, a raster will be loaded from a file and displayed in the map view.",
        tags: new[] { "data", "image", "import", "layer", "raster", "visualization" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData("7c4c679ab06a4df19dc497f577f111bd")]
    public partial class RasterLayerFile
    {
        public RasterLayerFile()
        {
            InitializeComponent();

            // Call a function to set up the map
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Add an imagery basemap
            Map myMap = new Map(BasemapStyle.ArcGISImageryStandard);

            // Get the file name
            string filepath = GetRasterPath();

            // Load the raster file
            Raster myRasterFile = new Raster(filepath);

            // Create the layer
            RasterLayer myRasterLayer = new RasterLayer(myRasterFile);

            // Add the layer to the map
            myMap.OperationalLayers.Add(myRasterLayer);

            // Add map to the mapview
            MyMapView.Map = myMap;

            try
            {
                // Wait for the layer to load
                await myRasterLayer.LoadAsync();

                // Set the viewpoint
                await MyMapView.SetViewpointGeometryAsync(myRasterLayer.FullExtent);
            }
            catch (Exception e)
            {
                await new MessageDialog2(e.ToString(), "Error").ShowAsync();
            }
        }

        private static string GetRasterPath()
        {
            return DataManager.GetDataFolder("7c4c679ab06a4df19dc497f577f111bd", "raster-file", "Shasta.tif");
        }
    }
}
