Identify WMS features

View inMAUIUWPWPFWinUIView on GitHub

Identify features in a WMS layer and display the associated popup content.

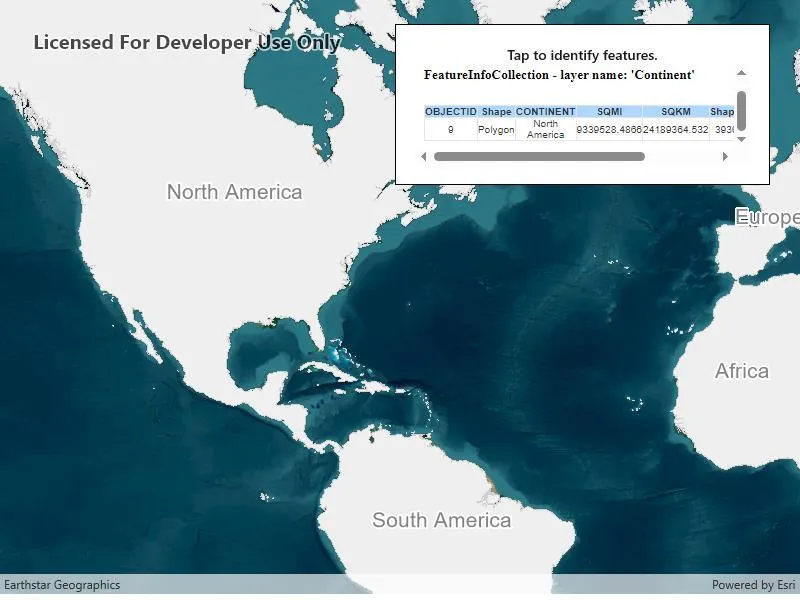

Image of identify WFS features

Use case

Map symbols generally showcase only one or two data points via color or size, but the data can contain many more attributes than what is shown on the map. These additional attributes can be shown in an attribute table or popup for the map viewer to explore interactively. For example, the map might be symbolized to show population density with different shades of a color, but it might contain other interesting attributes to explore in a table, such as median income, educational attainment, and median age.

How to use the sample

Tap a feature to identify it. The HTML content associated with the feature will be displayed in a web view.

How it works

  1. A WMS layer is added via URL and a layer name.
  2. When the map is tapped, MapView.IdentifyLayerAsync is used to find matching results within the WMS layer.
  3. If there is a matching feature, the HTML property is taken via a lookup in the feature's attribute dictionary.
  4. This particular server will produce an identify result with an empty table when there is no identified feature. In all other cases, a table with an OBJECTID column is added. This sample checks for the presence of OBJECTID in the HTML, and doesn't display the result if it is missing.
  5. The HTML is displayed in the web view.

Note: the service returns HTML regardless of whether there was an identify result. The sample uses a simple rule to hide empty results.

Relevant API

  • IdentifyLayerResult
  • IdentifyLayerResult.GeoElements
  • MapView.IdentifyLayerAsync
  • WmsFeature
  • WmsFeature.Attributes
  • WmsLayer

About the data

This sample shows a map of surface water sources in each U.S. state. States with more surface and ground water sources appear darker blue. The attribute table includes counts of surface and ground water sources. This map service is provided by the U.S. EPA.

Tags

callout, identify, OGC, web map service, WMS

Sample Code

WmsIdentify.xaml.csWmsIdentify.xaml.csWmsIdentify.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Ogc;
using Esri.ArcGISRuntime.UI;
using Microsoft.UI.Xaml;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.WmsIdentify
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Identify WMS features",
        category: "Layers",
        description: "Identify features in a WMS layer and display the associated popup content.",
        instructions: "Tap a feature to identify it. The HTML content associated with the feature will be displayed in a web view.",
        tags: new[] { "OGC", "WMS", "callout", "identify", "web map service" })]
    public partial class WmsIdentify
    {
        // Create and hold the URL to the WMS service showing EPA water info.
        private readonly Uri _wmsUrl = new Uri(
            "https://sampleserver6.arcgisonline.com/arcgis/services/SampleWorldCities/MapServer/WMSServer?request=GetCapabilities&service=WMS");

        // Create and hold a list of uniquely-identifying WMS layer names to display.
        private readonly List<string> _wmsLayerNames = new List<string> { "1" };

        // Hold the WMS layer.
        private WmsLayer _wmsLayer;

        public WmsIdentify()
        {
            InitializeComponent();

            // Initialize the sample.
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Apply an imagery basemap to the map.
            MyMapView.Map = new Map(BasemapStyle.ArcGISImageryStandard);

            // Disabling the WrapAroundMode property for the Mapview
            MyMapView.WrapAroundMode = WrapAroundMode.Disabled;

            // Create a new WMS layer displaying the specified layers from the service.
            _wmsLayer = new WmsLayer(_wmsUrl, _wmsLayerNames);

            try
            {
                // Load the layer.
                await _wmsLayer.LoadAsync();

                // Add the layer to the map.
                MyMapView.Map.OperationalLayers.Add(_wmsLayer);

                // Zoom to the layer's extent.
                MyMapView.SetViewpoint(new Viewpoint(_wmsLayer.FullExtent));

                // Subscribe to tap events - starting point for feature identification.
                MyMapView.GeoViewTapped += MyMapView_GeoViewTapped;
            }
            catch (Exception e)
            {
                await new MessageDialog2(e.ToString(), "Error").ShowAsync();
            }
        }

        private async void MyMapView_GeoViewTapped(object sender, Esri.ArcGISRuntime.UI.Controls.GeoViewInputEventArgs e)
        {
            // Clear any existing result.
            ResultWebView.Visibility = Visibility.Collapsed;

            try
            {
                // Perform the identify operation.
                IdentifyLayerResult myIdentifyResult = await MyMapView.IdentifyLayerAsync(_wmsLayer, e.Position, 20, false);

                // Return if there's nothing to show.
                if (!myIdentifyResult.GeoElements.Any())
                {
                    return;
                }

                // Retrieve the identified feature, which is always a WmsFeature for WMS layers.
                WmsFeature identifiedFeature = (WmsFeature)myIdentifyResult.GeoElements[0];

                // Retrieve the WmsFeature's HTML content.
                string htmlContent = identifiedFeature.Attributes["HTML"].ToString();

                // Note that the service returns a boilerplate HTML result if there is no feature found.
                // This test should work for most arcGIS-based WMS services, but results may vary.
                if (!htmlContent.Contains("OBJECTID"))
                {
                    // Return without showing the callout.
                    return;
                }


                await ResultWebView.EnsureCoreWebView2Async();

                // Show the result.
                ResultWebView.NavigateToString(htmlContent);
                ResultWebView.Visibility = Visibility.Visible;
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.ToString(), "Error").ShowAsync();
            }
        }
    }
}
