Take screenshot

View inMAUIWPFWinUIUWPView on GitHub

Take a screenshot of the map.

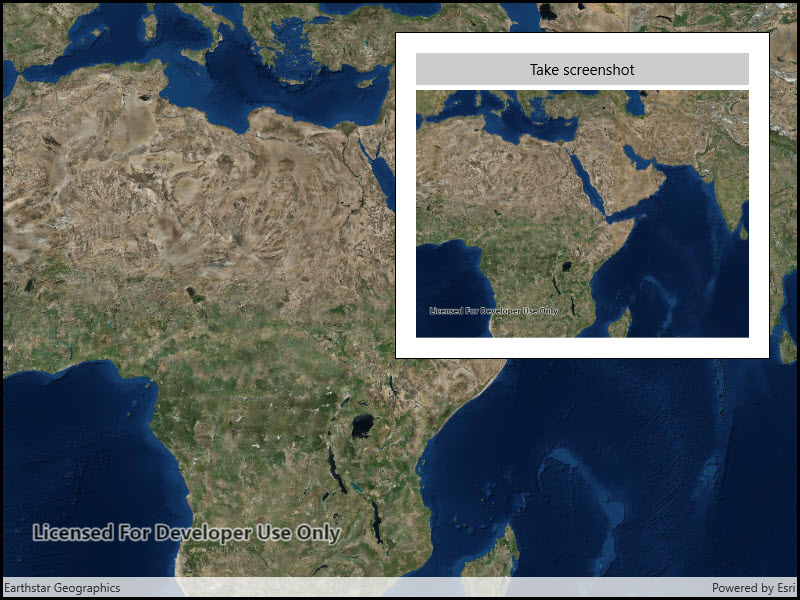

Image of take screenshot

Use case

GIS users may want to export a screenshot of a map to enable sharing as an image or printing.

How to use the sample

Pan and zoom to find an interesting location, then use the button to take a screenshot. The screenshot will be displayed. Note that there may be a small delay if the map is still rendering when you push the button.

How it works

  1. Wait for the MapView to finish rendering the Map.
  2. Call mapView.ExportImageAsync() to get the RuntimeImage, which is a bitmap image.
  3. Use the RuntimeImage.ToImageSourceAsync extension method to get a copy of the image that is compatible with native image display controls.

Relevant API

  • GeoView.DrawStatus
  • GeoView.DrawStatusChanged
  • GeoView.ExportImageAsync
  • RuntimeImage
  • RuntimeImage.ToImageSourceAsync

Tags

capture, export, image, print, screen capture, screenshot, share, shot

Sample Code

TakeScreenshot.xaml.csTakeScreenshot.xaml.csTakeScreenshot.xaml
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.UI;
using Esri.ArcGISRuntime.UI.Controls;
using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Media;
using System;
using System.Threading;
using System.Threading.Tasks;

namespace ArcGIS.WinUI.Samples.TakeScreenshot
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Take screenshot",
        category: "MapView",
        description: "Take a screenshot of the map.",
        instructions: "Pan and zoom to find an interesting location, then use the button to take a screenshot. The screenshot will be displayed. Note that there may be a small delay if the map is still rendering when you push the button.",
        tags: new[] { "capture", "export", "image", "print", "screen capture", "screenshot", "share", "shot" })]
    public partial class TakeScreenshot
    {
        public TakeScreenshot()
        {
            InitializeComponent();
            Initialize();
        }

        private void Initialize()
        {
            // Show an imagery basemap.
            MyMapView.Map = new Map(BasemapStyle.ArcGISImageryStandard);
        }

        private async void OnTakeScreenshotButtonClicked(object sender, RoutedEventArgs e)
        {
            try
            {
                // Wait for rendering to finish before taking the screenshot.
                await WaitForRenderCompleteAsync(MyMapView);

                // Export the image from the map view.
                RuntimeImage image = await MyMapView.ExportImageAsync();

                // Convert the image to a displayable format.
                ImageSource exportedImage = await image.ToImageSourceAsync();

                // Set the screenshot view to the new exported image.
                ScreenshotView.Source = exportedImage;

                // Make the screenshot view visible in the UI.
                ScreenshotView.Visibility = Visibility.Visible;
            }
            catch (Exception ex)
            {
                await new MessageDialog2(ex.ToString(), "Error").ShowAsync();
            }
        }

        private static Task WaitForRenderCompleteAsync(MapView mapview)
        {
            // The task completion source manages the task, including marking it as finished when the time comes.
            TaskCompletionSource<object> tcs = new TaskCompletionSource<object>();

            // If the map is currently finished drawing, set the result immediately.
            if (mapview.DrawStatus == DrawStatus.Completed)
            {
                tcs.SetResult(null);
            }
            // Otherwise, configure a callback and a timeout to either set the result when
            // the map is finished drawing or set the result after 2000 ms.
            else
            {
                // Define a cancellation token source for 2000 ms.
                const int timeoutMs = 2000;
                var ct = new CancellationTokenSource(timeoutMs);

                // Register the callback that sets the task result after 2000 ms.
                ct.Token.Register(() =>
                    tcs.TrySetResult(null), false);

                // Define a local function that will set the task result and unregister itself when the map finishes drawing.
                void DrawCompleteHandler(object s, DrawStatusChangedEventArgs e)
                {
                    if (e.Status == DrawStatus.Completed)
                    {
                        mapview.DrawStatusChanged -= DrawCompleteHandler;
                        tcs.TrySetResult(null);
                    }
                }

                // Register the draw complete event handler.
                mapview.DrawStatusChanged += DrawCompleteHandler;
            }

            // Return the task.
            return tcs.Task;
        }
    }
}
